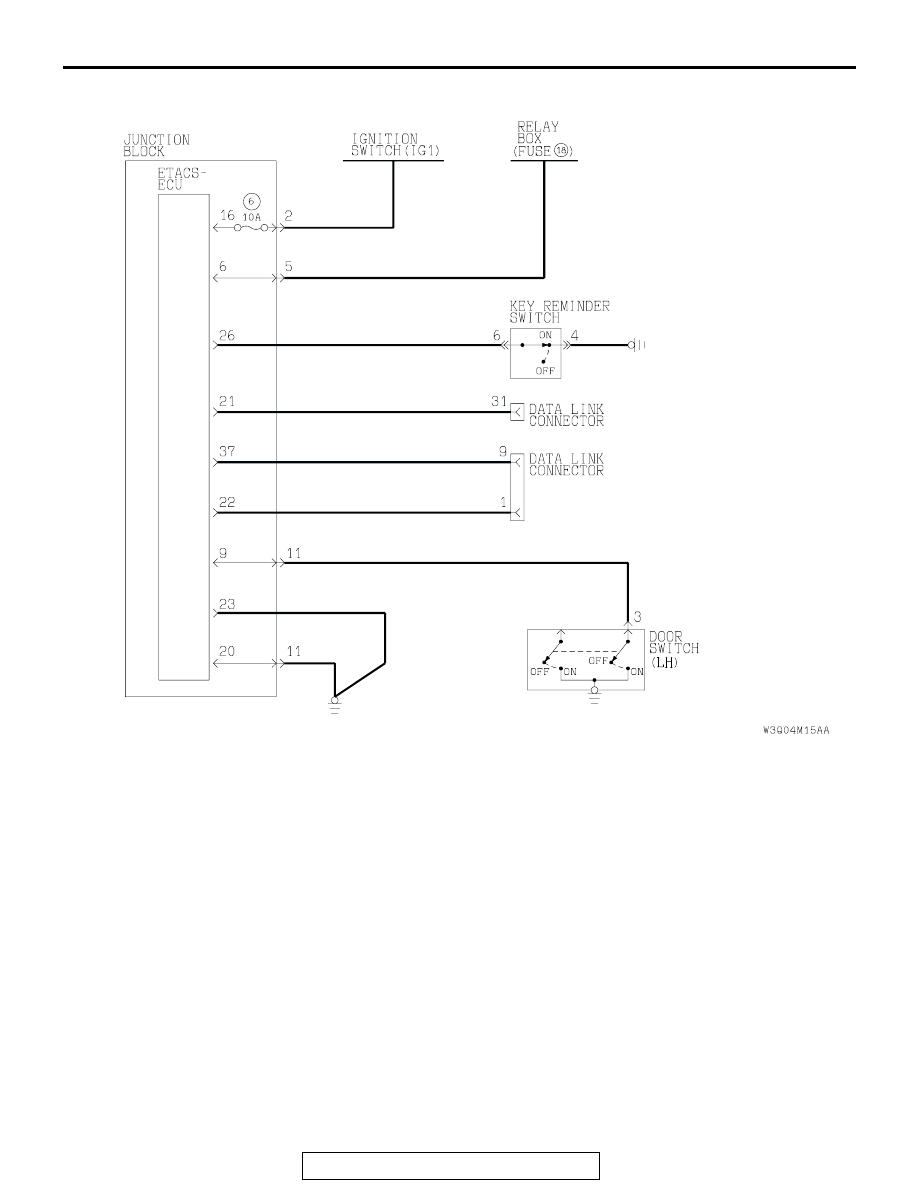

Ignition key reminder tone alarm function
When the driver’s door is opened with the ignition key inserted
in the ignition key cylinder (ignition switch is in the OFF posi-
tion) the tone alarm sounds intermittently (horning sound) to
indicate that the ignition key has not been removed.

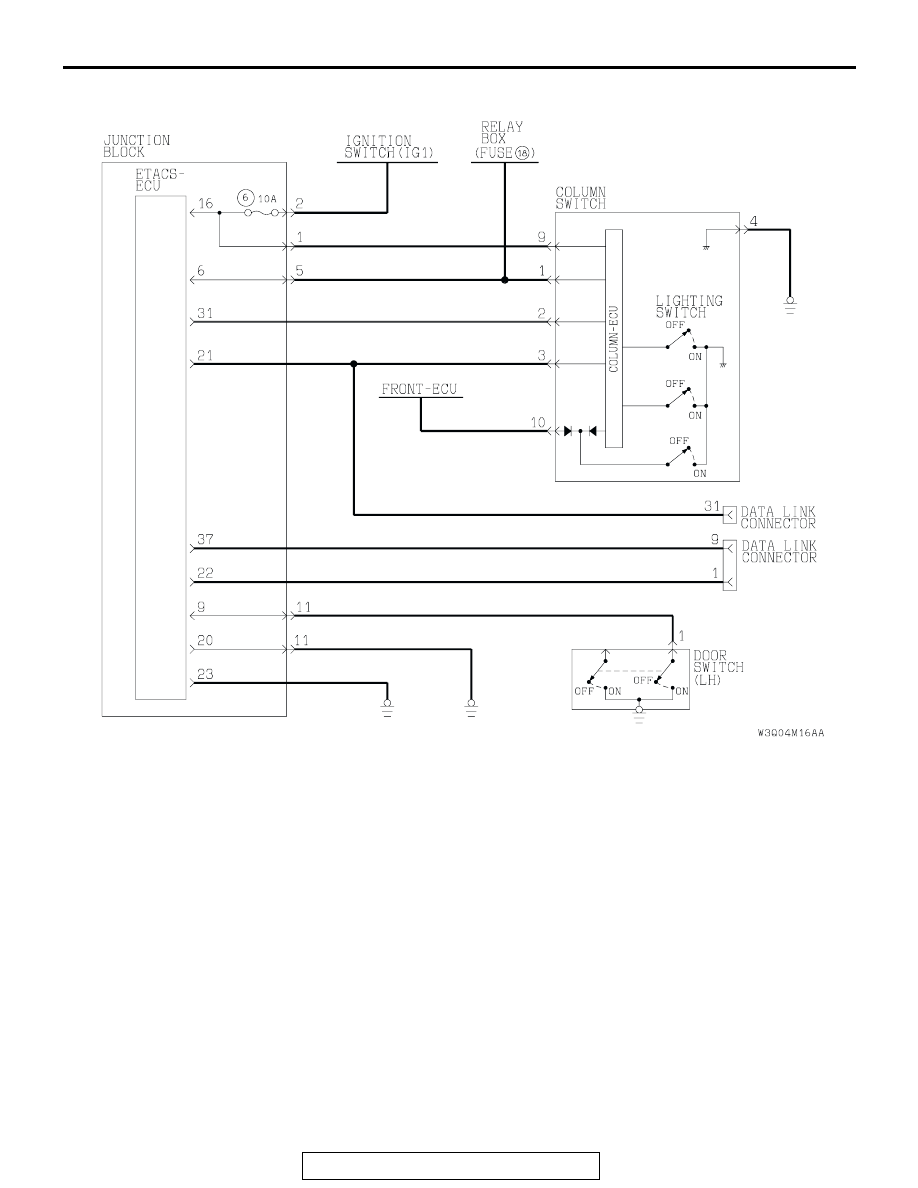

Light reminder tone alarm function
When the taillight or headlight is ON, if the ignition key is
removed and the driver's door is opened, a tone alarm will
sound continuously to warn that the light is illuminated. How-
ever, if the taillight or headlight has been turned off by the
headlight automatic-shutdown function, the tone alarm will not
sound.
Seat belt tone alarm function
When the ignition switch is turned to ON position
without fastening the driver’s seat belt (driver’s seat
belt switch off), the tone alarm will sound for approxi-
mately six seconds to warn the driver to fasten the
seat belt. When the driver’s seat belt are fastened or
ignition switch is turned to OFF position, the tone
alarm will stop sounding.

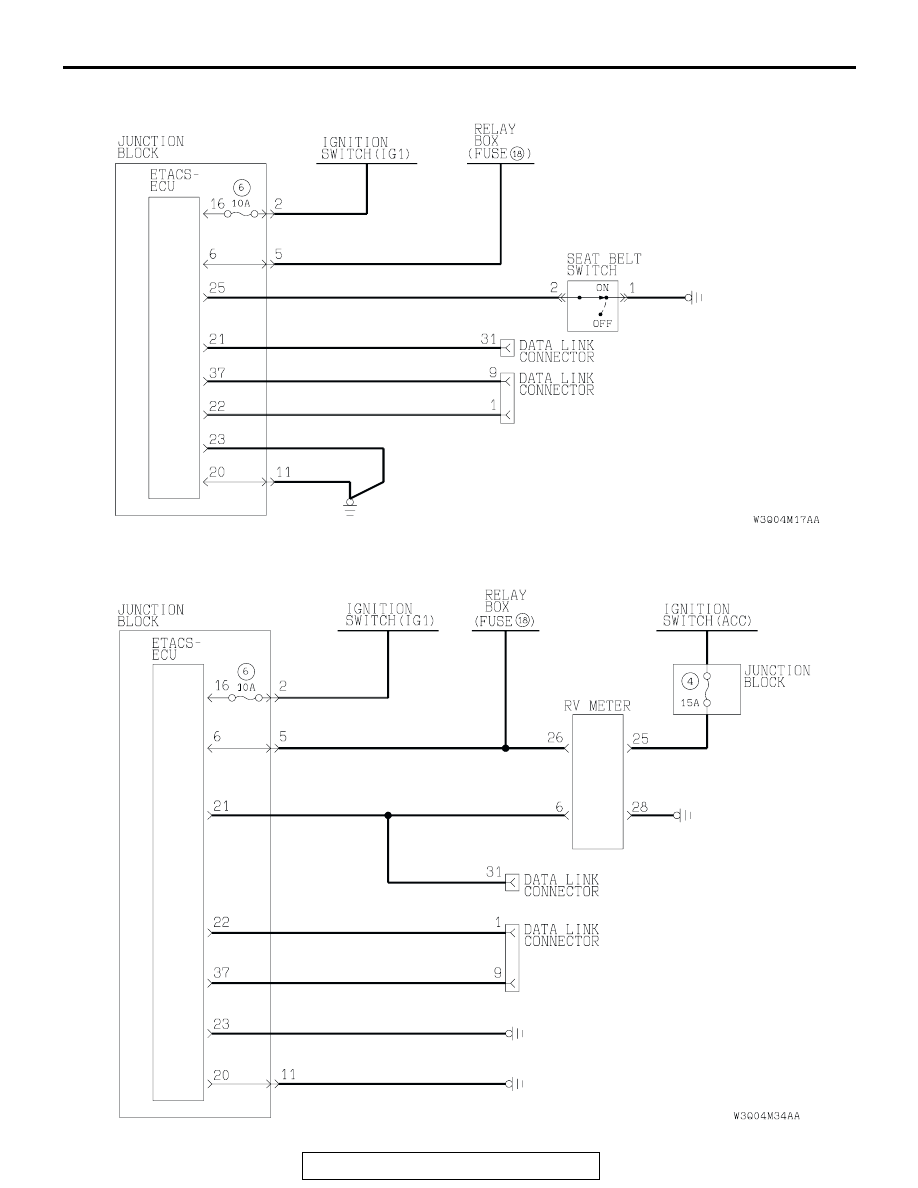

RV meter operating sound function
When tone alarm sounding is requested from the RV
meter, the ETACS-ECU activates the built-in tone
alarm. The RV meter will "beep" when adjusting the
brightness level, only with the ignition key in the
"ACC" position.

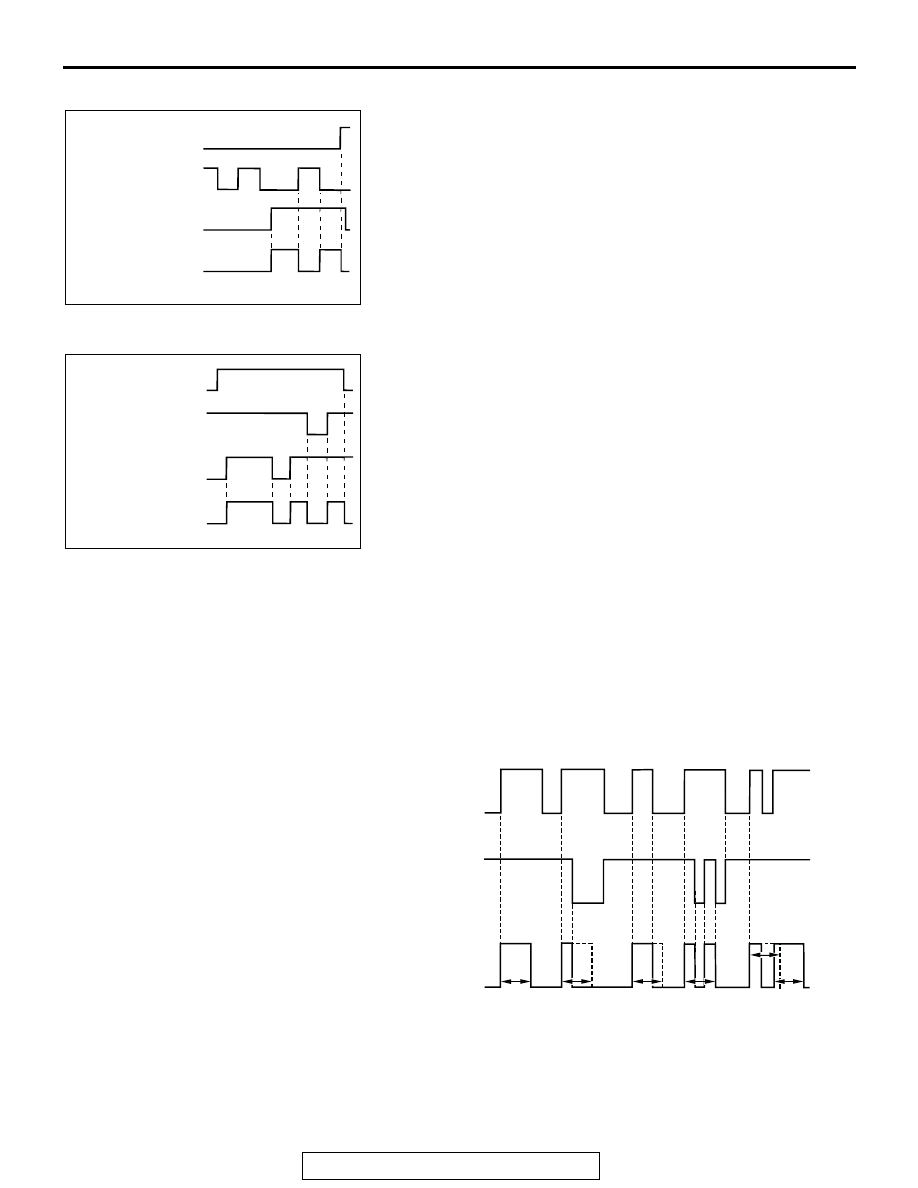

AC005427AB
ON
OFF
ON
(Key removed)
OFF
(Key inserted)
ON (Open)
OFF (Closed)
ON (Tone alarm
sounds)
OFF (Tone alarm
does not sound)
Ignition switch
(IG1)
Key
reminder
switch
Driver's
door
switch
Ignition key
inserted
reminder
tone alarm
output
AC005428
AB
ON
OFF
ON
(Key removed)
OFF
(Key inserted)
ON (Open)
OFF (Closed)
ON (Tone alarn
sounds)
OFF (Tone alarm
does not sound)
Tail light or
headlight
Key
reminder
switch
Driver's
door
switch
Light
reminder
tone
alarm output
AC101569AB
ON
OFF
ON (Unfastened)
OFF (Fastened)
ON (Tone alarm sounds)
OFF (Tone alarm does
not sound)
Ignition switch (IG1)
Seat belt switch
Seat belt tone alarm output
t
t
t
t
t
t: 6 seconds
t
