Mitsubishi Montero (2002-2004). Manual - part 193





MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-41

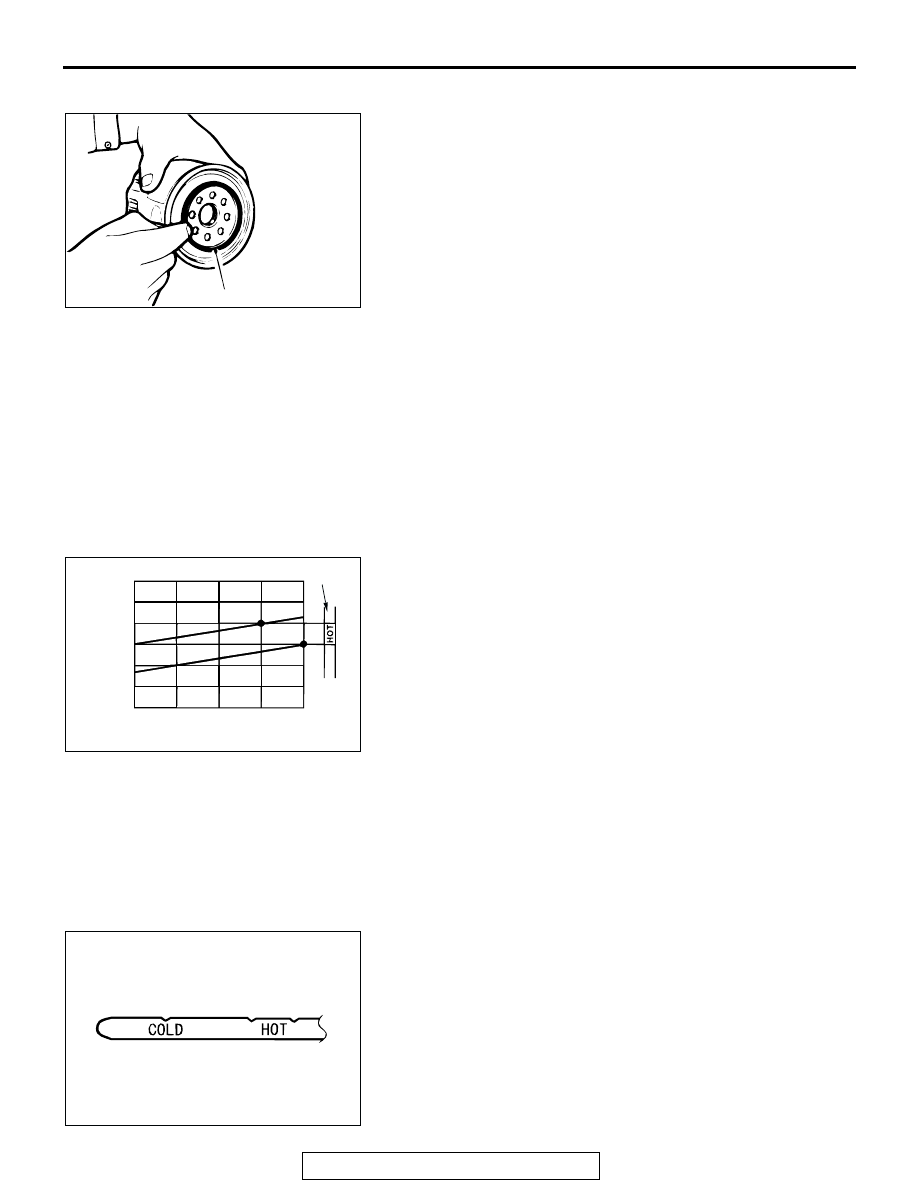

ENGINE OIL FILTER SELECTION

This vehicle is equipped with a full-flow, throw-away oil filter.
The same type of filter is recommended as a replacement filter
for this vehicle. It is possible, particularly in cold weather, that
this vehicle may develop high oil pressure for a short duration.
Make sure that any replacement filter used on this vehicle is a
high-quality filter. The filter can withstand a pressure of 1,765
kPa (256 psi) [manufacturer's specifications] to avoid the filter
and engine damage. The following is a high-quality filter and is
strongly recommended for use on this vehicle: Mitsubishi
Engine Oil Filter Part number MD352626.
Any replacement oil filter should be installed in accordance with
the oil filter manufacturer's installation instructions.
1. Remove the under cover.
2. Drain the engine oil by removing the oil drain plug.
3. Use an oil filter wrench to remove the engine oil filter.
4. Clean the contact surface of the filter bracket.
5. Lubricate the O-ring of the new oil filter with a small amount

of new engine oil.

11. AUTOMATIC TRANSMISSION FLUID (CHECK
FLUID LEVEL)

M1001002900275

1. Drive the vehicle until the fluid temperature rises to the

normal temperature [70

− 80°C (158 − 176°F)].

If it takes some amount of time until the transmission fluid
reaches its normal operating temperature [70

− 80°C (158 −

176

°F)], check the transmission fluid level by referring to the

diagram at left.
NOTE: The transmission fluid temperature is measured with
scan tool MB991502.

2. Park the vehicle on a level surface.
3. Move the selector lever through all positions to fill the torque

converter and the hydraulic circuits with fluid, and then move
the selector lever to the "N" position.

4. After wiping off any dirt from around the dipstick, remove the

dipstick and check the condition of the fluid.
NOTE: If the fluid smells as if it is burnt, it means that the
fluid has been contaminated by fine particles from the bush-
ings and friction materials, a transmission overhaul and
flashing the cooler line flushing may be necessary.

5. Check that the fluid level is at the "HOT" mark on the

dipstick. If the fluid level is lower than this, pour in more
MITSUBISHI GENUINE ATF SP-III or equivalent until the
level reaches the "HOT" mark.
NOTE: If the fluid level is too low, the oil pump will draw in
air along with the fluid, which will cause bubbles to form.
This will in turn cause the hydraulic pressure to drop, which
will result in late shifting and slipping of the clutches and
brakes.

ACX00893 AB

O-RING

ACX02008AB

FLUID LEVEL [mm (in)]

10 (0.4)

0 (0)

–10 (–0.4)

–20 (–0.8)

20 (0.8)

–30 (–1.2)

–40 (–1.6)

40
(104)

60
(140)

80
(176)

FLUID TEMPERATURE [˚C (˚F)]

DIPSTICK

AC000846 AB

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-42

If the fluid level is too high, the gear makes bubbles in trans-
mission fluid. Same phenomena will occur when the trans-
mission fluid volume is little.
In either case, air bubbles can interfere with normal valve,
clutch, and brake operation. Foaming can cause fluid to
escape from the transmission vent, in which case it may be
mistaken for a leak.

6. Securely insert the dipstick.

NOTE: The fluid and filter should always be replaced when:

.

When trouble shooting the transmission

When overhauling the transmission

When the oil is noticeably dirty or burnt (vehicle was
driven under severe conditions)

Further more, the oil filters are special filters which are only
to be used for the automatic transmission.

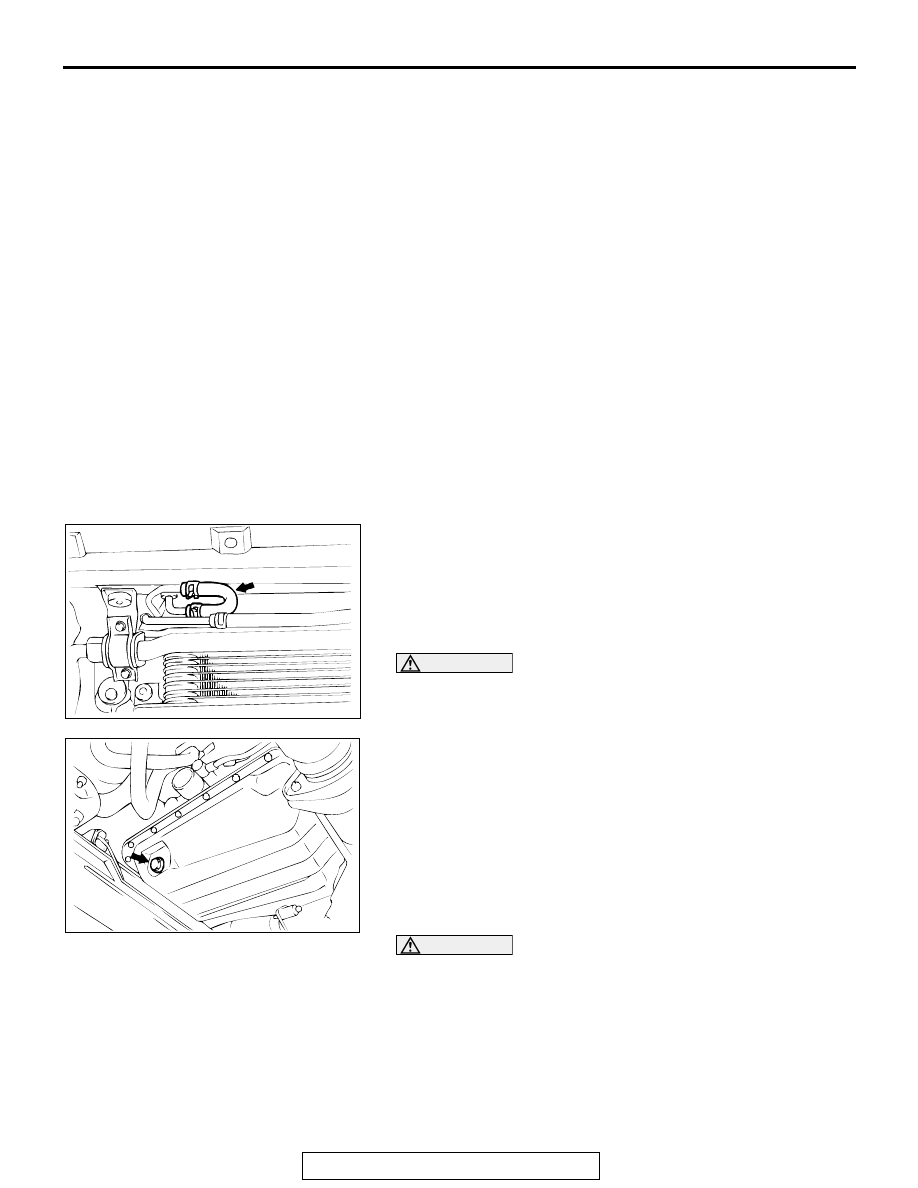

12. AUTOMATIC TRANSMISSION FLUID
(CHANGE)

M1001006900136

If you have a fluid changer, replace the fluid by the following
procedure.
1. Disconnect the hose shown in the illustration which

connects the transmission and the oil cooler (inside the
radiator). Place a container under the hose to collect the
transmission fluid.

2. Start the engine and let the fluid drain out.

Running conditions: "N" range with engine idling

CAUTION

The engine should be stopped within one minute after it is
started. If the fluid has all drained out before then, the
engine should be stopped at that point.
3. Remove the drain plug from the bottom of the transmission

case to drain the fluid.

Discharge volume: Approximately 2.0 dm

3

 (2.1 quarts)

4. Install the drain plug with a new gasket, and tighten it to the

specified torque.

Tightening torque: 32

± 2 Nm (24 ± 1 ft-lb)

5. Pour new transmission fluid in through the oil filler tube.

Adding volume: Approximately 6.0 dm

3

 (6.3 quarts)

CAUTION

Stop pouring if the full volume of fluid cannot be poured in.
6. Repeat the procedure in Step 2. (to pump out the rest of the

contaminated fluid)

7. Pour the transmission fluid in through the oil filler tube.

NOTE:  Check the fluid for contamination or burnt smell. If
fluid is still contaminated or burnt, repeat Steps 7 and 8
before proceeding to Step 8.

ACX01184

AB

ACX01185AB

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-43

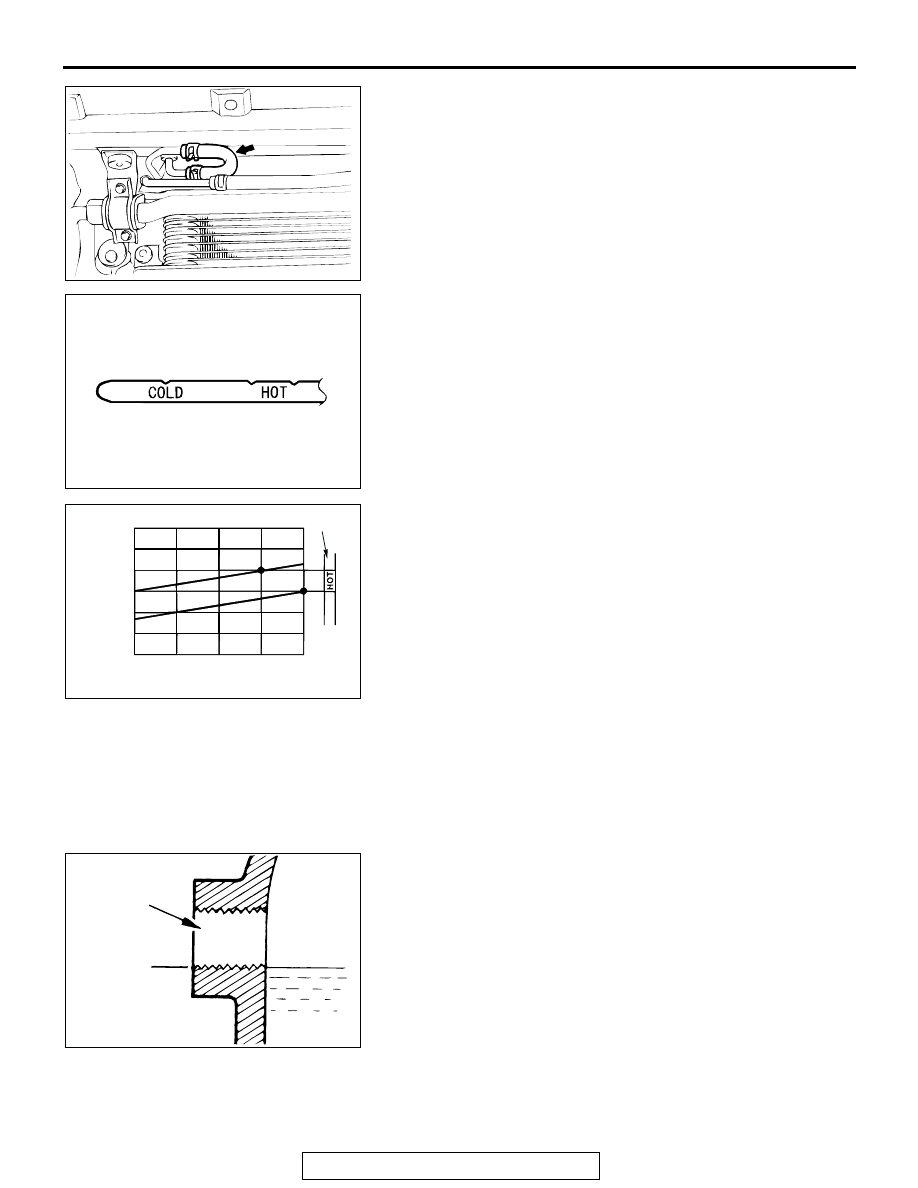

8. Reconnect the hose which was disconnected in step 1

above, and firmly replace the dipstick.

9. Start the engine and run it at idle for 1

− 2 minutes.

10. Move the selector lever through all positions, and then

move it to the "N" position.

11.Check that the fluid level is at the "COLD" mark on the

dipstick. If the level is lower than this, pour in more fluid.

12.Drive the vehicle until the fluid temperature rises to the

normal temperature [70

− 80°C (158 − 176°F)], and then

check the fluid level again. If it takes some amount of time
until the transmission fluid reaches its normal operating
temperature [70

− 80°C (158 − 176°F)], check the

transmission fluid level by referring to the diagram at left.
The transmission fluid level must be at the "HOT" mark.
NOTE: The transmission fluid temperature is measured with
scan tool MB991502. The "COLD" level is for reference
only; the "HOT" level should be regarded as the standard
level.

13. Firmly insert the dipstick into the oil filler tube.

13. TRANSFER OIL (CHECK OIL LEVEL)

M1001003000082

Transfer Oil Check

1. Remove the filler plug.
2. Check that the oil level is up to the lower edge of the filler

plug hole.

3. Check that the oil is not noticeably dirty, and that it has a

suitable viscosity.

4. Tighten the filler plug to the specified torque.

Tightening torque: 32

± 2 Nm (24 ± 1 ft-lb)

ACX01184

AB

AC000846 AB

ACX02008AB

FLUID LEVEL [mm (in)]

10 (0.4)

0 (0)

–10 (–0.4)

–20 (–0.8)

20 (0.8)

–30 (–1.2)

–40 (–1.6)

40
(104)

60
(140)

80
(176)

FLUID TEMPERATURE [˚C (˚F)]

DIPSTICK

ACX00895AB

FILLER
PLUG HOLE

OIL LEVEL

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-44

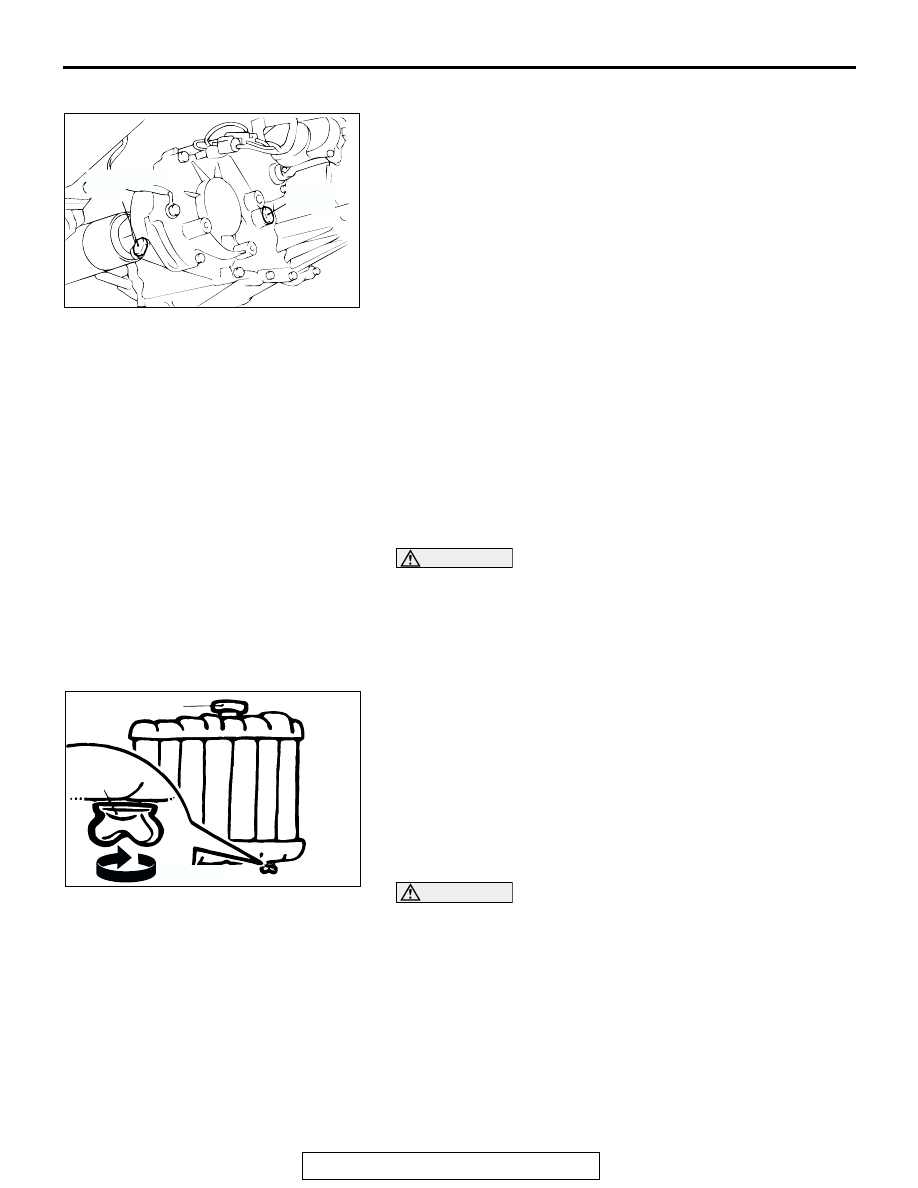

TRANSFER OIL CHANGE

1. Remove the filler plug.
2. Remove the drain plug and drain oil.
3. Tighten the drain plug to the specified torque.

Tightening torque: 32

± 2 Nm (24 ± 1 ft-lb)

4. Add the oil until the level comes to the lower portion of the

filler plug hole.

Specified oil:
Hypoid gear oil SAE 75W-90 or 75W-85W conforming
to API classification GL-4
Quantity: 2.8 dm

3

 (3.0 quarts)

5. Tighten the filler plug to the specified torque.

Tightening torque: 32

± 2 Nm (24 ± 1 ft-lb)

14. ENGINE COOLANT (CHANGE)

M1001003100283

Check the cooling system parts such as the radiator, heater
and oil cooler hoses, thermostat and their connections for leak-
age and damage.

Changing Coolant

1. Set the temperature control knob to the "HOT" position.

CAUTION

When removing the radiator cap, use care to avoid contact
with hot coolant or steam. Place a shop towel over the cap
and turn the cap counterclockwise a little to let the pres-
sure escape through the vinyl tube. After relieving the
steam pressure, remove the cap by slowly turning it coun-
terclockwise.
2. Remove the radiator cap, radiator drain plug and engine

drain plug to drain the coolant.

3. Remove the reserve tank and drain the coolant.
4. After completely draining the coolant, reinstall the drain

plugs and flush the engine and radiator using a radiator
cleaning fluid.

5. After the flushing is completed, completely drain the

cleaning fluid and install the radiator and engine drain plugs.

6. Assemble the reservoir tank.

CAUTION

Do not use alcohol or methanol anti-freeze or any engine
coolants mixed with alcohol or methanol anti-freeze. The
use of an improper anti-freeze can cause the corrosion of
the aluminum components.
7. <Refilling engine coolant without the special tool>

(1) Loosen the air bleed bolt.

ACX01200 AB

OIL DRAIN
PLUG

OIL FILLER
PLUG

ACX00896AB

DRAIN PLUG

RADIATOR CAP

LOOSEN
