PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-21

PRECAUTIONS BEFORE SERVICE

M1001000500312

SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)

1. Items to follow when servicing SRS

(1) Be sure to read GROUP 52B, Supplemental

Restraint System (SRS). For safe operation,
please follow the directions and heed all
warnings.

(2) Wait at least 60 seconds after disconnecting

the battery cable before doing any further
work. The SRS system is designed to retain
enough voltage to deploy the air bag even
after the battery has been disconnected.
Serious injury may result from unintended air
bag deployment if work is done on the SRS
system immediately after the battery cable is
disconnected.

(3) Warning labels must be heeded when

servicing or handling SRS components.
Warning labels can be found in the following
locations.
• Hood
• Front impact sensor, side impact sensor
• Sun visor
• Glove box
• SRS-ECU
• Steering wheel
• Air bag module, side−airbag modules
• Clock spring
• Steering gear box
• Seat belt pre-tensioner

(4) Always use the designated special tools and

test equipment.

(5) Store components removed from the SRS in a

clean and dry place. The air bag module
should be stored on a flat surface and placed
so that the pad surface is facing upward.

(6) Never attempt to disassemble or repair the

SRS components (SRS-ECU, air bag module,
clock spring and seat belt pre-tensioner). If
there is a defect, replace the defective part.

(7) Whenever you finish servicing the SRS, check

the SRS warning light operation to make sure
that the system functions properly.

(8) Be sure to deploy the air bag before disposing

of the air bag module or disposing of a vehicle
equipped with an air bag. (Refer to GROUP
52B, Air Bag Module Disposal Procedures

P.52Ba-48

.)

2. Observe the following when carrying out

operations on places where SRS components are
installed, including operations not directly related
to the SRS air bag.
(1) When removing or installing parts, do not allow

any impact or shock to the SRS components.

(2) If heat damage may occur during paint work,

remove the SRS components. After re-
installing them, check the SRS warning light
operation to make sure that the system
functions properly.
• SRS-ECU, air bag module, clock spring:

93

°C (200°F) or more

• Seat belt pre-tensioner: 90°C (194°F) or

more

SERVICING ELECTRICAL SYSTEM

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

1. Note the following before proceeding with working on the

electrical system.
Never perform unauthorized modifications to any electrical
device or wiring. Such modifications might lead to a vehicle
malfunction, over-capacity or short-circuit that could result in
a fire in the vehicle.

ACX00880AB

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-22

CAUTION

• Before connecting or disconnecting the negative bat-

tery cable, be sure to turn off the ignition switch and
the lights. (If this is not done, there is the possibility of
semiconductor parts being damaged.)

• After completion of the work steps (when the negative

battery terminal is connected), warm up the engine and
allow it to idle for approximately 10 minutes under the
conditions described below in order to stabilize engine
control conditions, and then check to be sure that the
idling is satisfactory.

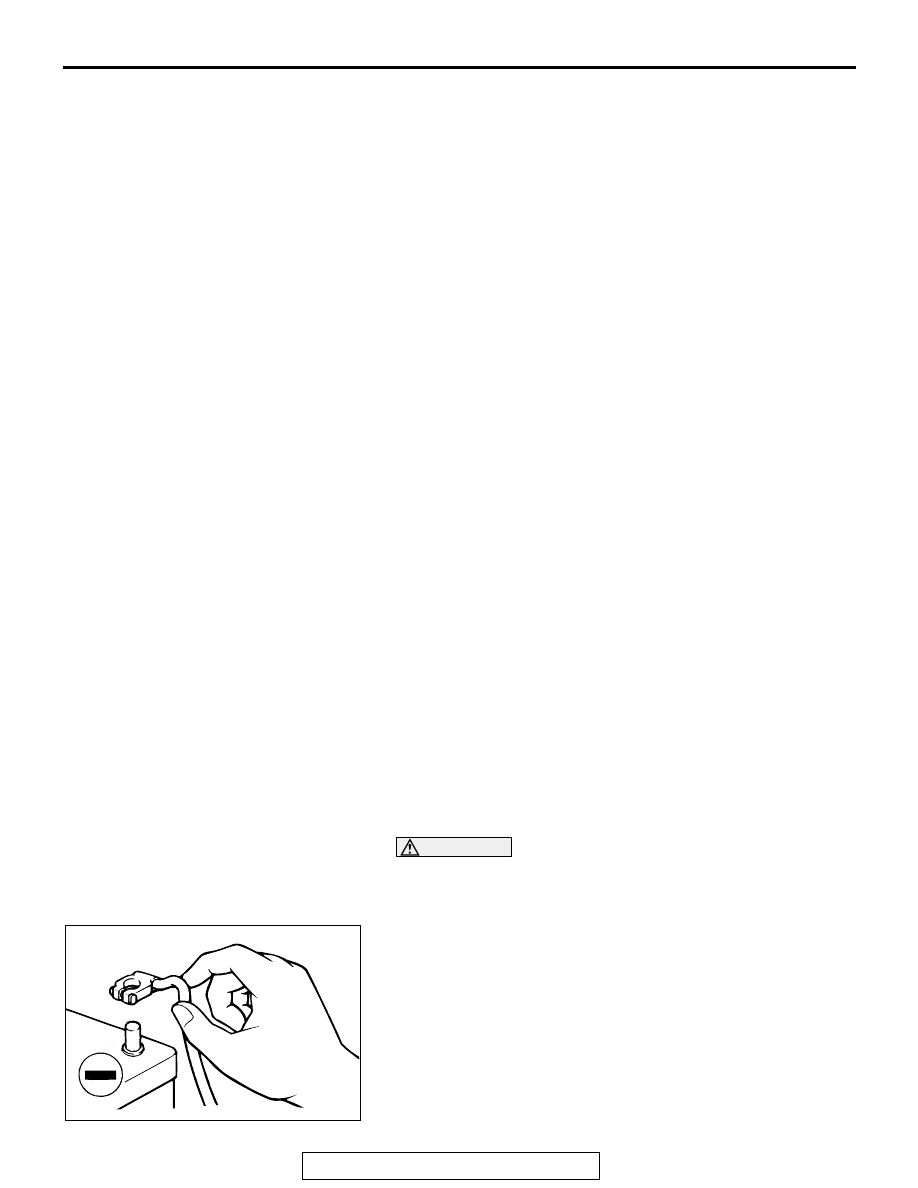

2. When servicing the electrical system, disconnect the

negative cable terminal from the battery.

Engine coolant temperature: 85

°  95°C (185°  203°F)

Lights and all accessories: OFF
Transmission: N or P position
Steering wheel: straight-forward position

VEHICLE WASHING

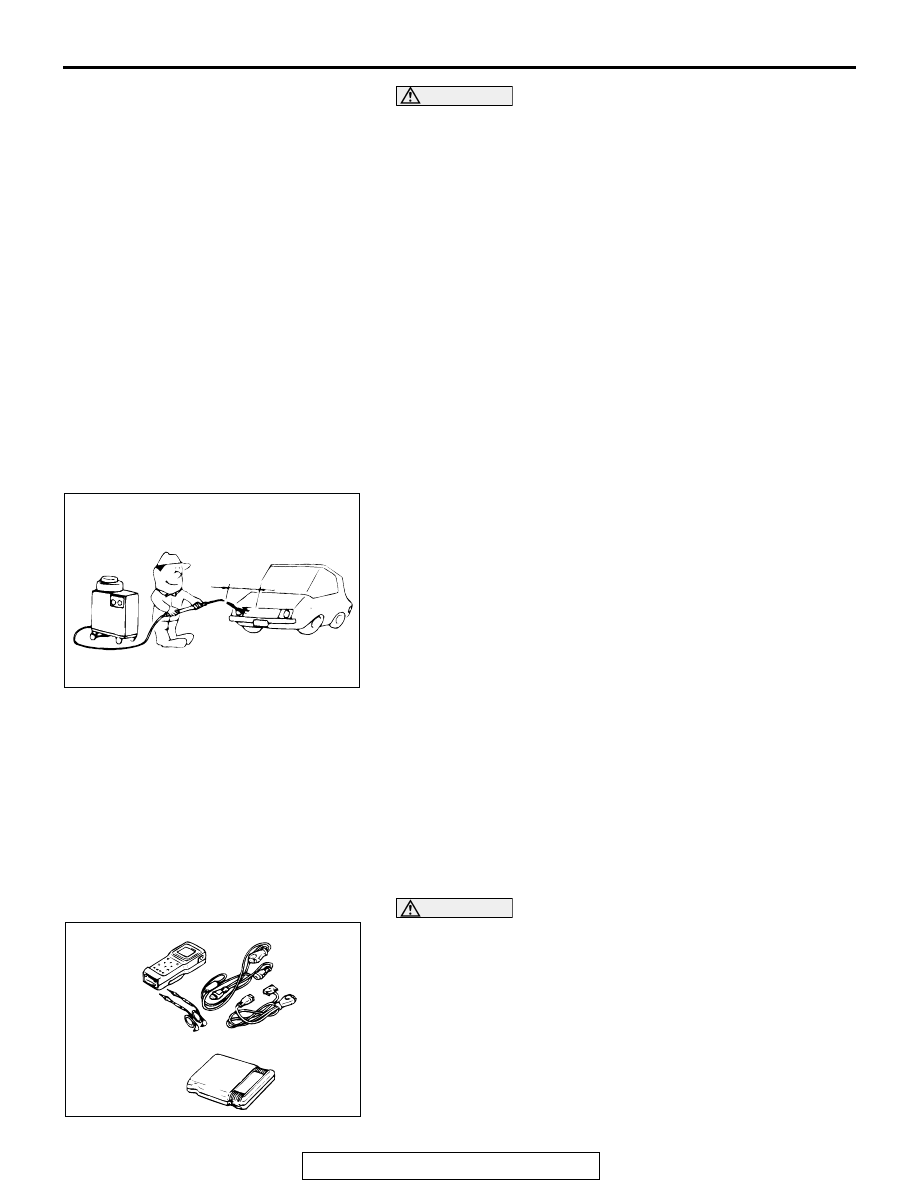

If high-pressure car-washing equipment or steam car-washing
equipment is used to wash the vehicle, be sure to maintain the
spray nozzle at a distance of at least approximately 40cm (16
inches) from any plastic parts and all opening parts (doors, lug-
gage compartment, etc.).

APPLYING ANTI-CORROSION AGENT OR OTHER
UNDERCOAT AGENTS

Be careful not to adhere oil or grease to the heated oxygen
sensor. If adhered, the sensor may malfunction. Protect the
heated oxygen sensor with a cover before applying anti-corro-
sion agent, etc.

SCAN TOOL (MUT-II)

CAUTION

Turn the ignition switch to the "LOCK" (OFF) position
before disconnecting or connecting the scan tool.
To operate the scan tool, refer to "MUT-II/MUT-II + Reference
Manual."

ACX00881AB

APPROXIMATELY
40 cm (16 in)

ACX00882 AB

SCAN TOOL (MUT-II)

ROM PACK

TREATMENT BEFORE/AFTER DRIVING THROUGH WATER

TSB Revision

GENERAL <BODY AND CHASSIS>

00-23

TREATMENT BEFORE/AFTER DRIVING THROUGH WATER

M1001000600074

INSPECTION AND SERVICE BEFORE
DRIVING THROUGH WATER

Vehicles which are driven through water, or which
may possibly be driven through water, should be
subjected to the following inspections and mainte-
nance procedures in advance.

• Inspect the dust boot and breather hose for

cracks or damage, and replace them if cracks or
damage are found.

ACX00850AB

TREATMENT BEFORE/AFTER DRIVING THROUGH WATER

TSB Revision

GENERAL <BODY AND CHASSIS>

00-24

INSPECTION AND SERVICE AFTER
DRIVING THROUGH WATER

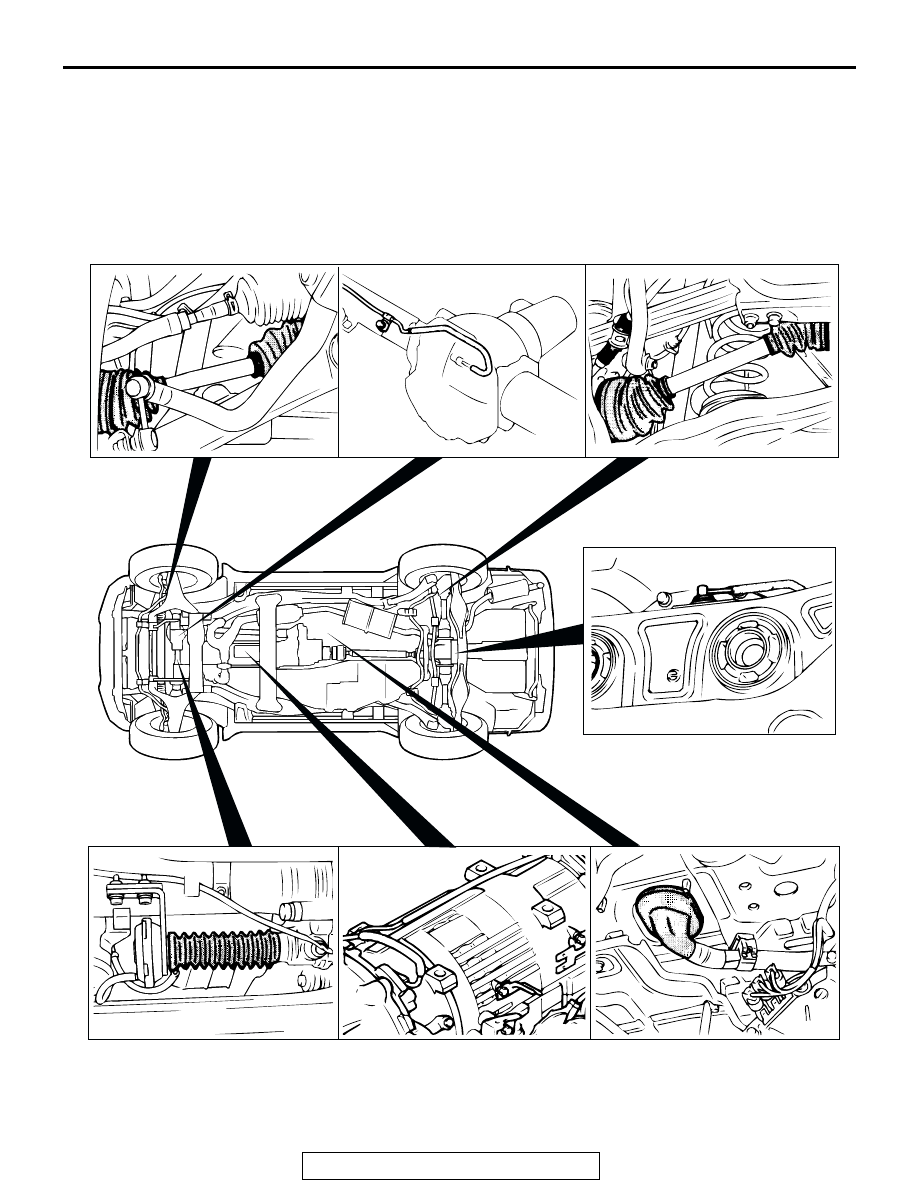

After fording a stream, check the following points. If
abnormal condition is evident, clean, replace or lubri-
cate.

• Check for water, mud, sand, etc. in the rear brake

drum, starter motor, brake pipe and fuel pipe.

• Check for water in the fluid or oil inside the front

differential, rear differential, transmission and
transfer.

• Check all boots and breather hoses for cracks

and damage.

ACX00851 AB

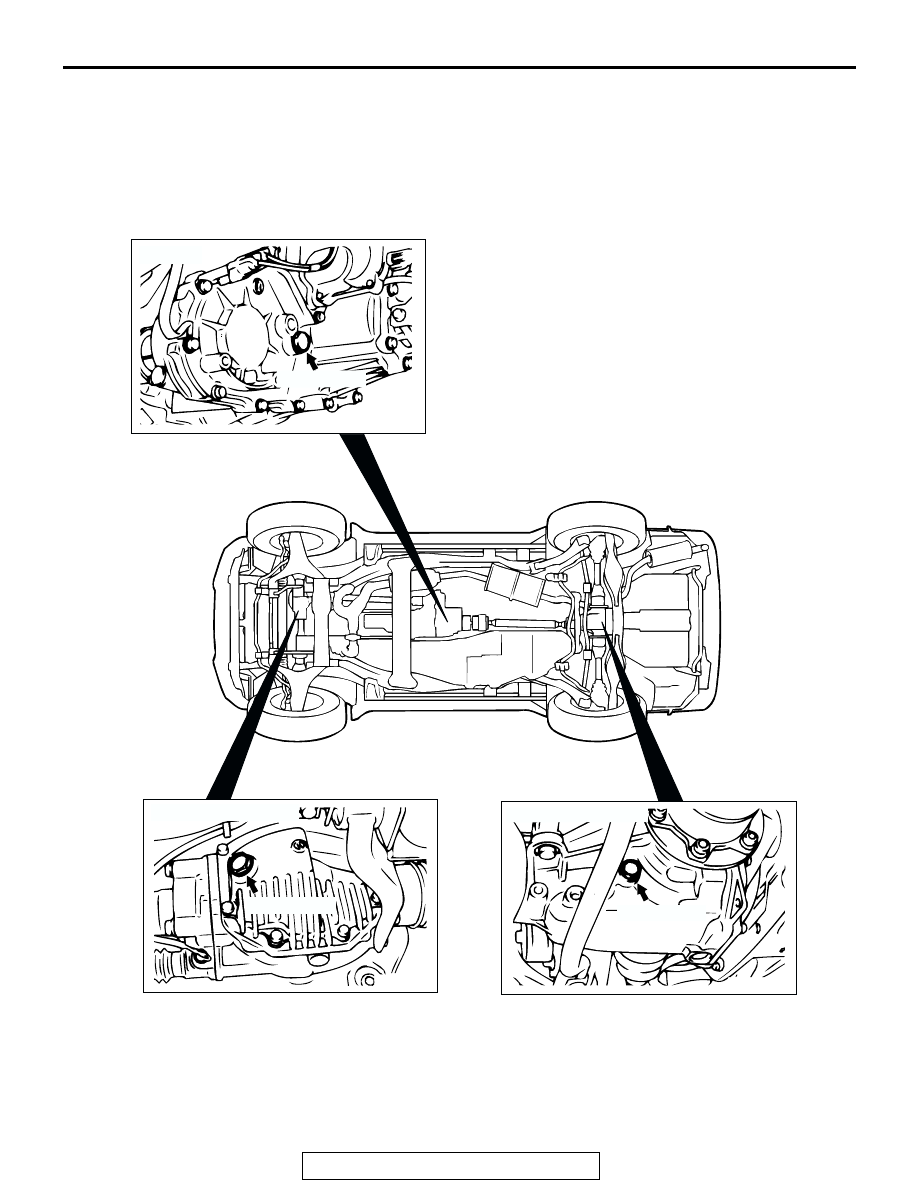

TRANSFER

REAR DIFFERENTIAL

FRONT DIFFERENTIAL

FILLER PLUG

FILLER PLUG

FILLER PLUG
