Mitsubishi Montero (2002-2004). Manual - part 1142





M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-185

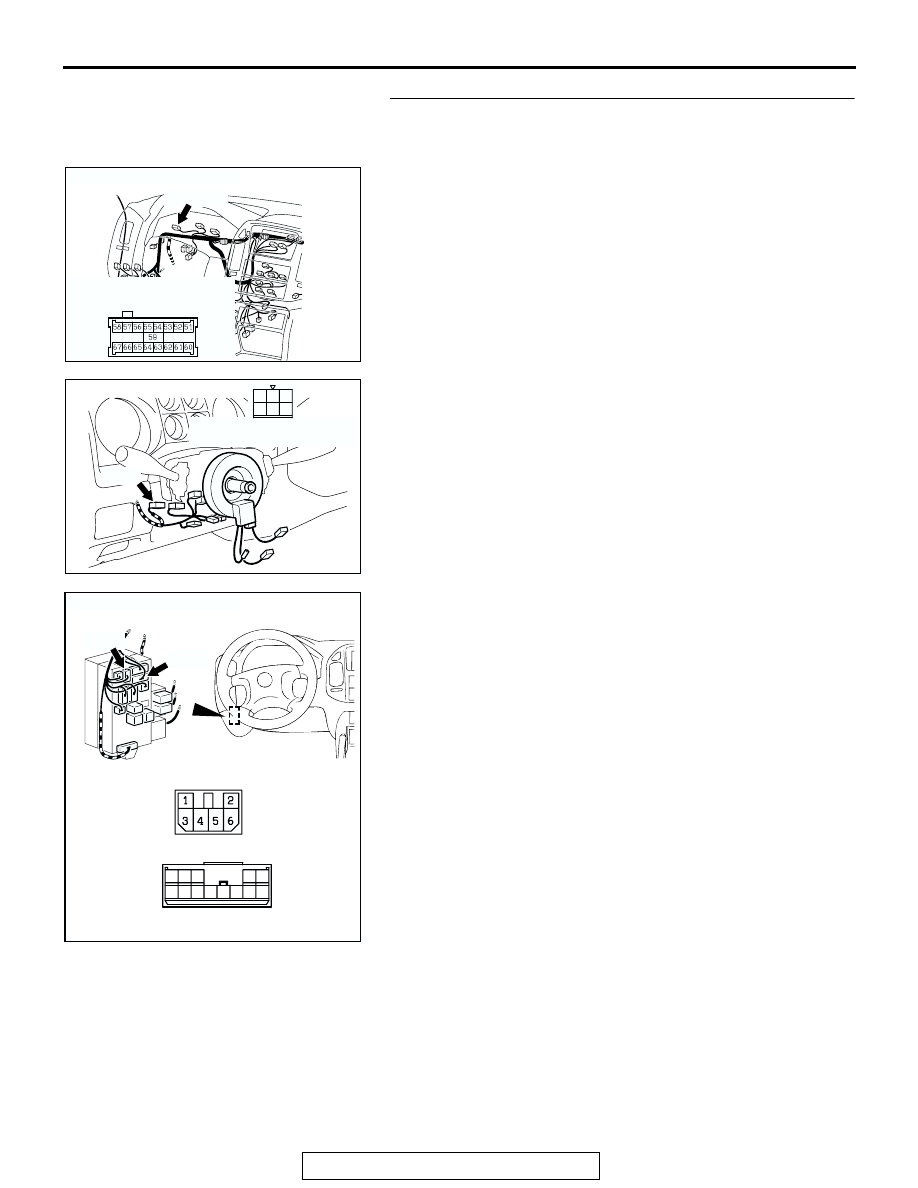

STEP 4. Check the harness wires between ignition switch
(IG1) connector D-204 terminal 2 and combination meter
connector D-03 terminal 62.
NOTE: After inspecting combination meter connector D-03,
ignition switch (IG1) connector D-204, junction block connector
D-208 and D-210, inspect the wire. If combination meter con-
nector D-03, ignition switch (IG1) connector D-204, junction
block connector D-208 and D-210 are damaged, repair or
replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00-6

. Then go to Step 6.

Q: Is the harness wire between ignition switch (IG1)

connector D-204 terminal 2 and combination meter
connector D-03 terminal 62 damaged?
YES :
Go to Step 6.
NO :  Replace the combination meter (printed circuit board)

and go to Step 6.

AC204687AD

CONNECTOR: D-03

D-03 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AC204709

CONNECTOR: D-204

D-204

AD

2
5

6

3

4

1

HARNESS CONNECTOR:

COMPONENT SIDE

AC204624 AG

CONNECTORS: D-208, D-210

D-208

JUNCTION BLOCK
(FRONT VIEW)

JUNCTION BLOCK CONNECTOR

D-208

D-210

D-210

1 2 3

4

12

9

8

7

6

10

5

13

11

JUNCTION BLOCK CONNECTOR

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-186

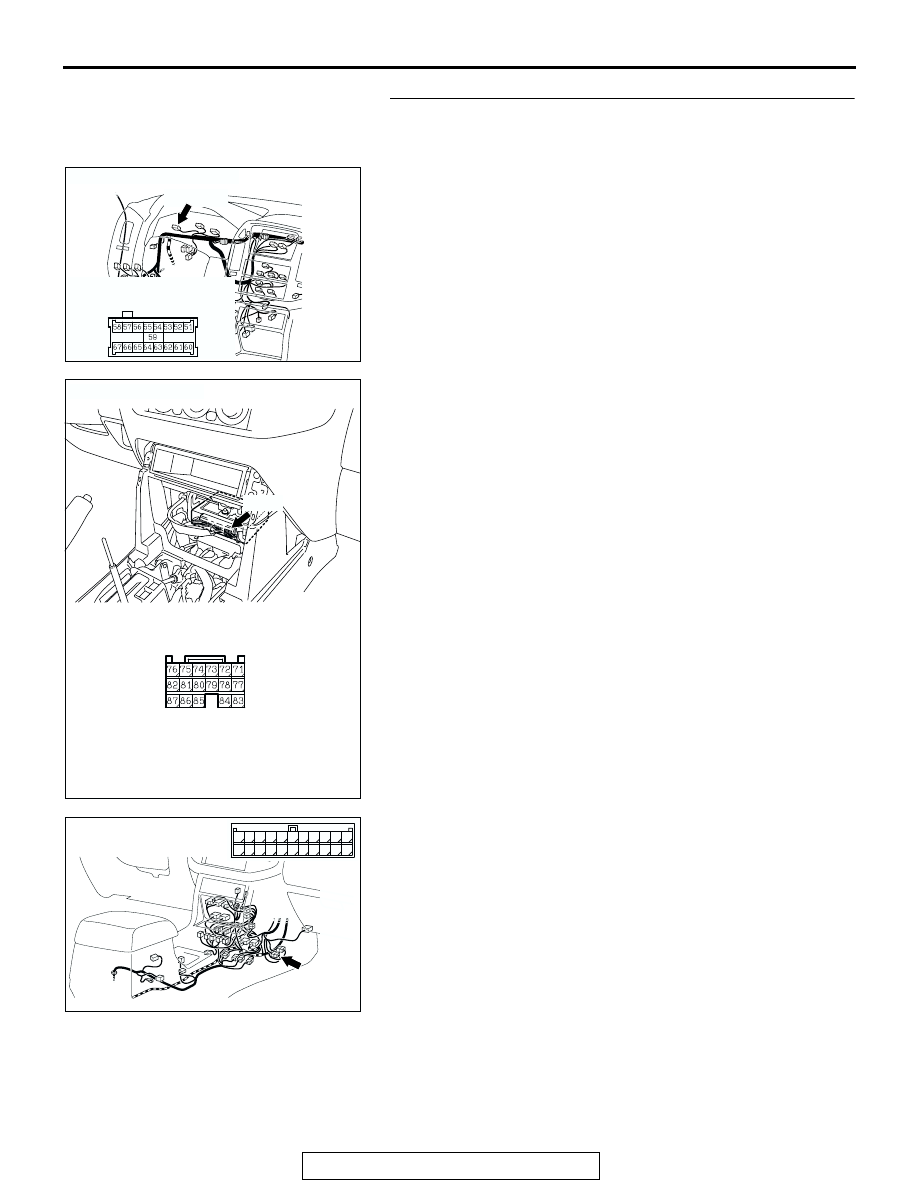

STEP 5. Check the harness wires between combination
meter connector D-03 terminal 62 and M-ASTC-ECU
connector E-121 terminal 74.
NOTE: After inspecting combination meter connector combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121, inspect the wire. If combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121 are damaged, repair or replace
them. Refer to GROUP 00E, Harness Connector Inspection

P.00-6

. Then go to Step 6.

Q: Is the harness wire between combination meter

connector D-03 terminal 62 and M-ASTC-ECU connector
E-121 terminal 74 damaged?
YES :
Go to Step 6.
NO :  Repair it and then go to Step 6.

AC204687AD

CONNECTOR: D-03

D-03 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AC203901

AC204627AR

CONNECTOR: E-121

E-121

E-121

HARNESS CONNECTOR:
COMPONENT SIDE

AC204548

E-122(L)

AP

CONNECTOR: E-122

2

1

3

13

12

14

21

10

5

4

6

16

15

17

7 8 9

19

18

20

11

22

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-187

STEP 6. Retest the system.
Q: When the ignition switch is turned "ON" (engine

stopped or after startup), does the Active skid control
system operation indicator light/Active traction control
system operation indicator light illuminate?
YES :
The procedure is complete.
NO :  Return to Step 1.

INSPECTION PROCEDURE 2: When the ignition switch is tured "ON" (Engine stopped or after
startup), the Active skid control system OFF indicator light does not illuminate.

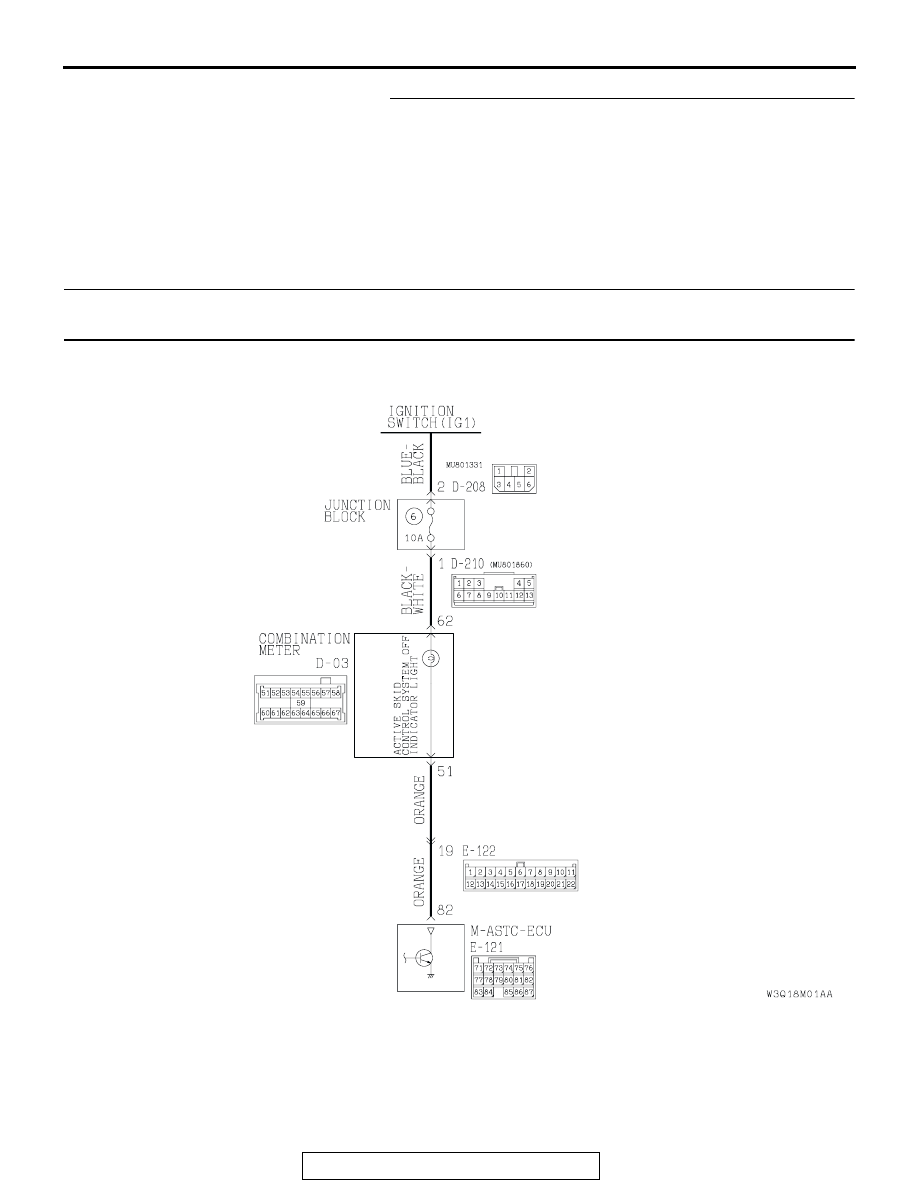

Active Skid Control System OFF Indicator Light Circuit

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-188

.

CIRCUIT OPERATION
The Active skid control system OFF indicator light is
connected from the ignition switch (IG1) through
multi-purpose fuse No.6 and the combination meter
to the M-ASTC-ECU. The M-ASTC-ECU turns on
and off the indicator light.

.

TECHNICAL DESCRIPTION (COMMENT)
This symptom is caused by a shorted or opened
Active skid control system OFF indicator light circuit.

.

TROUBLESHOOTING HINTS (The most likely
causes for this condition:)

• Damaged wiring harness

• Burned-out bulb

• Melted fuse

• Malfunction of M-ASTC-ECU

.

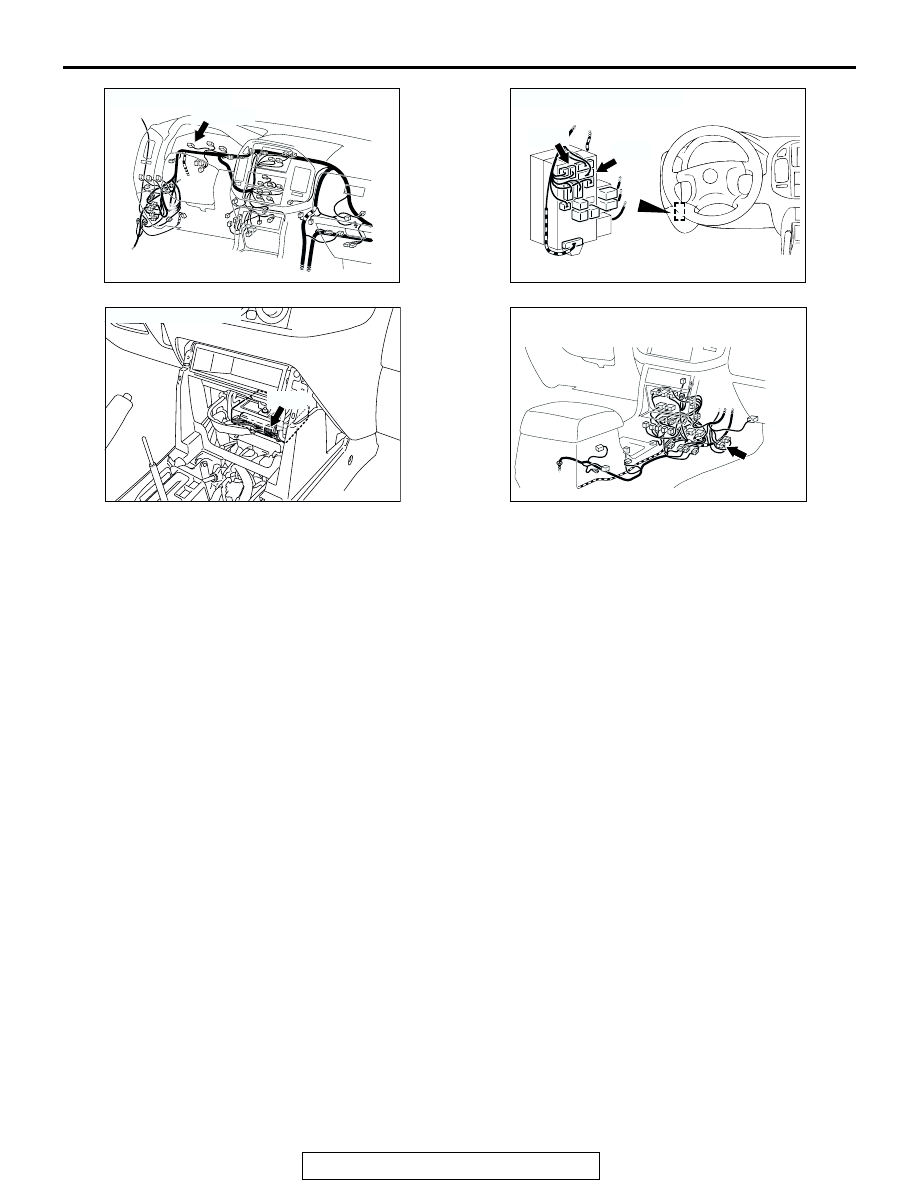

AC204546 AB

CONNECTOR: D-03

D-03 (GR)

AC204547AC

CONNECTORS: D-208, D-210

D-208

D-210

JUNCTION BLOCK
(FRONT VIEW)

AC203901AG

CONNECTOR: E-121

E-121

AC204548

E-122

AO

CONNECTOR: E-122
