M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-189

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

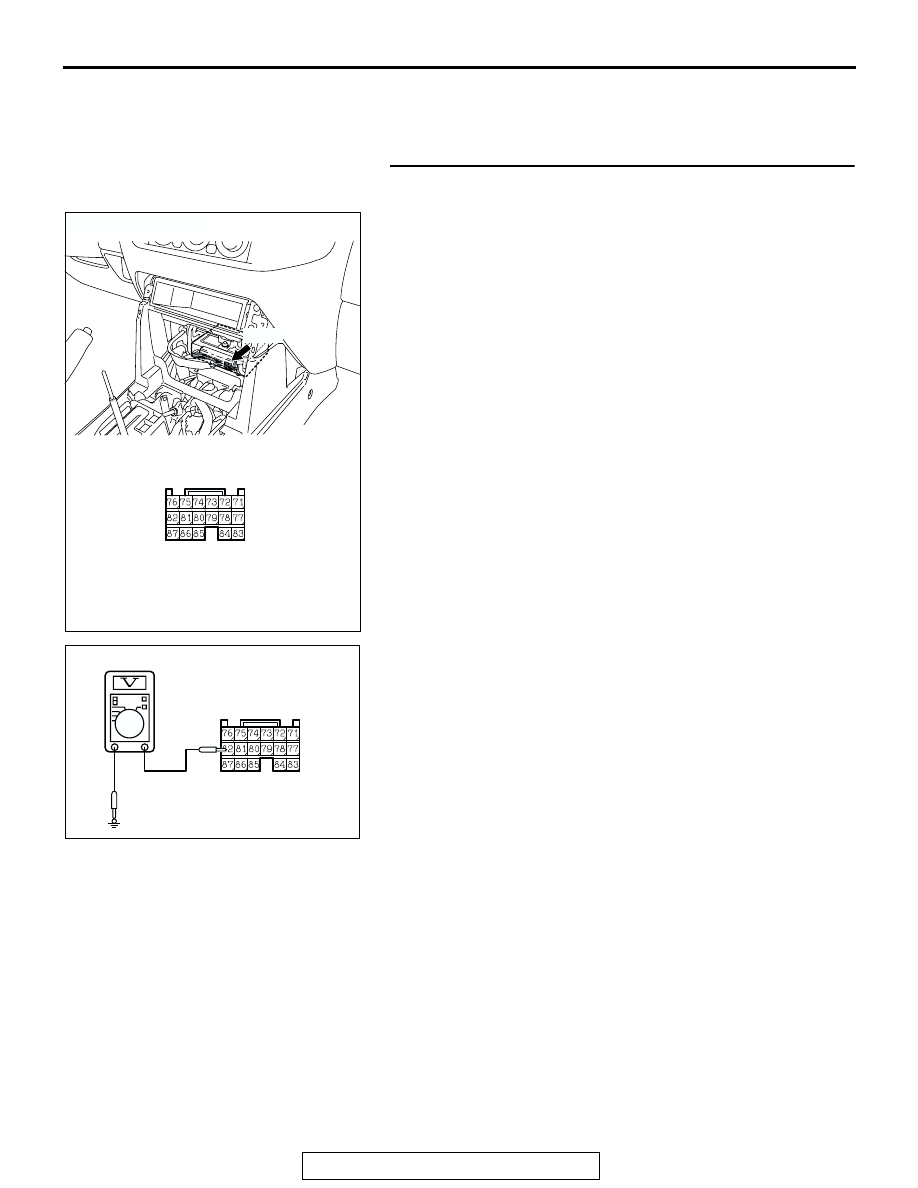

STEP 1. Check the Active skid control system OFF
indicator light circuit at M-ASTC-ECU connector E-121.
(1) Disconnect M-ASTC-ECU connector E-121 and measure at

the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 82 and ground. It

should be approximately 12 volts (battery positive voltage).

Q: Is the voltage approximately 12 volts (battery positive

voltage)?
YES : Replace the M-ASTC-ECU and then go to Step 6.
NO :  Go to Step 2.

AC203901

AC204627AR

CONNECTOR: E-121

E-121

E-121

HARNESS CONNECTOR:
COMPONENT SIDE

AC205144AC

CONNECTOR: E-121

HARNESS CONNECTOR:
COMPONENT SIDE

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-190

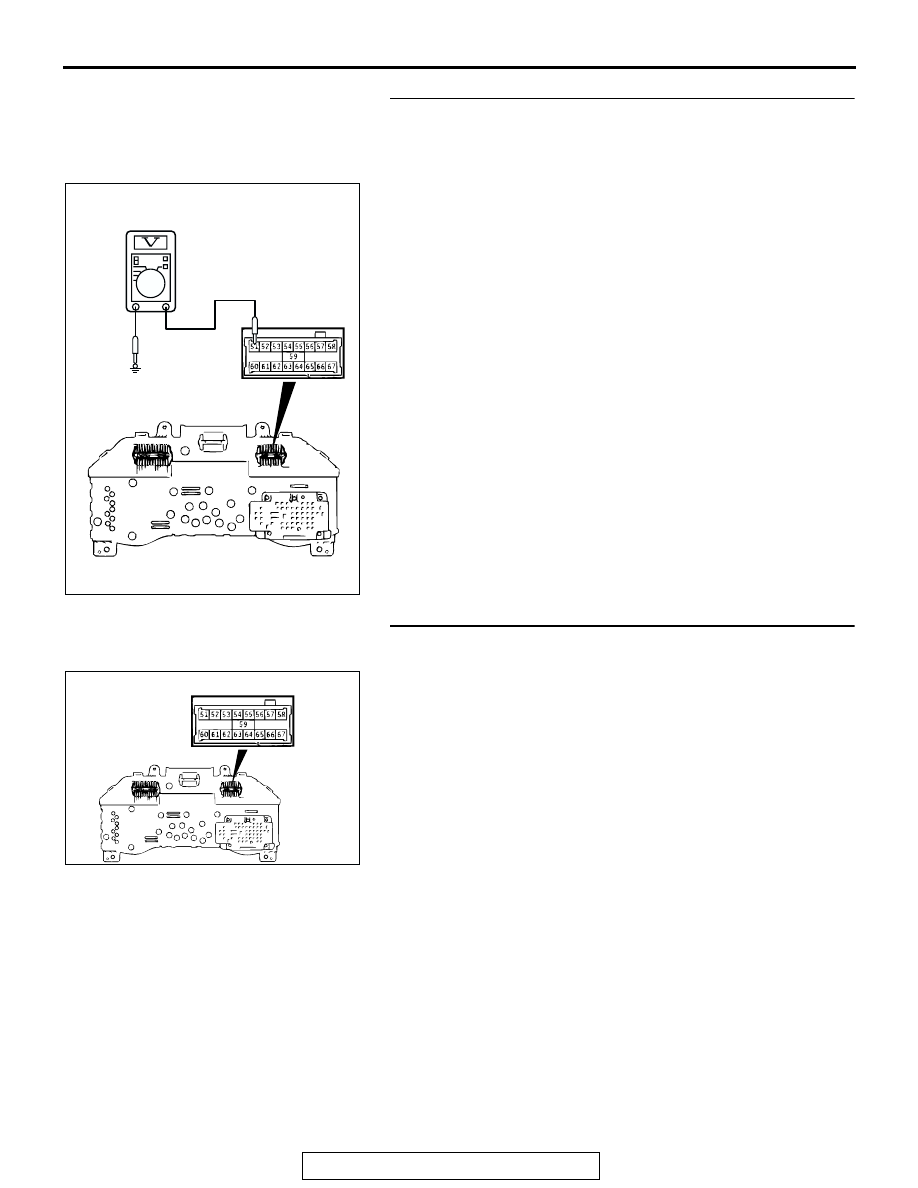

STEP2. Check combination meter connector D-03.
(1) Disconnect combination meter connector D-03 and

measure at the combination meter side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 51 and ground. It

should be approximately 12 volts (battery positive voltage).

Q: Is the voltage approximately 12 volts (battery positive

voltage)?
YES : Go to Step 5.
NO :  Go to Step 3.

STEP 3. Check the harness wires between combination
meter connector D-03 terminal 51 and terminal 62.
Q: Is the harness wire between combination meter

connector D-03 terminal 51 and terminal 62 damaged?
YES : Go to Step 4.
NO :  Replace the combination meter (printed circuit board)

and go to Step 6.

AC205146

CONNECTOR: D-03

COMBINATION METER
SIDE CONNECTOR

AD

AC205148

CONNECTOR: D-03

COMBINATION
METER SIDE
CONNECTOR

AB

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-191

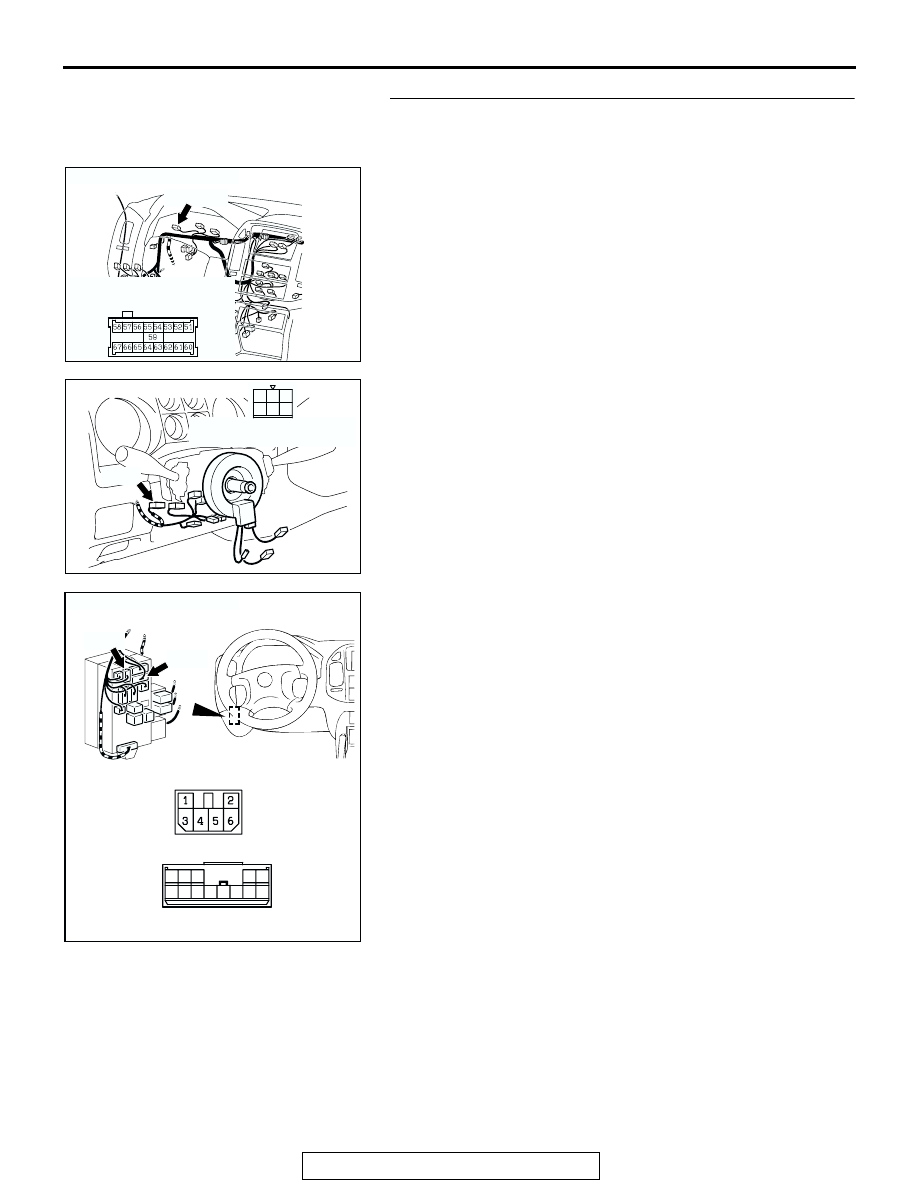

STEP 4. Check the harness wires between ignition switch
(IG1) connector D-204 terminal 2 and combination meter
connector D-03 terminal 62.
NOTE: After inspecting combination meter connector D-03,
ignition switch (IG1) connector D-204, junction block connector
D-208 and D-210, inspect the wire. If combination meter con-
nector D-03, ignition switch (IG1) connector D-204, junction
block connector D-208 and D-210 are damaged, repair or
replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00-6

. Then go to Step 6.

Q: Is the harness wire between ignition switch (IG1)

connector D-204 terminal 2 and combination meter
connector D-03 terminal 62 damaged?
YES : Go to Step 6.
NO :  Replace the combination meter (printed circuit board)

and go to Step 6.

AC204687AD

CONNECTOR: D-03

D-03 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AC204709

CONNECTOR: D-204

D-204

AD

2
5

6

3

4

1

HARNESS CONNECTOR:

COMPONENT SIDE

AC204624 AG

CONNECTORS: D-208, D-210

D-208

JUNCTION BLOCK
(FRONT VIEW)

JUNCTION BLOCK CONNECTOR

D-208

D-210

D-210

1 2 3

4

12

9

8

7

6

10

5

13

11

JUNCTION BLOCK CONNECTOR

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-192

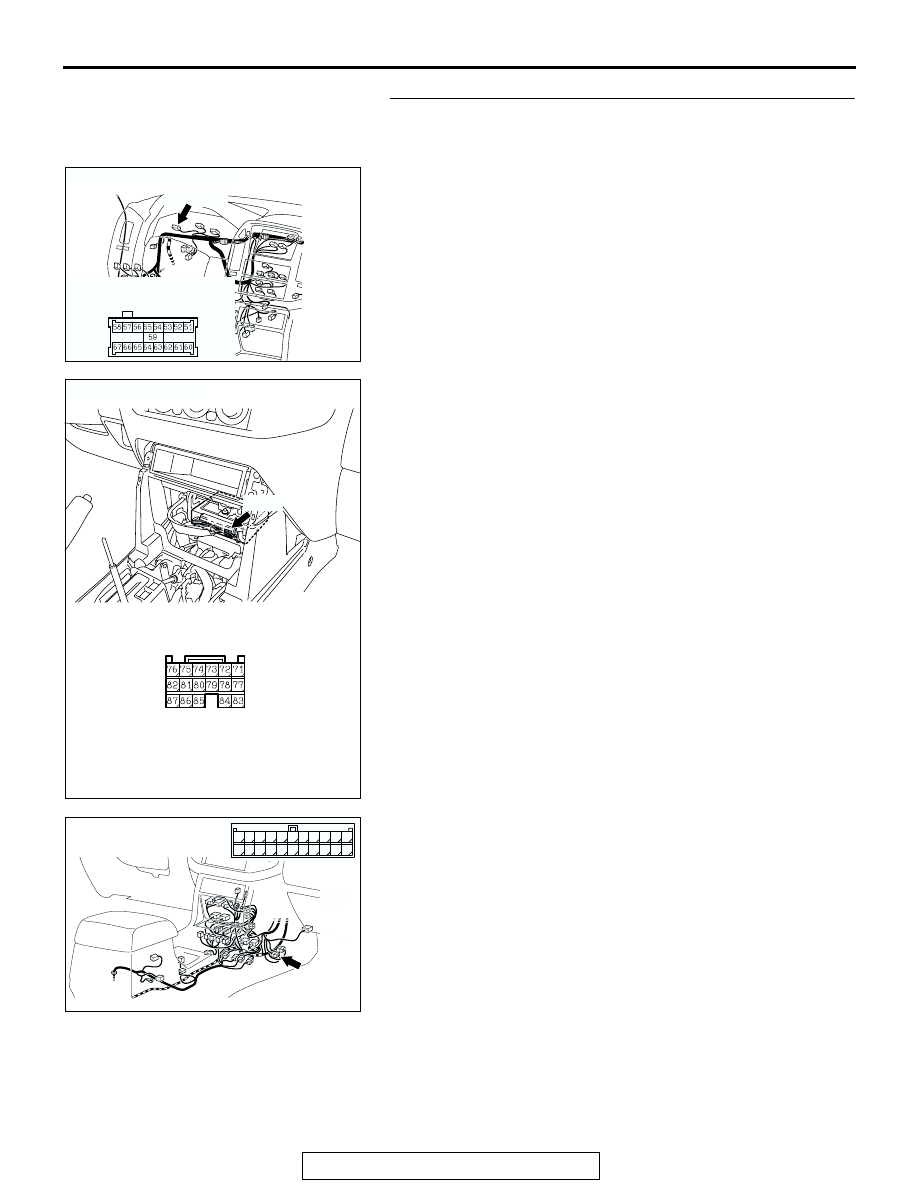

STEP 5. Check the harness wires between combination
meter connector D-03 terminal 51 and M-ASTC-ECU
connector E-121 terminal 82.
NOTE: After inspecting combination meter connector combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121, inspect the wire. If combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121 are damaged, repair or replace
them. Refer to GROUP 00E, Harness Connector Inspection

P.00-6

. Then go to Step 6.

Q: Is the harness wire between combination meter

connector D-03 terminal 51 and M-ASTC-ECU connector
E-121 terminal 82 damaged?
NO :  Go to Step 6.
YES : Repair it and then go to Step 6.

AC204687AD

CONNECTOR: D-03

D-03 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AC203901

AC204627AR

CONNECTOR: E-121

E-121

E-121

HARNESS CONNECTOR:
COMPONENT SIDE

AC204548

E-122(L)

AP

CONNECTOR: E-122

2

1

3

13

12

14

21

10

5

4

6

16

15

17

7 8 9

19

18

20

11

22
