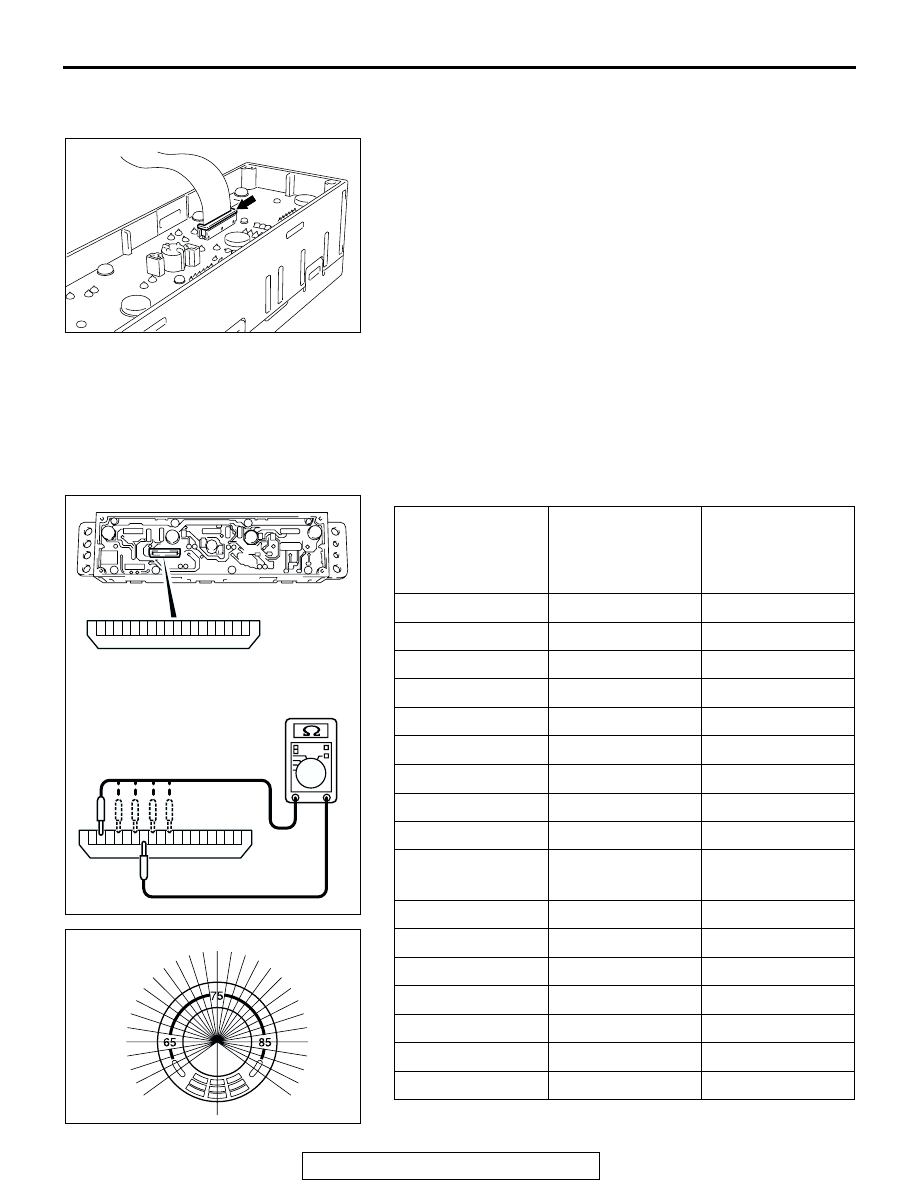

A/C CONTROL PANEL AND A/C CONTROL UNIT
TSB Revision
AUTOMATIC AIR CONDITIONING
55B-137
DISASSEMBLY SERVICE POINT
.
<<A>> FCC REMOVAL
When disconnecting the FCC, always pull the cable by gripping
the connector, not the cable.
INSPECTION
M1551006300189
TEMPERATURE ADJUSTMENT SWITCH
CONTINUITY CHECK

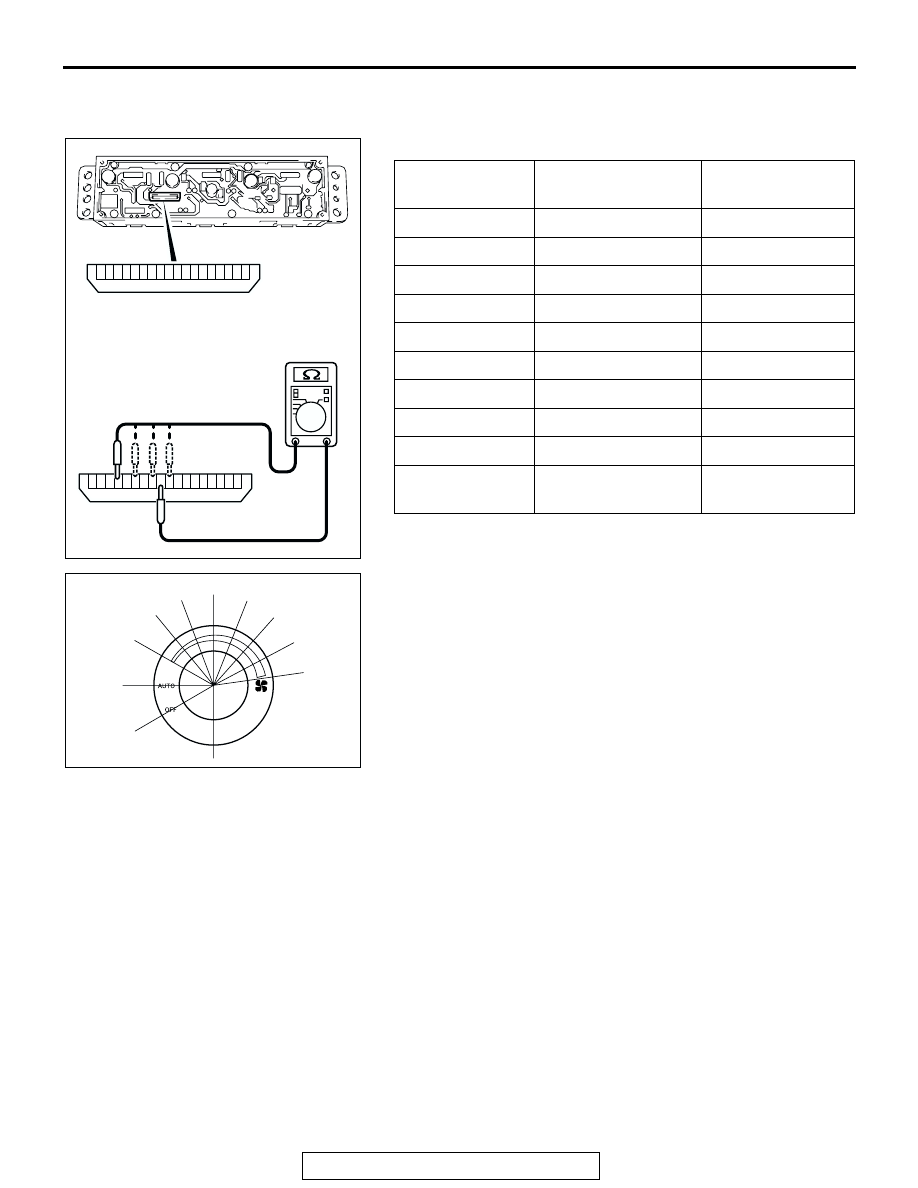

Follow the table below to check the temperature adjustment
switch for continuity.
AC205264AB
TEMPERATURE
ADJUSTMENT
SWITCH
POSITION
TESTER
CONNECTION
SPECIFIED
CONDITION
1
7
− 10
Less than 2 ohms
2
7
− 8, 7 − 10
Less than 2 ohms
3
7
− 8
Less than 2 ohms
4
6
− 7, 7 − 8
Less than 2 ohms
5
6
− 7, 7 − 8, 7 − 10 Less than 2 ohms
6
6
− 7, 7 − 10
Less than 2 ohms
7
6
− 7
Less than 2 ohms
8
4
− 7, 6 − 7
Less than 2 ohms
9
4
− 7, 6 − 7, 7 − 10 Less than 2 ohms
10
4
− 7, 6 − 7, 7 − 8, 7
− 10
Less than 2 ohms
11
4
− 7, 6 − 7, 7 − 8
Less than 2 ohms
12
4
− 7, 7 − 8
Less than 2 ohms
13
4
− 7, 7 − 8, 7 − 10 Less than 2 ohms
14
4
− 7, 7 − 10
Less than 2 ohms
15
4
− 7
Less than 2 ohms
16
2
− 7, 4 − 7
Less than 2 ohms
17
2
− 7, 4 − 7, 7 − 10 Less than 2 ohms
AC205403
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
AB
AC205259
1
2
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
AB
