M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-41

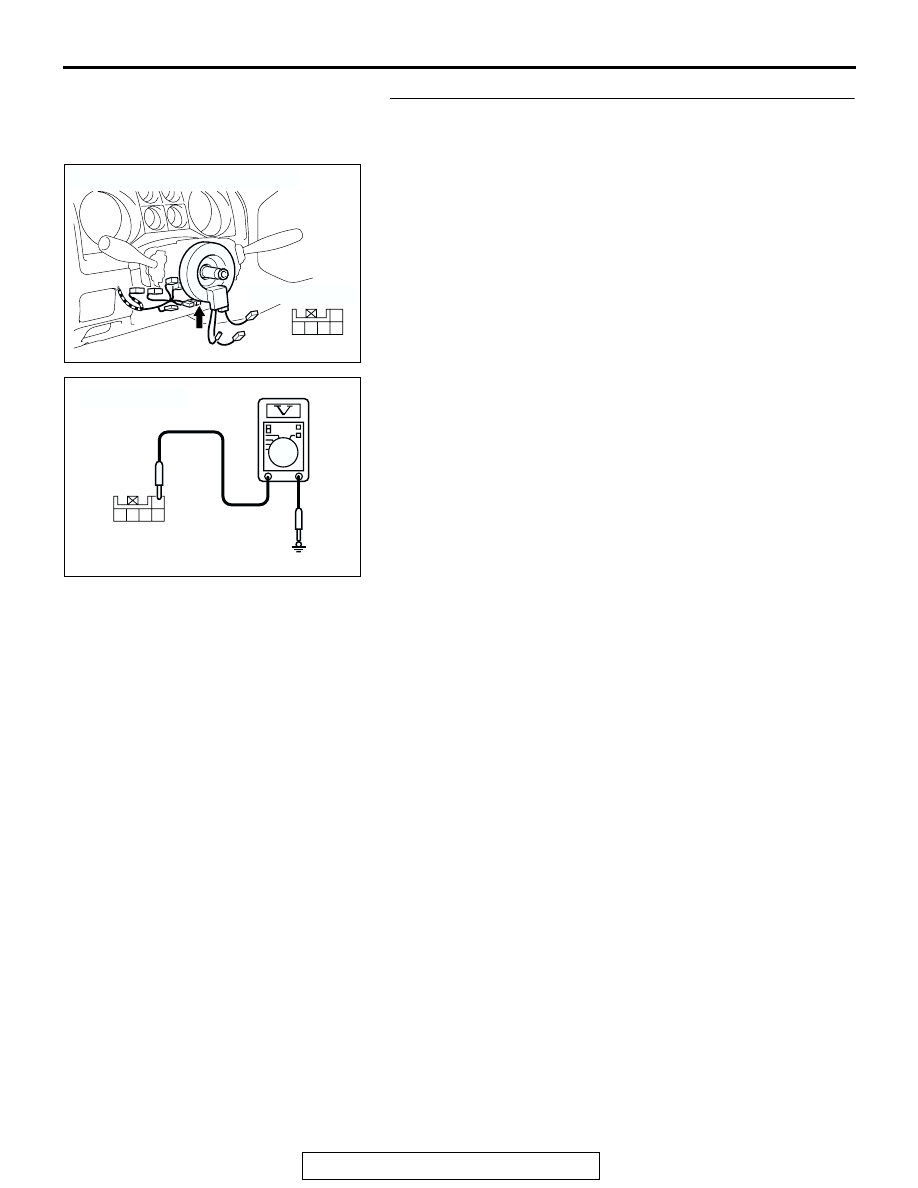

STEP 4. Check the battery power supply to the steering
wheel sensor. Measure at steering wheel sensor connector
D-225.
(1) Disconnect steering wheel sensor connector D-225, and

measure the voltage at the harness-side connector.

(2) Measure the voltage between steering wheel sensor

connector D-225 terminal 1 and body ground.

• The voltage should measure battery voltage (approxi-

mately 12 volts).

Q: Does the voltage measure battery voltage

(approximately 12 volts)?
YES : Go to Step 6.
NO :  Go to Step 5.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204580

3 2

1

4

5

HARNESS SIDE: D-225

AR

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-42

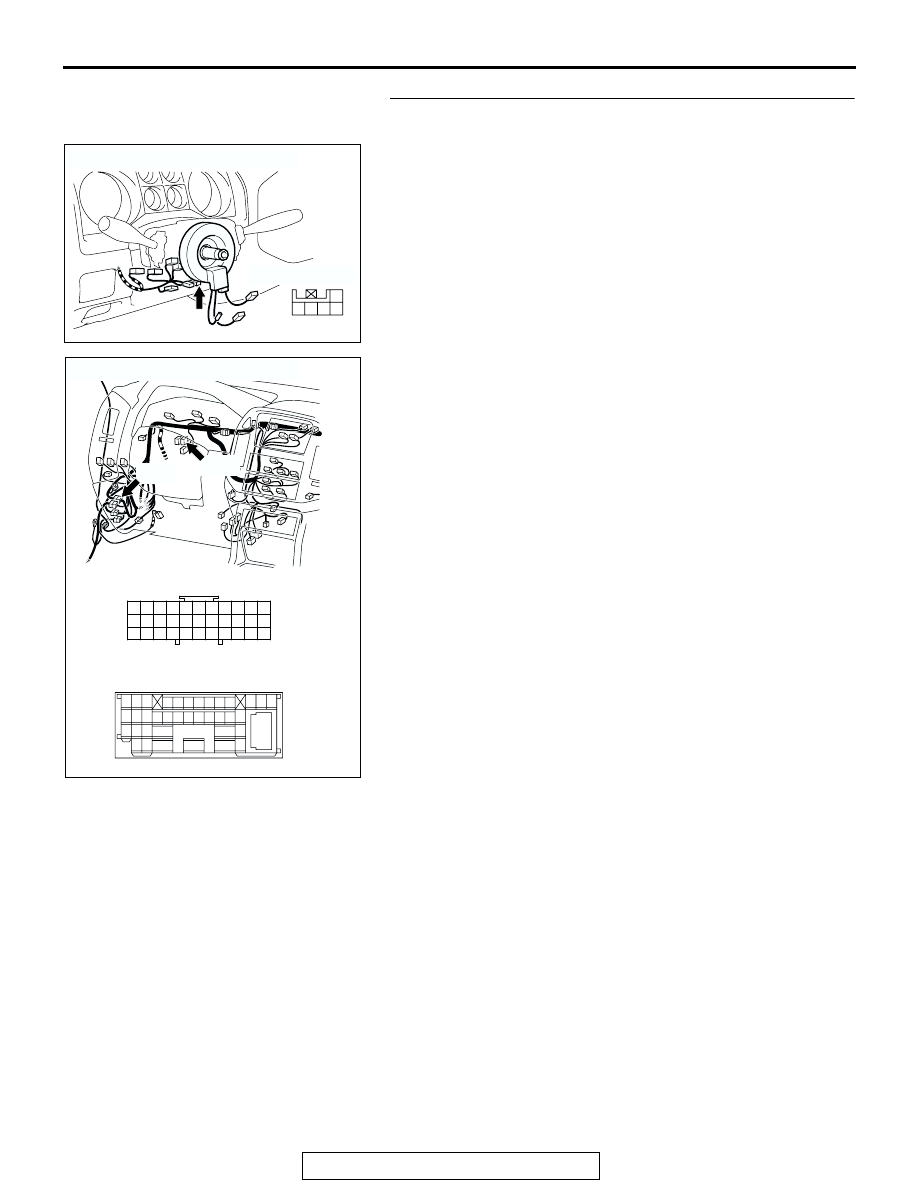

STEP 5. Check the wiring harness between steering wheel
sensor connector D-225 terminal 1 and fusible link No.1.

NOTE: Also check joint connector D-02 and intermediate con-
nector D-28 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connectors. If joint connector D-02
or intermediate connector D-28 are damaged, repair or replace
the damaged component(s) as described in GROUP 00E, Har-
ness Connector Inspection

P.00E-2

. If the connector has been

repaired or replaced, go to Step 11.
Q: Is the wiring harness between steering wheel sensor

connector D-225 terminal 1 and the fusible link No.1 in
good condition?
YES : Go to Step 11.
NO :  Repair the wiring harness, and then go to Step 11.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204188

CONNECTORS: D-02, D-28

D-02

D-02

D-28

AB

D-28

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-43

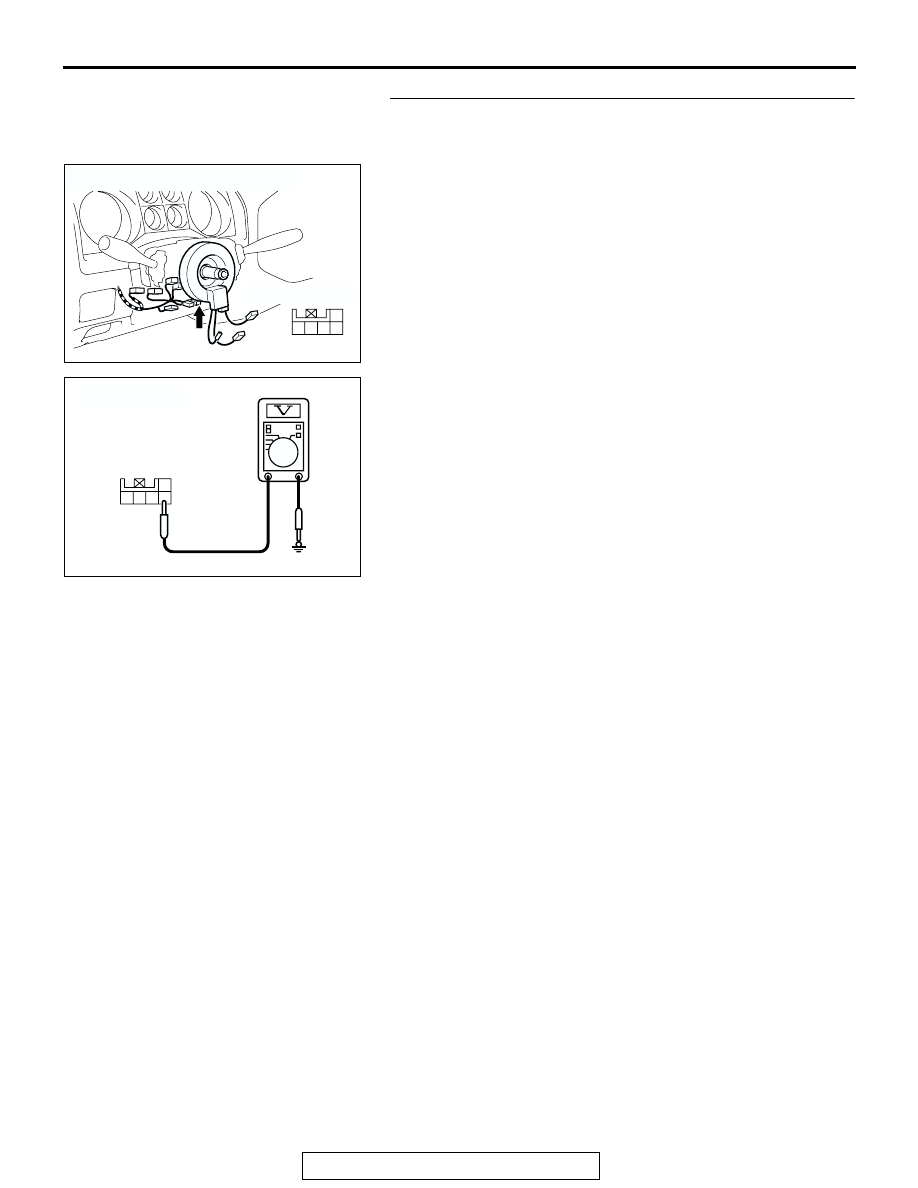

STEP 6. Check the battery power supply to the steering
wheel sensor. Measure at steering wheel sensor connector
D-225.
(1) Disconnect steering wheel sensor connector D-225, and

measure the voltage at the harness-side connector.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between steering wheel sensor

connector D-225 terminal 2 and body ground.

• The voltage should measure battery voltage (approxi-

mately 12 volts).

Q: Does the voltage measure battery voltage

(approximately 12 volts)?
YES : Go to Step 8.
NO :  Go to Step 7.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204580

3 2

1

4

5

HARNESS SIDE: D-225

AS

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-44

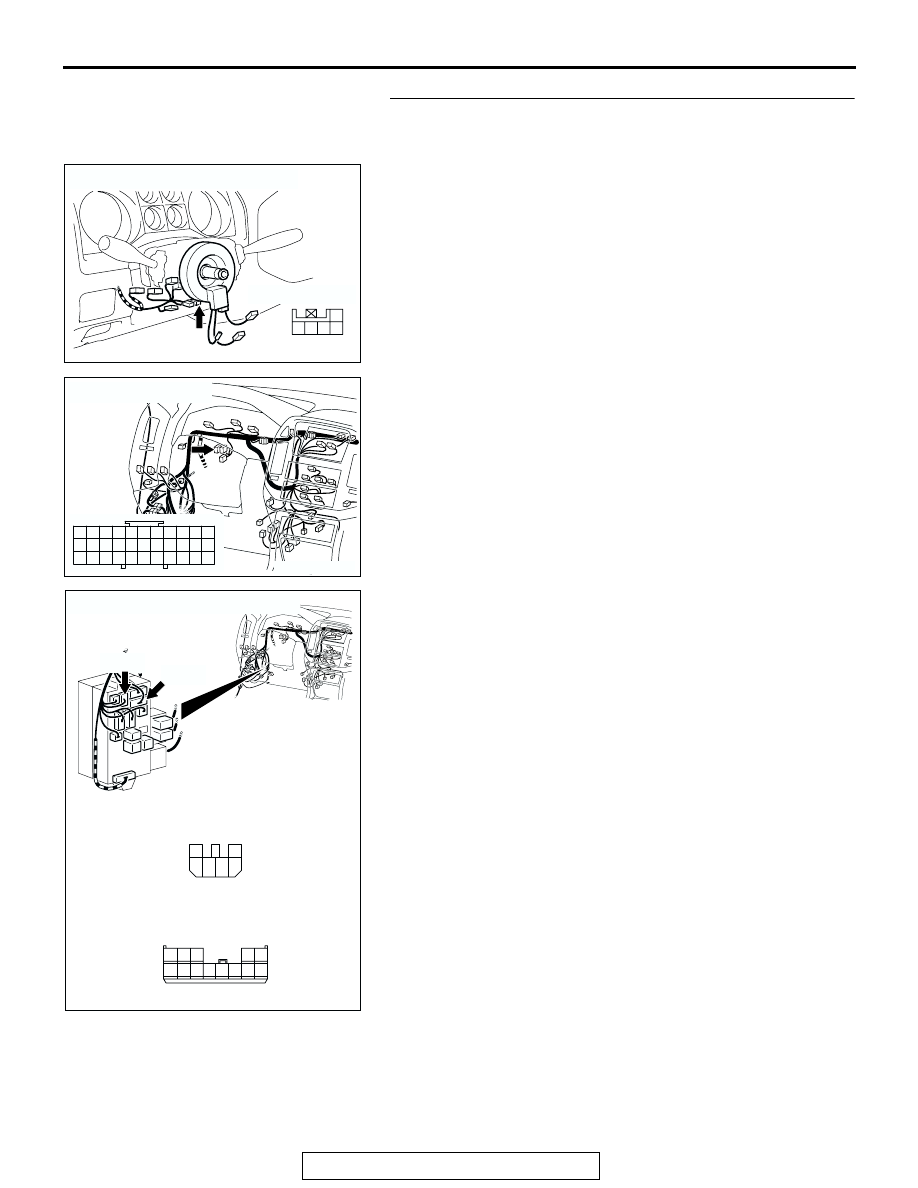

STEP 7. Check the wiring harness between steering wheel
sensor connector D-225 terminal 2 and ignition switch
(IG2).

NOTE: Also check joint connector D-01 and junction block con-
nector D-208 and D-210 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connectors. If joint
connector D-01 or junction block connector D-208 or D-210 are
damaged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

. If the connector has been repaired or replaced, go to

Step 11.
Q: Is the wiring harness between steering wheel sensor

connector D-225 terminal 2 and the ignition switch (IG2)
in good condition?
YES : Go to Step 11.
NO :  Repair the wiring harness, and then go to Step 11.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204170

CONNECTOR: D-01

AB

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204191

CONNECTORS: D-208, D-210

D-208

AC

HARNESS SIDE

HARNESS SIDE

D-210

D-208

D-210

1

2

3

5

6

4

1

2

7 6

3

9

4

11

12

10

13

5

8
