FLOOR CONSOLE

TSB Revision

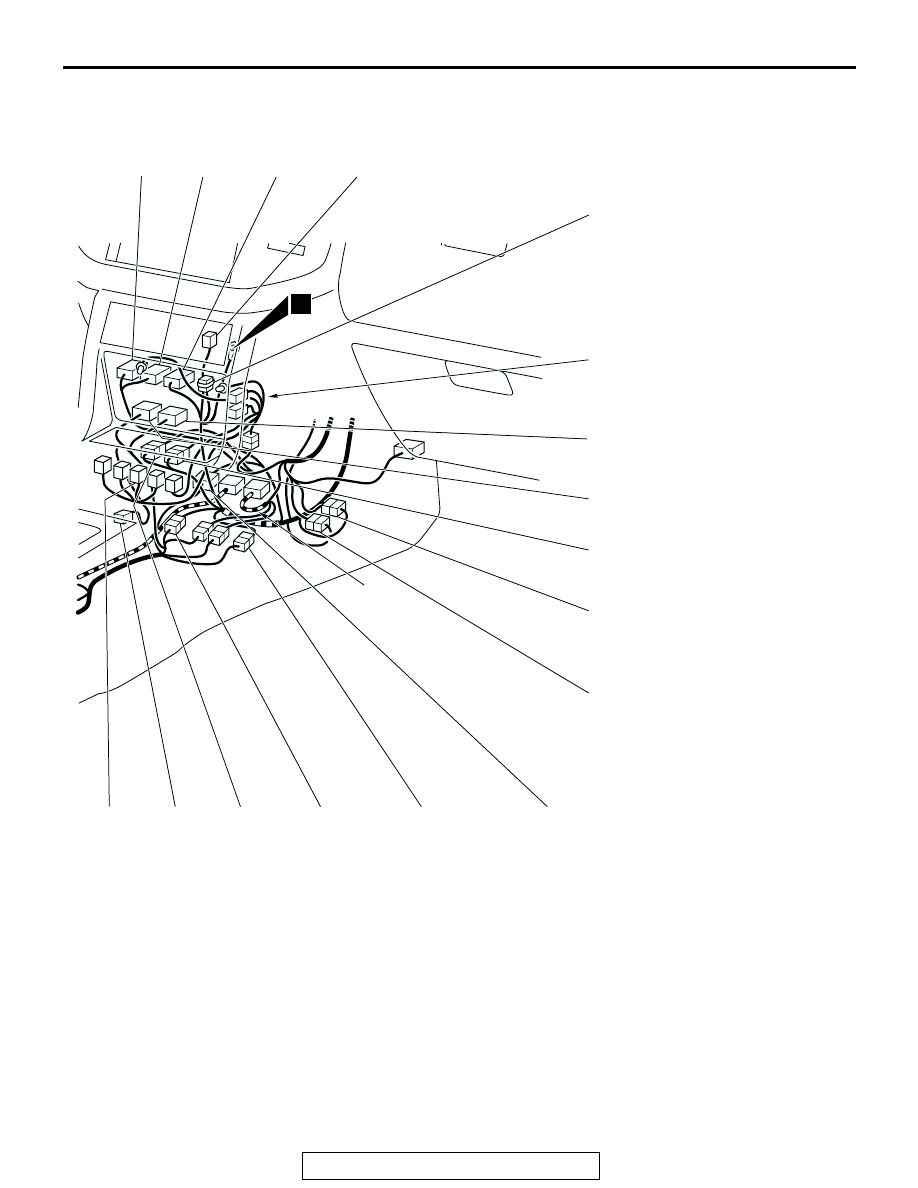

CONFIGURATION DIAGRAMS

80A-19

AC203875 AC

E-120

E-121

E-107

E-108

E-109

E-110

E-111

E-112

E-113

E-114

E-115

E-119

E-125

E-123

E-122

E-104

CONSOLE
WIRING
HARNESS

E-113 (14)

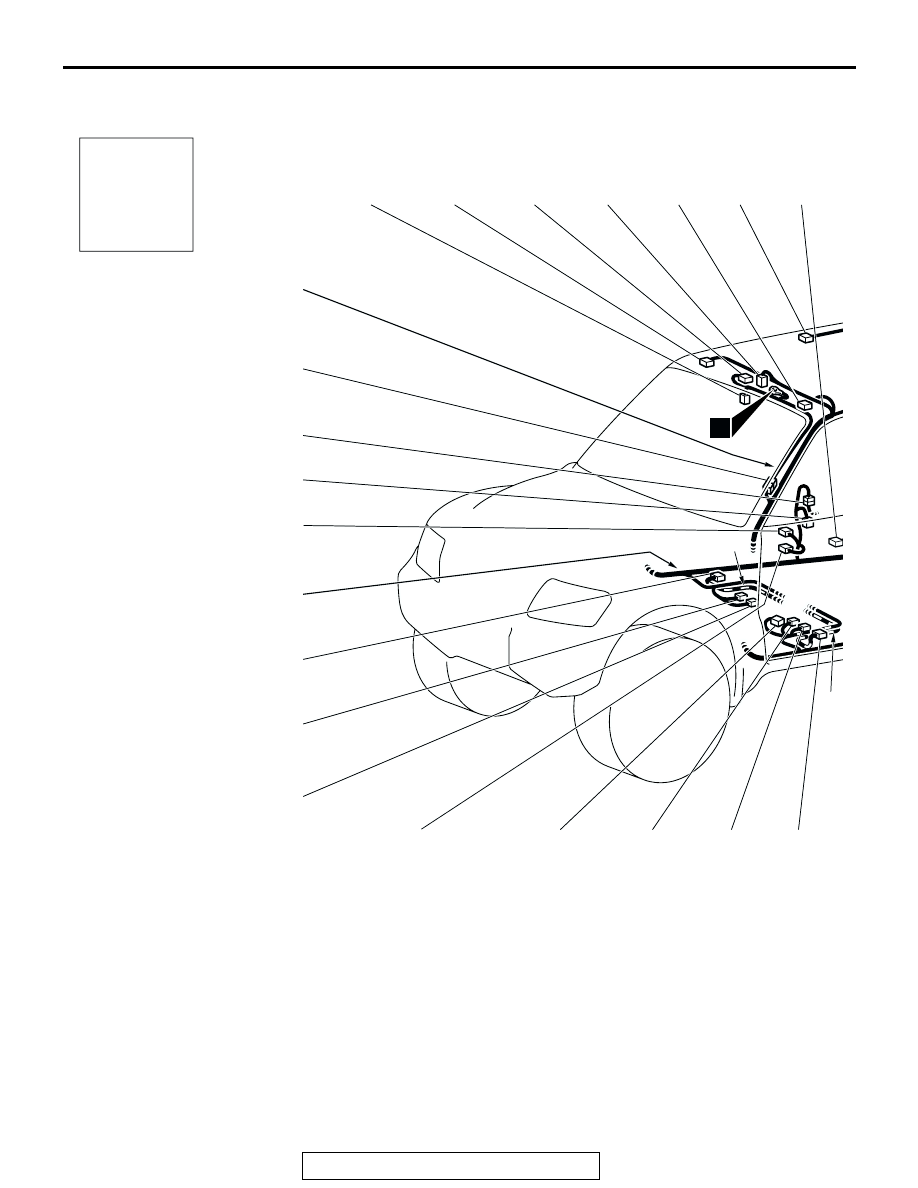

INSTRUMENT PANEL WIRING
HARNESS AND CONTROL WIRING
HARNESS COMBINATION

E-114 (38)

CONTROL WIRING HARNESS AND
TRANSMISSION WIRING HARNESS
COMBINATION

E-115 (8)

SHIFT SWITCH ASSEMBLY

E-116 (6)

TRANSFER SHIFT LEVER SWITCH

E-119 (31)

M-ASTC-ECU

E-120 (24)

M-ASTC-ECU

E-121 (17)

M-ASTC-ECU

E-122 (22-L)

INSTRUMENT PANEL WIRING
HARNESS AND CONTROL WIRING
HARNESS COMBINATION

E-123 (19-GR) CONTROL WIRING HARNESS AND

TRANSMISSION WIRING HARNESS
COMBINATION

E-124 (4-GR)

G AND YAW RATE SENSOR

E-125 (6)

ACTIVE SKID CONTROL SWITCH

FRONT FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-20

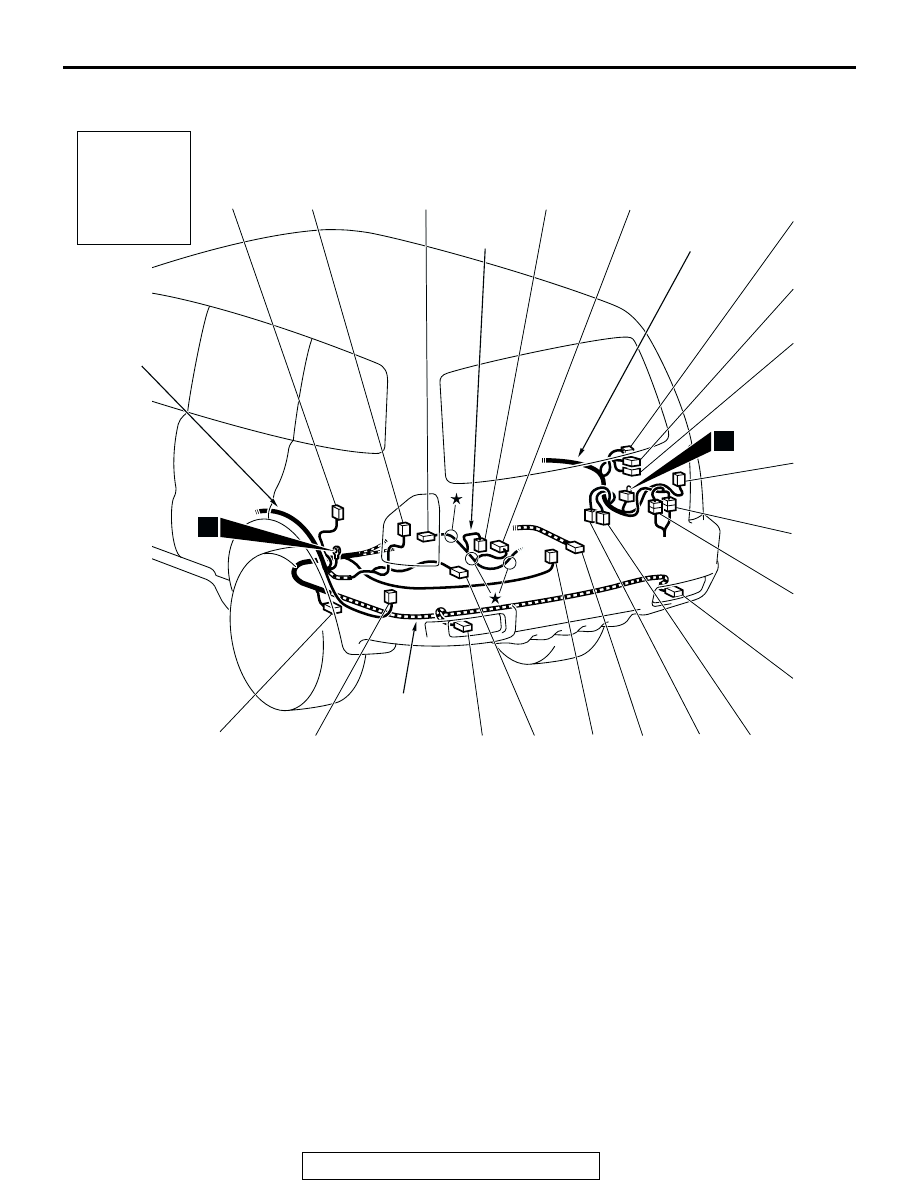

FRONT FLOOR AND ROOF

M1801002800092

AC203876

Connector
symbol

F-01

F-02

F-03

F-04

F-15

F-16

F-17

F-18

F-19

F-20

F-21

F-22

F-23

F-24

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

F-28

F-29

F-25

F-26

F-30

PILLER
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(LH)

F-01 (6-B)

SUNROOF

SWITCH

F-02 (10)

SUNROOF

MOTOR

ASSEMBLY

F-03 (2)

DOME

LIGHT

F-04 (3)

REAR PERSONAL LIGHT (RH)

F-05 (3)

REAR DOOR SWITCH (RH)

F-06 (3)

REAR PERSONAL LIGHT (LH)

F-07 (8-B)

FLOOR WIRING HARNESS (RH)
AND FUEL WIRING HARNESS
COMBINATION

F-08 (2-GR)

CARGO

SPACE

LIGHT

F-09 (3)

REAR DOOR SWITCH (LH)

F-10 (6-GR)

FLOOR WIRING HARNESS (RH)
AND FRAME WIRING HARNESS
COMBINATION

F-11

(8-B)

FLOOR WIRING HARNESS (RH)
AND FRAME WIRING HARNESS
COMBINATION

F-12 (14)

FLOOR WIRING HARNESS (LH)
AND REAR DOOR WIRING
HARNESS (LH) COMBINATION

F-13 (2-Y)

SIDE IMPACT SENSOR (LH)

F-14 (3)

FRONT DOOR SWITCH (LH)

FRONT FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

AC203877AB

F-05

F-06

F-07

F-08

F-09

F-10

F-31

F-12

F-13

F-14

F-27

F-11

ROOF
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(LH)

F-15 (2-R)

SIDE AIR BAG MODULE (SQUIB)
(LH)

F-16 (3)

HEATED SEAT ASSEMBLY (LH)

F-17 (3)

POWER SEAT ASSEMBLY
(DRIVER'S SIDE)

F-18 (2)

SEAT BELT SWITCH

F-19 (2-Y)

SIDE IMPACT SENSOR (RH)

F-20 (3)

HEATED SEAT ASSEMBLY (RH)

F-21 (2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

F-22 (3)

FRONT DOOR SWITCH (RH)

F-23 (14)

FLOOR WIRING HARNESS (RH)
AND REAR DOOR WIRING
HARNESS (RH) COMBINATION

F-24 (6)

ROOF WIRING HARNESS AND
PILLAR WIRING HARNESS
COMBINATION

F-25 (2)

VANITY MIRROR LIGHT (RH)

F-26 (2)

VANITY MIRROR LIGHT (LH)

F-27 (2-R)

SEAT BELT PRETENSIONER (LH)

F-28 (3)

POWER SEAT ASSEMBLY
(PASSENGER'S SIDE)

F-29 (2-R)

SEAT BELT PRETENSIONER (RH)

F-30 (2-B)

SIDE STEP LIGHT ASSEMBLY (RH)

F-31 (2-B)

SIDE STEP LIGHT ASSEMBLY (LH)

REAR FLOOR AND UNDER FLOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

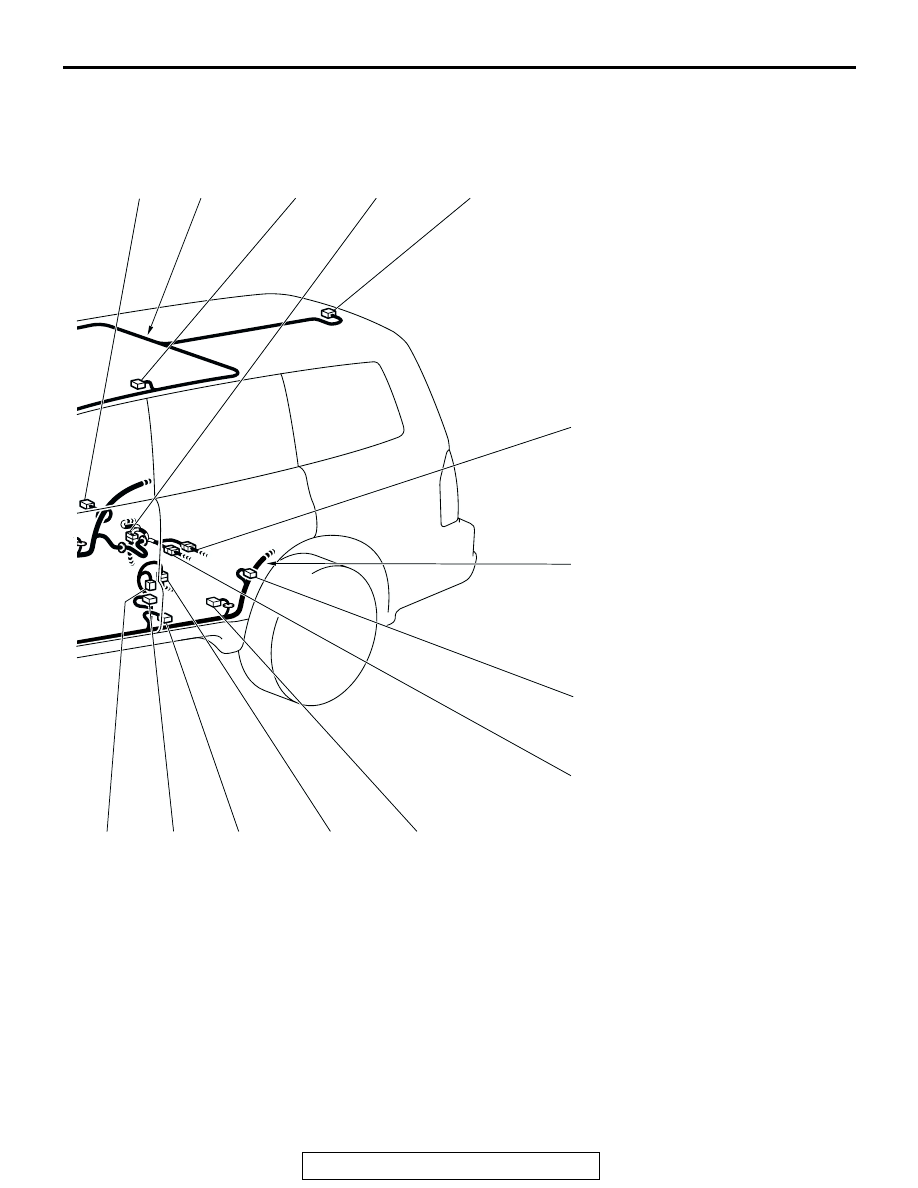

REAR FLOOR AND UNDER FLOOR

M1801002900077

AC100706

Connector
symbol

G-01

G-02

G-03

G-04

G-05

G-06
G-22

G-07

G-08

G-09

G-10

G-11

G-12

G-13
G-23
G-24

G-25
G-26

G-14

G-15

G-16

G-19

G-21

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

G-27

FUEL
WIRING
HARNESS

FLOOR
WIRING
HARNESS (RH)

FRAME
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(LH)

G-01 (2-B)

WOOFER

G-02 (6-B)

REAR COMBINATION LIGHT (LH)

G-03 (3-B)

FUEL LEVEL SENSOR

G-04 (5-GR)

FUEL

PUMP

G-05 (3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

G-06 (10)

REAR

BLOWER

UNIT

G-07 (1)

ACCESSORY

SOCKET

G-08 (1-B)

ACCESSORY

SOCKET

G-09 (6-B)

REAR COMBINATION LIGHT (RH)

G-10 (10)

FLOOR WIRING HARNESS (RH)
AND BACK DOOR WIRING
HARNESS COMBINATION

G-11 (9)

FLOOR WIRING HARNESS (RH)
AND BACK DOOR WIRING
HARNESS COMBINATION

G-12 (4-B)

REAR LIGHT (RH)

G-13 (4)

REAR COOLER UNIT

G-14 (2-B)

ABS SENSOR (REAR: RH)

G-15 (3)

BACK DOOR SWITCH

G-16 (4-B)

REAR LIGHT (LH)

G-19 (18)

AMPLIFIER

G-21 (2-B)

ABS SENSOR (REAR: LH)

G-22 (10)

REAR A/C UNIT

G-23 (4)

REAR HEATER UNIT

G-24 (4)

REAR A/C UNIT

G-25 (4)

REAR HEATER UNIT

G-26 (4)

REAR A/C UNIT

G-27 (2-B)

EVAPORATIVE

EMISSION

VENTILATION SOLENOID
