Mitsubishi Montero (2002-2004). Manual - part 32

DASH PANEL

TSB Revision

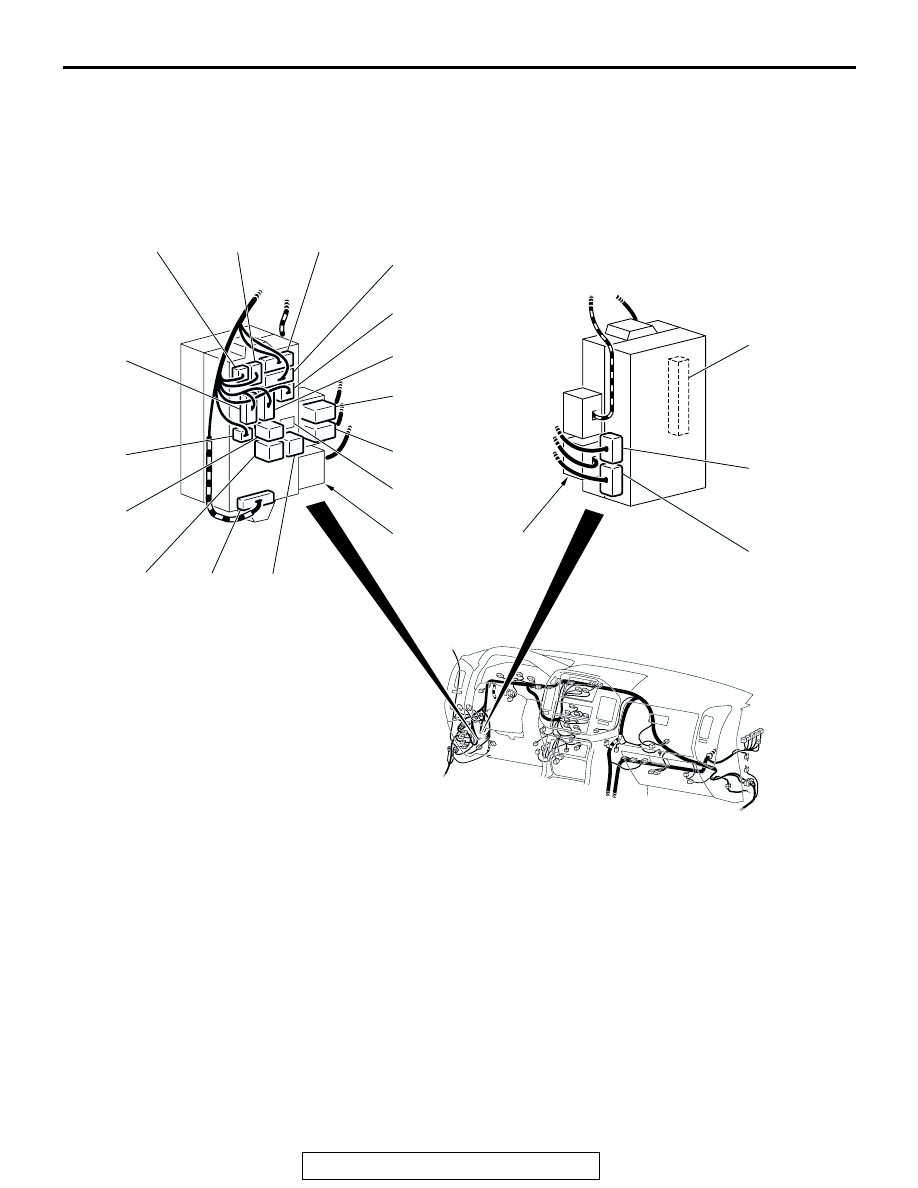

CONFIGURATION DIAGRAMS

80A-15

AC203963

D-207

FUSE
BOX

JUNCTION BLOCK

(REAR VIEW)

(FRONT VIEW)

D-208

D-209

D-210

D-211

D-212

D-213

D-214

D-216

D-217

D-218

D-219

D-220

D-221

D-222

D-223

D-224

FUSE
BOX

D-215

D-213 (5)

REAR BLOWER RELAY

D-214 (5)

ACCESSORY SOCKET RELAY

D-215 (4)

NO CONNECTION

D-216 (5)

DEFOGGER RELAY

D-217 (15)

INSTRUMENT PANEL WIRING HARNESS
AND JUNCTION BLOCK COMBINATION

D-218 (5)

FRONT BLOWER RELAY

D-219 (5)

POWER WINDOW RELAY

D-220 (10)

INSTRUMENT PANEL WIRING HARNESS
AND JUNCTION BLOCK COMBINATION

D-221 (8)

INSTRUMENT PANEL WIRING HARNESS
AND JUNCTION BLOCK COMBINATION

D-222 (20)

ETACS-ECU

D-223 (16-B) ETACS-ECU
D-224 (20-B) ETACS-ECU
D-225 (5)

STEERING WHEEL SENSOR

D-226 (5)

CLOCK SPRING AND CLOCK SPRING
WIRING HARNESS COMBINATION

D-227 (3-Y) AUTO-CRUISE CONTROL SWITCH
D-228 (1)

HORN SWITCH

D-229 (2)

AIR BAG MODULE (SQUIB) (DRIVER’S
SIDE)

D-230 (3-B) AUTO-CRUISE CONTROL SWITCH SUB

WIRING HARNESS AND CLOCK SPRING
WIRING HARNESS COMBINATION

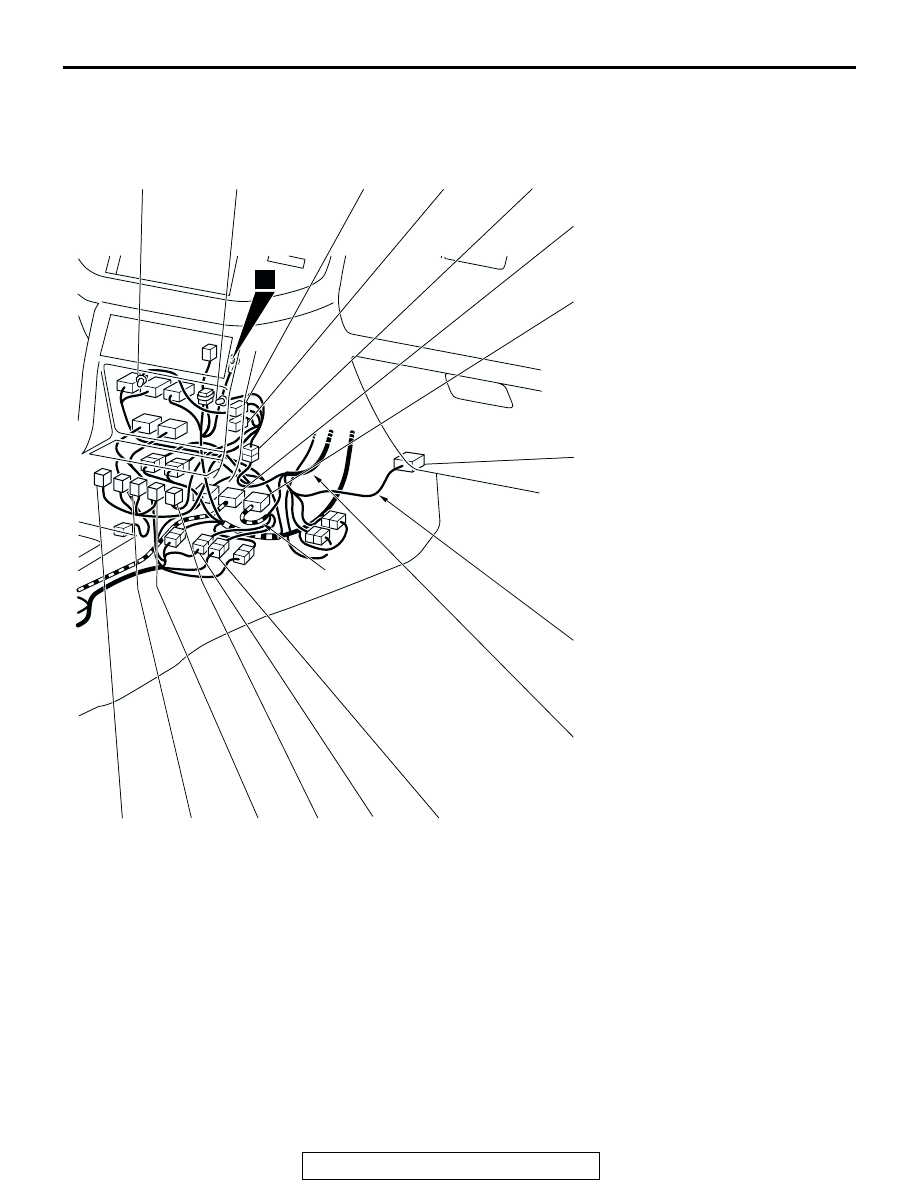

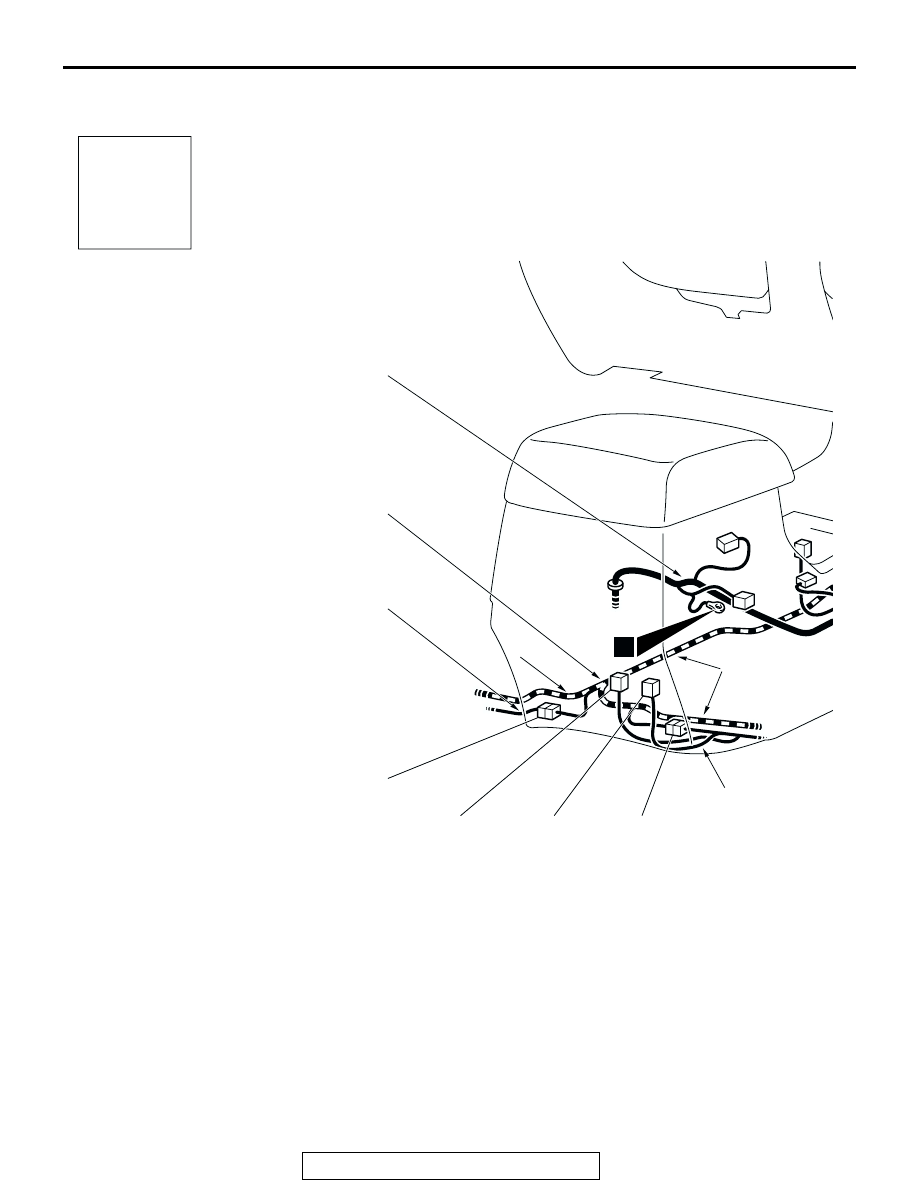

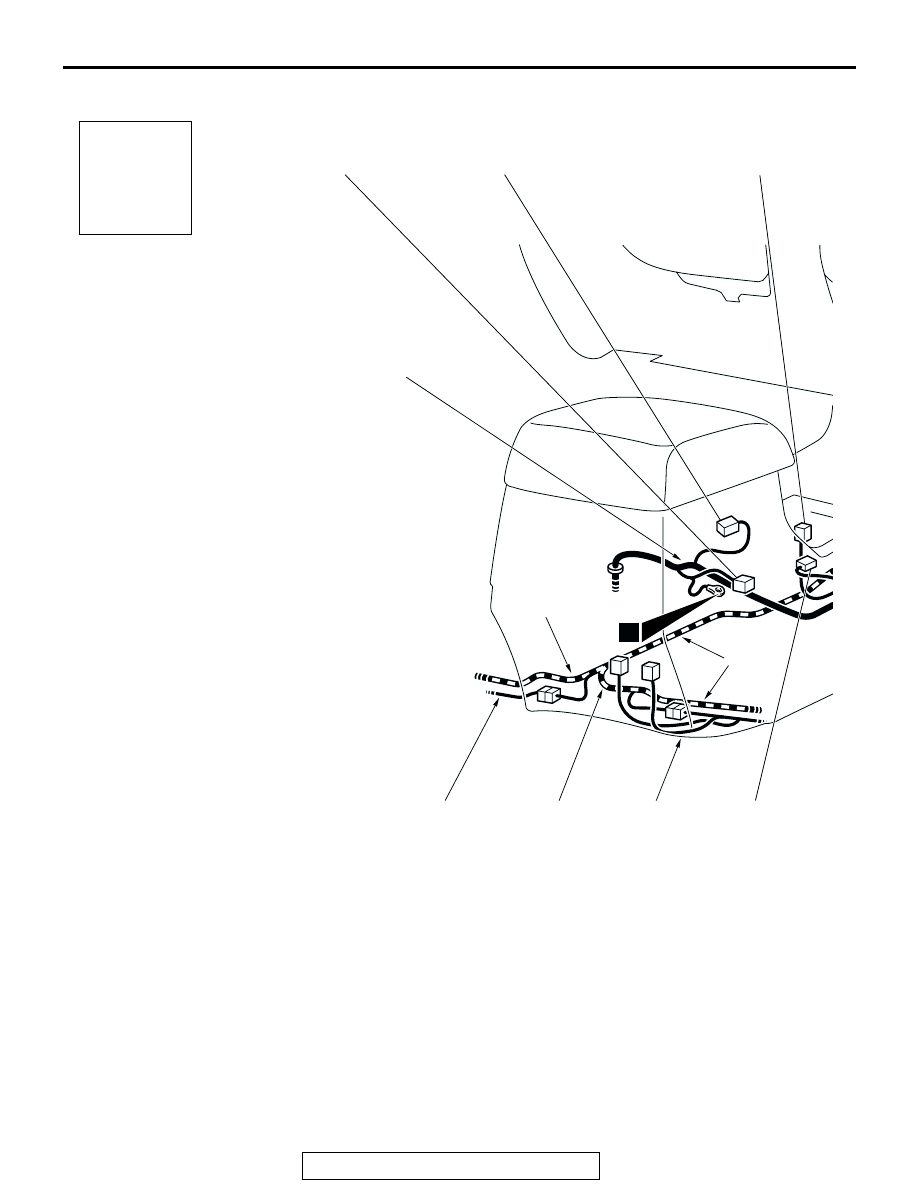

FLOOR CONSOLE

TSB Revision

CONFIGURATION DIAGRAMS

80A-16

FLOOR CONSOLE

M1801002700084

AC203946

Connector
symbol

-01
thru
-22

E-16

E-17
E-21
E-22

E-18

E-19

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

FLOOR
WIRING
HARNESS
(RH)

TRANSMISSION
WIRING
HARNESS

SIDE AIR BAG
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(LH)

E-01 (14)

REAR HEATER CONTROL UNIT

E-02 (2)

ASHTRAY ILLUMINATION LIGHT

E-03 (2)

CIGARETTE

LIGHTER

ILLUMINATION LIGHT

E-04 (1)

CIGARETTE

LIGHTER

E-05 (1-B)

CIGARETTE

LIGHTER

E-06 (22)

INSTRUMENT PANEL WIRING
HARNESS AND CONSOLE WIRING
HARNESS COMBINATION

E-07 (22-Y)

SRS-ECU

E-08 (20-Y)

SRS-ECU

E-09 (14)

REAR COOLER CONTROL UNIT

E-10 (1)

INSTRUMENT PANEL WIRING
HARNESS AND TRANSMISSION
WIRING HARNESS COMBINATION

E-11 (16)

INSTRUMENT PANEL WIRING
HARNESS AND TRANSMISSION
WIRING HARNESS COMBINATION

FLOOR CONSOLE

TSB Revision

CONFIGURATION DIAGRAMS

80A-17

AC203875

E-02

E-03

E-04

E-05

E-06

E-07

E-08

E-01
E-09
E-20

E-10

E-11

E-12

E-13

E-14

E-15

CONTROL
WIRING
HARNESS

INSTRUMENT
PANEL
WIRING
HARNESS

E-12 (6)

REAR FAN CONTROL SWITCH
(FRONT)

E-13 (8)

CONNECTION

E-14 (6)

CONNECTION

E-15 (9)

HEATED SEAT SWITCH

E-16 (5)

FLOOR WIRING HARNESS (RH)
AND SIDE AIR BAG WIRING
HARNESS COMBINATION

E-17 (14)

REAR COOLER SWITCH

E-18 (2)

ACCESSORY

SOCKET

E-19 (4)

FLOOR WIRING HARNESS (LH)
AND SIDE AIR BAG WIRING
HARNESS COMBINATION

E-20 (14)

REAR A/C CONTROL UNIT

E-21 (14)

REAR HEATER SWITCH

E-22 (14)

REAR A/C SWITCH

FLOOR CONSOLE

TSB Revision

CONFIGURATION DIAGRAMS

80A-18

FLOOR CONSOLE (CONTINUED)

AC203946

Connector
symbol

-102
thru
-125

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

E-124

E-102

E-103

E-116

TRANSMISSION
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(RH)

SIDE AIR BAG
WIRING
HARNESS

FLOOR
WIRING
HARNESS
(LH)

E-102 (1-B)

PARKING BRAKE SWITCH

E-103 (4)

A/T SHIFT ILLUMINATION LIGHT

E-104 (22)

TRANSFER-ECU

E-107 (2)

TONE ALARM

E-108 (2-B)

DIODE (FOR HBB, EBD, ABS, ASC,
ATC CIRCUIT)

E-109 (26)

TRANSFER-ECU

E-110 (14)

INSTRUMENT PANEL WIRING
HARNESS AND CONTROL WIRING
HARNESS COMBINATION

E-111 (38)

INSTRUMENT PANEL WIRING
HARNESS AND CONTROL WIRING
HARNESS COMBINATION

E-112 (6)

CONTROL WIRING HARNESS AND
TRANSMISSION WIRING HARNESS
COMBINATION
