GARNISHES

TSB Revision

EXTERIOR

51-15

REMOVAL SERVICE POINT

.

<<A>> SIDE SILL GARNISH, LICENSE PLATE GARNISH,
BACK DOOR LEFT GARNISH, BACK DOOR GARNISH
REMOVAL
Remove by the same procedure as described in FRONT
DOOR MOLDING, FRONT WHEEL CUT MOLDING, REAR
WHEEL CUT MOLDING AND REAR DOOR MOLDING
REMOVAL (Refer to

P.51-9

).

INSTALLATION SERVICE POINT

.

>>A<< SIDE SILL GARNISH, LICENSE PLATE GARNISH,
BACK DOOR LEFT GARNISH, BACK DOOR GARNISH
INSTALLATION
Install by the same procedure as described in FRONT DOOR
MOLDING, FRONT WHEEL CUT MOLDING, REAR WHEEL
CUT MOLDING AND REAR DOOR MOLDING INSTALLATION
(Refer to

P.51-9

).

SIDE SILL GARNISH REMOVAL
STEPS
• SIDE STEP (REFER TO

P.51-18

.)

• FRONT MUD GUARD (REFER TO

P.51-16

.)

<<A>> >>A<<

1. SIDE SILL GARNISH

LICENSE PLATE GARNISH REMOVAL
STEPS
• TOOLBOX BRACKET, UPPER

(REFER TO GROUP 42-BACK
DOOR TRIM AND WATERPROOF
FILM

P.42-52

.)

• LICENSE PLATE LIGHT (REFER TO

GROUP 54A

P.54A-78

.)

<<A>> >>A<<

2. LICENSE PLATE GARNISH

<<A>> >>A<<

3. BACK DOOR LEFT GARNISH

<<A>> >>A<<

4. BACK DOOR GARNISH

MUD GUARD

TSB Revision

EXTERIOR

51-16

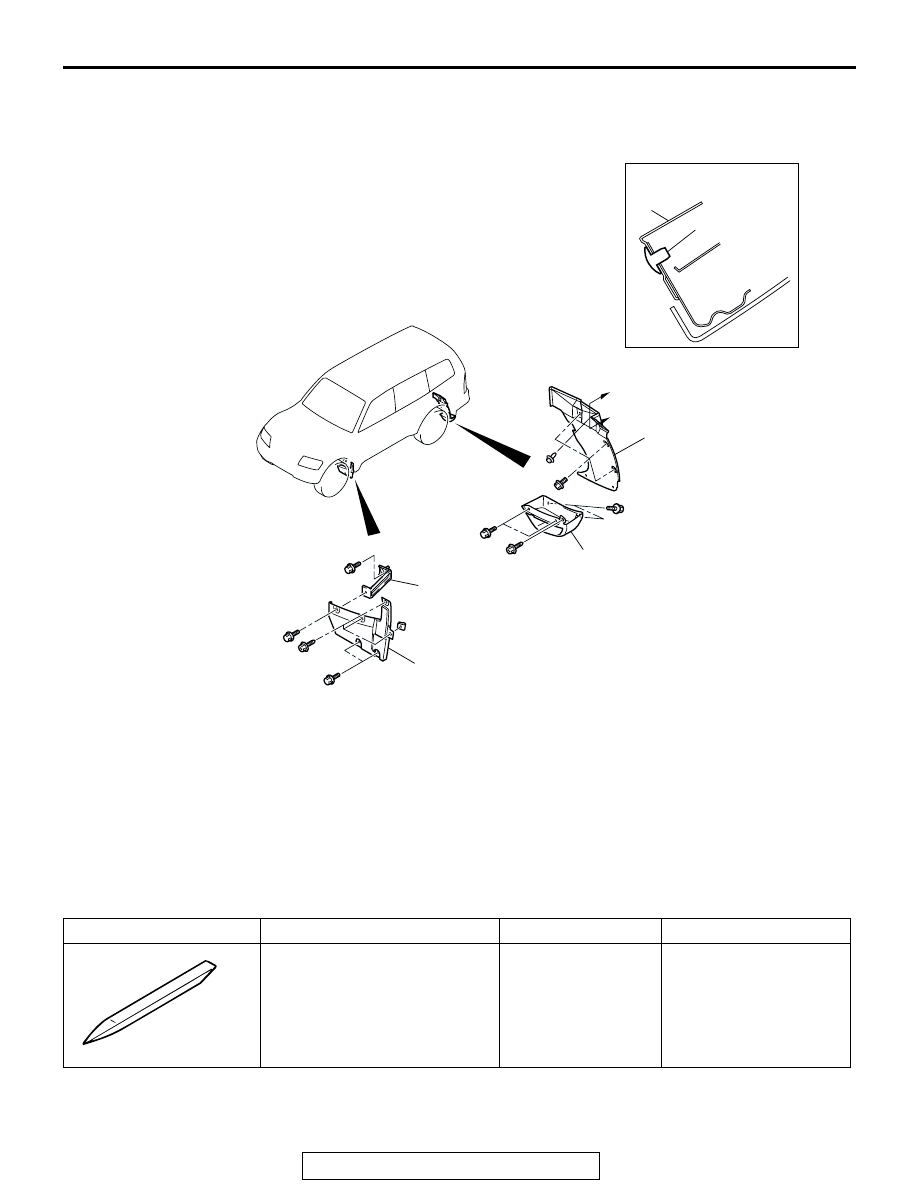

MUD GUARD

REMOVAL AND INSTALLATION

M1511011200043

REAR DEFLECTOR

SPECIAL TOOL

M1511000600865

AC203964

2

3

AB

4

4

1

CLIP

SECTION A – A

A

A

FRONT MUD GUARD REMOVAL
STEPS
1. FRONT MUD GUARD
2. FRONT MUD GUARD BRACKET

REAR MUD GUARD REMOVAL STEPS
3. REAR MUD GUARD
4. REAR MUD GUARD PROTECTOR

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB990784 Ornament remover General service tool Removal of rear

deflector cover

MB990784

REAR DEFLECTOR

TSB Revision

EXTERIOR

51-17

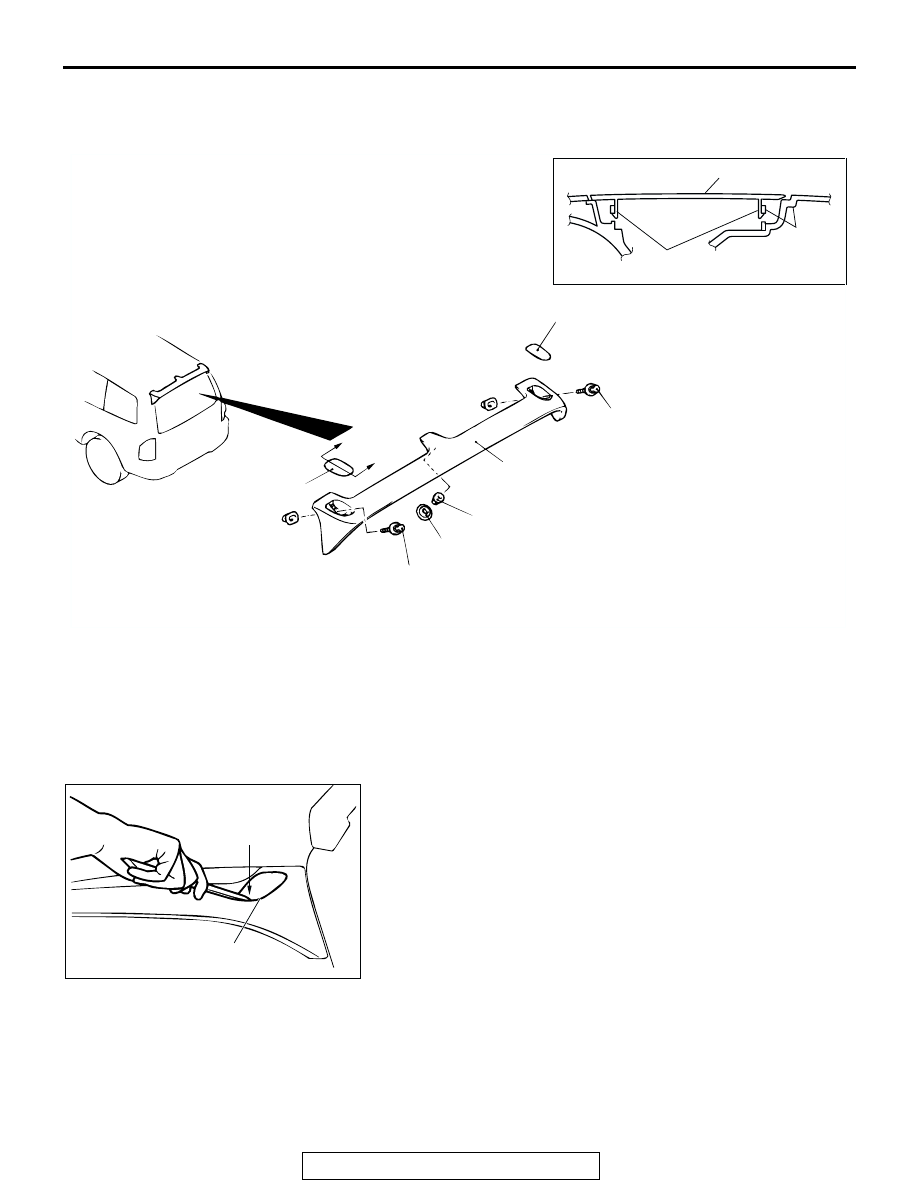

REAR DEFLECTOR

REMOVAL AND INSTALLATION

M1511017500019

REMOVAL SERVICE POINT

.

<<A>> REAR DEFLECTOR COVER REMOVAL
1. Insert the special tool into the slit on the rear deflector cover.
2. Release the tab by prying it towards the front of the vehicle.

X1069CA

X0397CA

ACX00440

SECTION A – A

2

3

2

5.0 ± 1.0 N·m
44 ± 9 in-lb

3

A

A

2

1

TAB

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

AB

REMOVAL STEPS
1. RESIN PLUG

<<A>>

2. REAR DEFLECTOR COVER
3. REAR DEFLECTOR

REMOVAL STEPS (Continued)

ACX00442

 REAR DEFLECTOR COVER

SLIT

SIDE STEP

TSB Revision

EXTERIOR

51-18

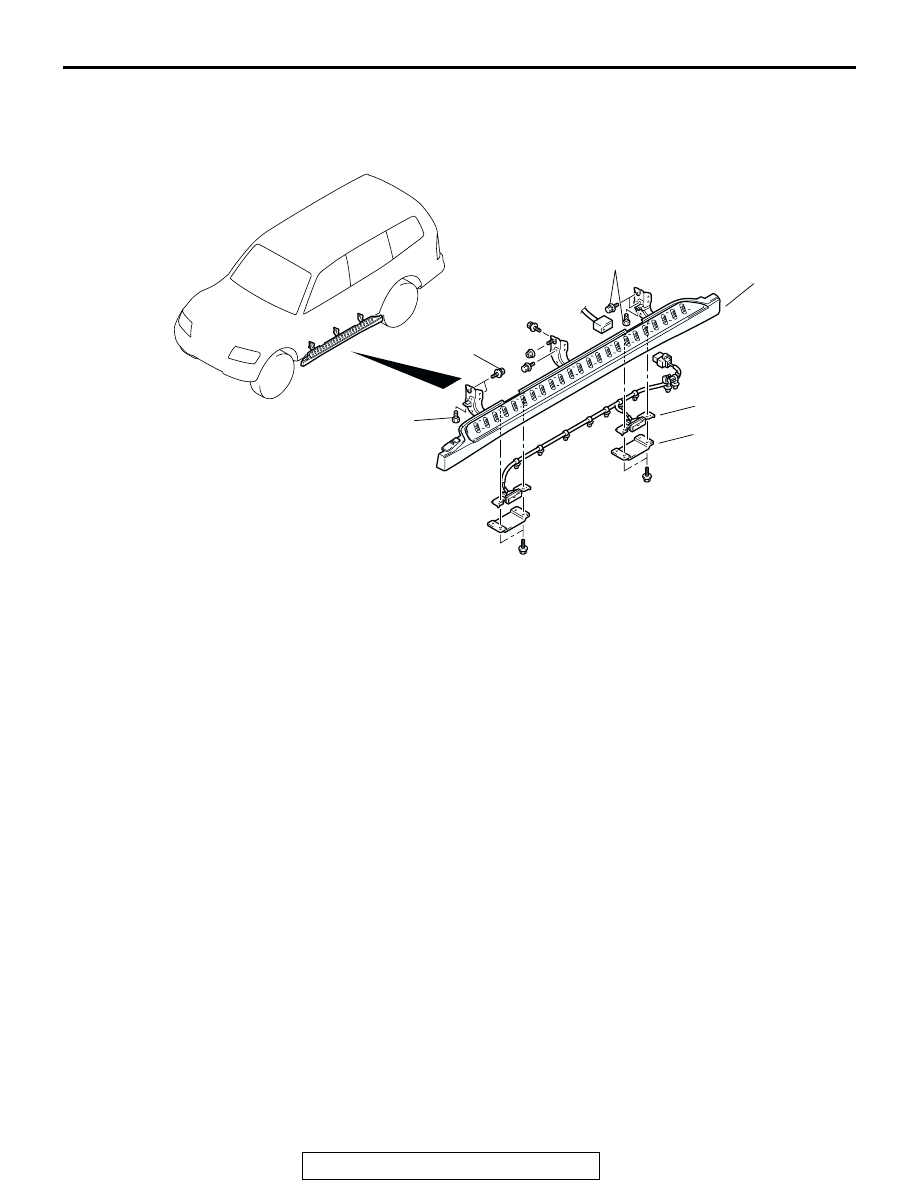

SIDE STEP

REMOVAL AND INSTALLATION

M1511011500107

AC203468AB

1

3

2

58 ± 7 N·m
43 ± 5 ft-lb

58 ± 7 N·m
43 ± 5 ft-lb

58 ± 7 N·m
43 ± 5 ft-lb

REMOVAL STEPS

• SIDE STEP LIGHT ASSEMBLY

CONNECTOR CONNECTION

1. SIDE STEP ASSEMBLY

2. SIDE STEP LIGHT BRACKET

PROTECTOR

3. SIDE STEP LIGHT ASSEMBLY

 (Continued)

REMOVAL STEPS
