MOLDINGS

TSB Revision

EXTERIOR

51-11

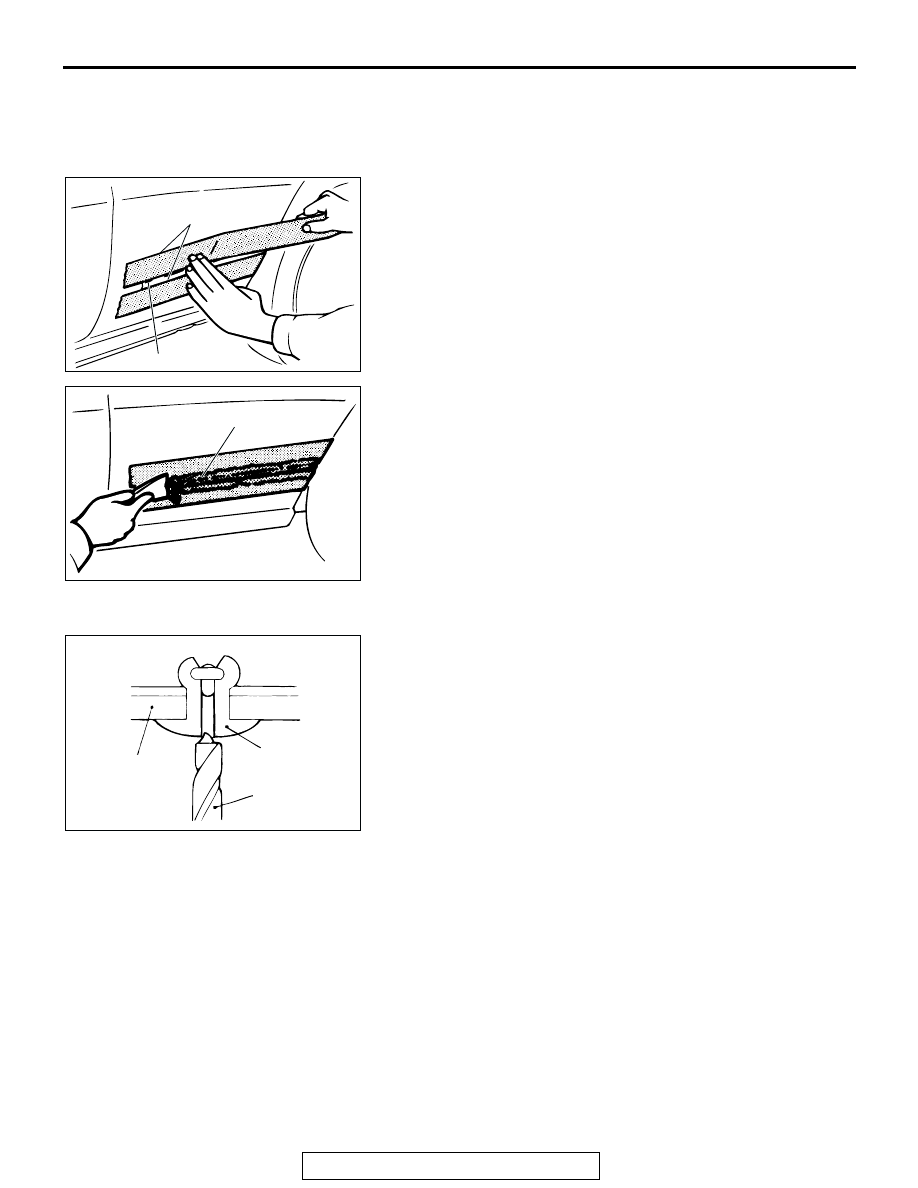

REMOVAL SERVICE POINTS

.

<<A>> FRONT DOOR MOLDING, FRONT WHEEL CUT
MOLDING, REAR WHEEL CUT MOLDING AND REAR DOOR
MOLDING REMOVAL
1. Attach protection tape all the way along the edges of the

double-sided tape which is still adhering to the body.

2. Use a resin spatula to scrape off the double-sided tape.
3. Peel off the protection tape.
4. Wipe the body surface and clean it with a rag moistened

with isopropyl alcohol.

.

<<B>> RIVET A AND RIVET B REMOVAL
Use a drill [with a 4.0 mm (0.16 inch) bit for rivet A, or a 6.5 mm
(0.25 inch) bit for rivet B] to make a hole in the rivet to break it,
and then remove the rivets.

.

AC000420

DOUBLE-SIDED TAPE

PROTECTION TAPE

AB

AC000421

DOUBLE-SIDED TAPE

AB

ACX00432AB

MOULDING

RIVET

DRILL

MOLDINGS

TSB Revision

EXTERIOR

51-12

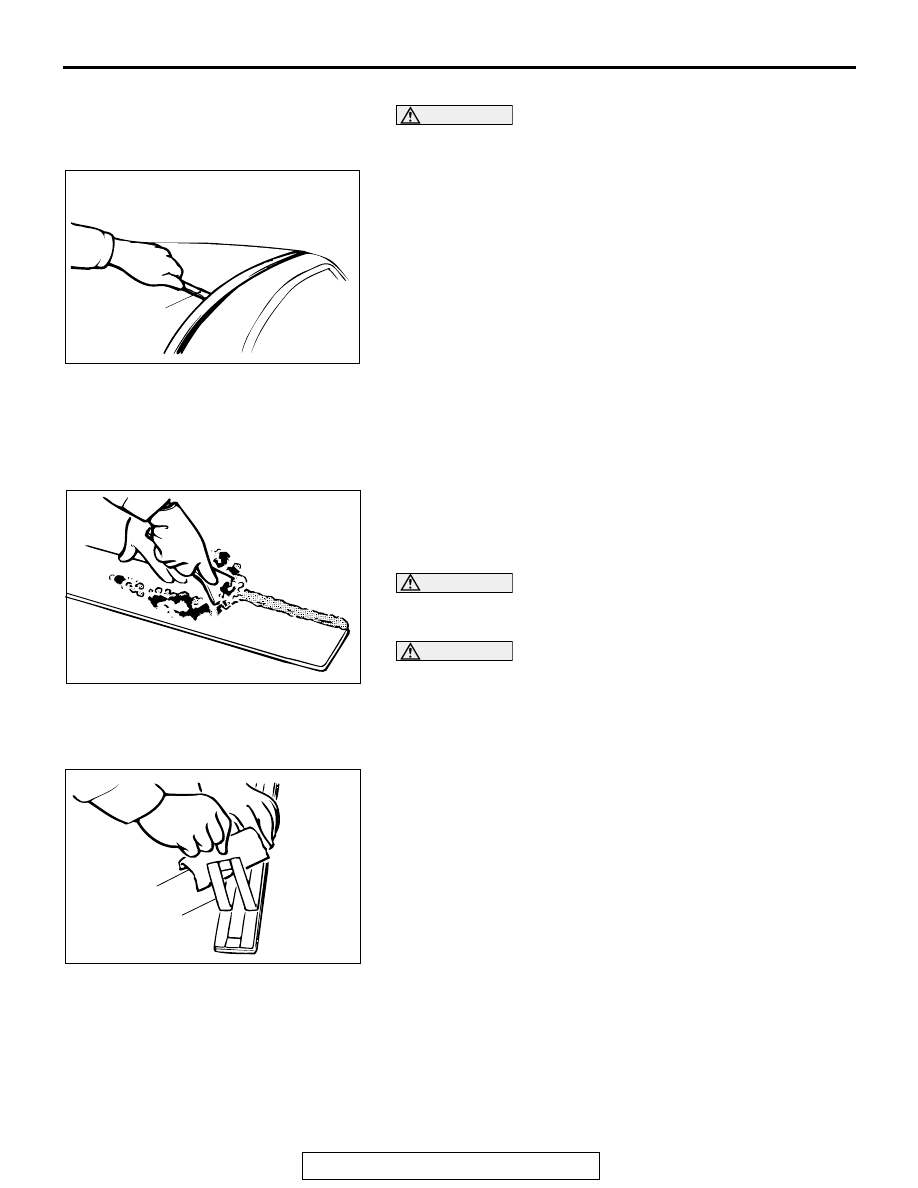

<<C>> ROOF DRIP MOLDING REMOVAL

CAUTION

If the molding becomes deformed, it should not be re-
used.
Use special tool MB990449 to pry out the molding.

INSTALLATION SERVICE POINTS

.

>>A<< FRONT DOOR MOLDING, FRONT WHEEL CUT
MOLDING, REAR WHEEL CUT MOLDING AND REAR DOOR
MOLDING INSTALLATION.
1. Scrape off the double-sided tape with a resin spatula or

gasket scraper.

2. Use a shop towel moistened with 3M

ä AAD Part number

8906 or equivalent to wipe the rear pillar garnish surface.

CAUTION

Do not remove all of the residual adhesive.
3. Remove only a small portion of the residual adhesive.

CAUTION

• Always apply it evenly on the entire surface, because a

lot or little will reduce its strength.

• Do not touch the painted surface.

4. Affix the specified double-sided tape to the moldings (Refer

to

P.51-9

).

5. Tear off the double-sided tape backing paper.

NOTE: If you attach the adhesive tape to the edge of the
backing paper, if will be easy to tear off.

6. Install the moldings.

NOTE: If the double-sided tape is difficult to affix in cold tem-
perature, etc., warm the bonding surfaces of the body and
molding to about 40

−

 60

°

C (104

−

 140

°

F) before affixing the

tape.

7. Firmly press in the moldings.
NOTE: When a new part is used, observe Steps 5 to 7.

.

>>B<< RIVET A INSTALLATION
Install by the same procedure described previously for REAR
MUDGUARD REINFORCEMENT, REAR BUMPER SIDE
RETAINER, REAR BUMPER CORNER BRACKET INSTALLA-
TION (Refer to

P.51-6

).

.

ACX00433

MB990449

AB

AC000422

AC000423AB

ADHESIVE TAPE

BACKING PAPER

MOLDINGS

TSB Revision

EXTERIOR

51-13

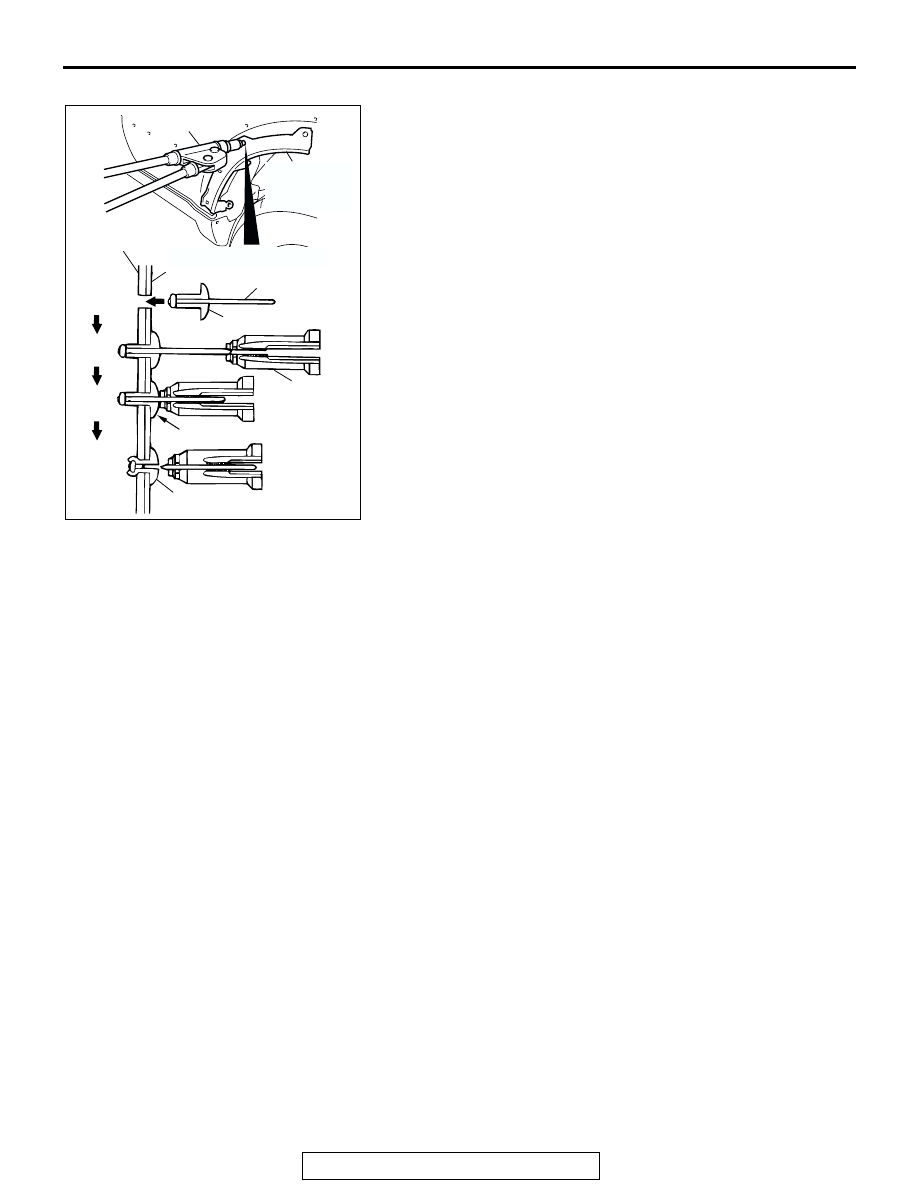

>>C<< RIVET B INSTALLATION
1. Insert the rivet [4.8 mm (0.19 inch)] into the body panel and

wide fender.

2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of

the rivet tool.

4. The thinnest point of "A" is cut and the rivet is held in

position.

ACX00434

18E0192

1

2

3

4

X1068CA

SECTION A

RIVET

RIVET TOOL

FLANGE

RIVET

REAR DOOR
PANEL

RIVET TOOL

REAR DOOR
MOULDING
BRACKET

REAR DOOR MOULDING
BRACKET

AB

X1068CA

GARNISHES

TSB Revision

EXTERIOR

51-14

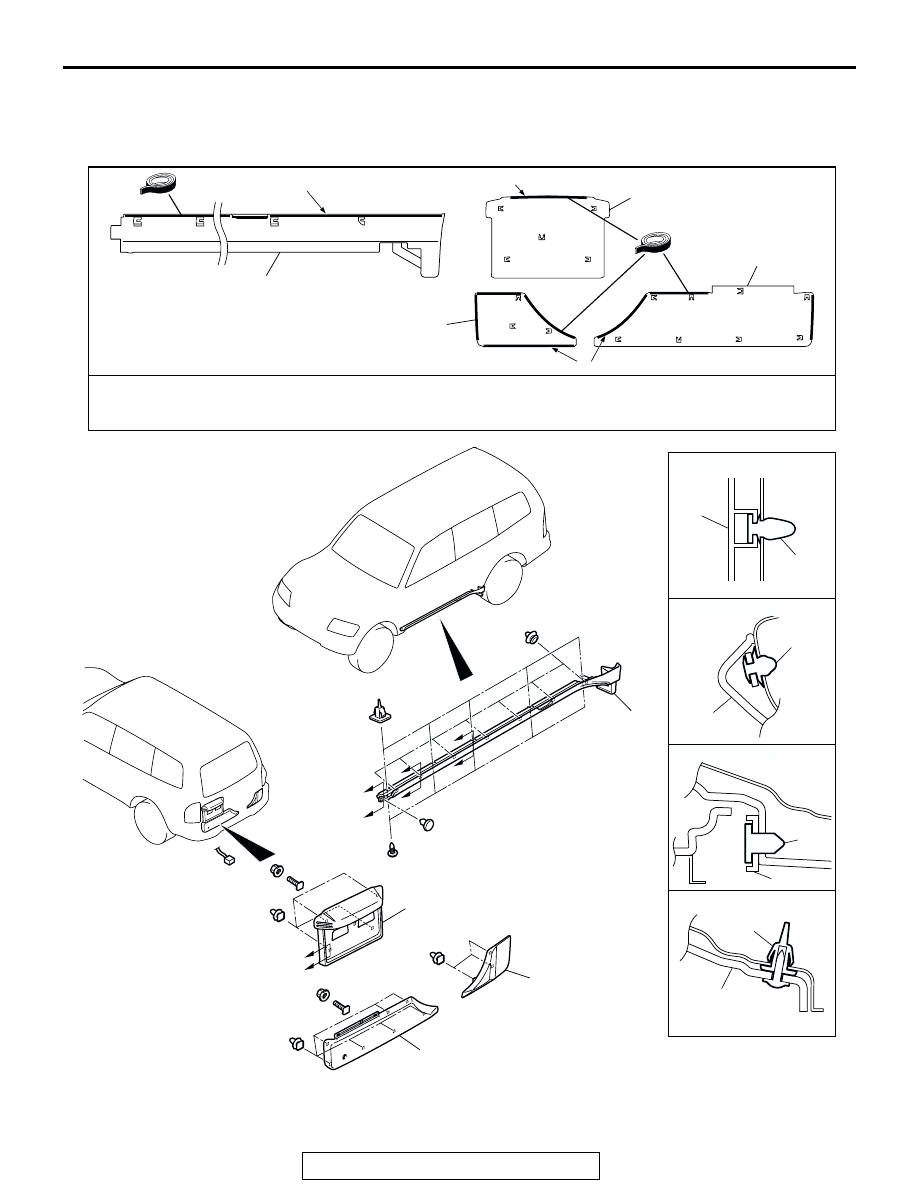

GARNISHES

REMOVAL AND INSTALLATION

M1511004100044

AC203958

1

1

2, 3, 4

1

3

4

2

2

3

4

AB

ADHESIVE TAPE:
DOUBLE-SIDED TAPE <A [ 4 mm ( 0.16 in ) WIDTH AND 1.2 mm ( 0.05 in ) THICKNESS], B [ 5 mm ( 0.2 in ) WIDTH
AND 0.8 mm ( 0.03 in ) THICKNESS]>

SECTION D – D

SECTION A – A

SECTION B – B

SECTION C – C

CLIP

CLIP

CLIP

CLIP

A

B

B

A
A

B

B

C

C

D

D

1

1
