DOOR

TSB Revision

BODY

42-21

SYMPTOM CHART

M1423007000262

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak through Door Window Glass

DIAGNOSIS

STEP 1. Check the door window glass
installation.

Q: Is the door window glass installed correctly?

YES :

Go to Step 2.

NO :

Adjust the door window glass (Refer to

P.42-26

). Then go to Step 3.

STEP 2. Check the clearance at the top of the
door window glass.

Q: Is the clearance at the top of the door window

glass correct?
YES :

Go to Step 3.

NO :

Adjust the door window glass clearance
(Refer to

P.42-26

). Then go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 2: Door Window Malfunction

DIAGNOSIS

STEP 1. Check the door window installation
condition.

Q: Is the door window installation condition good?

YES :

Go to Step 2.

NO :

Adjust the door window (Refer to

P.42-26

).

Then go to Step 4.

STEP 2. Check the door sash.

Q: Is the door sash in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the door sash, then go to
Step 4.

STEP 3. Inspect the window regulator assembly.

Q: Is the window regulator assembly in good

condition?
YES :

Go to Step 4.

NO :

Repair or replace the window regulator
assembly, then go to Step 4.

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Water leak through door window glass

1

P.42-21

Door window glass malfunction

2

P.42-21

Water leak through door edge

3

P.42-22

Water leak from door center

4

P.42-22

Door hard to open

5

P.42-22

Door does not open or close completely

6

P.42-23

Uneven gap between body

7

P.42-23

Wind noise around door

8

P.42-23

DOOR

TSB Revision

BODY

42-22

STEP 4. Retest the system.

Q: Does the door window operate correctly?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Water Leak through Door Edge

DIAGNOSIS

STEP 1. Check the weatherstrip.

Q: Is the weatherstrip in good condition?

YES :

Go to Step 2.

NO :

Replace the weatherstrip, then go to Step 3.

STEP 2. Check door fit (alignment).

Q: Is the door fit (alignment) correct?

YES :

Go to Step 3.

NO :

Adjust the door fit (alignment) (Refer to

P.42-26

). Then go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 4: Water Leak from Door Center

DIAGNOSIS

STEP 1. Check the drain hole.

Q: Is the drain hole clogged?

YES :

Replace the drain hole, then go to Step 3.

NO :

Go to Step 2.

STEP 2. Check the waterproof film.

Q: Is the waterproof film in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the waterproof film, then
go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 5: Door Hard to Open

DIAGNOSIS

STEP 1. Adjust the latch and striker engagement.

Q: Is the latch and striker engagement adjusted?

YES :

Go to Step 2.

NO :

Adjust the latch and striker engagement
(Refer to

P.42-26

). Then go to Step 4.

STEP 2. Check for possible lock rod damage.

Q: Is the possible lock rod damaged?

YES :

Repair or replace the possible lock rod, then

go to Step 4.

NO :

Go to Step 3.

DOOR

TSB Revision

BODY

42-23

STEP 3. Check the door handle flexibility
(amount of movement of handle required to open
door).

Q: Is the door handle flexibility good?

YES :

Go to Step 4.

NO :

Adjust the door handle flexibility (Refer to

P.42-27

 and

P.42-27

). Then go to Step 4.

STEP 4. Retest the system.

Q: Does the door open easily?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 6: Door does not Open or Close Completely

DIAGNOSIS

STEP 1. Check the door hinge position.

Q: Is the door hinge position correct?

YES :

Go to Step 2.

NO :

Adjust the door hinge position (Refer to

P.42-26

). Then go to Step 4.

STEP 2. Check the door.

Q: Is the door in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the door, then go to Step
4.

STEP 3. Check the grease.

Q: Is the door check or door hinge grease sufficient?

YES :

Go to Step 4.

NO :

Apply the grease, then go to Step 4.

STEP 4. Retest the system.

Q: Does the door open and close correctly?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 7: Uneven Gap between Body

.

DIAGNOSIS
Adjust the door fit (Refer to

P.42-26

). Then check

that the gap has been improved.

INSPECTION PROCEDURE 8: Wind Noise around Door

DIAGNOSIS

STEP 1. Check the weatherstrip for holding
condition.

Q: Is the weatherstrip installed properly?

YES :

Go to Step 2.

NO :

Repair or replace the weatherstrip. Then go
to Step 5.

STEP 2. Check the weatherstrip for installation
condition.

Q: Is the weatherstrip installed properly?

YES :

Go to Step 3.

NO :

Repair or replace the weatherstrip. Then go
to Step 5.

STEP 3. Check the clearance.

Q: Is the clearance between the door glass and the

door weatherstrip holder proper?
YES :

Go to Step 4.

NO :

Adjust the clearance (Refer to

P.42-26

).

Then go to Step 5.

DOOR

TSB Revision

BODY

42-24

STEP 4. Check the door.

Q: Is the door deformed?

YES :

Repair or replace the door. Then go to Step

5.

NO :

Go to Step 5.

STEP 5. Retest the system.

Q: Has the wind noise been improved?

YES :

Return to Step 1.

NO :

This diagnosis complete.

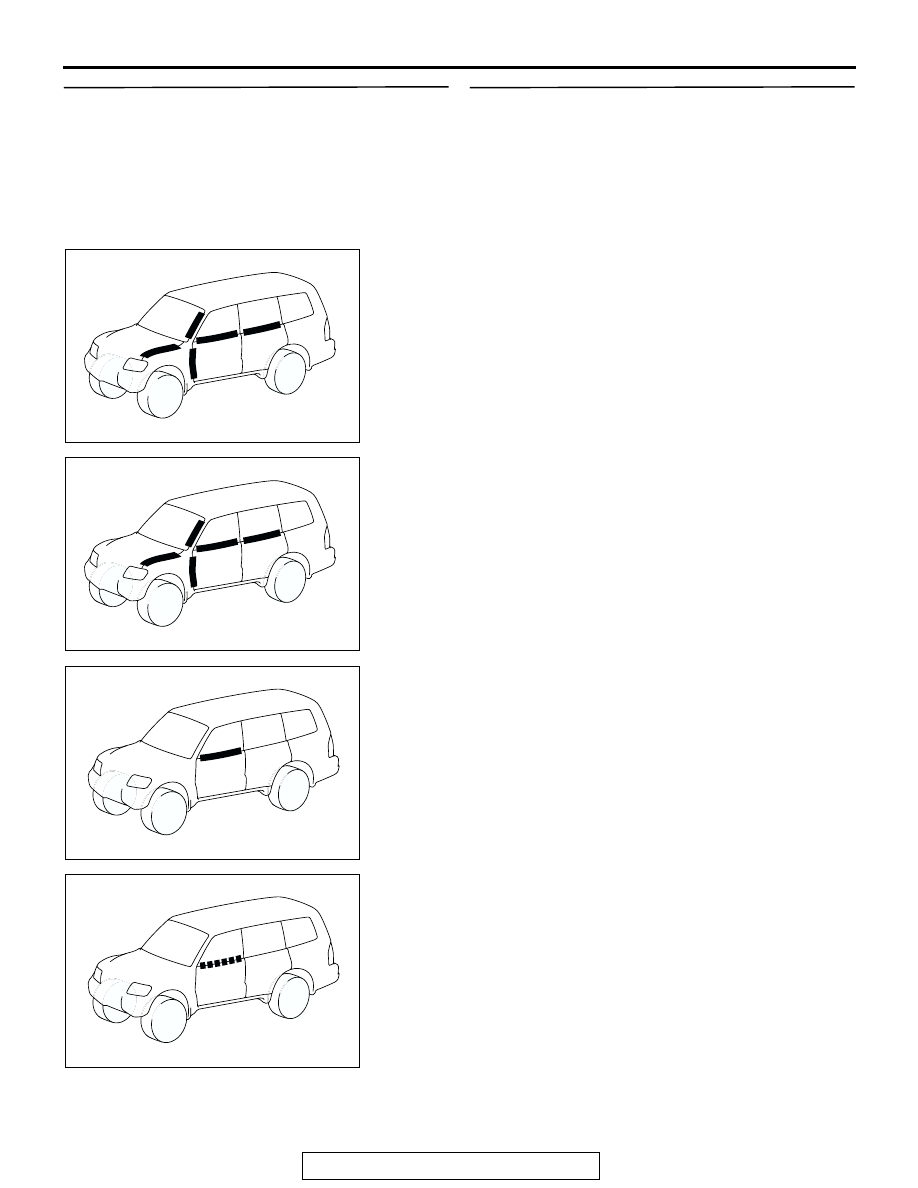

HOW TO LOCATE WIND NOISES

M1421004200186

1. Attach cloth tape to every place, such as panel seams,

projections, molding seams, glass and body seams, etc.
which might conceivably be the source of wind noise.

2. Then make a road test to check that the places not covered

by tape are not sources of wind noise.

3. Remove the strips of tape one by one, making a road test

after each is removed, until a wind noise source is
discovered.

4. When such a place is found, cover it again and repeat the

procedure to check if there are any other noise source.

5. If no others are found, the last remaining tape is the only

source.

6. Cut the remaining piece of tape into smaller pieces, attach it

again as it was before, and then remove the pieces one by
one to narrow down the source.
