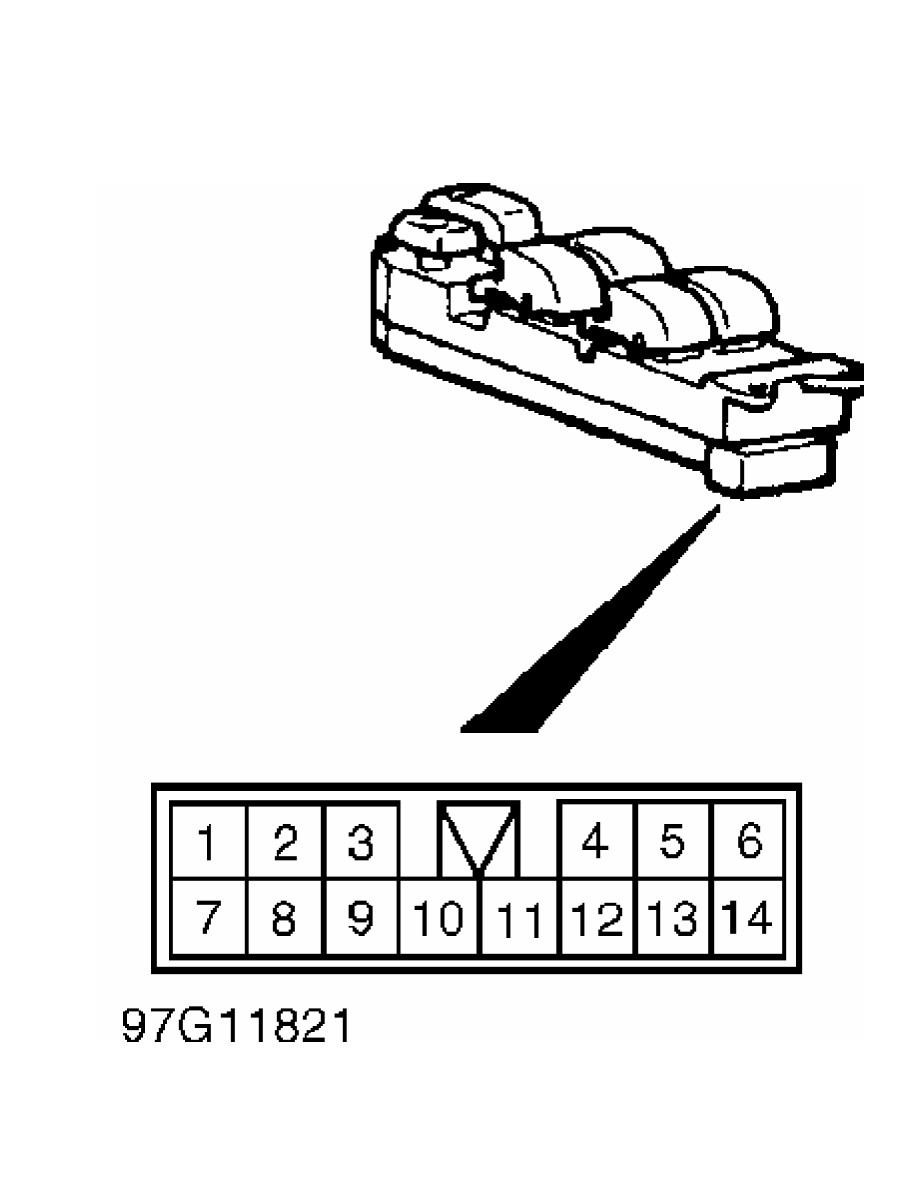

Fig. 8:  Identifying Power Window Connector Terminals (Montero &

Montero Sport - Main Switch)

Courtesy of Mitsubishi Motor Sales of America

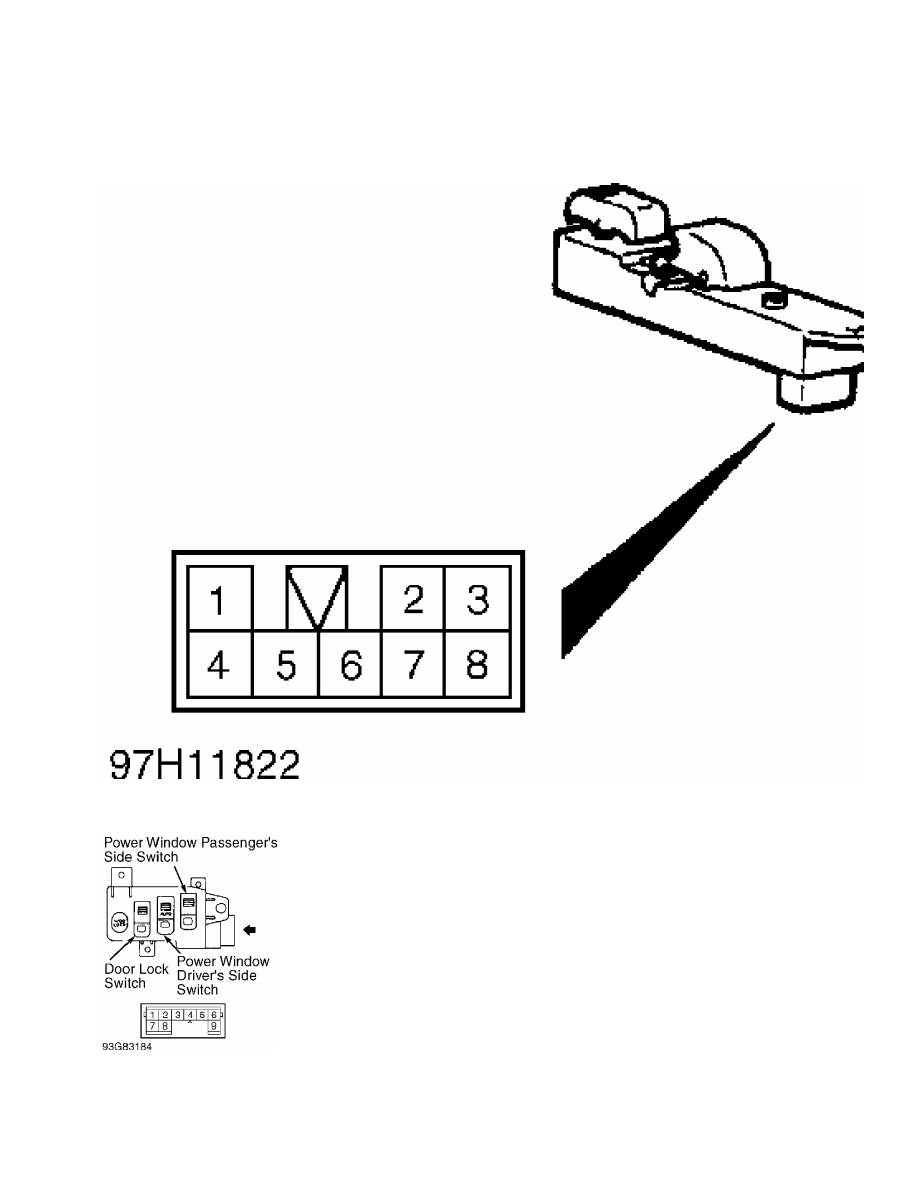

Fig. 9:  Identifying Power Window Connector Terminals (Mirage,

Montero & Montero Sport - Sub-Switch)

Courtesy of Mitsubishi Motor Sales of America

Fig. 10:  Identifying Power Window Connector Terminals (3000GT - Main

Switch)

Courtesy of Mitsubishi Motor Sales of America

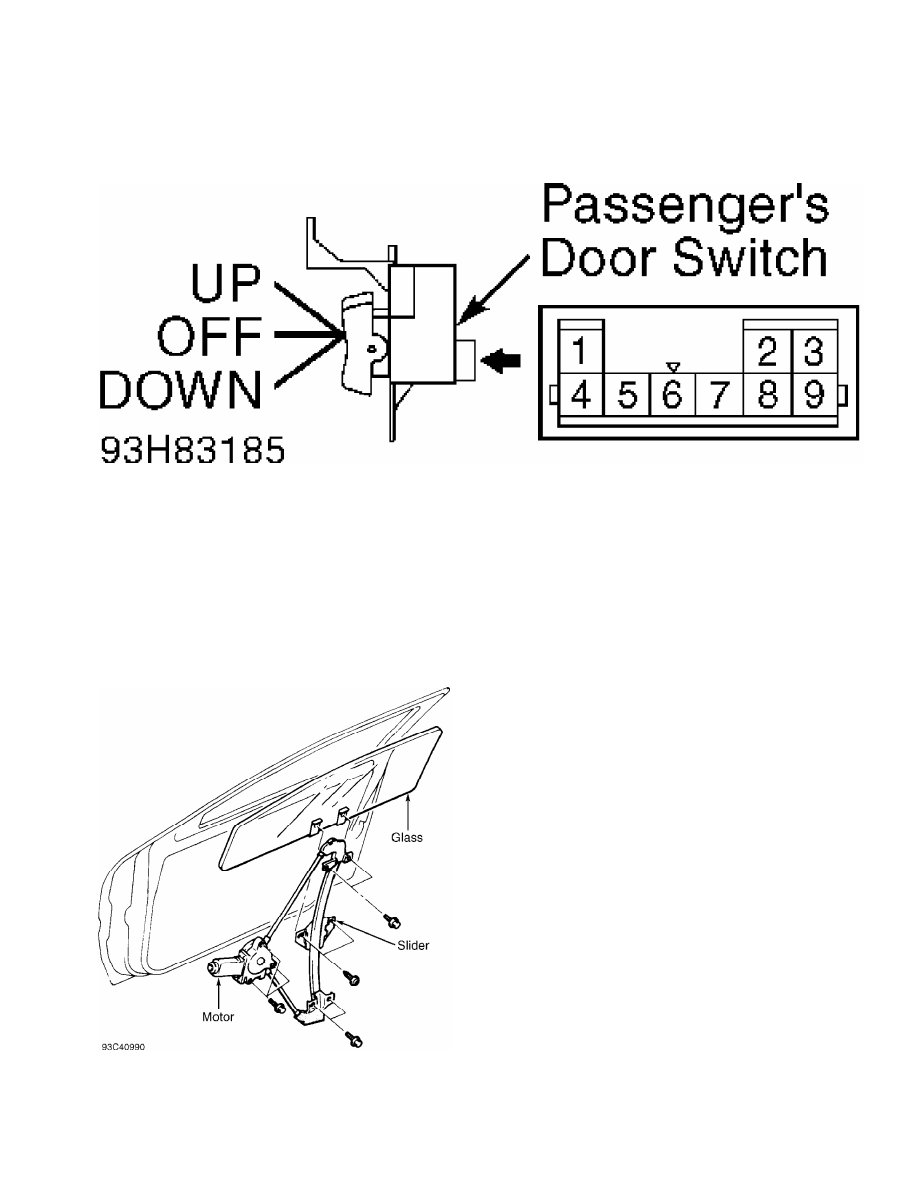

Fig. 11:  Identifying Power Window Connector Terminals (3000GT -

Sub-Switch)

Courtesy of Mitsubishi Motor Sales of America

         REMOVAL & INSTALLATION

         POWER WINDOW MOTOR

         Removal & Installation

         Remove door trim panel and waterproof shield. Remove glass

retaining screws and glass. See Fig. 12. Remove motor and slider

assembly retaining bolts. Remove motor and slider assembly from door.

To install, reverse removal procedure.

Fig. 12:  Removing Power Window Motor & Slider Assembly (Typical)

Courtesy of Mitsubishi Motor Sales of America

         WIRING DIAGRAMS

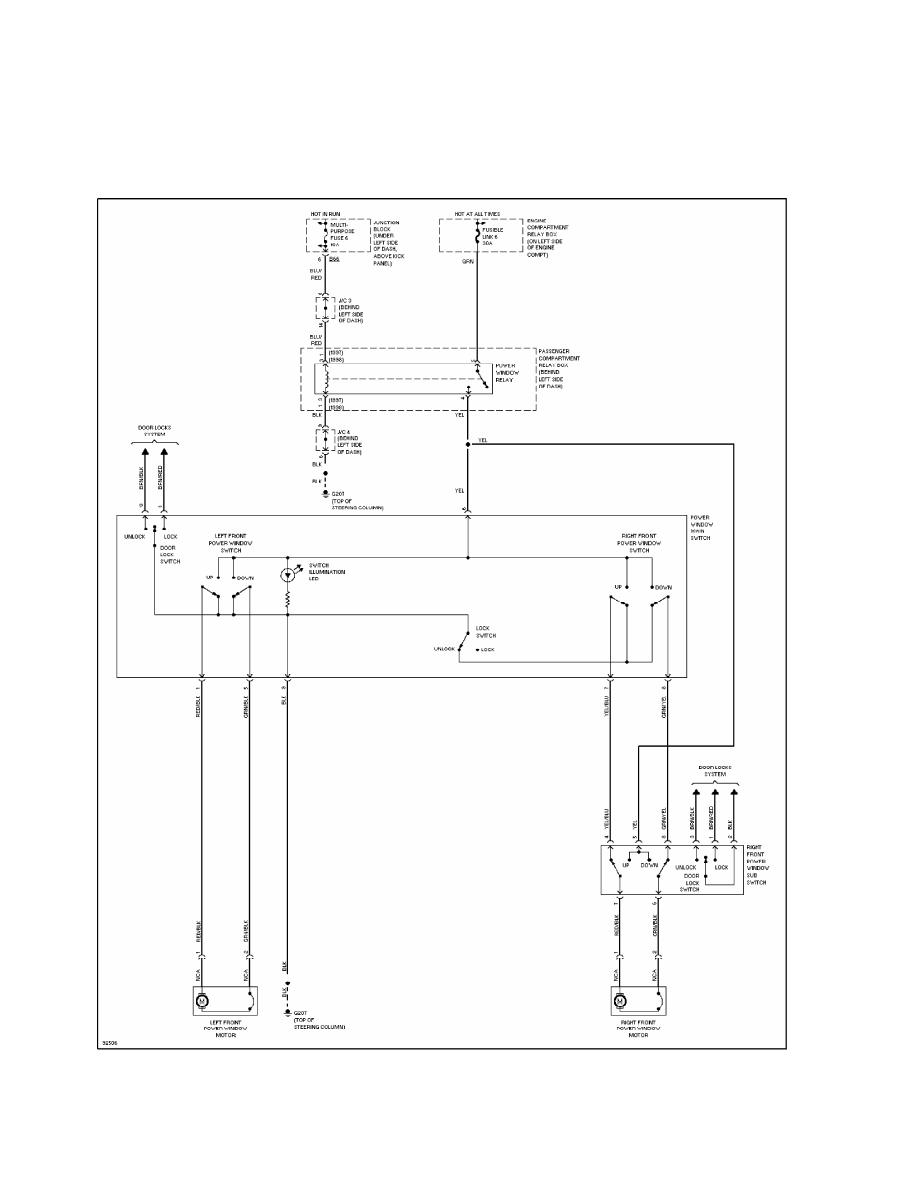

Fig. 13:  Power Window System Wiring Diagram (Mirage - 2-Door)
