POWER WINDOWS

1998 Mitsubishi Montero

         1998 ACCESSORIES & EQUIPMENT

         Mitsubishi - Power Windows

         Mirage, Montero, Montero Sport & 3000GT

         DESCRIPTION & OPERATION

         With ignition switch in RUN position, battery voltage is

applied to master power window switch located on driver’s door. Master

power window switch provides power and ground for all power window

switches and motors. Master power window switch offers one-touch

operation of driver’s window. A solid state control unit, incorporated

in master switch, fully lowers driver’s window when switch is

completely depressed. Master switch also includes lock-out feature to

prevent passengers from operating any of the other power window door

switches.

         COMPONENT LOCATIONS

COMPONENT LOCATIONS TABLE

Component                                           Location

Power Window Relay (1)  ..........  In Passenger Compartment

                                            Fuse/Relay Block

(1) - See Fig. 1.

         TROUBLE SHOOTING

         POWER WINDOWS INOPERATIVE

         Check for faulty fusible link, faulty power window relay or

faulty power window switches. See WIRING DIAGRAMS.

         ONE WINDOW FAILS TO OPERATE

         If one window does not operate, even if both master and

passenger side power window switches are pressed, check for faulty

master power window switch or power window motor that is inoperative.

If one window does not operate only when either master or passenger

side power window switch is pressed, but does operate when both

switches are pressed, check power window switch that is inoperative.

         ONE-TOUCH SWITCH FUNCTION INOPERATIVE

         Replace master power window switch.

         COMPONENT TESTS

         CIRCUIT BREAKER TEST

         Press UP switch to fully close window. Continue to press

switch for 10 seconds. Release UP switch and immediately press DOWN

switch. If window begins to open within 60 seconds, circuit breaker is

okay. Circuit breaker is part of window motor.

         POWER WINDOW RELAY TEST

         Mirage & 3000GT

         1) Remove power window relay from fuse/relay block. See

Fig. 1. Check for continuity between power window relay terminals No.

1 and 3. See Fig. 5. Continuity should be present.

         2) Connect positive lead of a 12-volt battery to power window

relay terminal No. 1, and negative lead of battery to terminal No. 3.

Continuity should be present between terminals No. 4 and 5 with

voltage applied. Replace power window relay if continuity is not as

specified.

         Montero & Montero Sport

         1) Remove power window relay from fuse/relay block. See

Fig. 2 or 3. Check for continuity between power window relay terminals

No. 2 and 4. See Fig. 6. Continuity should be present.

         2) Connect positive lead of a 12-volt battery to power window

relay terminal No. 2, and negative lead of battery to terminal No. 4.

Continuity should be present between terminals No. 1 and 3 with

voltage applied. Replace power window relay if continuity is not as

specified.

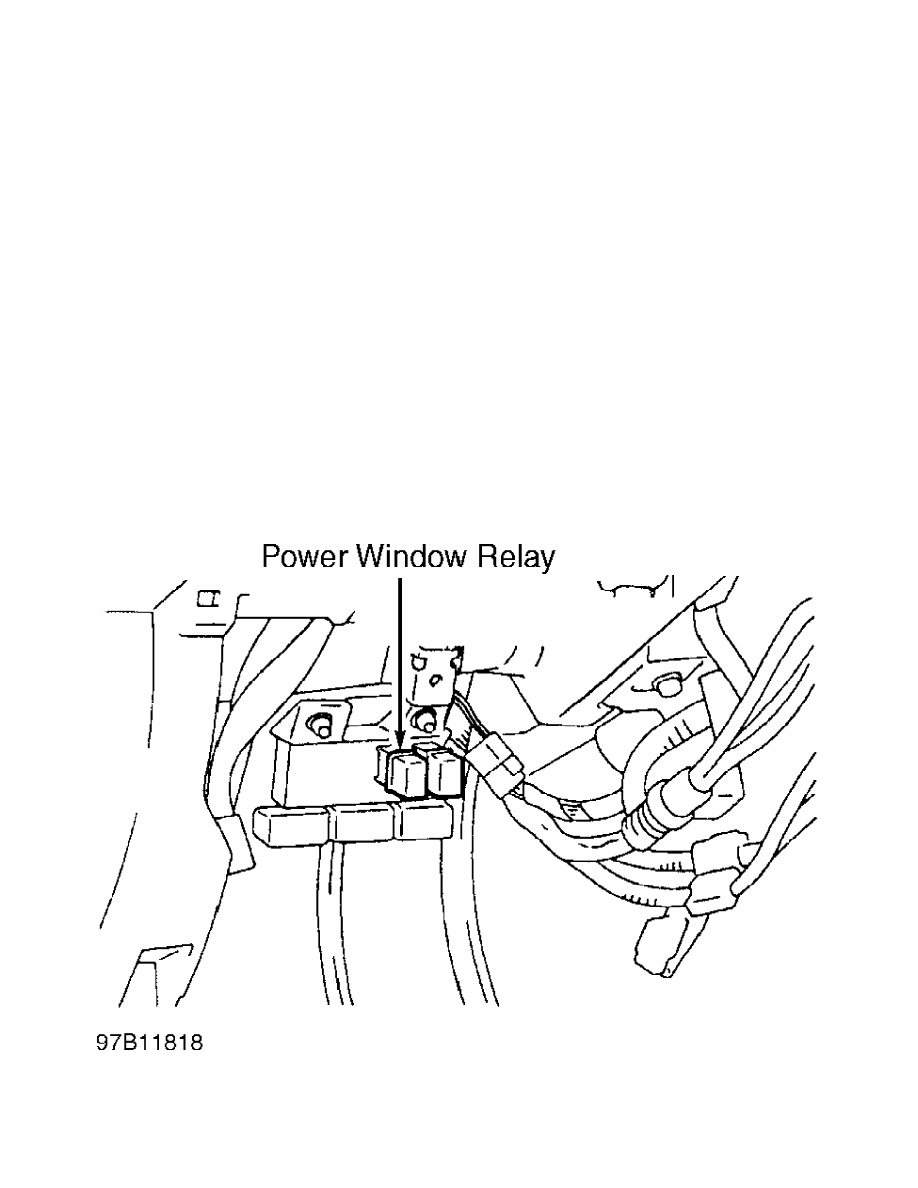

Fig. 1:  Locating Power Window Relay (Mirage)

Courtesy of Mitsubishi Motor Sales of America

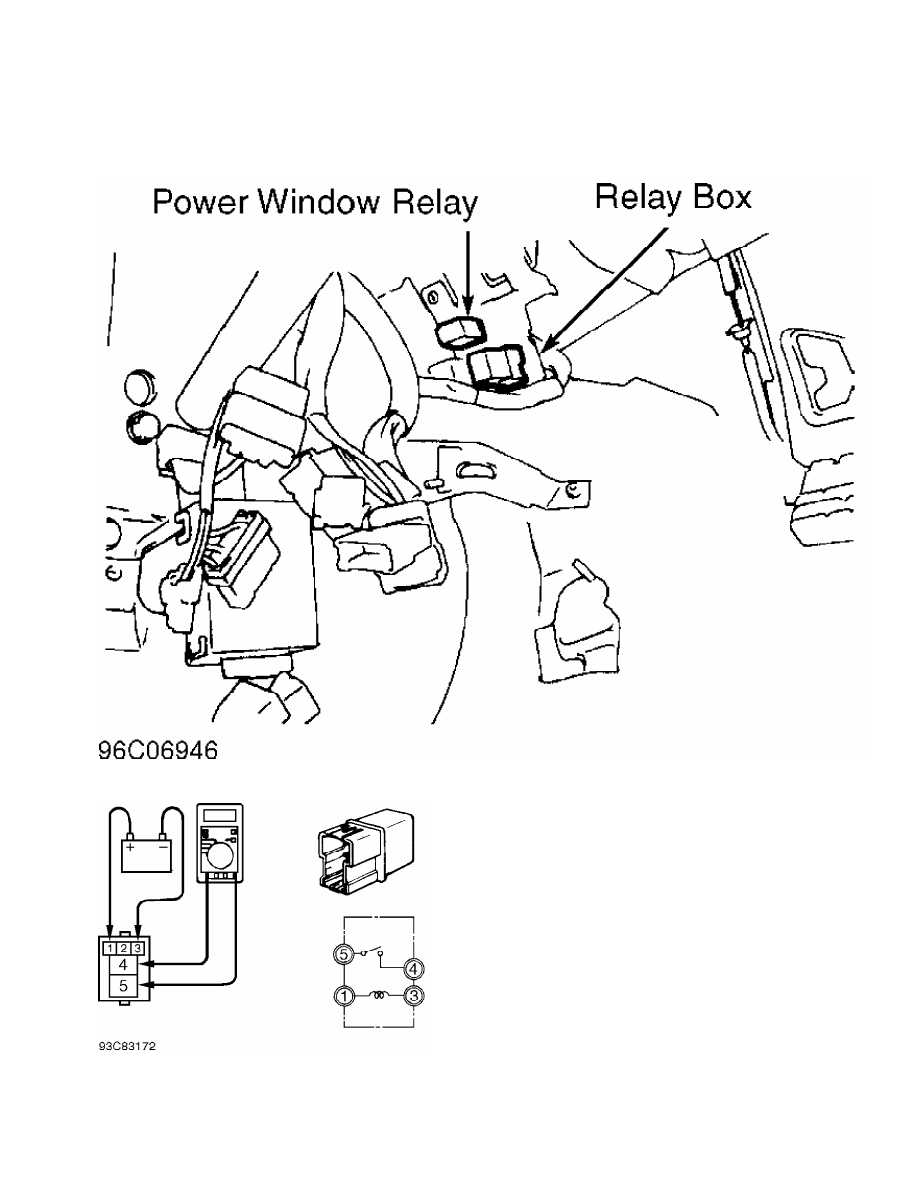

Fig. 2:  Locating Power Window Relay (Montero)

Courtesy of Mitsubishi Motor Sales of America

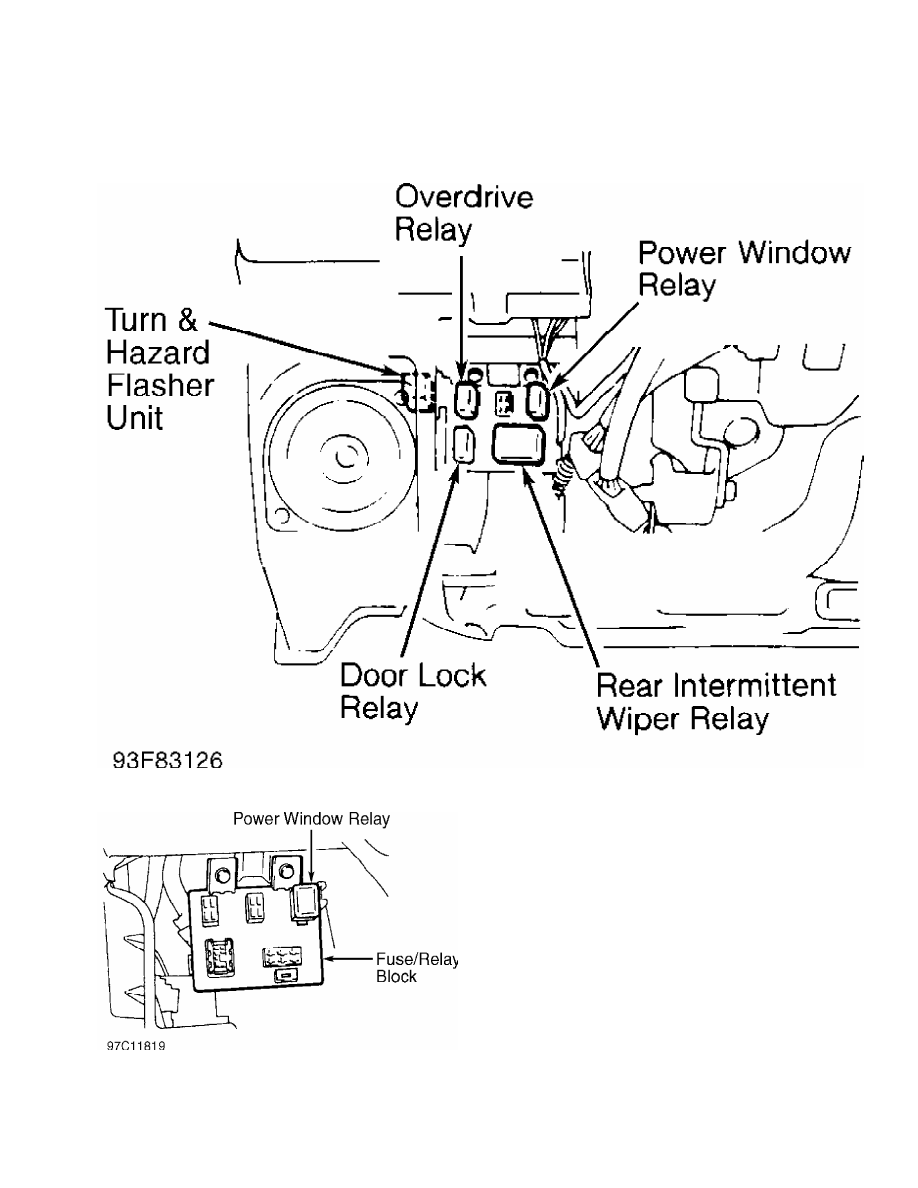

Fig. 3:  Locating Power Window Relay (Montero Sport)

Courtesy of Mitsubishi Motor Sales of America

Fig. 4:  Locating Power Window Relay (3000GT)

Courtesy of Mitsubishi Motor Sales of America

Fig. 5:  Identifying Power Window Relay Terminals (Mirage & 3000GT)

Courtesy of Mitsubishi Motor Sales of America
