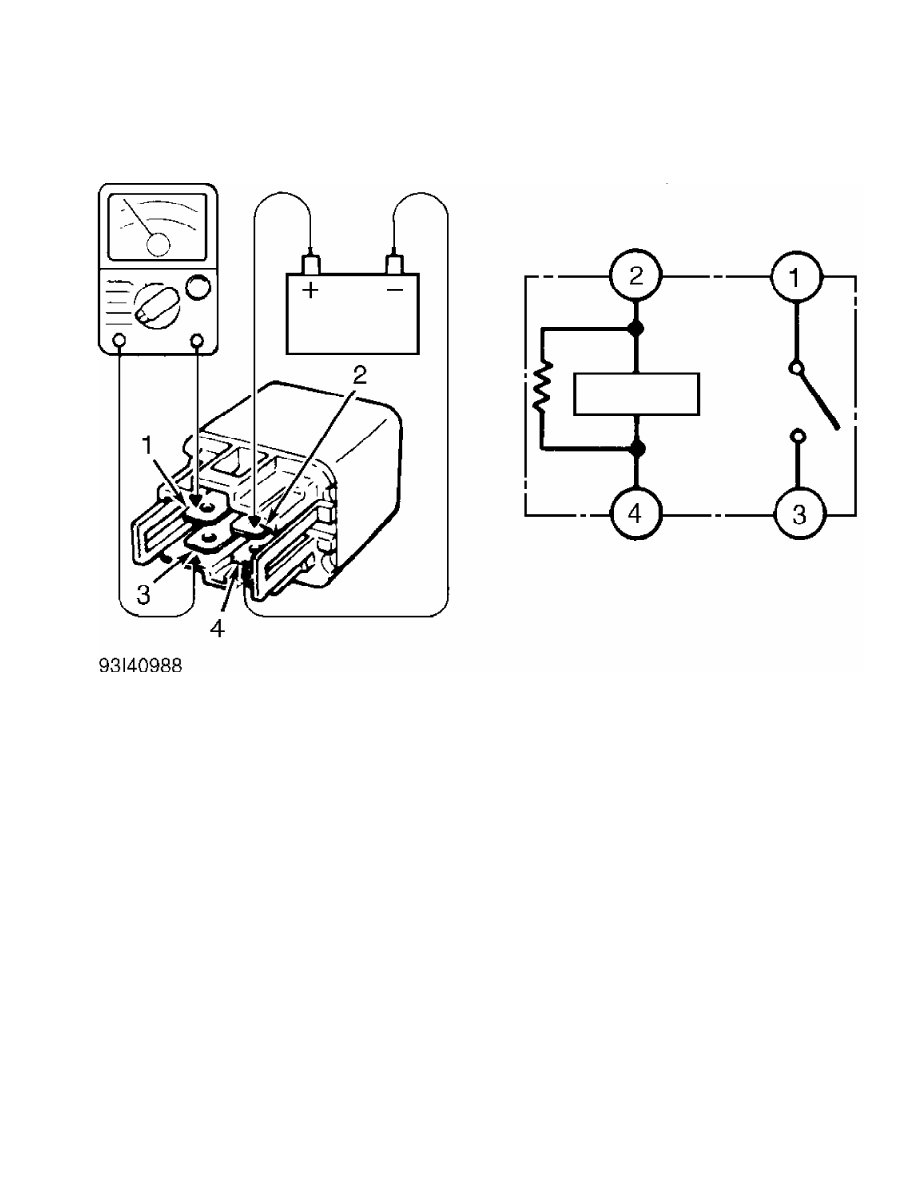

Fig. 6:  Identifying Power Window Relay Terminals (Montero & Montero

Sport)

Courtesy of Mitsubishi Motor Sales of America

         POWER WINDOW MOTOR TEST

         1) Remove appropriate door trim panel. Connect positive lead

of a 12-volt test battery to either motor terminal. Connect negative

lead of test battery to other motor terminal. Motor should operate,

unless motor is at maximum travel.

         2) Reverse test battery leads. Motor should operate in

opposite direction. If motor does not operate as specified, inspect

wiring. If wiring is okay, replace motor. Reverse test battery leads

again to complete full function test of motor.

         POWER WINDOW SWITCH TEST

         Remove control switch from trim panel. Using ohmmeter, check

continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY

or SUB-SWITCH CONTINUITY table. See Fig. 7. Replace appropriate switch

as necessary if switch continuity is not as specified.

MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 2-DOOR)

Switch Position (1)        Check Continuity Between Pins No.

Normal Position

  Left Front OFF  ................................  1, 5 & 9

  Left Front UP  .............................  1 & 6; 5 & 9

  Left Front DOWN  ...........................  5 & 6; 1 & 9

  Right Front OFF  ...............................  7, 8 & 9

  Right Front UP  ............................  6 & 7; 8 & 9

  Right Front DOWN  ..........................  6 & 8; 7 & 9

Lock Position

  Left Front OFF  ................................  1, 5 & 9

  Left Front UP  .............................  1 & 6; 5 & 9

  Left Front DOWN  ...........................  5 & 6; 1 & 9

  Right Front OFF  ..................................  7 & 8

  Right Front UP  ...................................  6 & 7

  Right Front DOWN  .................................  6 & 8

(1) - Left side of vehicle refers to driver’s side.

MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 4-DOOR)

Switch Position (1)        Check Continuity Between Pins No.

Normal Position

  Left Front OFF  ...............................  8, 9 & 12

  Left Front UP  ...........................  8 & 13; 9 & 12

  Left Front DOWN  .........................  8 & 12; 9 & 13

  Left Rear OFF  ................................  1, 2 & 12

  Left Rear UP  ............................  1 & 13; 2 & 12

  Left Rear DOWN  ..........................  2 & 13; 1 & 12

  Right Front OFF  .............................  3, 11 & 12

  Right Front UP  .........................  3 & 13; 11 & 12

  Right Front DOWN  .......................  3 & 12; 11 & 13

  Right Rear OFF  ..............................  6, 12 & 14

  Right Rear UP  ..........................  6 & 12; 13 & 14

  Right Rear DOWN  ........................  6 & 13; 12 & 14

Lock Position

  Left Front OFF  ...............................  8, 9 & 12

  Left Front UP  ...........................  8 & 13; 9 & 12

  Left Front DOWN  .........................  8 & 12; 9 & 13

  Left Rear OFF  ....................................  1 & 2

  Left Rear UP  ....................................  1 & 13

  Left Rear DOWN  ..................................  2 & 13

  Right Front OFF  .................................  3 & 11

  Right Front UP  ..................................  3 & 13

  Right Front DOWN  ...............................  11 & 13

  Right Rear OFF  ..................................  6 & 14

  Right Rear UP  ..................................  13 & 14

  Right Rear DOWN  .................................  6 & 13

(1) - Left side of vehicle refers to driver’s side.

SUB-SWITCH CONTINUITY TABLE (MIRAGE - ALL MODELS)

Switch Position            Check Continuity Between Pins No.

OFF  .........................................  4 & 7; 6 & 8

UP  ..........................................  5 & 7; 6 & 8

DOWN  ........................................  4 & 7; 5 & 6

MASTER WINDOW SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT)

Switch Position (1)        Check Continuity Between Pins No.

Normal Position

  Left Front OFF  ...............................  8, 9 & 12

  Left Front UP  ...........................  8 & 13; 9 & 12

  Left Front DOWN  .........................  8 & 12; 9 & 13

  Left Rear OFF  ................................  1, 2 & 12

  Left Rear UP  ............................  1 & 13; 2 & 12

  Left Rear DOWN  ..........................  1 & 12; 2 & 13

  Right Front OFF  .............................  3, 11 & 12

  Right Front UP  .........................  3 & 13; 11 & 12

  Right Front DOWN  .......................  3 & 12; 11 & 13

  Right Rear OFF  ..............................  6, 12 & 14

  Right Rear UP  ..........................  6 & 12; 13 & 14

  Right Rear DOWN  ........................  6 & 13; 12 & 14

Lock Position

  Left Front OFF  ...............................  8, 9 & 12

  Left Front UP  ...........................  8 & 13; 9 & 12

  Left Front DOWN  .........................  8 & 12; 9 & 13

  Left Rear OFF  ....................................  1 & 2

  Left Rear UP  ....................................  1 & 13

  Left Rear DOWN  ..................................  2 & 13

  Right Front OFF  .................................  3 & 11

  Right Front UP  ..................................  3 & 13

  Right Front DOWN  ...............................  11 & 13

  Right Rear OFF  ..................................  6 & 14

  Right Rear UP  ..................................  13 & 14

  Right Rear DOWN  .................................  6 & 13

(1) - Left side of vehicle refers to driver’s side.

SUB-SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT)

Switch Position            Check Continuity Between Pins No.

OFF  .........................................  4 & 7; 6 & 8

UP  ..........................................  5 & 7; 6 & 8

DOWN  ........................................  4 & 7; 5 & 6

MASTER WINDOW SWITCH CONTINUITY TABLE (3000GT)

Switch Position (1)        Check Continuity Between Pins No.

Normal Position

  Left Front OFF  ................................  2, 6 & 9

  Left Front UP  .............................  1 & 2; 6 & 9

  Left Front DOWN  ...........................  1 & 9; 2 & 6

  Right Front OFF  ...............................  3, 4 & 6

  Right Front UP  ............................  1 & 4; 3 & 6

  Right Front DOWN  ..........................  1 & 3; 4 & 6

Lock Position

  Left Front OFF  ................................  2, 6 & 9

  Left Front UP  .............................  1 & 2; 6 & 9

  Left Front DOWN  ...........................  1 & 9; 2 & 6

  Right Front OFF  ..................................  3 & 4

  Right Front UP  ...................................  1 & 4

  Right Front DOWN  .................................  1 & 3

(1) - Left side of vehicle refers to driver’s side.

PASSENGER-SIDE WINDOW SWITCH CONTINUITY TABLE (3000GT)

Switch Position            Check Continuity Between Pins No.

OFF  .........................................  3 & 8; 5 & 7

UP  ..........................................  3 & 8; 5 & 9

DOWN  ........................................  3 & 9; 5 & 7

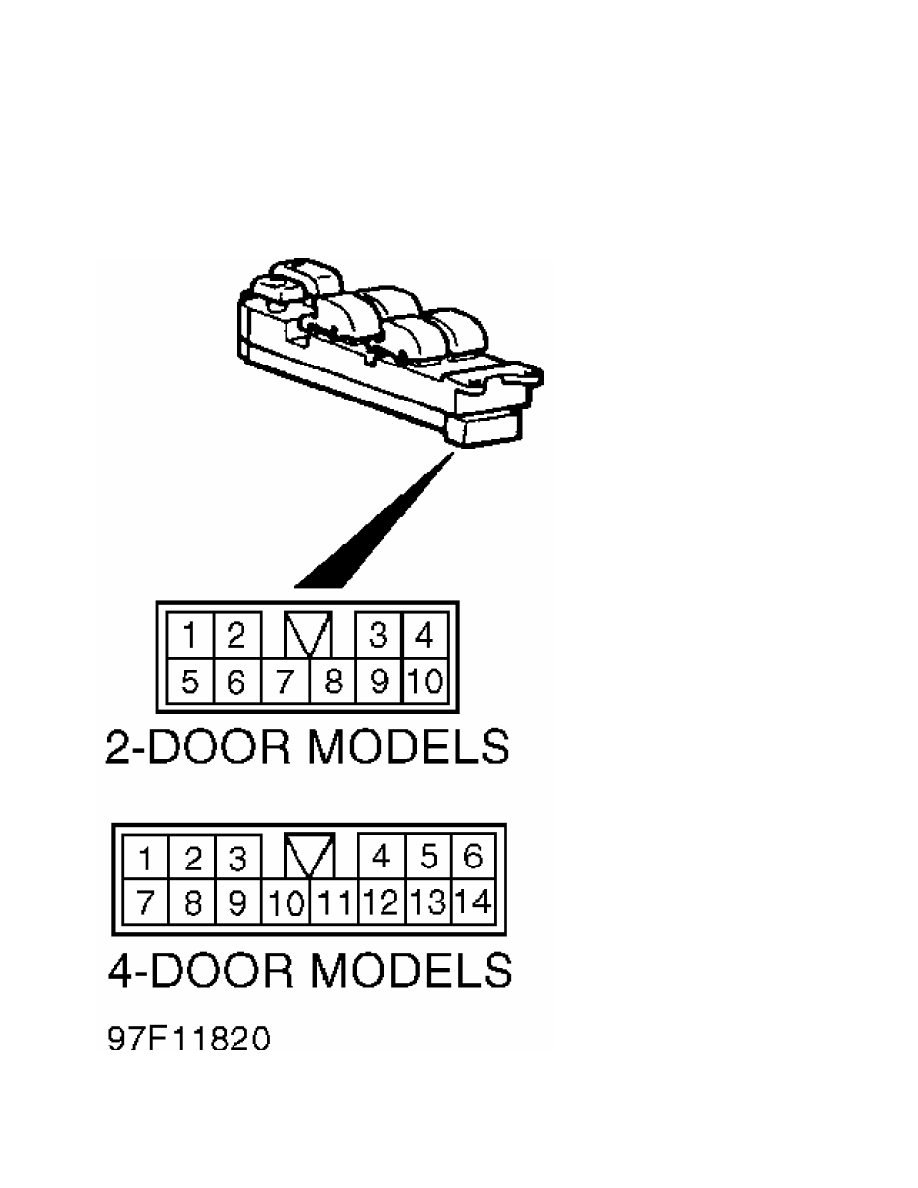

Fig. 7:  Identifying Power Window Connector Terminals (Mirage - Main

Switch)

Courtesy of Mitsubishi Motor Sales of America
