Mitsubishi Montero (1991+). Manual - part 245

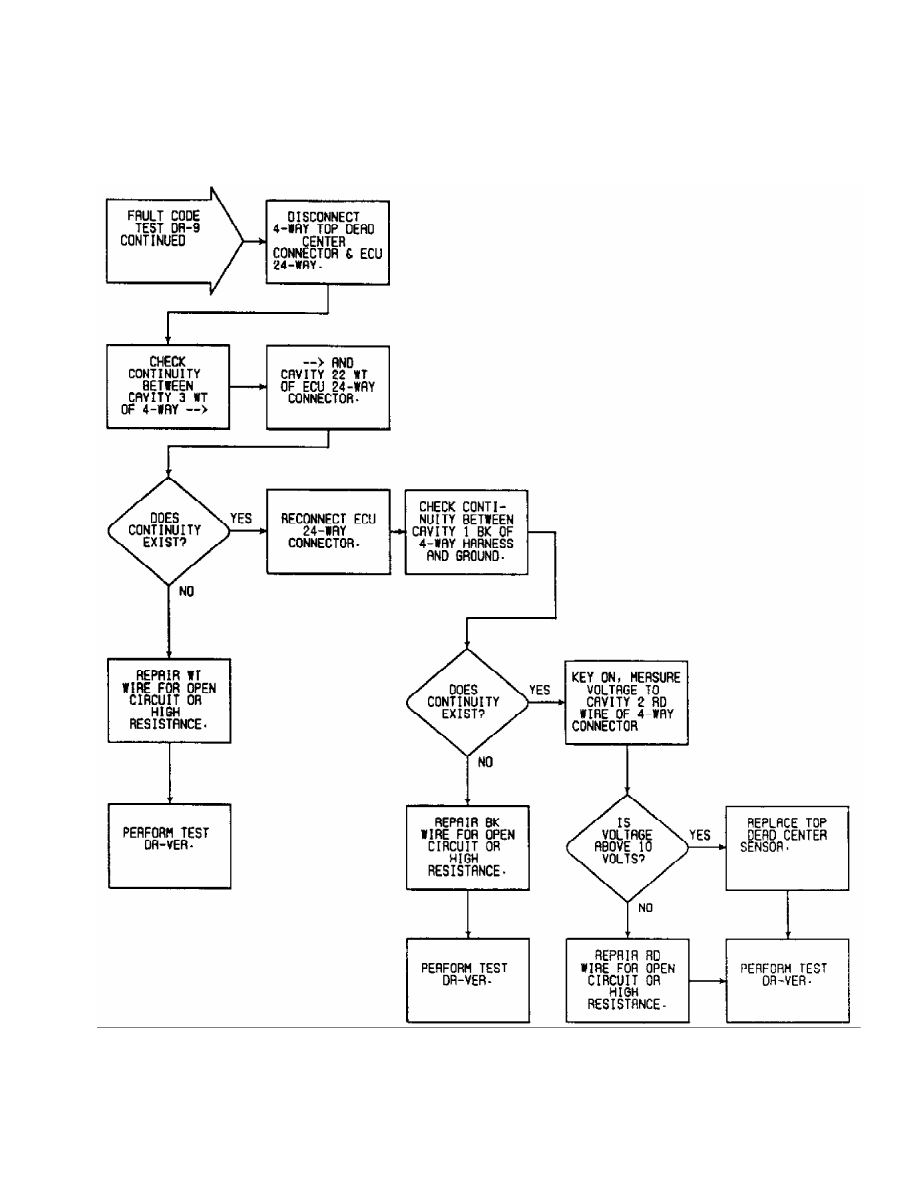

Fig. 123:  Flow Chart DR-9 (1.6L) (2 of 2)

         DR-10: CODE 24 VEHICLE SPEED SENSOR CIRCUIT - 1.6L

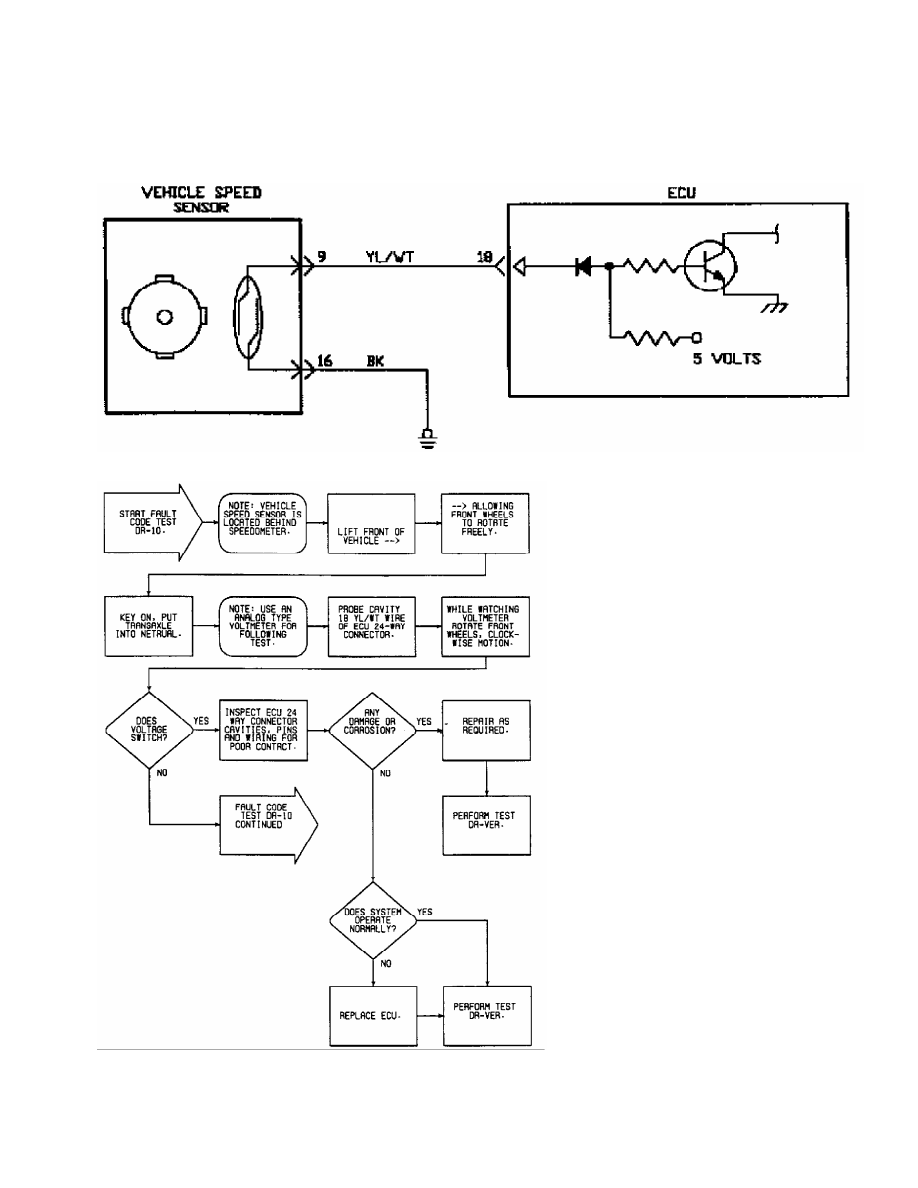

Fig. 124:  Circuit Diagram DR-10 (1.6L)

Fig. 125:  Flow Chart DR-10 (1.6L) (1 of 2)

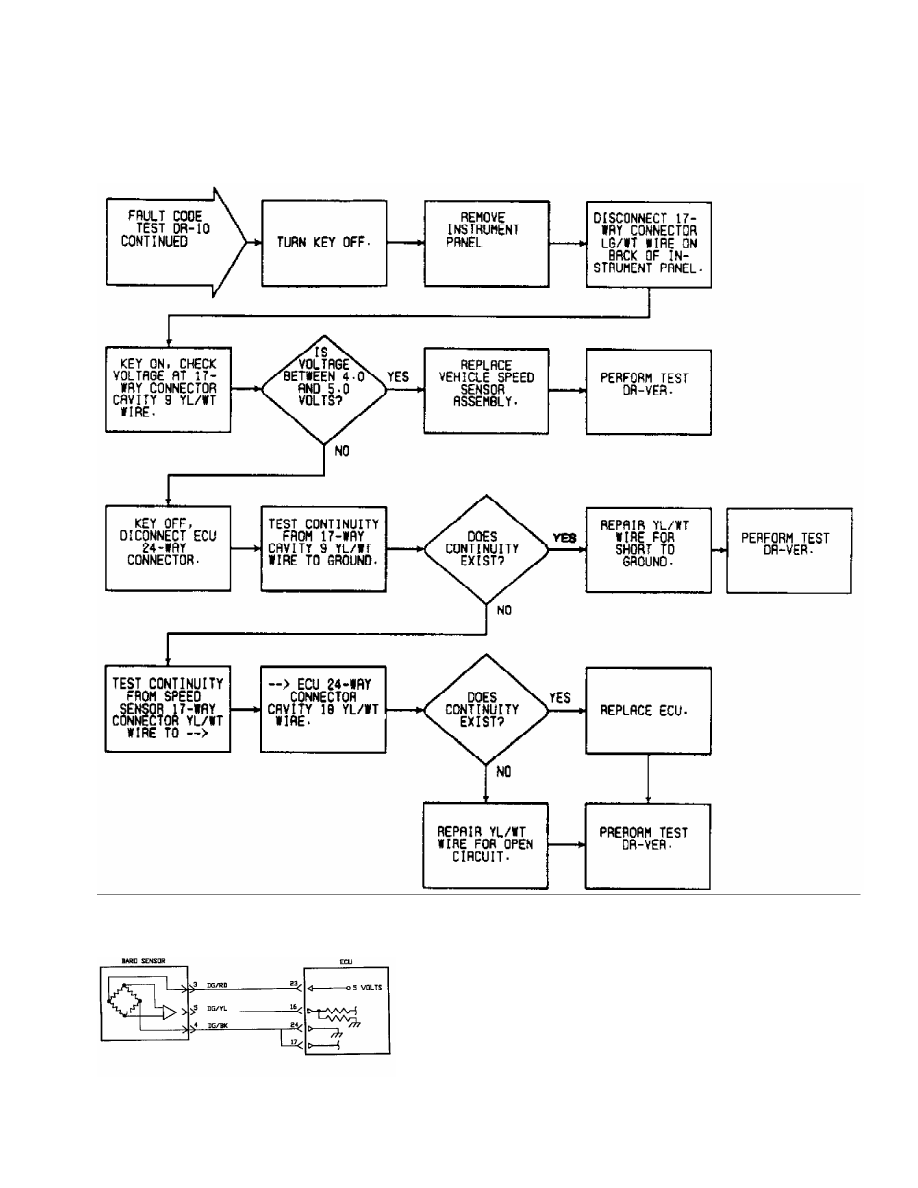

Fig. 126:  Flow Chart DR-10 (1.6L) (2 of 2)

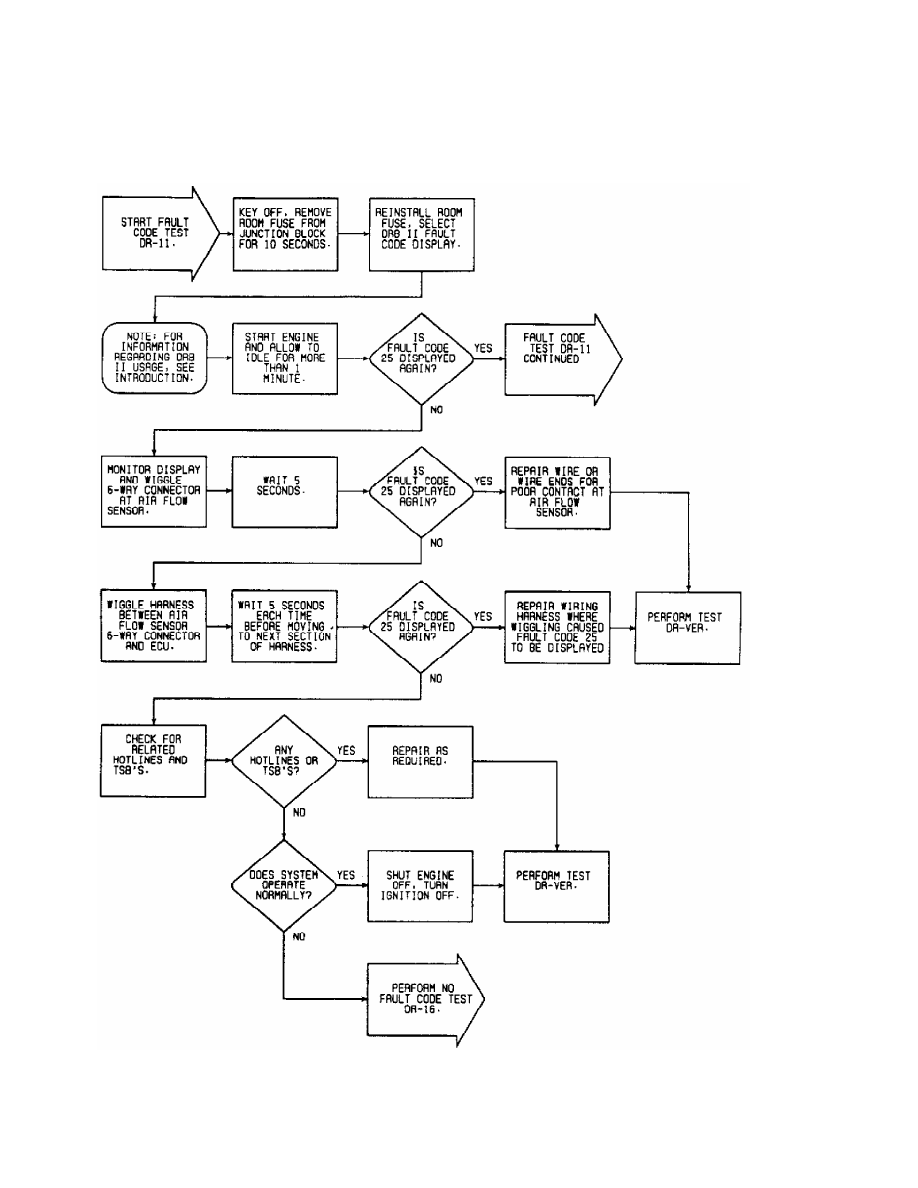

         DR-11: CODE 25 BAROMETRIC PRESSURE SENSOR CIRCUIT - 1.6L

Fig. 127:  Circuit Diagram DR-11 (1.6L)

Fig. 128:  Flow Chart DR-11 (1.6L) (1 of 2)
