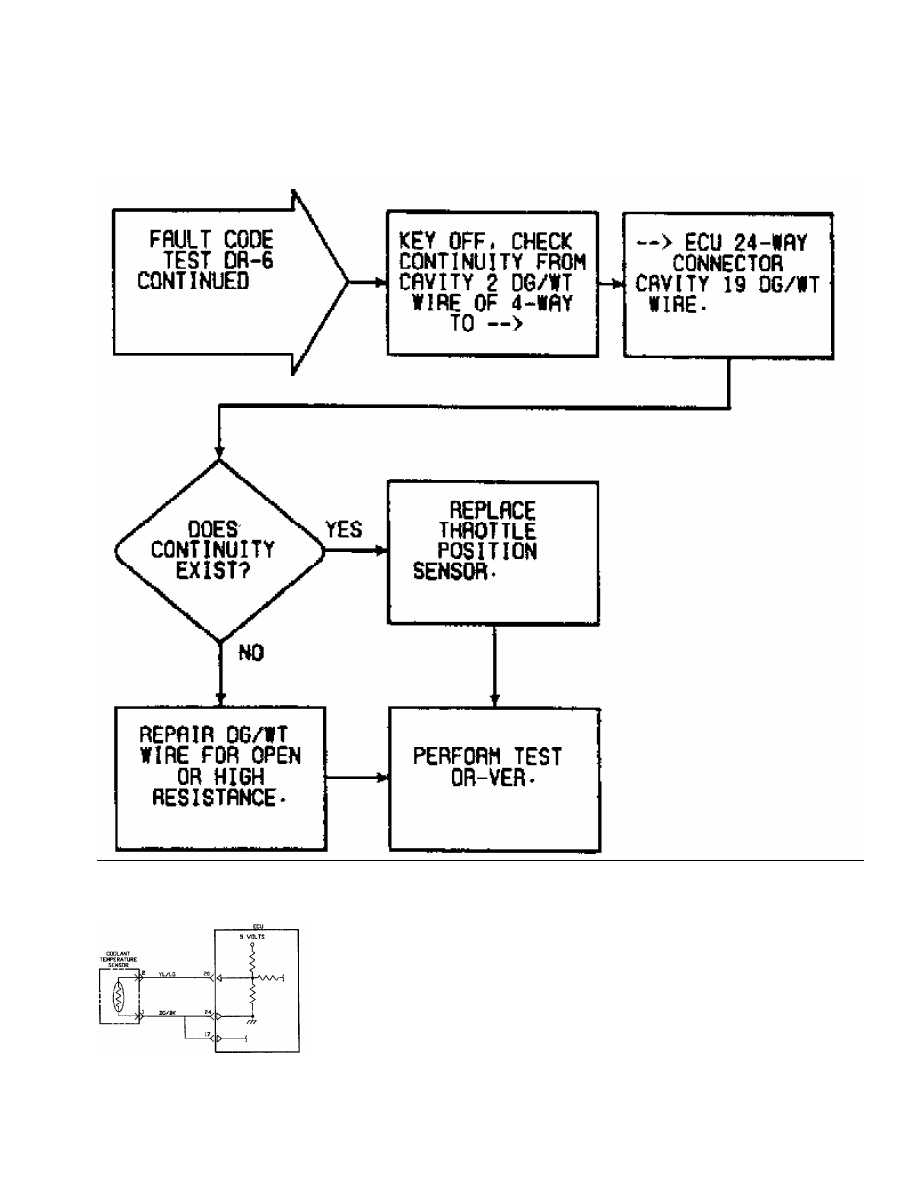

Fig. 114:  Flow Chart DR-6 (1.6L) (2 of 3)

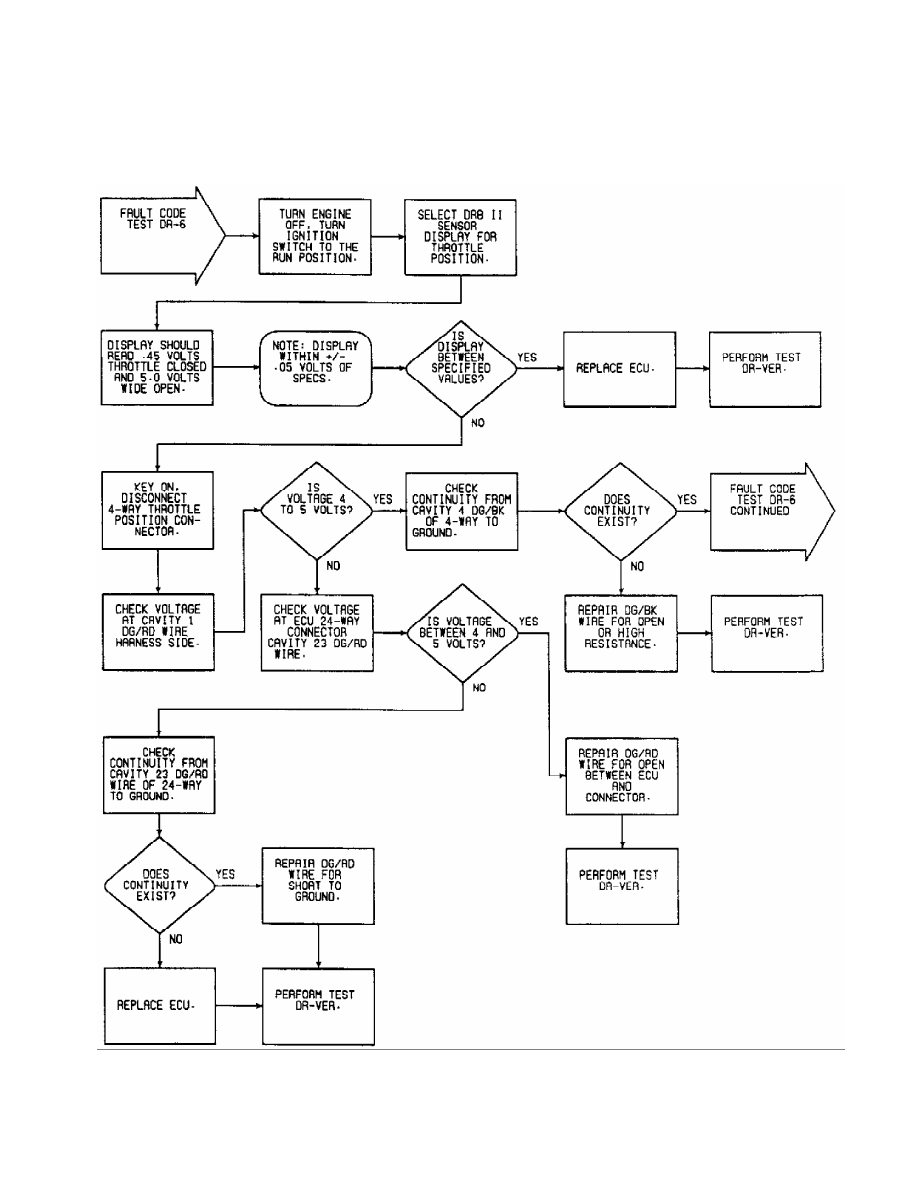

Fig. 115:  Flow Chart DR-6 (1.6L) (3 of 3)

         DR-7: CODE 21 COOLANT TEMPERATURE CIRCUIT - 1.6L

Fig. 116:  Circuit Diagram DR-7 (1.6L)

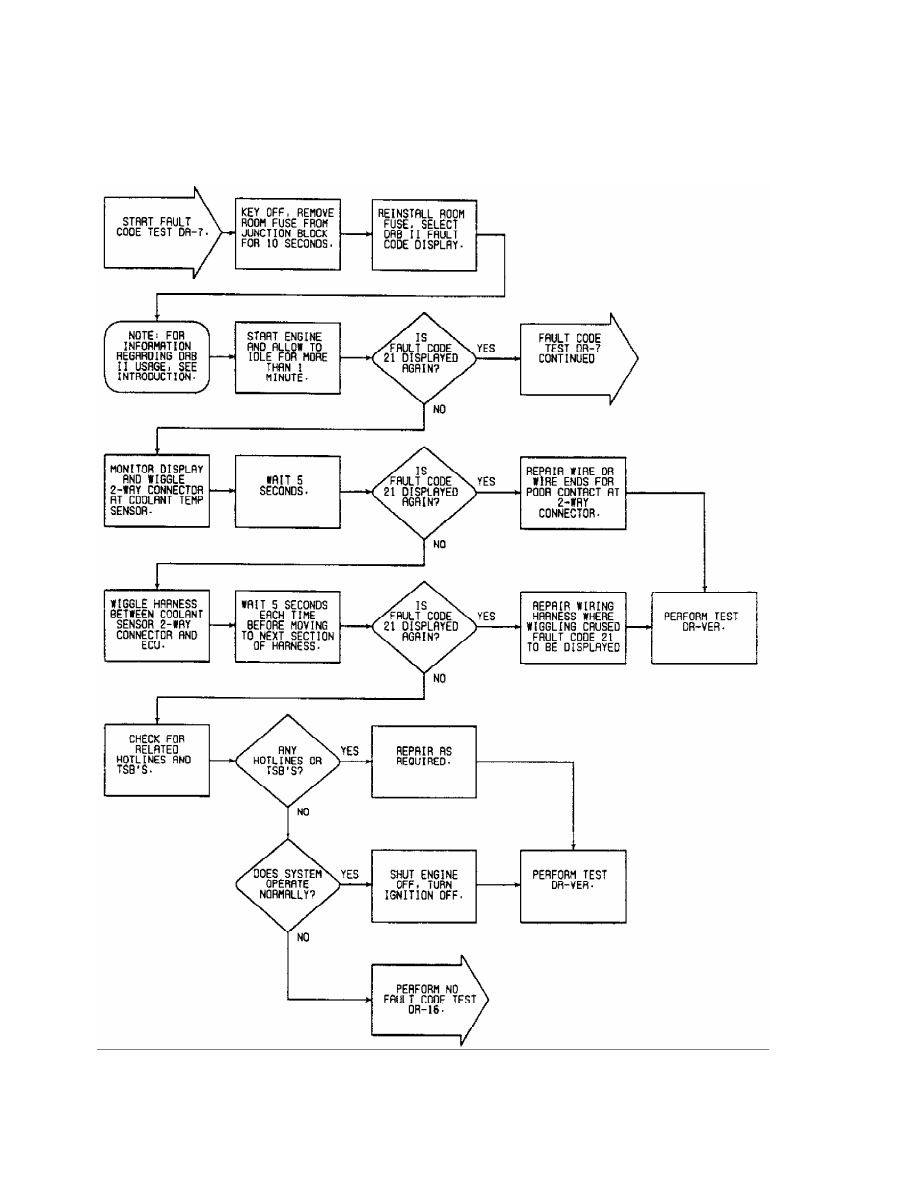

Fig. 117:  Flow Chart DR-7 (1.6L) (1 of 2)

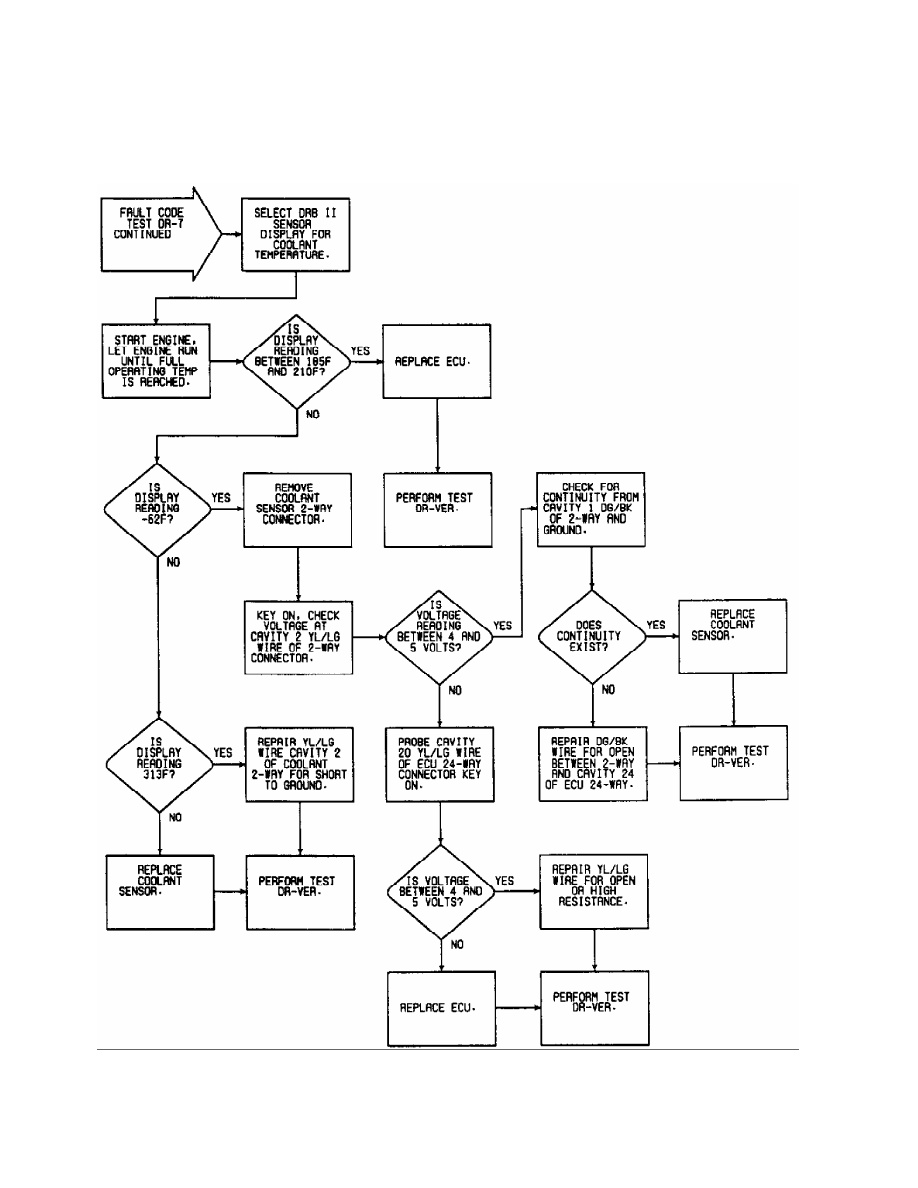

Fig. 118:  Flow Chart DR-7 (1.6L) (2 of 2)

         DR-8: CODE 22 CRANK ANGLE SENSOR CIRCUIT - 1.6L
