Mitsubishi Montero (1991+). Manual - part 242

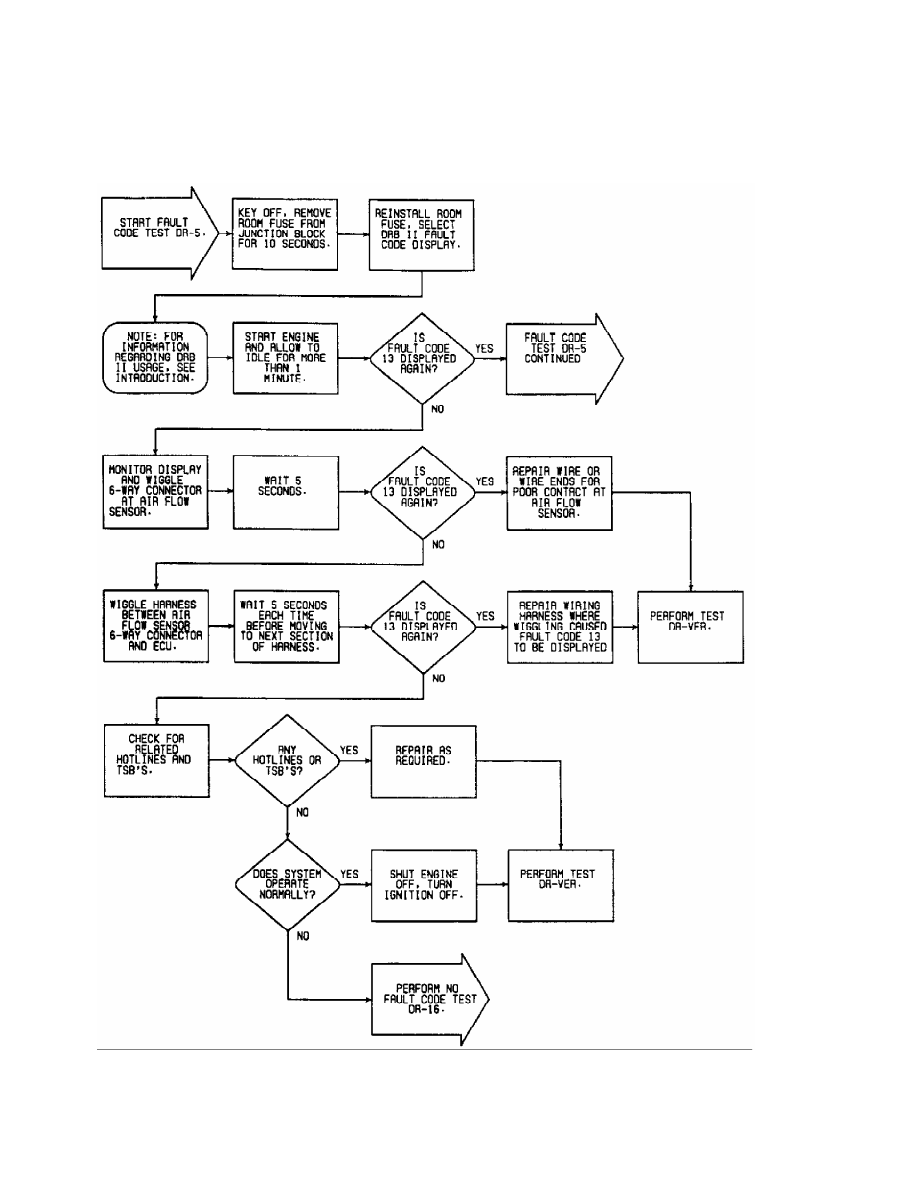

Fig. 110:  Flow Chart DR-5 (1.6L) (1 of 2)

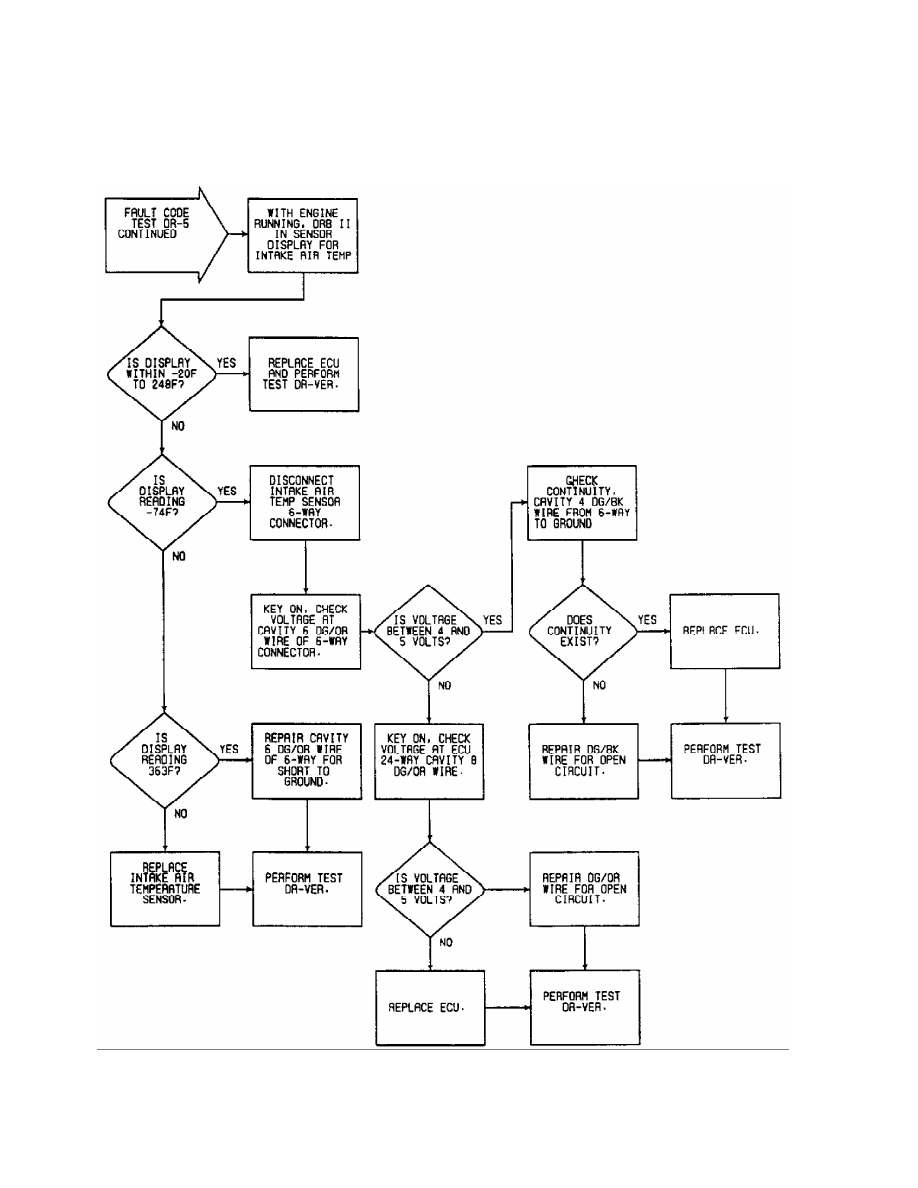

Fig. 111:  Flow Chart DR-5 (1.6L) (2 of 2)

         DR-6: CODE 14 THROTTLE POSITION SENSOR CIRCUIT - 1.6L

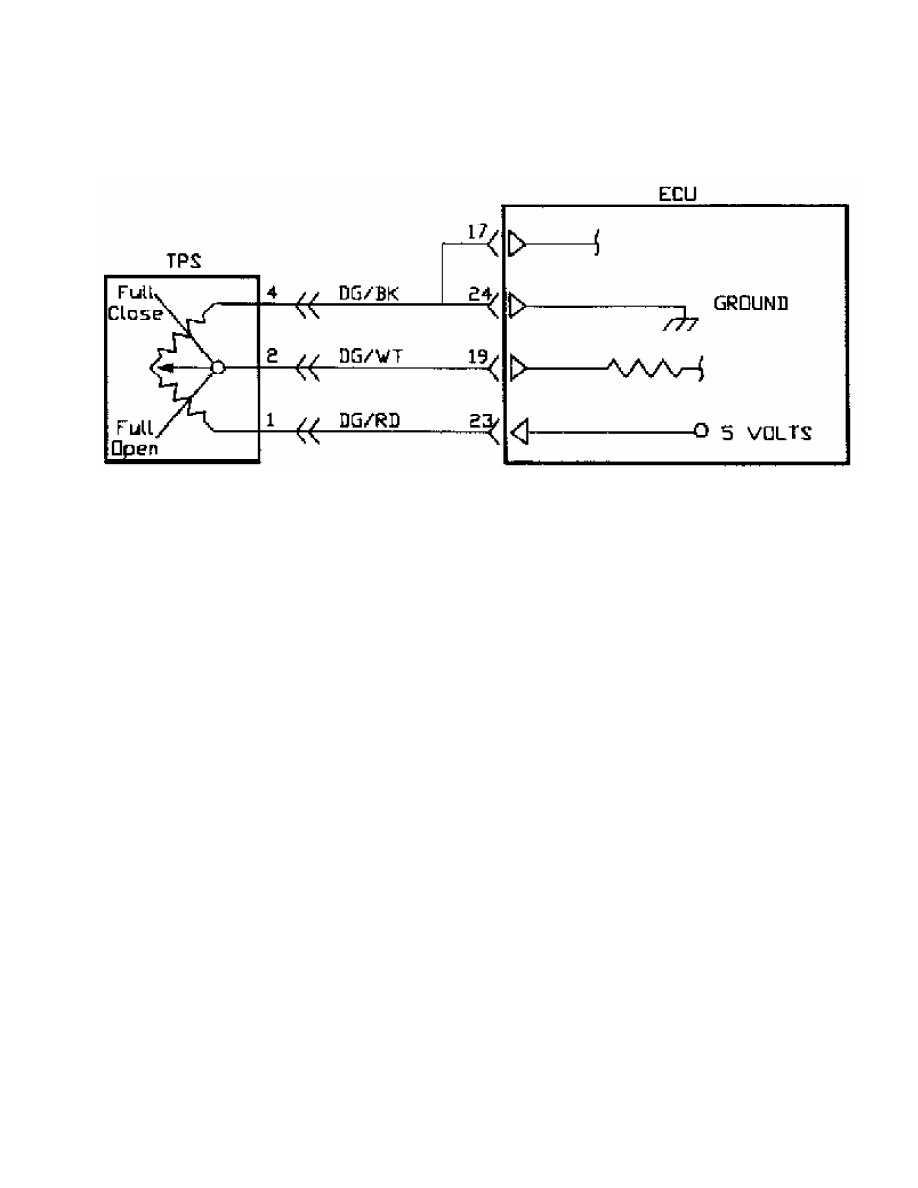

Fig. 112:  Circuit Diagram DR-6 (1.6L)

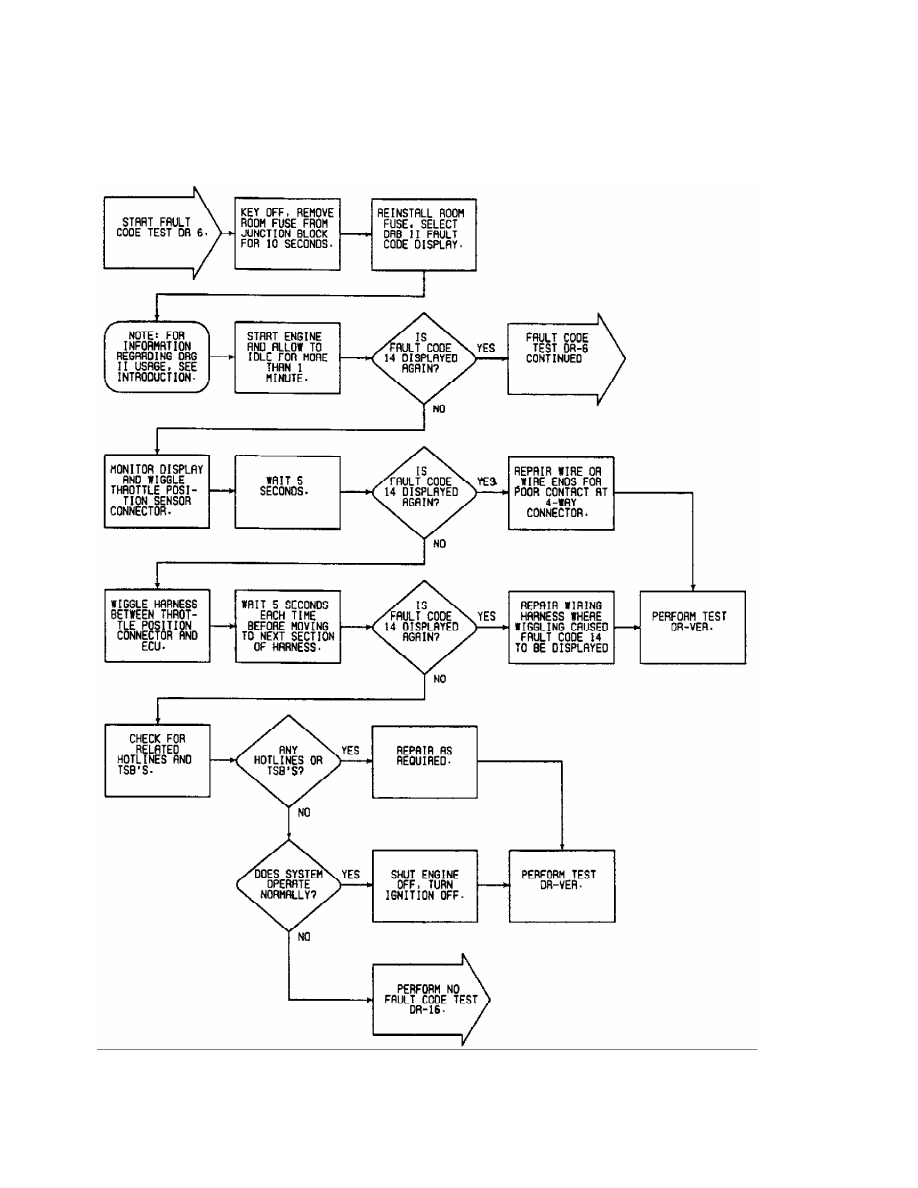

Fig. 113:  Flow Chart DR-6 (1.6L) (1 of 3)
