Mitsubishi Montero (1991+). Manual - part 246

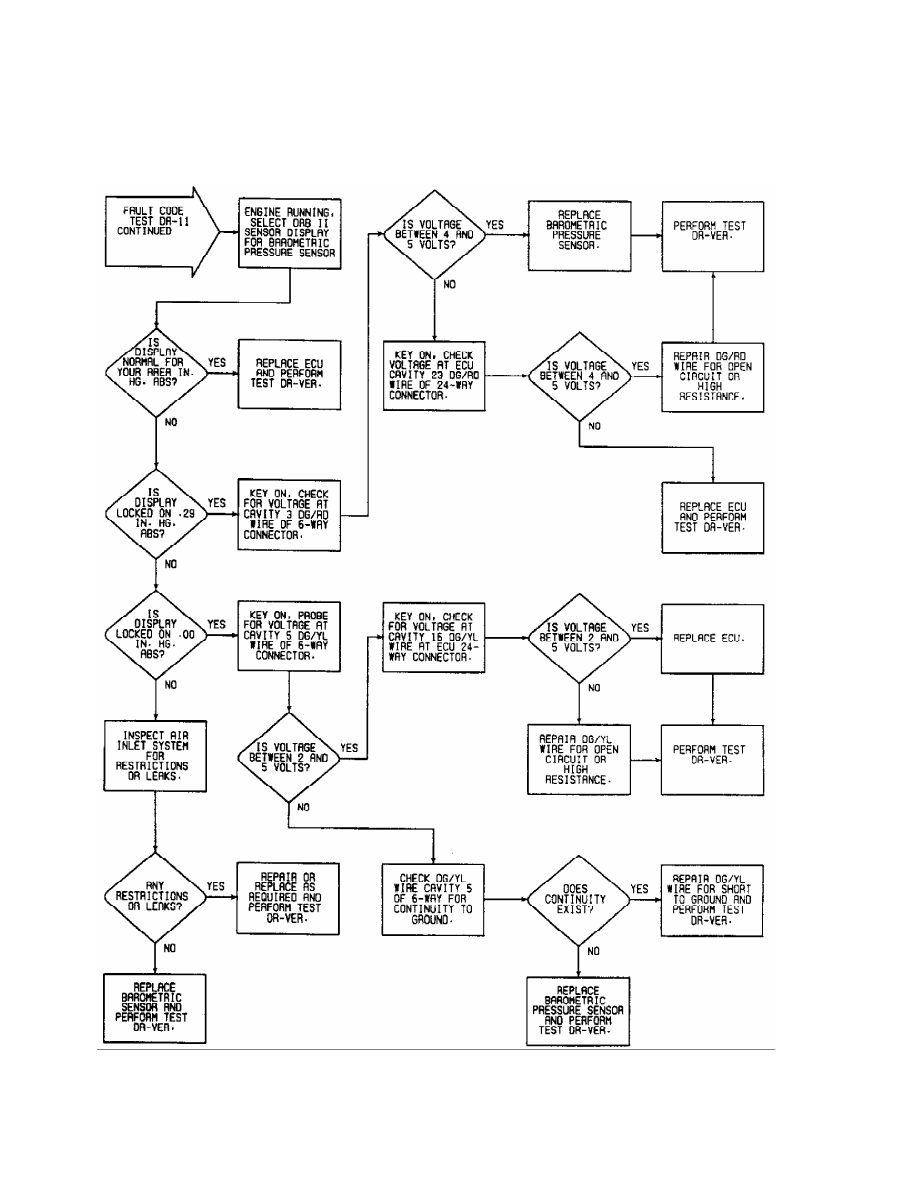

Fig. 129:  Flow Chart DR-11 (1.6L) (2 of 2)

         DR-12: CODE 41 INJECTOR CIRCUIT - 1.6L

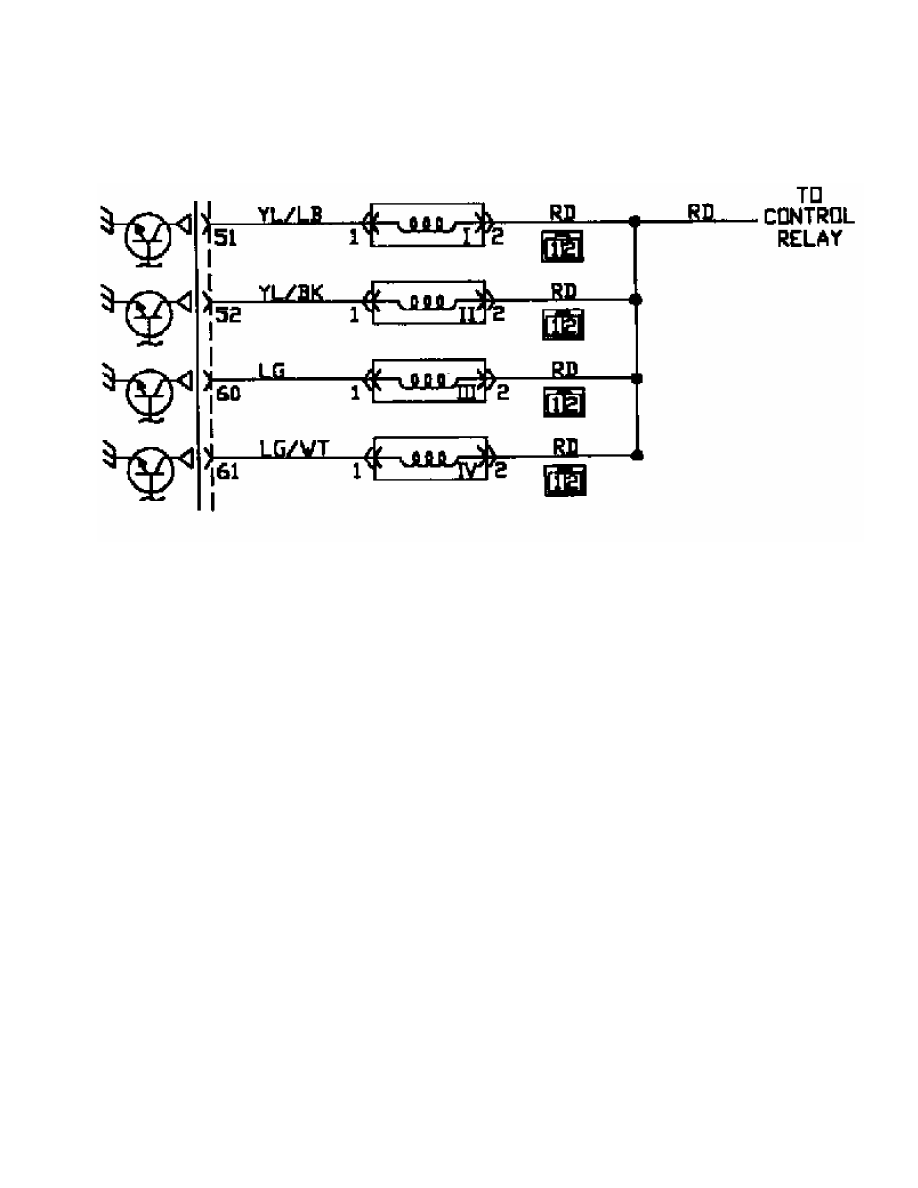

Fig. 130:  Circuit Diagram DR-12 (1.6L)

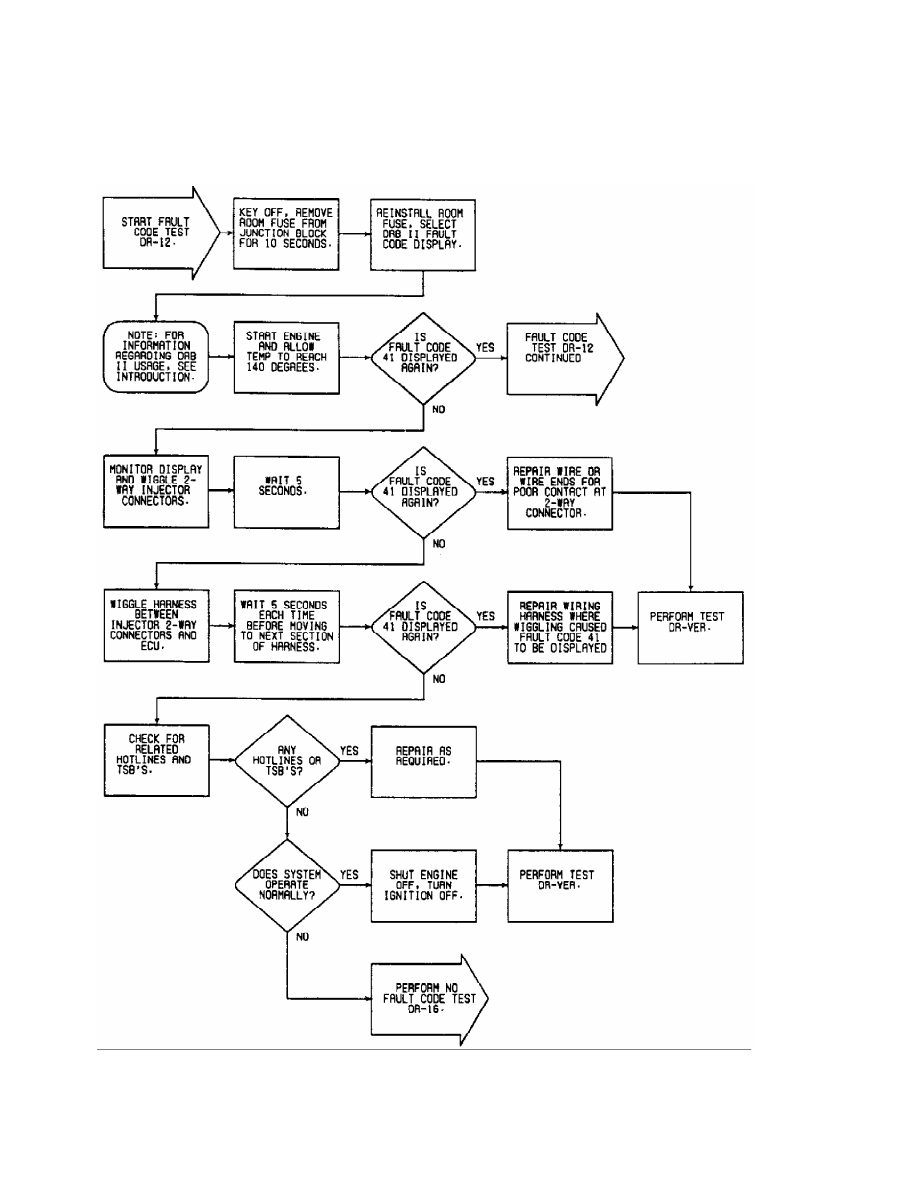

Fig. 131:  Flow Chart DR-12 (1.6L) (1 of 5)

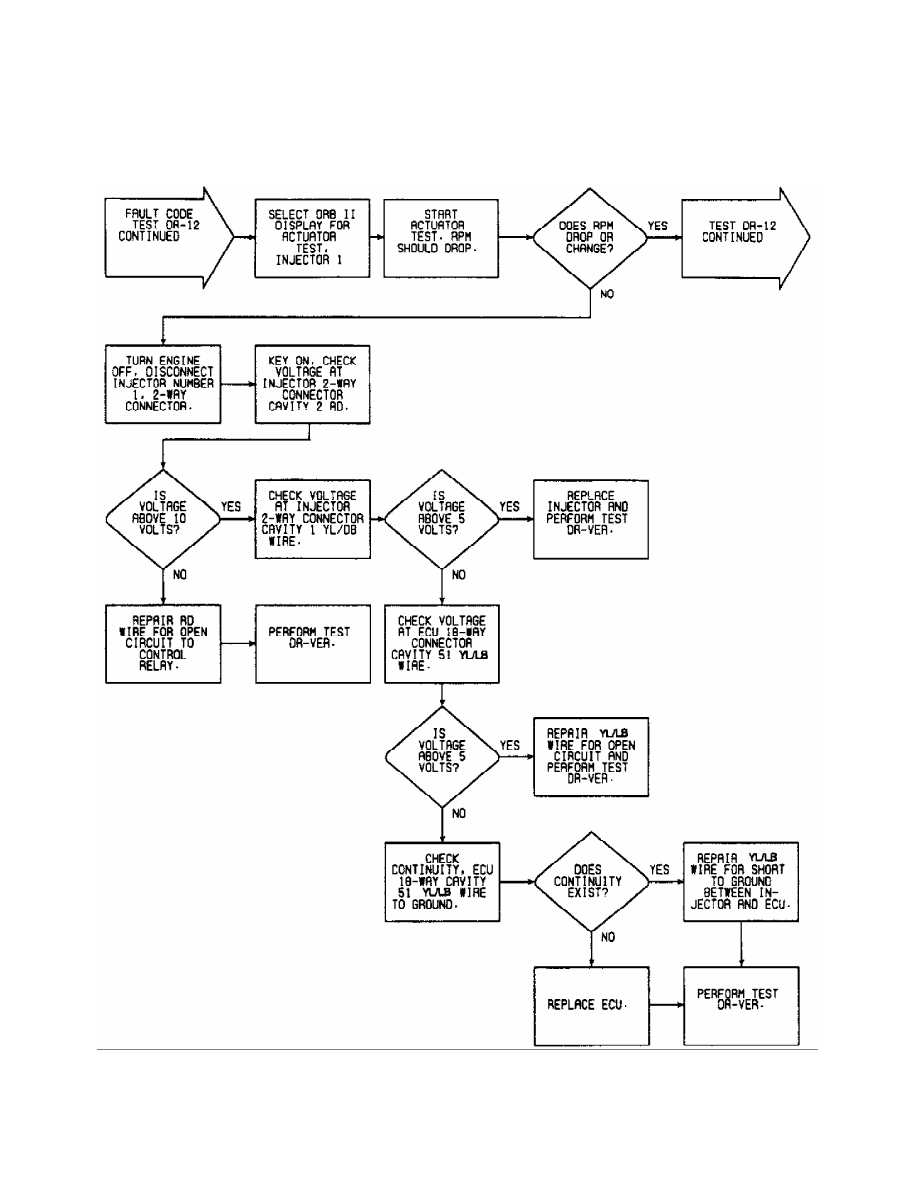

Fig. 132:  Flow Chart DR-12 (1.6L) (2 of 5)
