Mitsubishi Montero (1991+). Manual - part 236

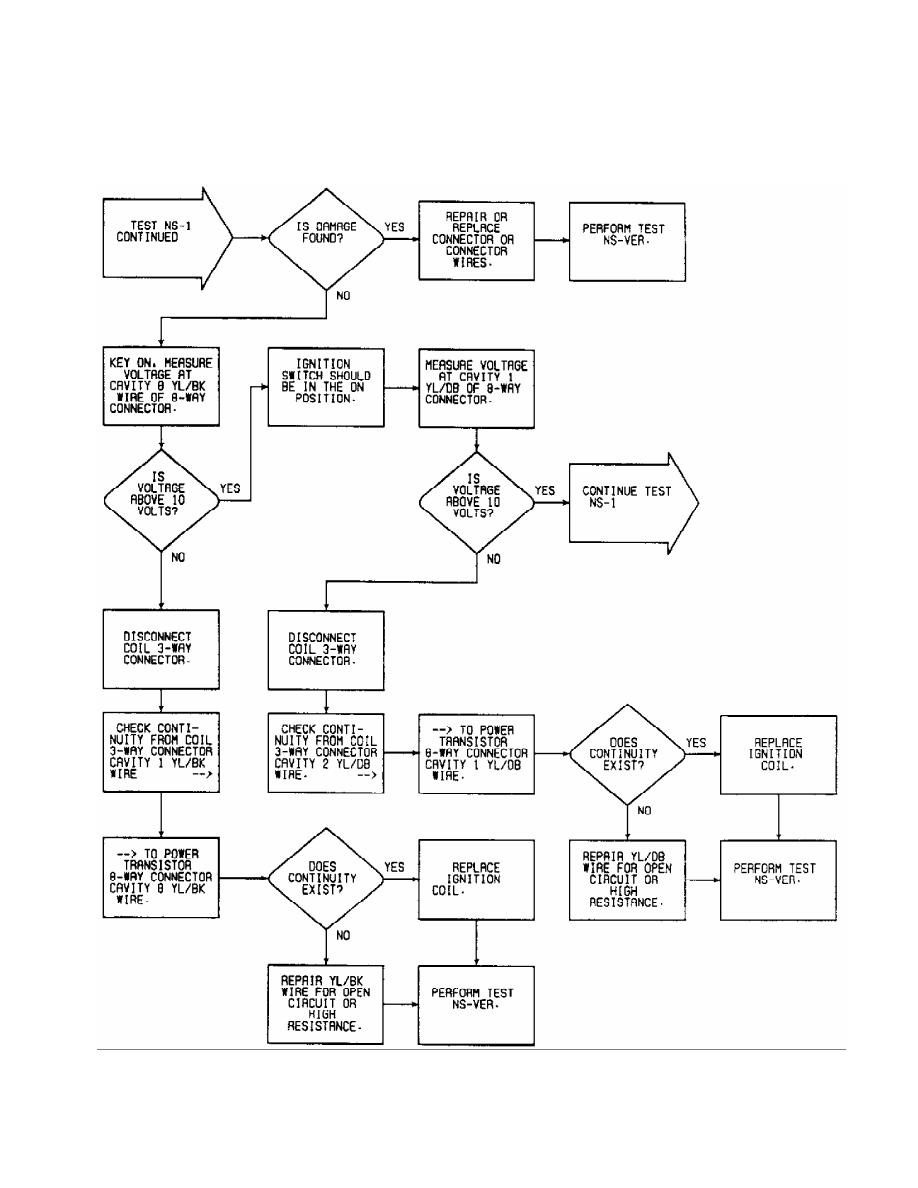

Fig. 80:  Flow Chart NS-1 (1.6L) (3 of 4)

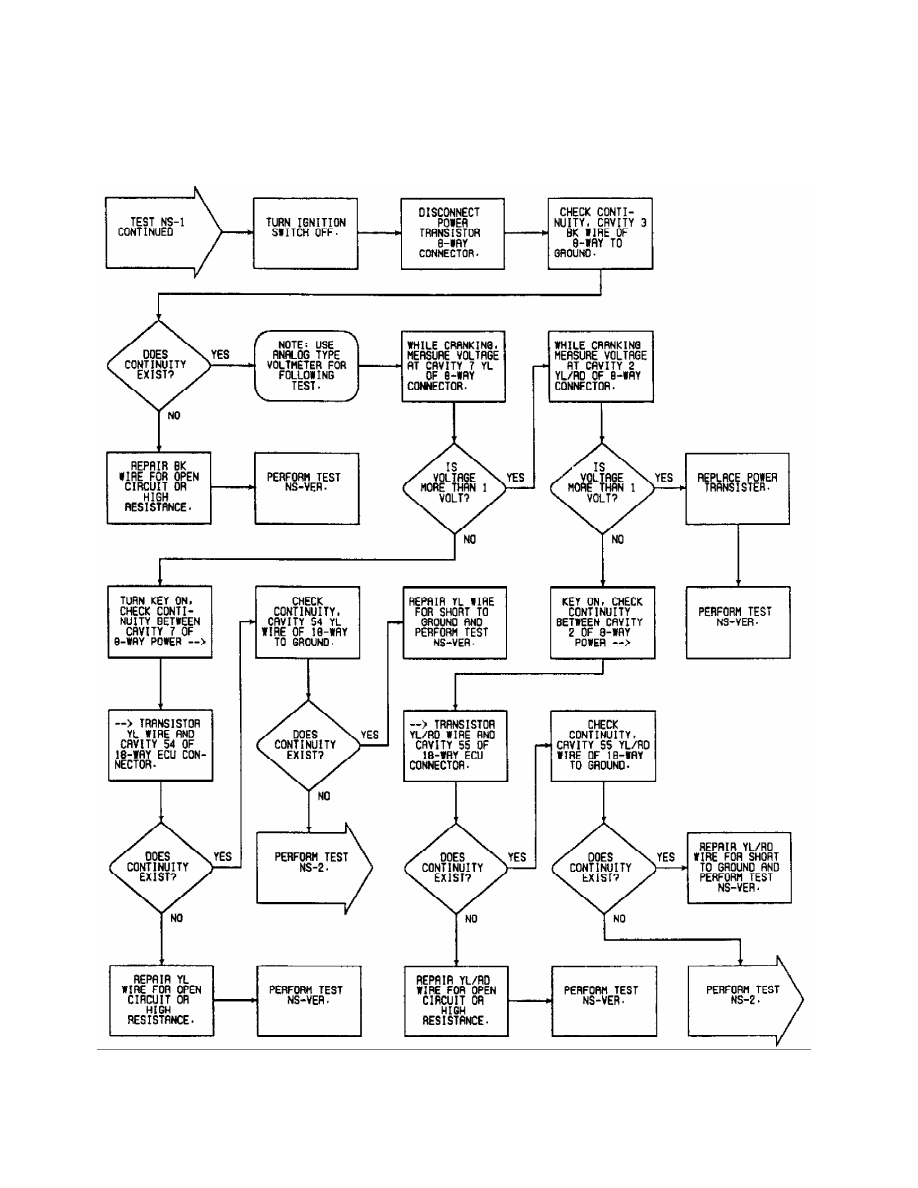

Fig. 81:  Flow Chart NS-1 (1.6L) (4 of 4)

         NS-2: TESTING CRANK ANGLE SENSOR CIRCUIT - 1.6L

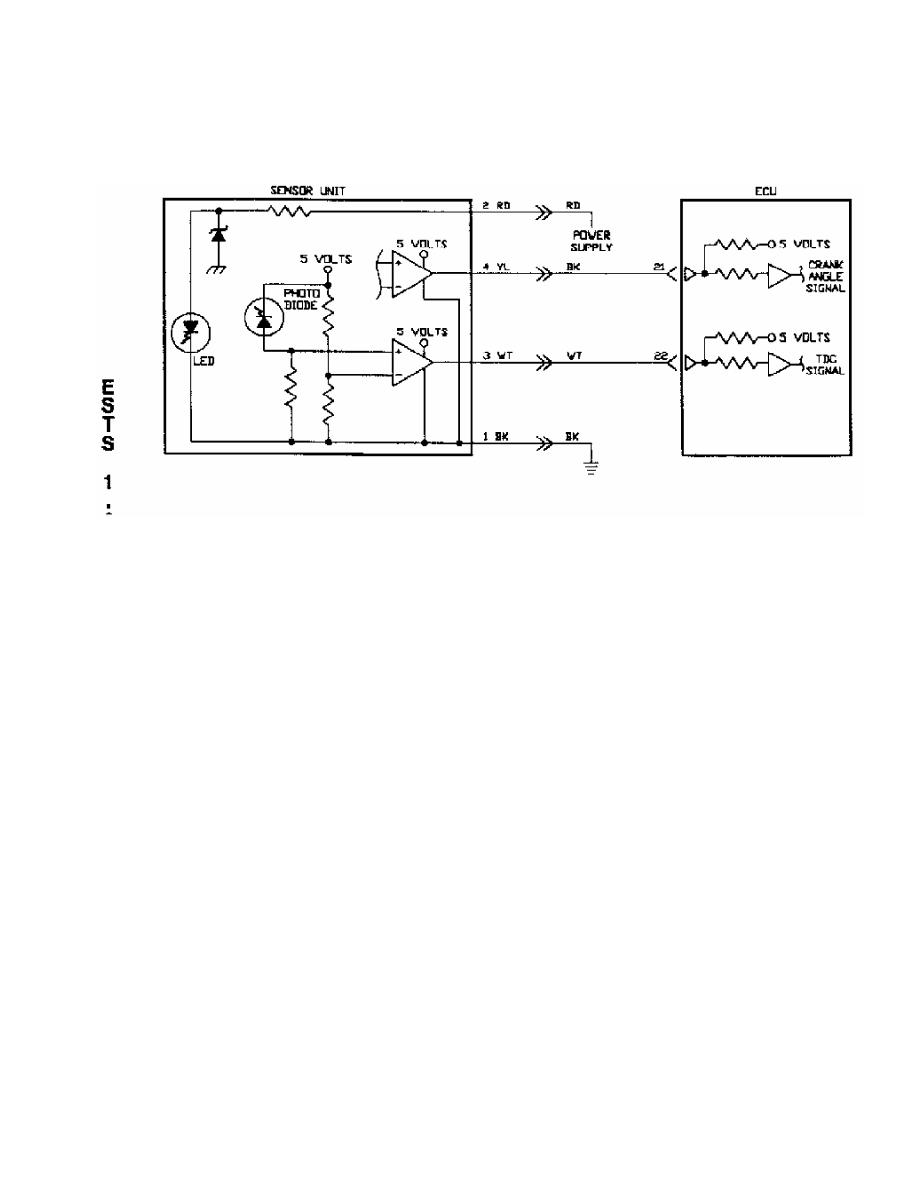

Fig. 82:  Circuit Diagram NS-2 (1.6L)

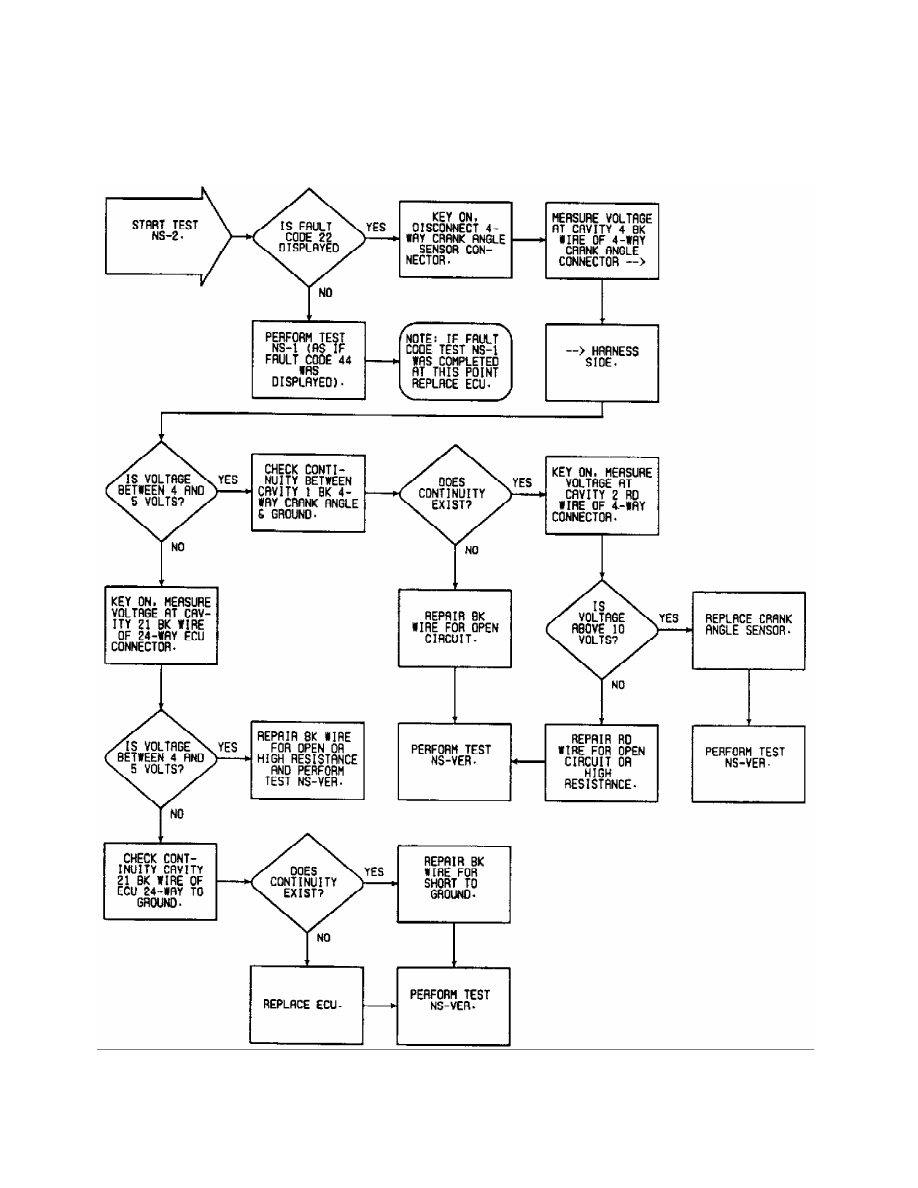

Fig. 83:  Flow Chart NS-2 (1.6L)

         NS-3: TESTING FUEL SYSTEM - 1.6L
