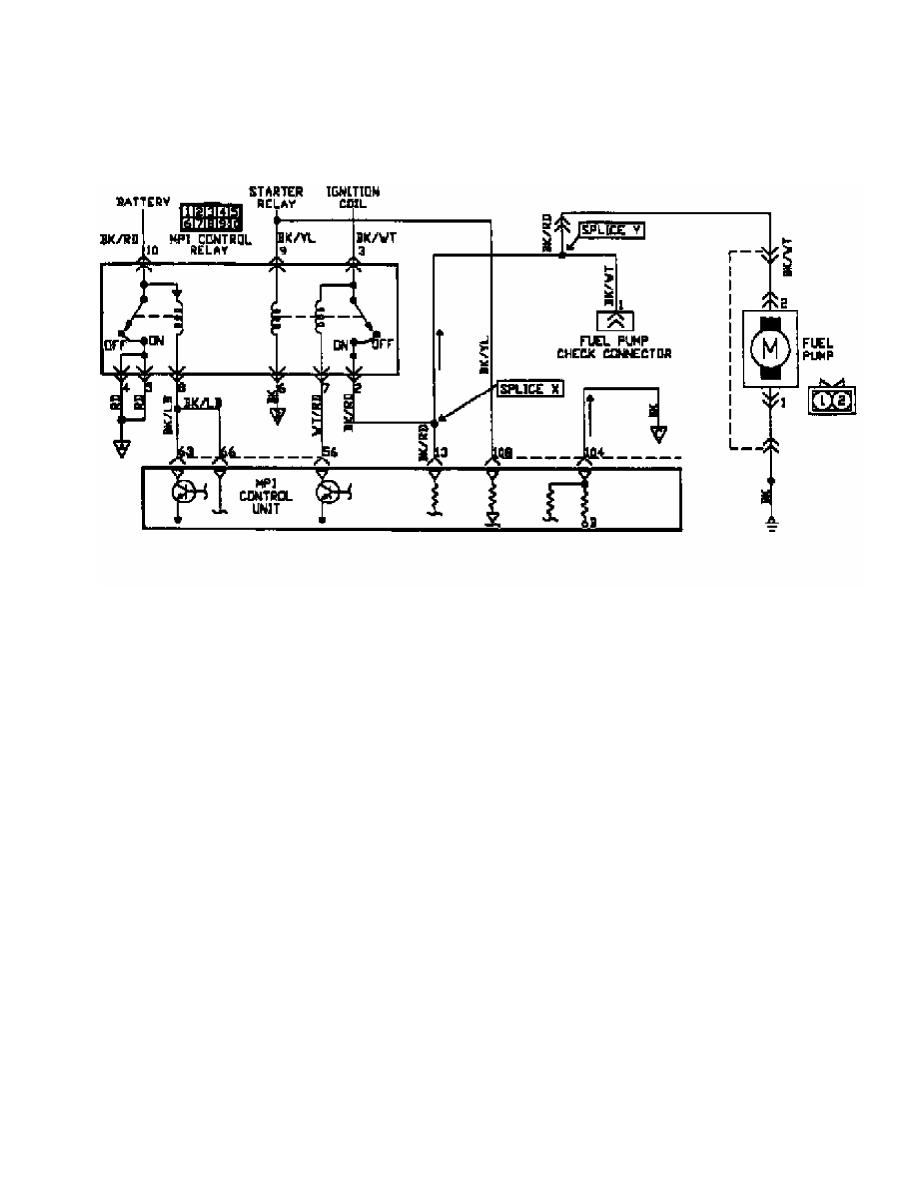

Fig. 84:  Circuit Diagram NS-3 (1.6L)

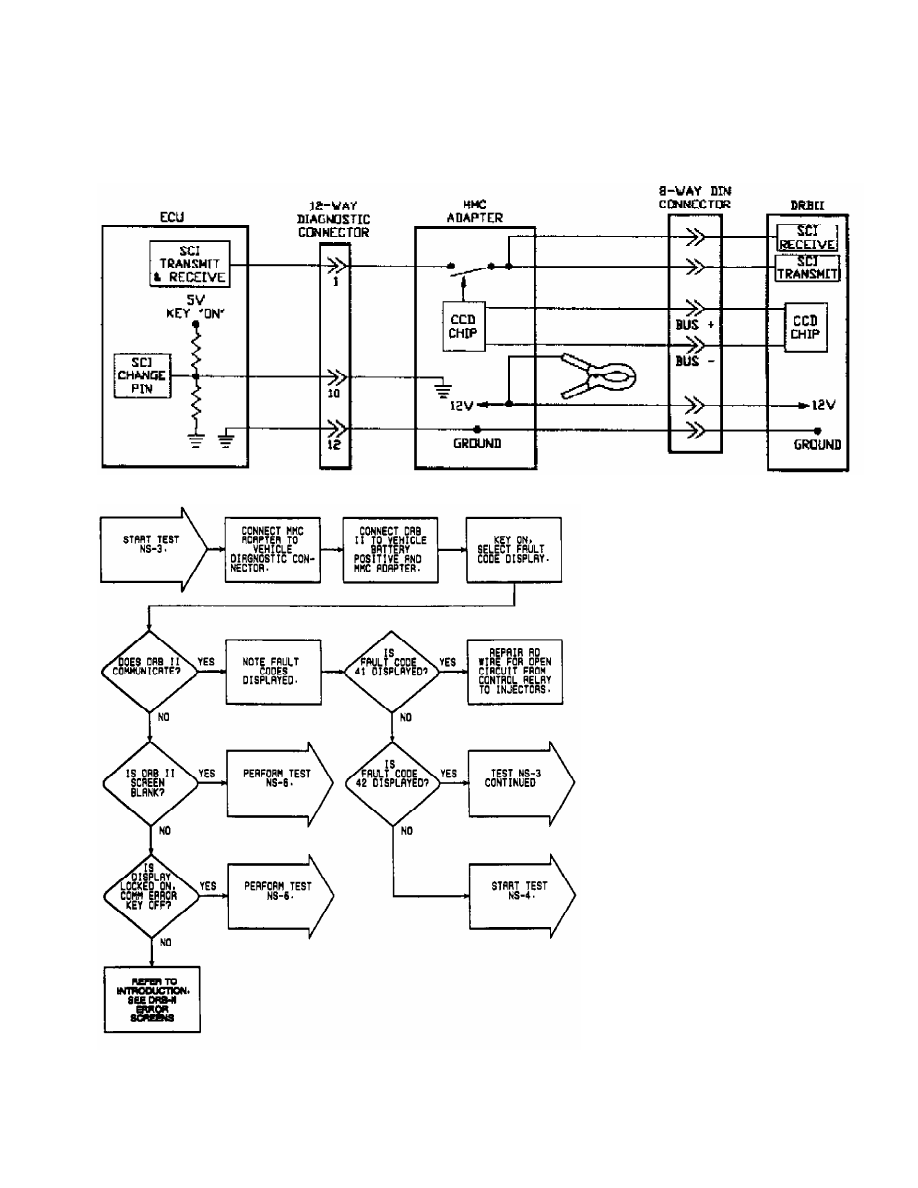

Fig. 85:  Flow Chart NS-3 (1.6L) (1 of 3)

Fig. 86:  Circuit Diagram NS-3 (1.6L)

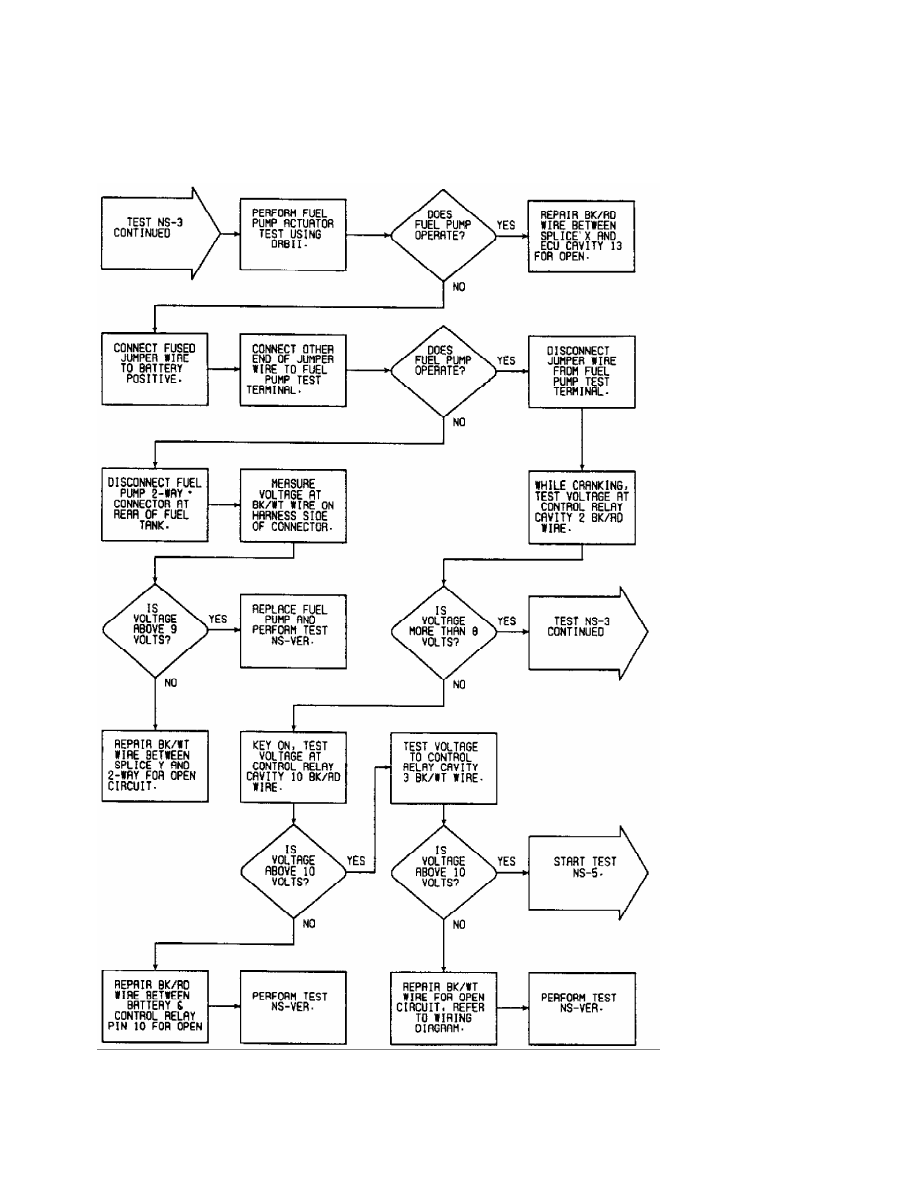

Fig. 87:  Flow Chart NS-3 (1.6L) (2 of 3)

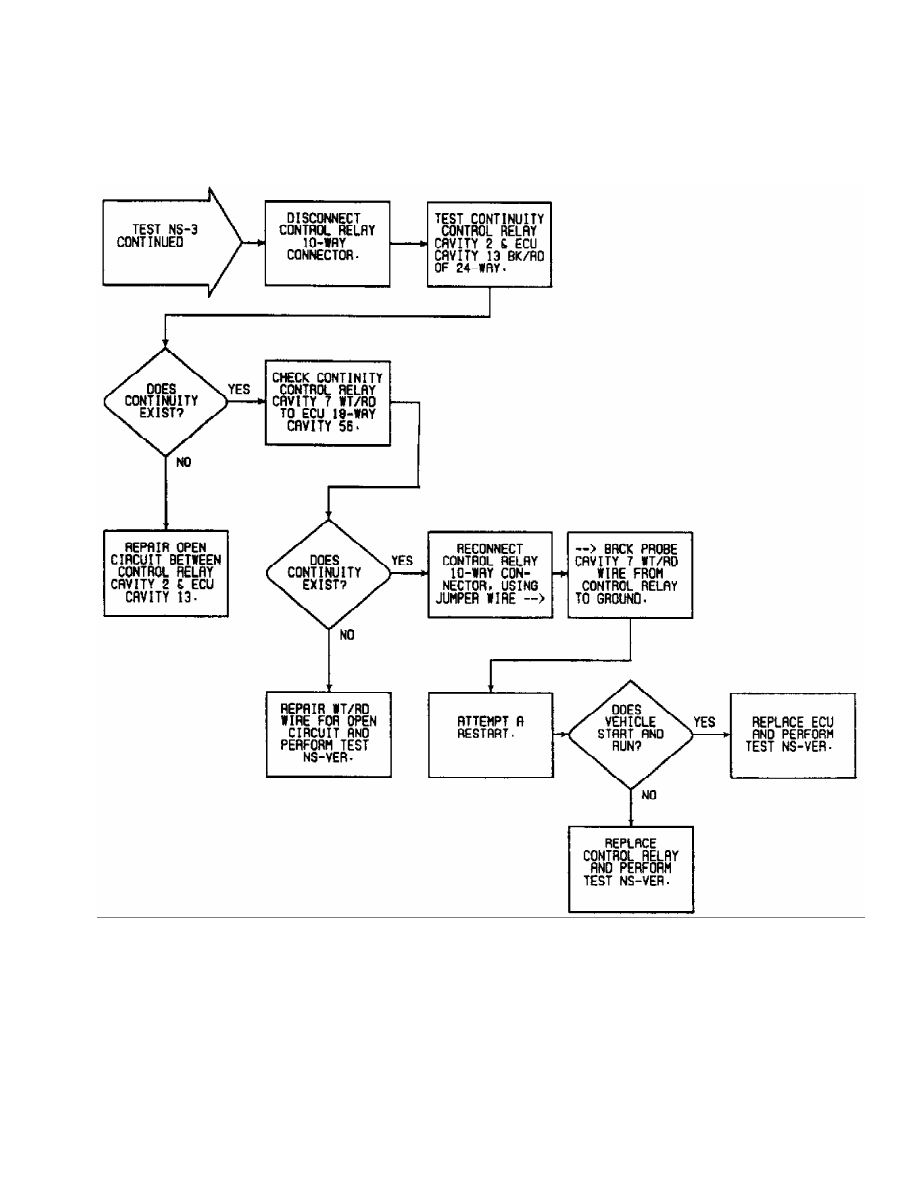

Fig. 88:  Flow Chart NS-3 (1.6L) (3 of 3)

         NS-4: TESTING FUEL PUMP CIRCUIT - 1.6L
