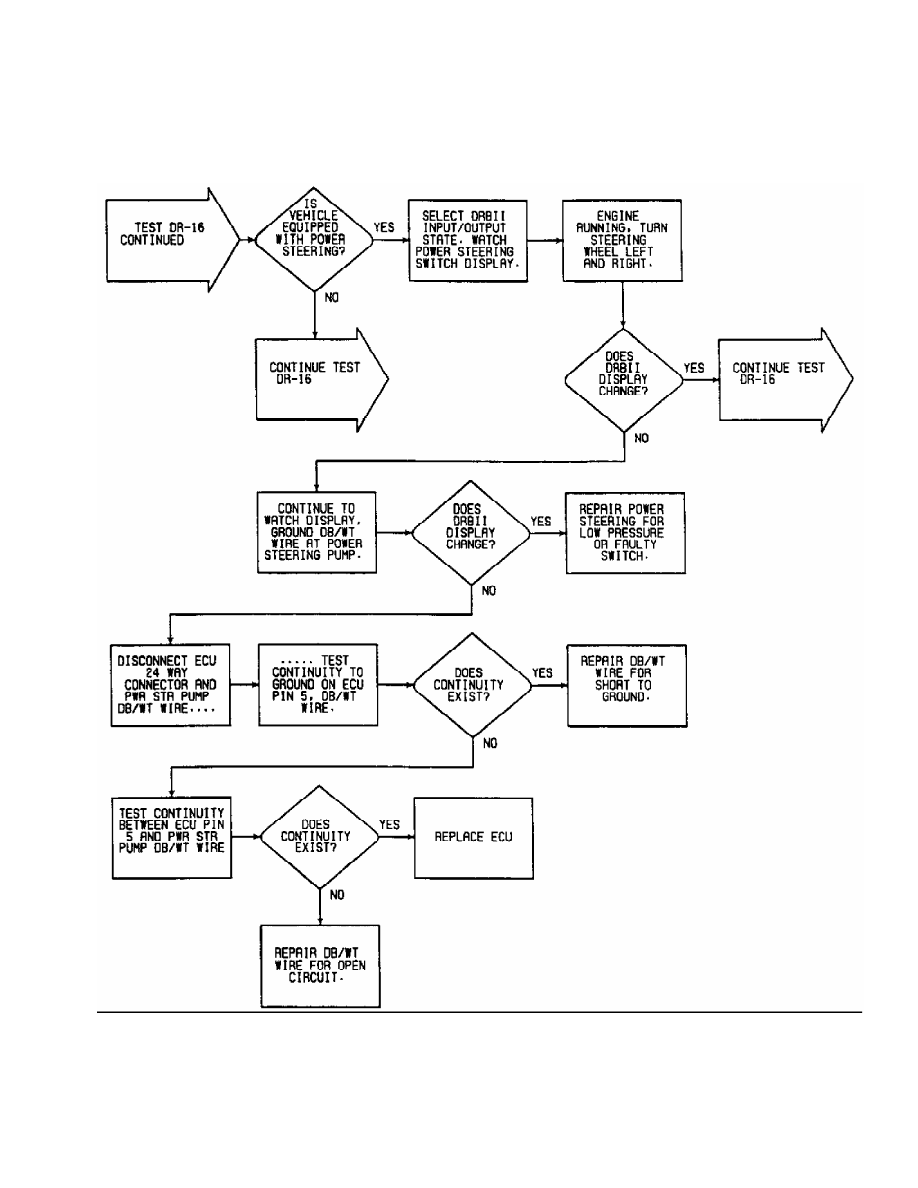

Fig. 70:  Flow Chart DR-16 (1.5L) (3 of 5)

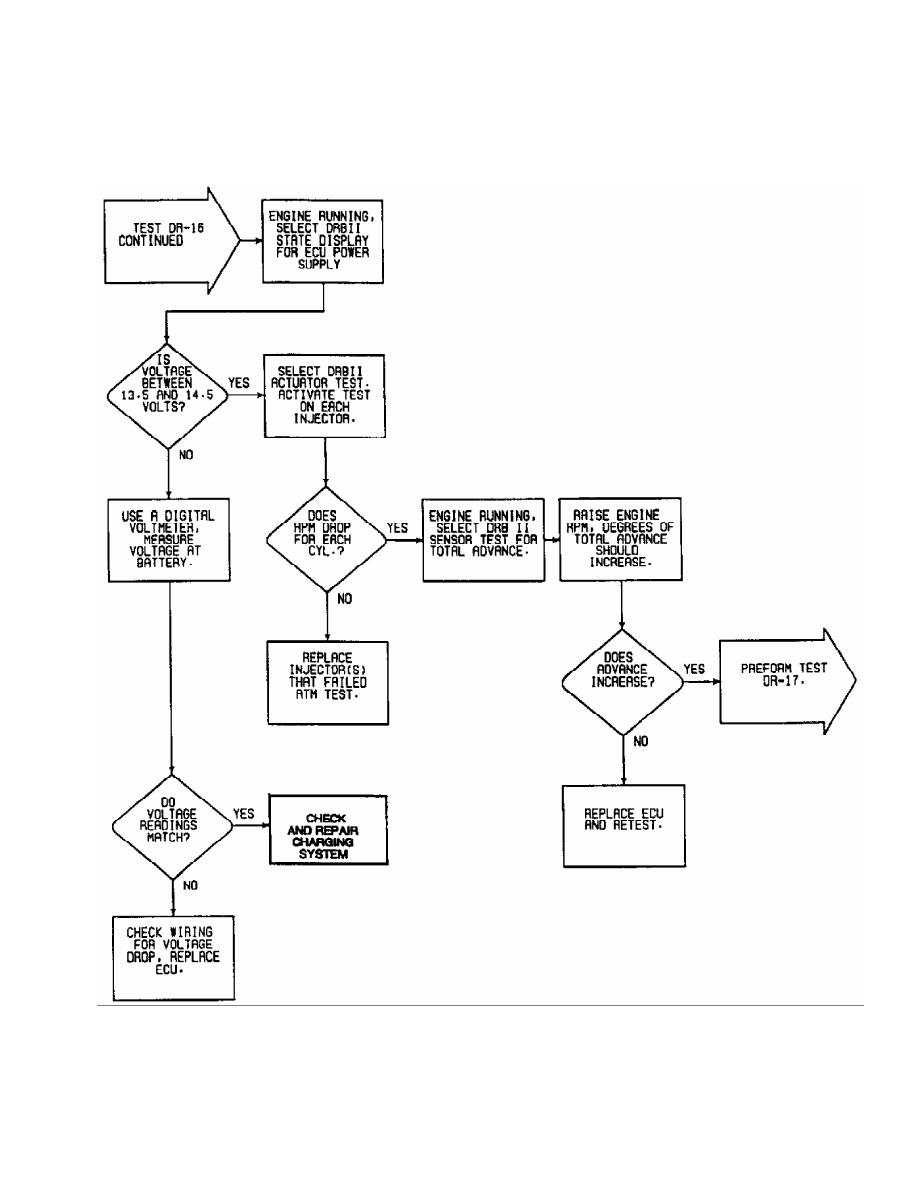

Fig. 71:  Flow Chart DR-16 (1.5L) (4 of 5)

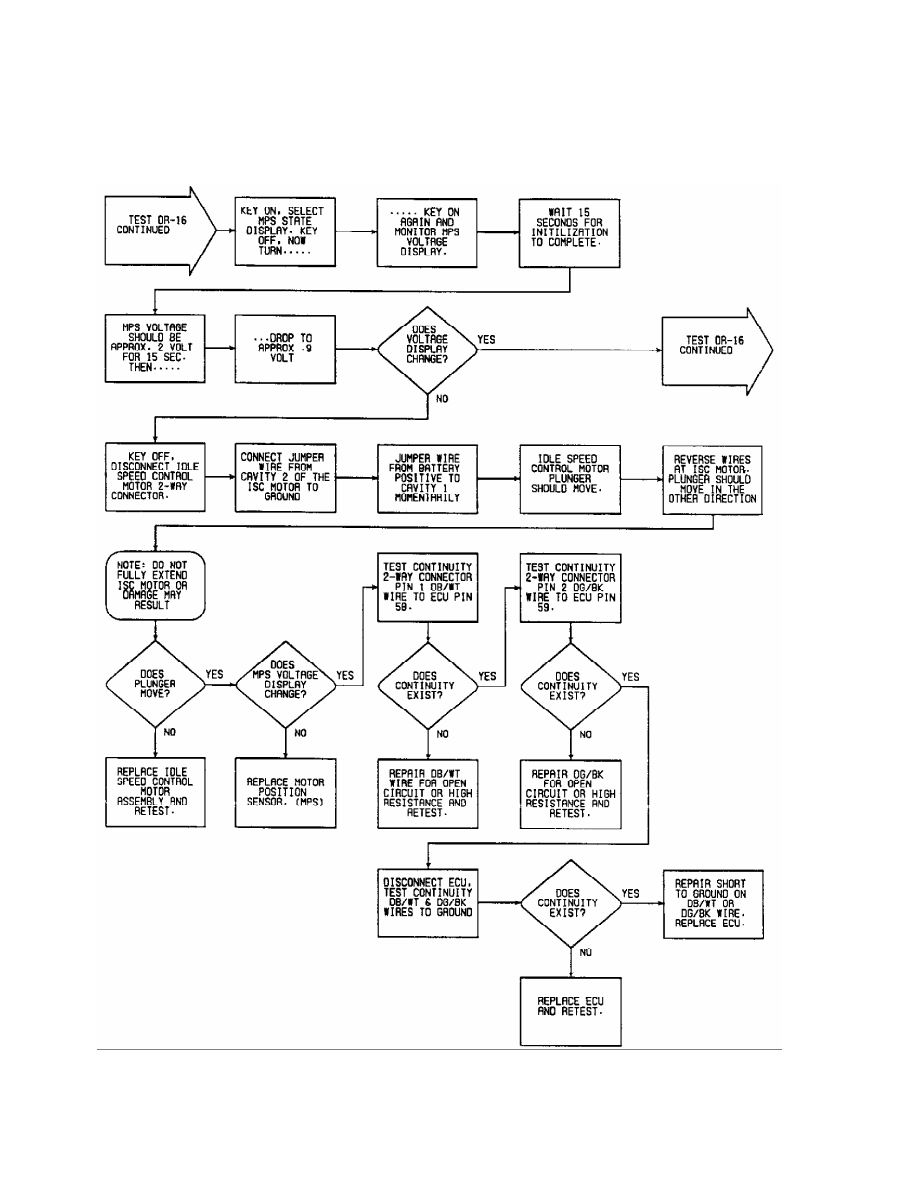

Fig. 72:  Flow Chart DR-16 (1.5L) (5 of 5)

         DR-17: TESTING PURGE SOLENOID CIRCUIT - 1.5L

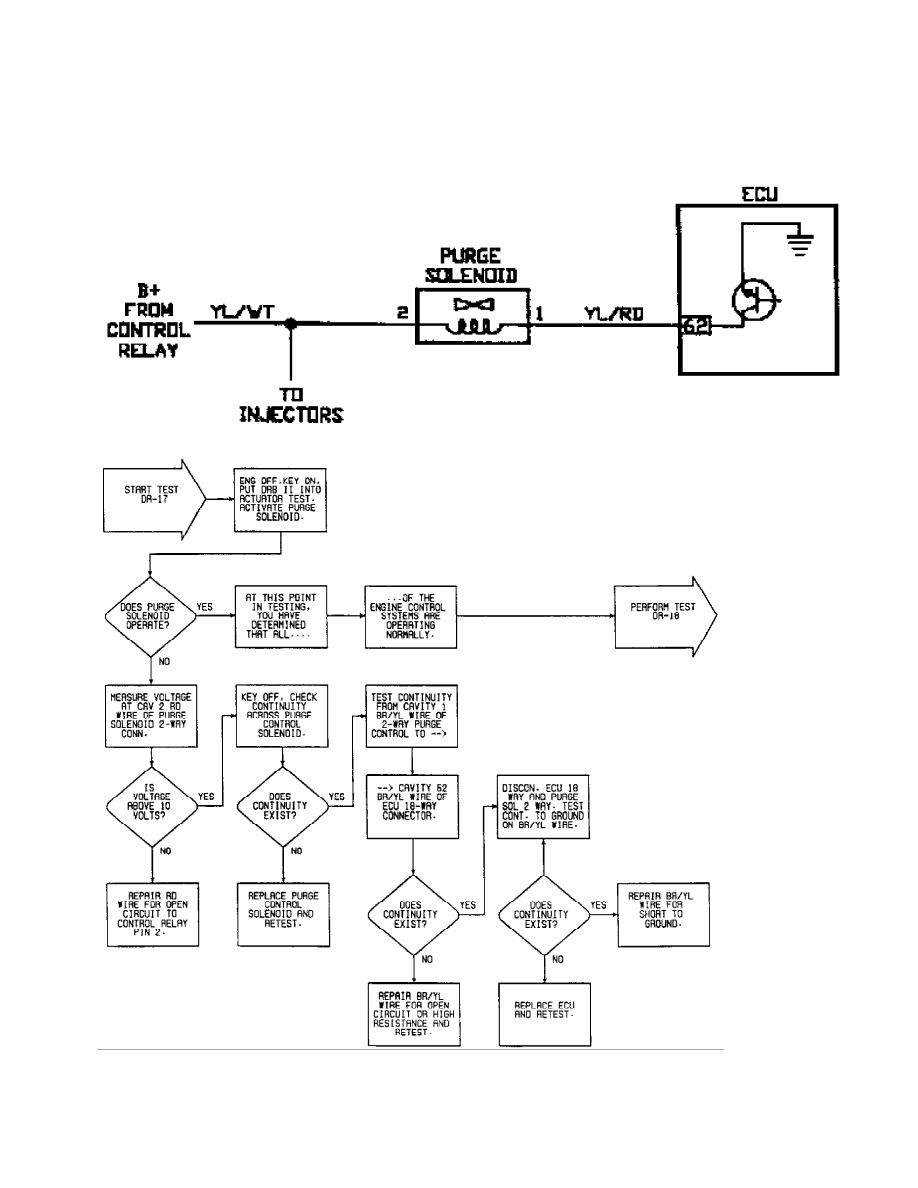

Fig. 73:  Circuit Diagram DR-17 (1.5L)

Fig. 74:  Flow Chart DR-17 (1.5L)

         DR-18: NO FAULT CODE MECHANICAL TEST - 1.5L

At this point in the driveability test procedure, you have determined
