Mitsubishi Montero (1991+). Manual - part 229

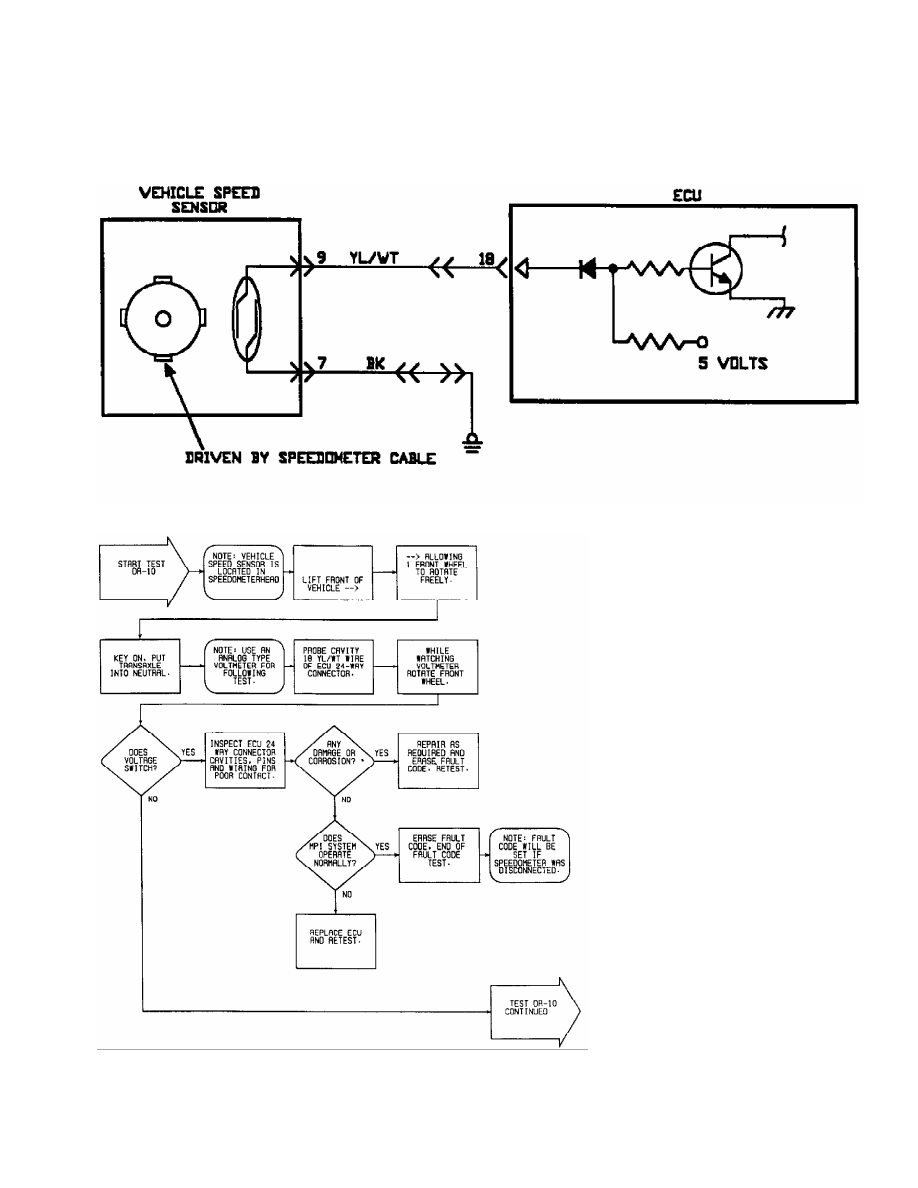

Fig. 47:  Circuit Diagram DR-10 (1.5L)

Fig. 48:  Flow Chart DR-10 (1.5L) (1 of 2)

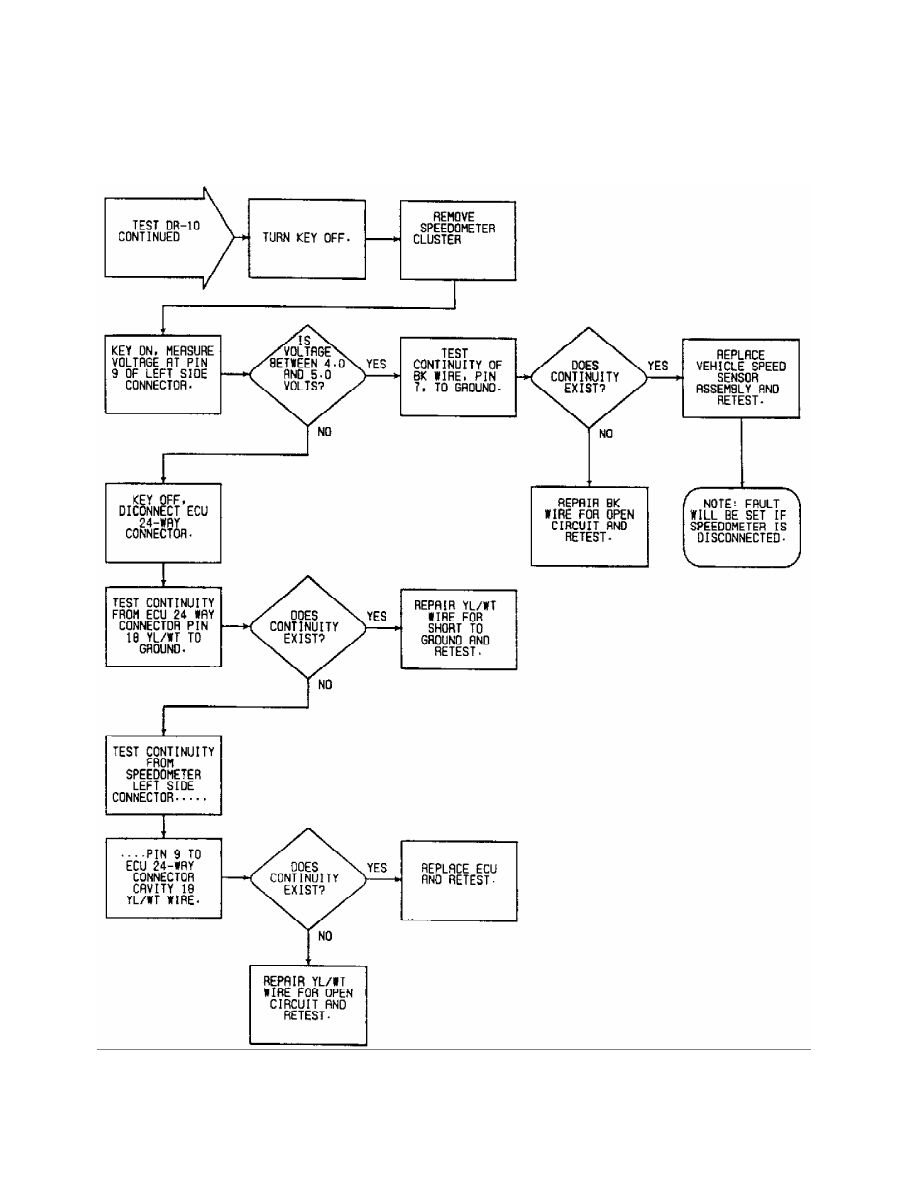

Fig. 49:  Flow Chart DR-10 (1.5L) (2 of 2)

         DR-11: CODE 25 BAROMETRIC PRESSURE SENSOR CIRCUIT - 1.5L

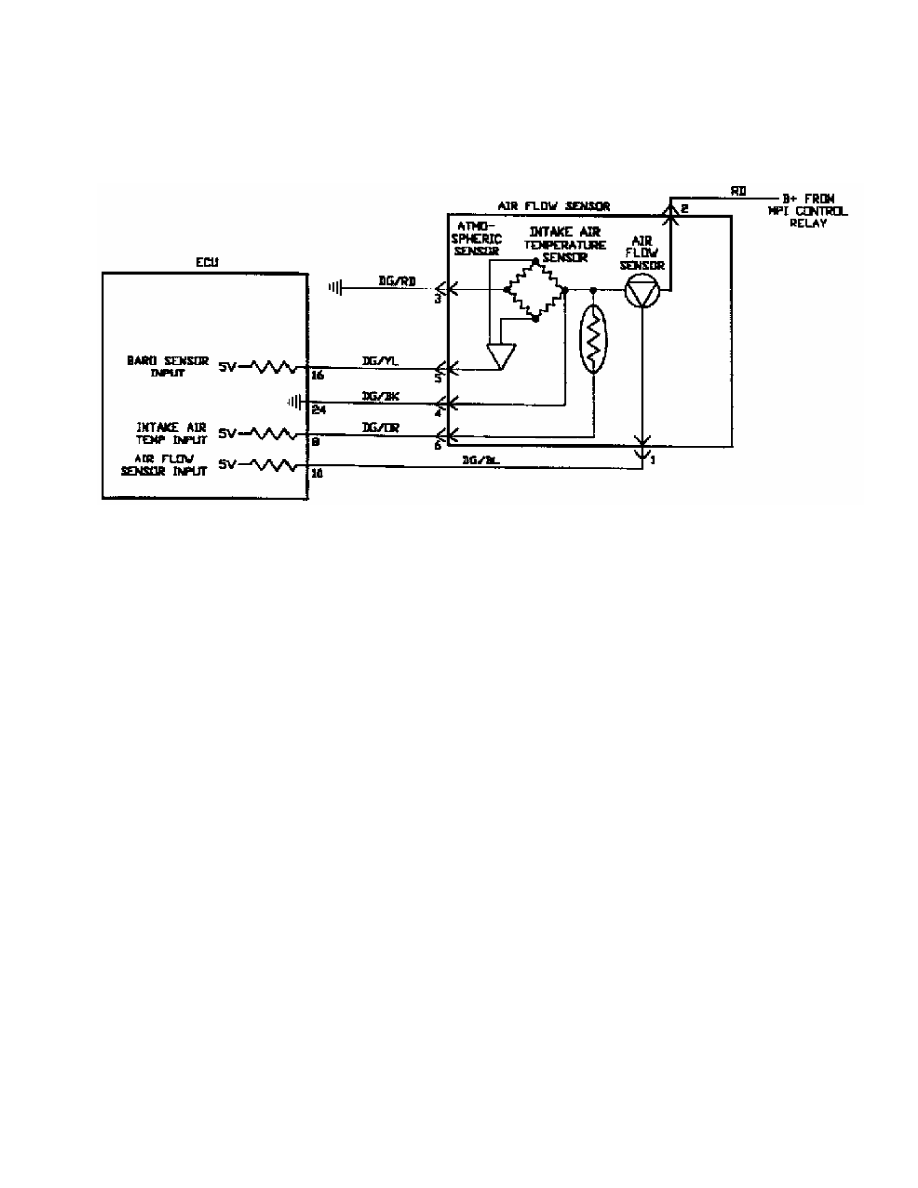

Fig. 50:  Circuit Diagram DR-11 (1.5L)

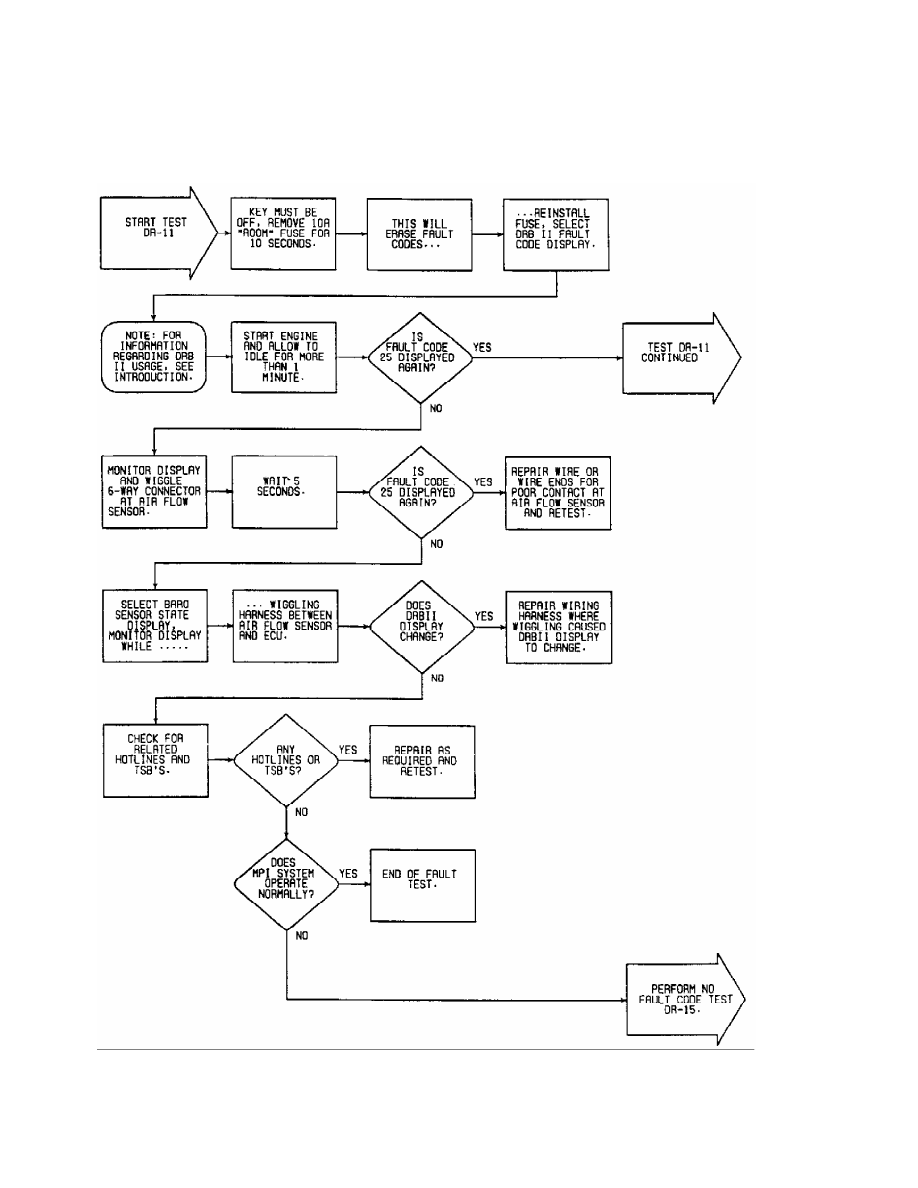

Fig. 51:  Flow Chart DR-11 (1.5L) (1 of 2)
