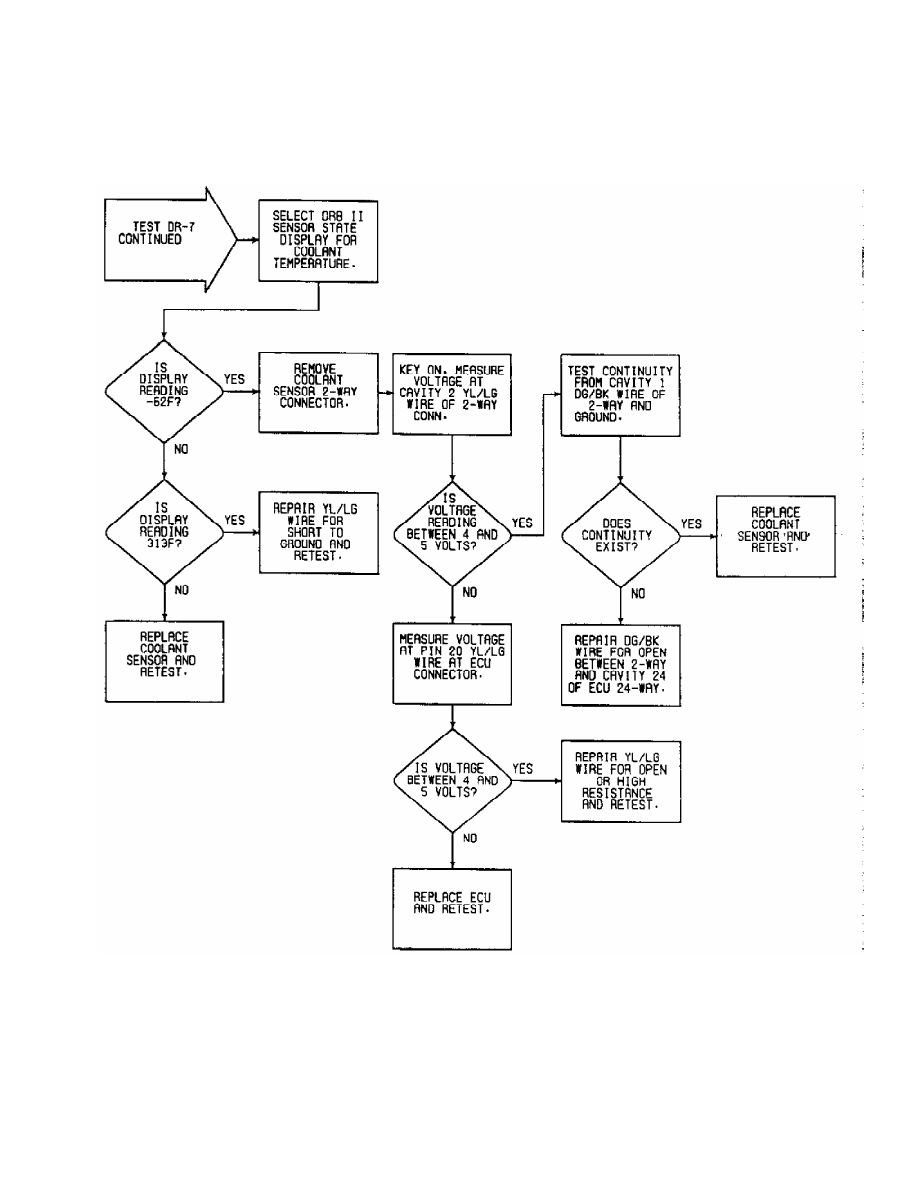

Fig. 42:  Flow Chart DR-7 (1.5L) (2 of 2)

         DR-8: TESTING SELF-DIAGNOSTIC CONNECTOR - 1.5L

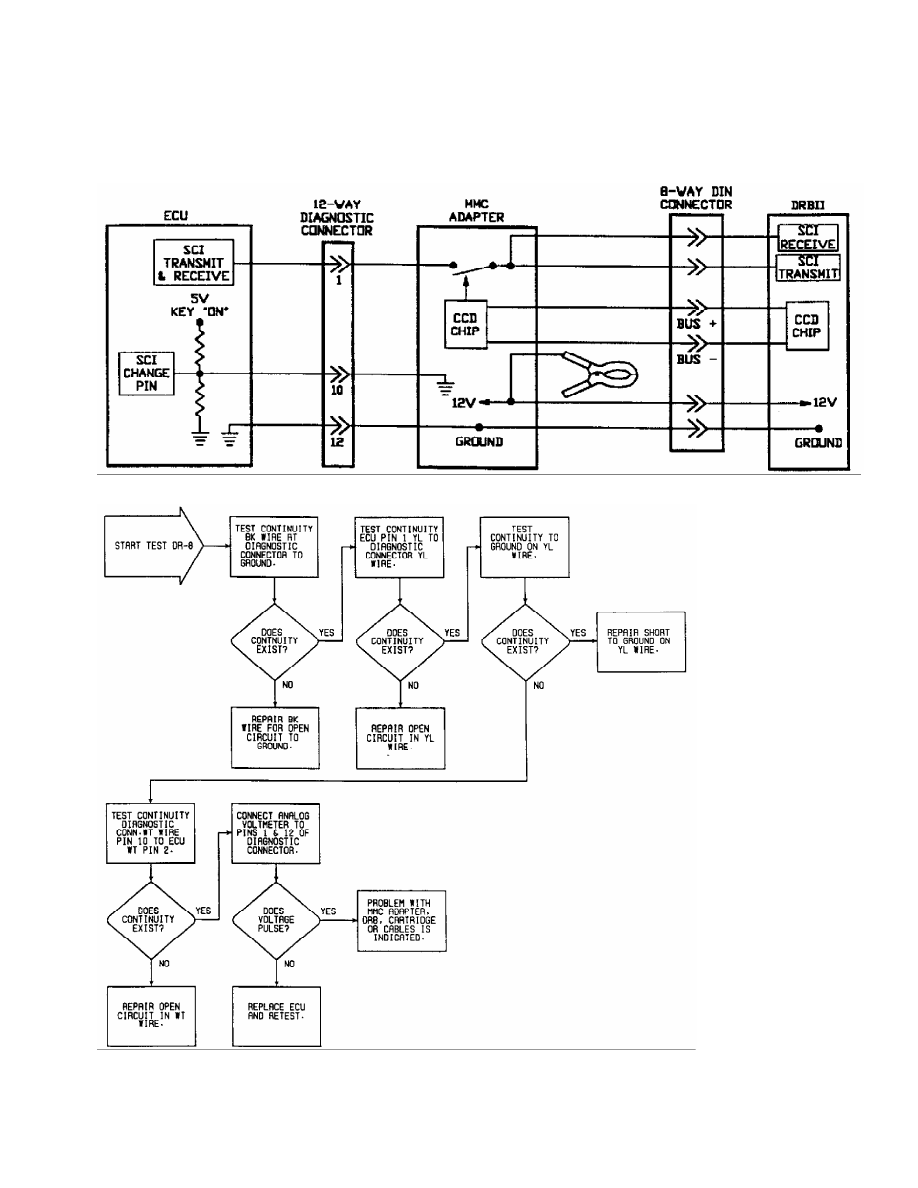

Fig. 43:  Circuit Diagram DR-8 (1.5L)

Fig. 44:  Flow Chart DR-8 (1.5L)

         DR-9: CODE 23 TOP DEAD CENTER SENSOR CIRCUIT - 1.5L

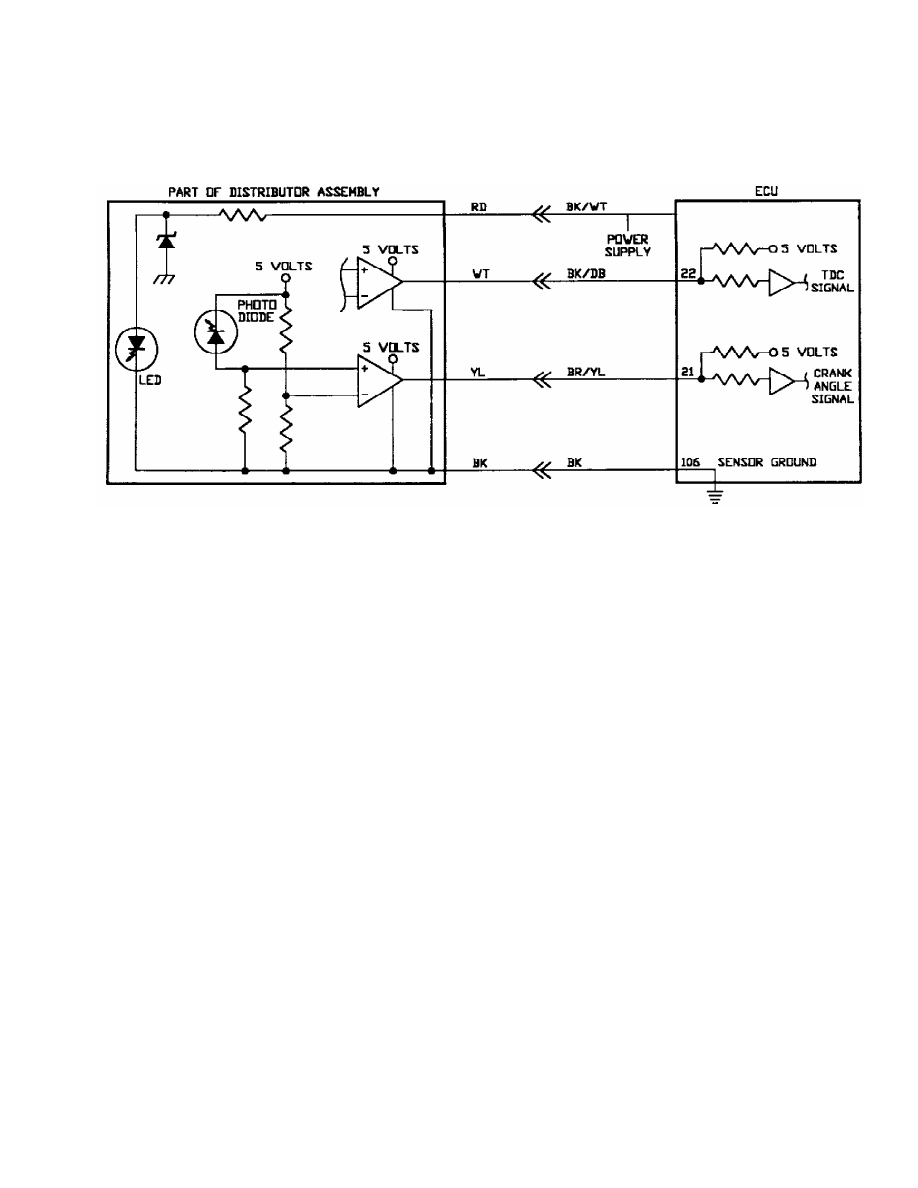

Fig. 45:  Circuit Diagram DR-9 (1.5L)

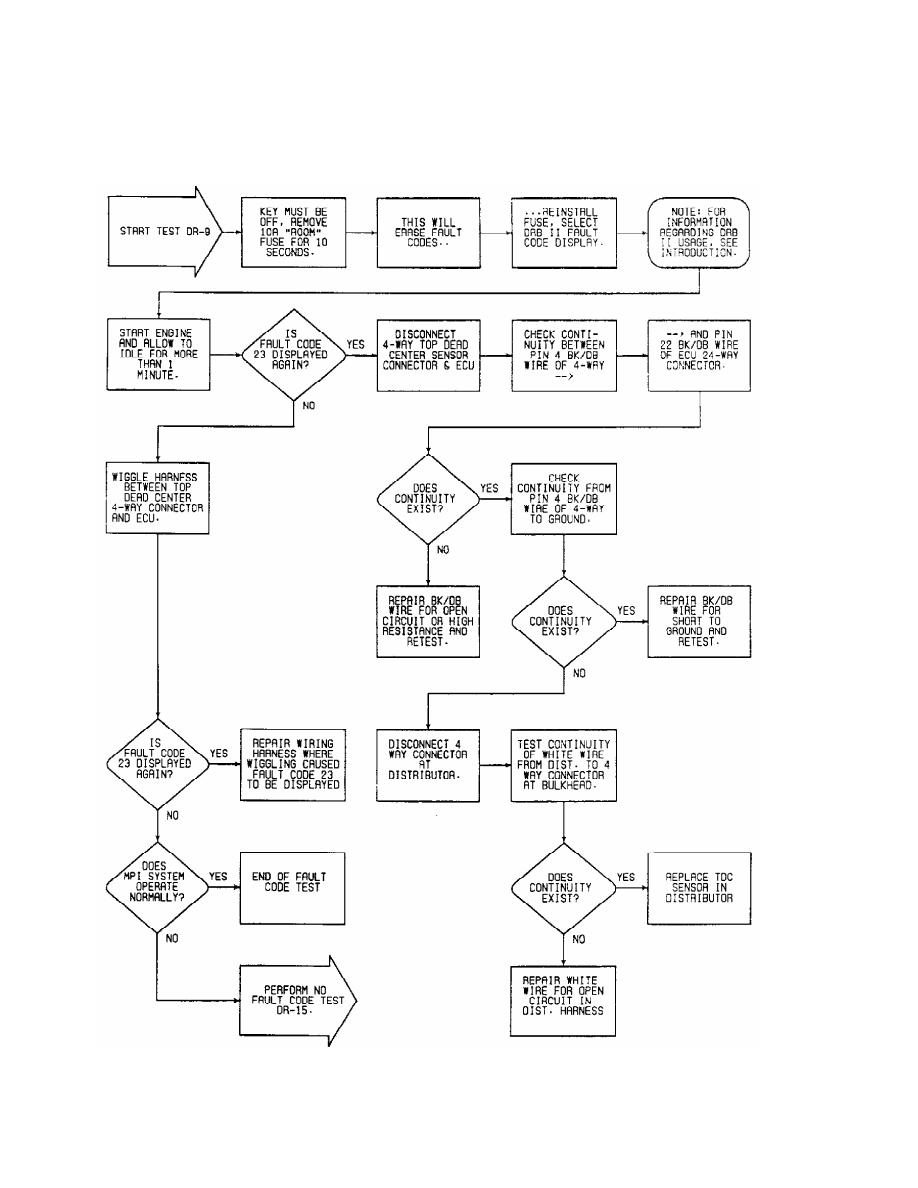

Fig. 46:  Flow Chart DR-9 (1.5L)

         DR-10: CODE 24 VEHICLE SPEED SENSOR CIRCUIT - 1.5L
