Mitsubishi Montero (1991+). Manual - part 227

Fig. 37:  Circuit Diagram DR-6 (1.5L)

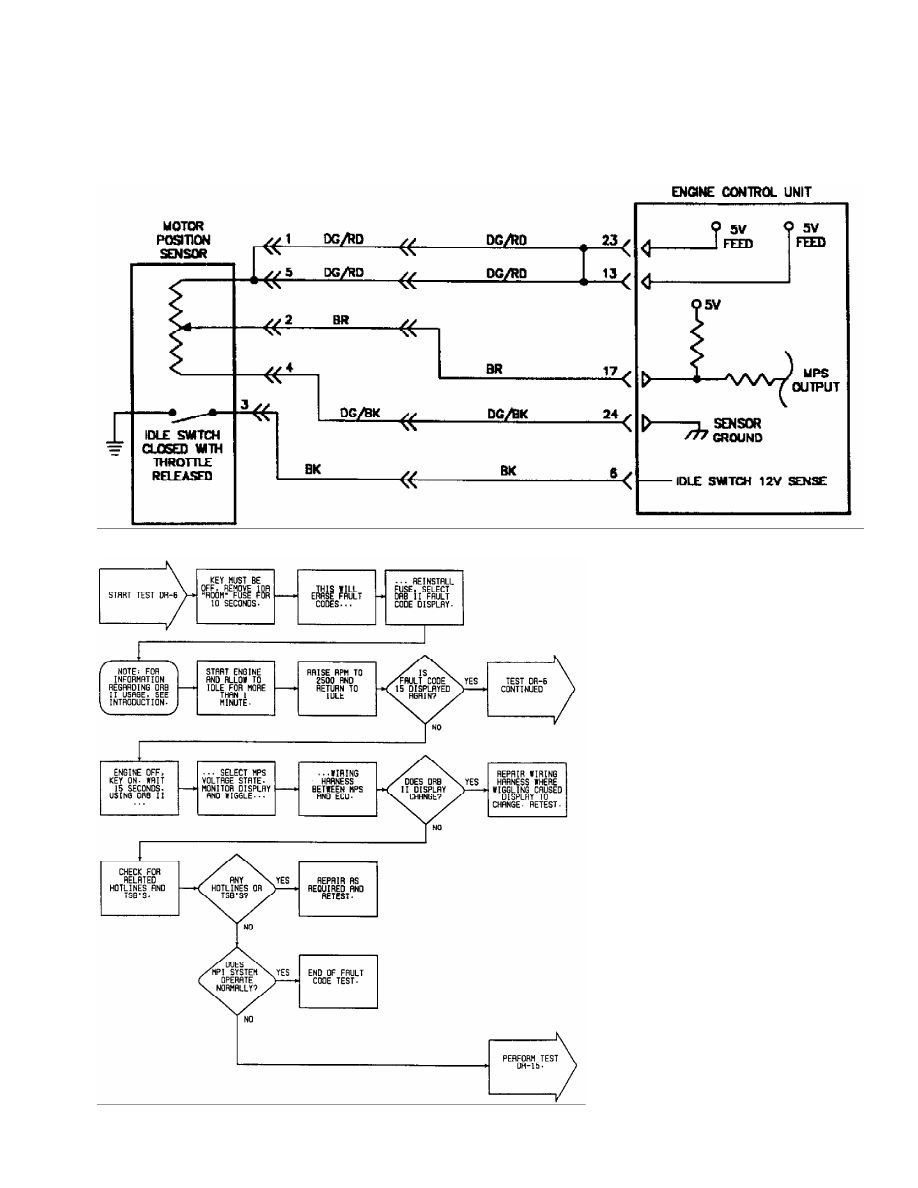

Fig. 38:  Flow Chart DR-6 (1.5L) (1 of 2)

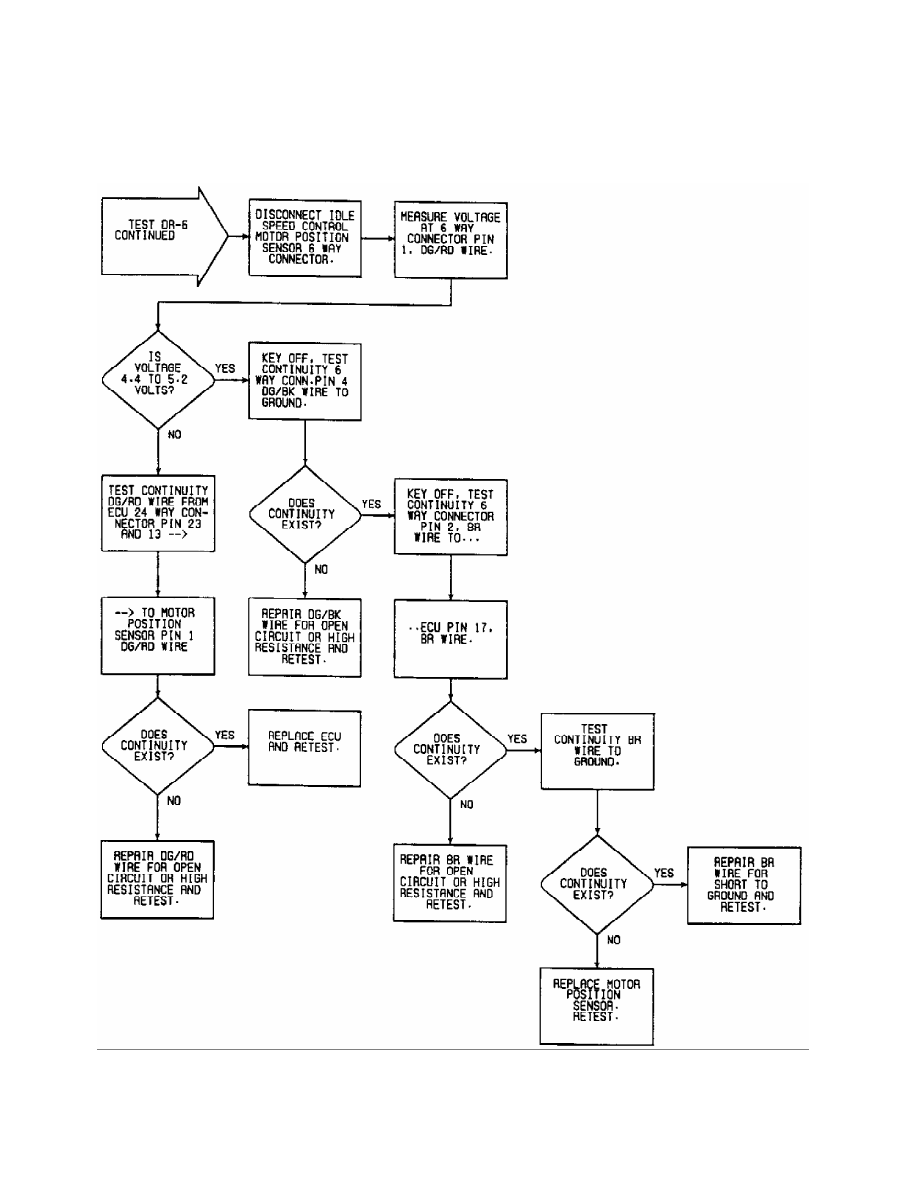

Fig. 39:  Flow Chart DR-6 (1.5L) (2 of 2)

         DR-7: CODE 21 COOLANT TEMP. SENSOR CIRCUIT - 1.5L

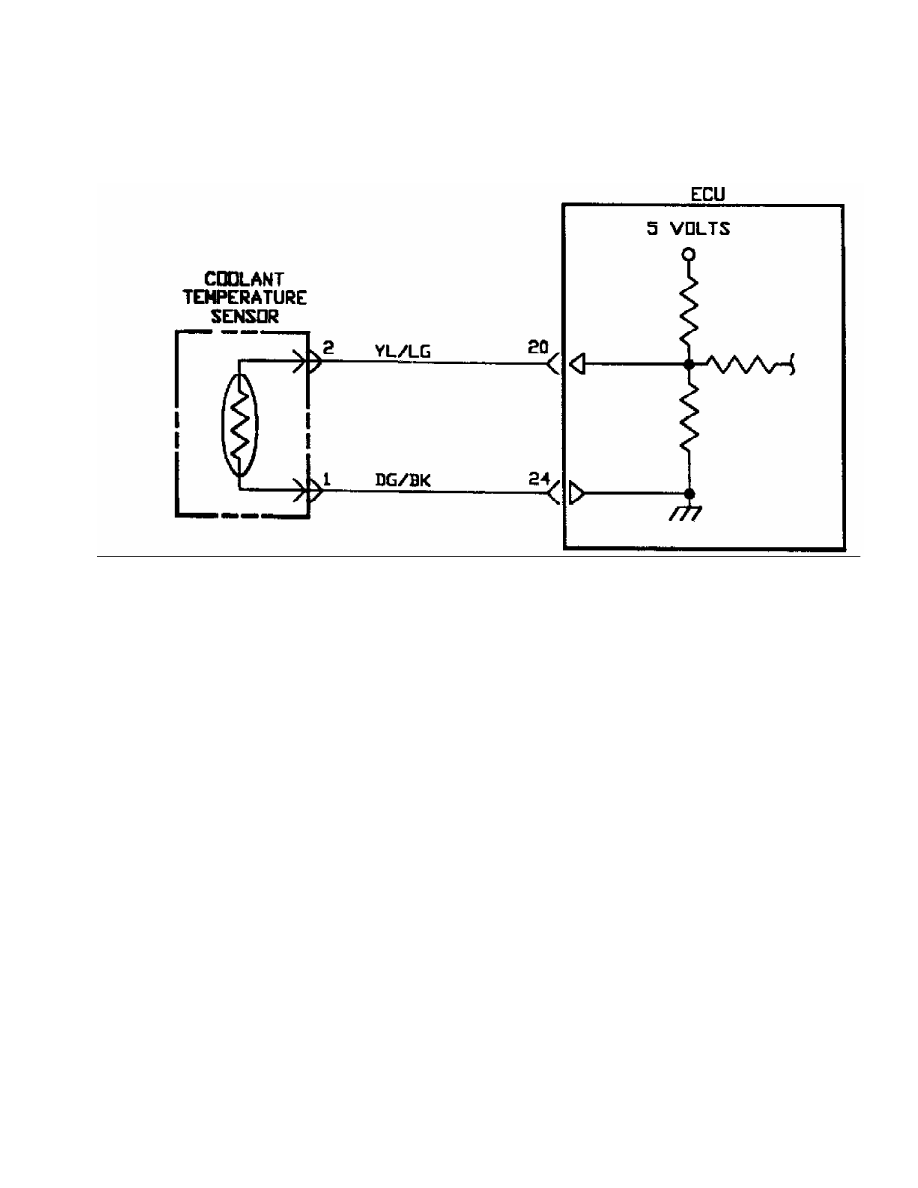

Fig. 40:  Circuit Diagram DR-7 (1.5L)

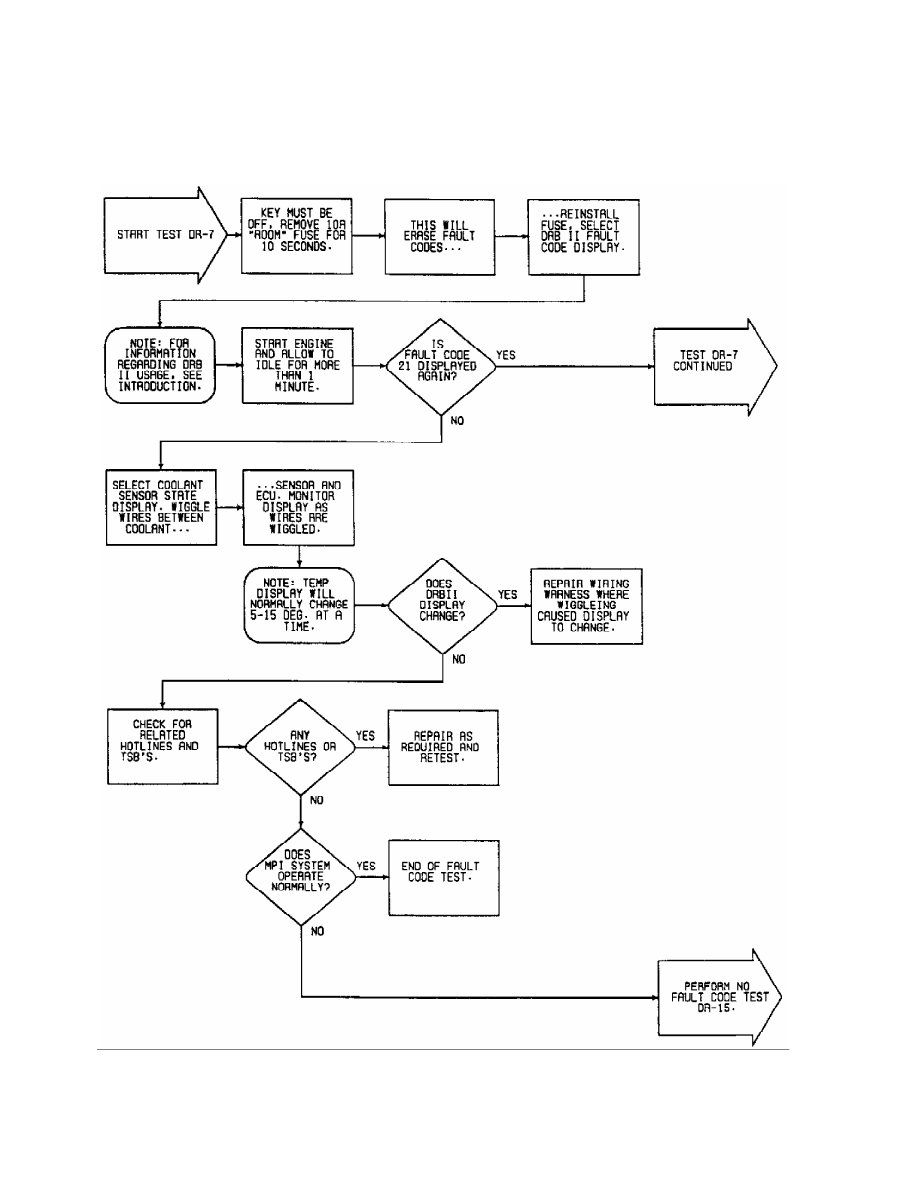

Fig. 41:  Flow Chart DR-7 (1.5L) (1 of 2)
