Mitsubishi Montero (1991+). Manual - part 172





N - REMOVE/INSTALL/OVERHAUL



1991 Mitsubishi Montero

         1991 ENGINE PERFORMANCE

         Removal, Overhaul & Installation

         Dodge; Colt, Colt 200, Colt Vista, Ram-50, Stealth

         Eagle; Summit

         Mitsubishi; Eclipse, Galant, Mirage, Montero, Pickup, 3000GT

         Plymouth; Colt, Colt 200, Colt Vista

         INTRODUCTION

         Removal, overhaul and installation procedures (when given by

manufacturer) are covered in this article. If component removal and

installation is primarily an unbolt and bolt-on procedure, only a

torque specification may be furnished.

         IGNITION SYSTEM

         DISTRIBUTOR

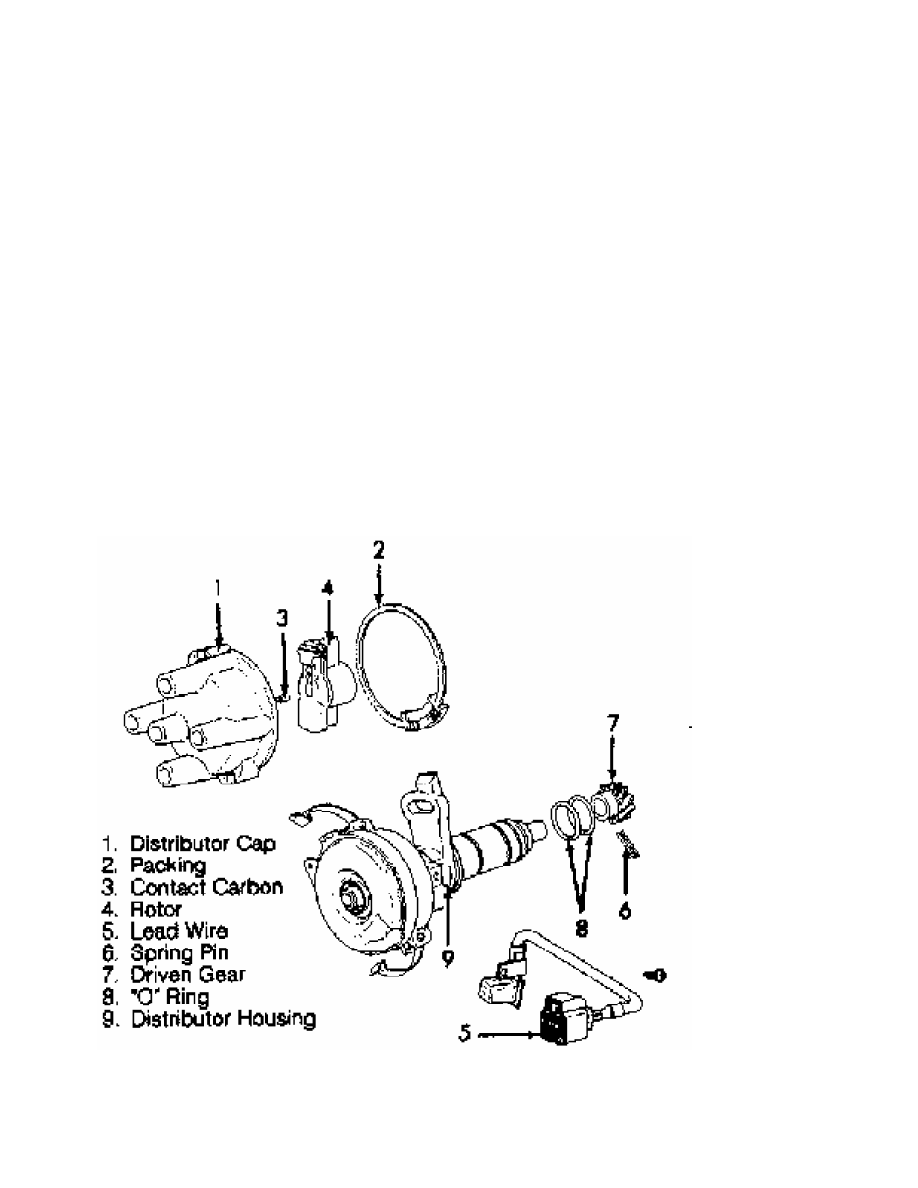

Fig. 1:  Exploded View of Distributor (Colt Vista)

Courtesy of Mitsubishi Motor Sales of America.

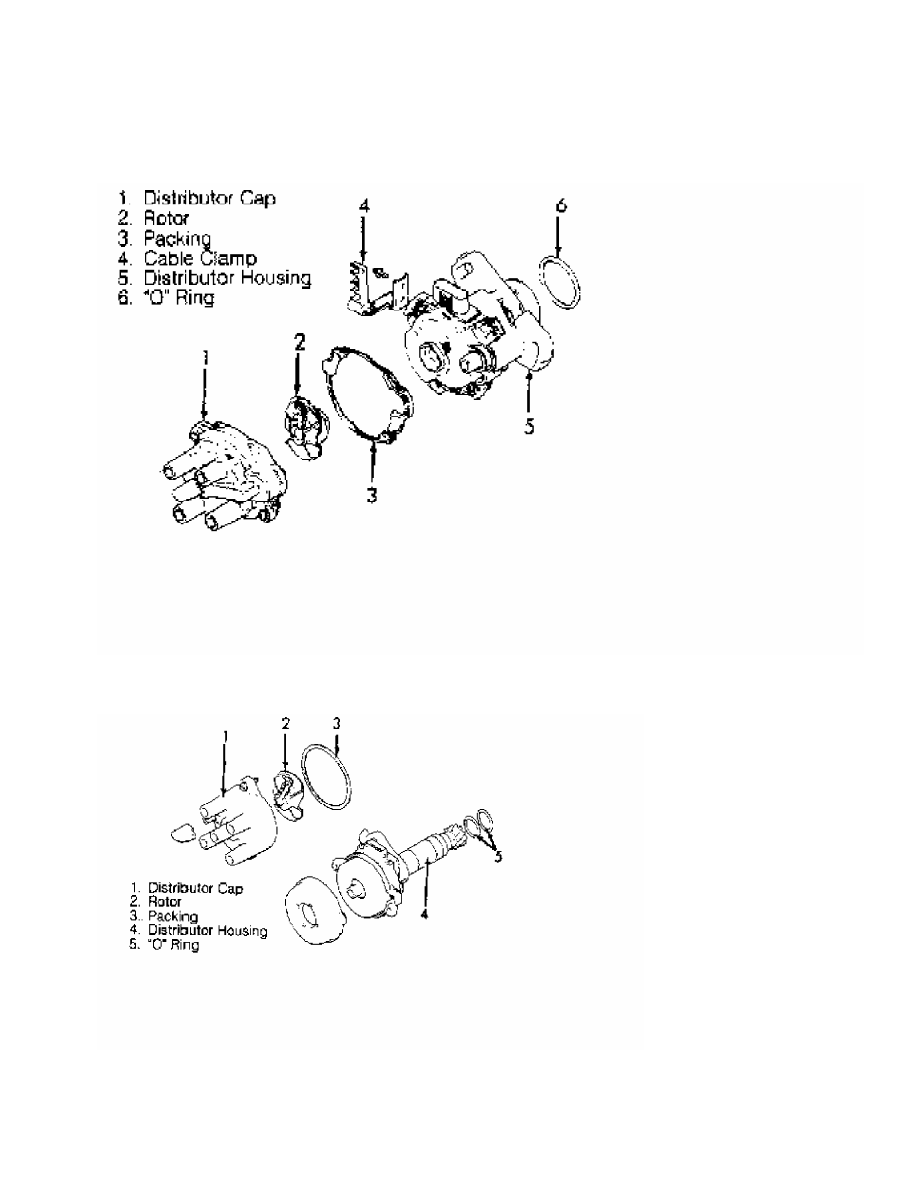

Fig. 2:  Exploded View of Distributor (Colt, Colt 200, Mirage &

Summit 1.5L)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 3:  Exploded View of Distributor (Galant 2.0L SOHC)

Courtesy of Mitsubishi Motor Sales of America.

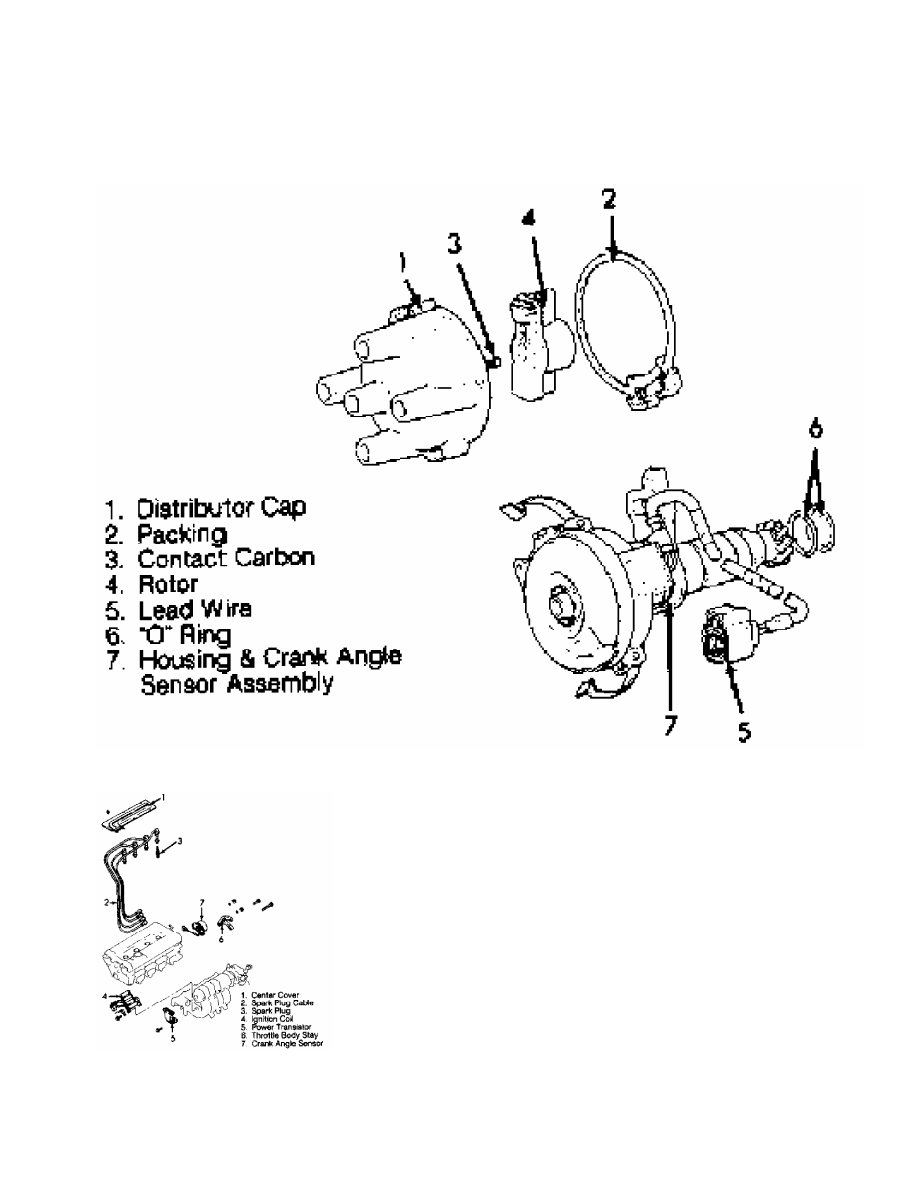

Fig. 4:  Exploded View of Distributor (Eclipse 1.8L)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 5:  Exploded View of Distributor (Montero & Ram-50 3.0L)

Courtesy of Mitsubishi Motor Sales of America.

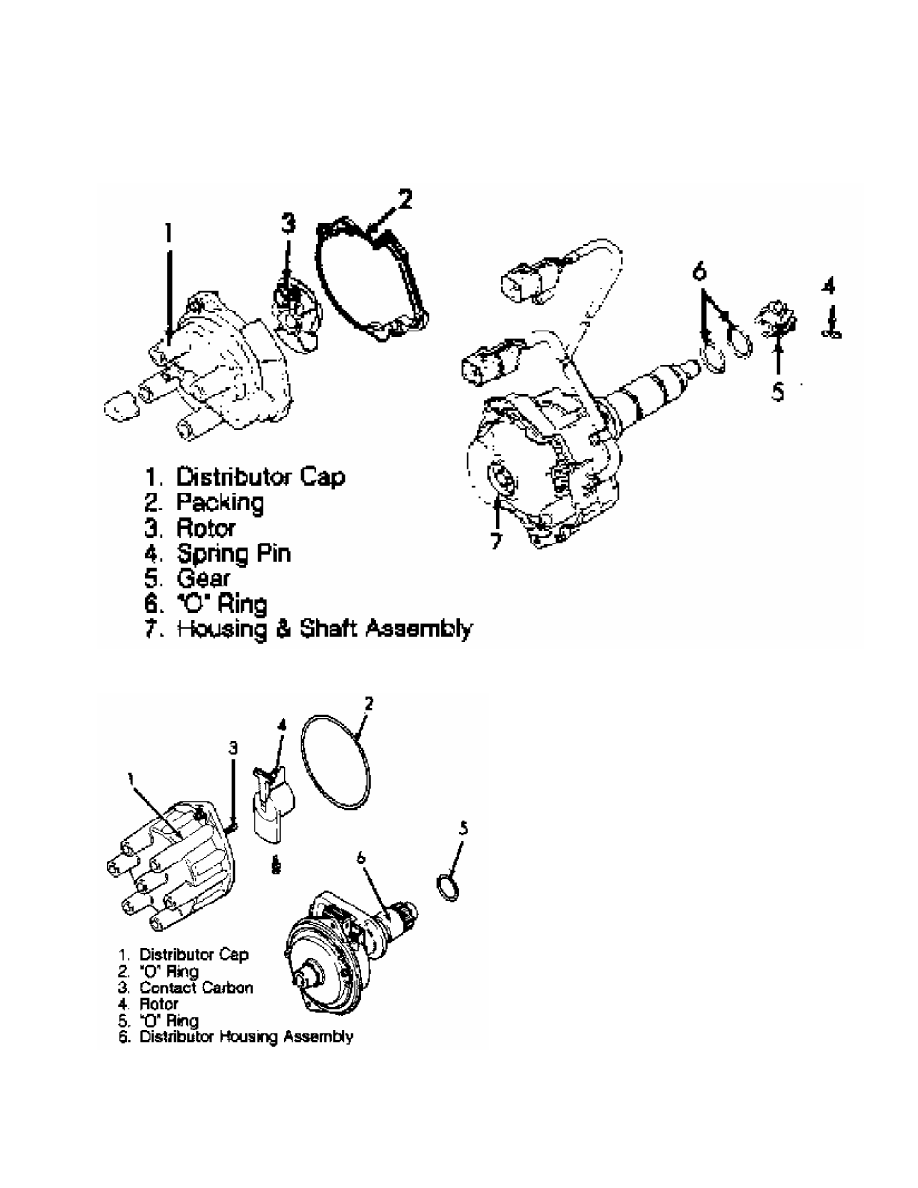

Fig. 6:  Exploded View of Distributor (Pickup & Ram-50 2.4L)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 7:  Exploded View of Distributor (Stealth 3.0L SOHC)

Courtesy of Mitsubishi Motor Sales of America.

         FUEL SYSTEM
