Mitsubishi Montero (1991+). Manual - part 170

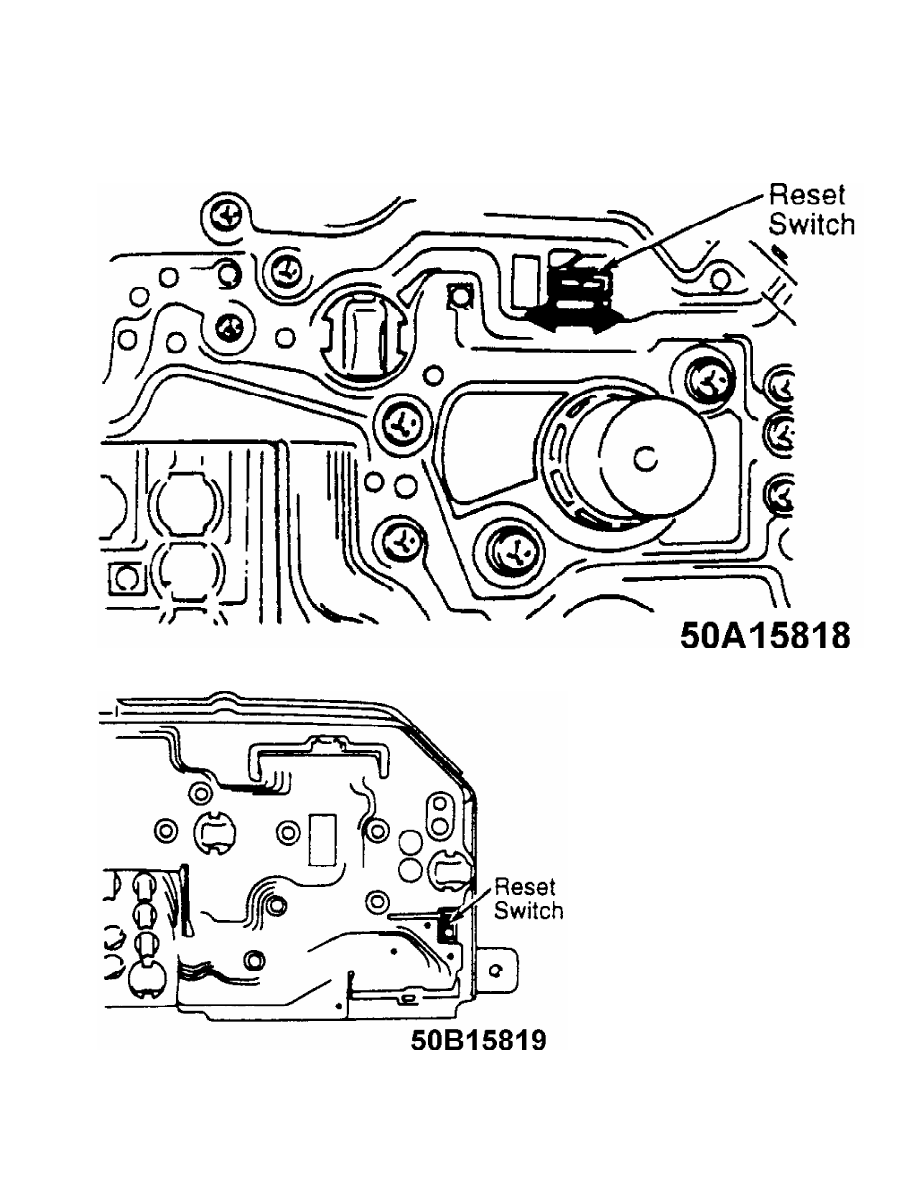

Fig. 2:  Locating Warning Light Reset Switch (1985-86 Pickup & Ram-50)

Courtesy of Chrysler Motors.

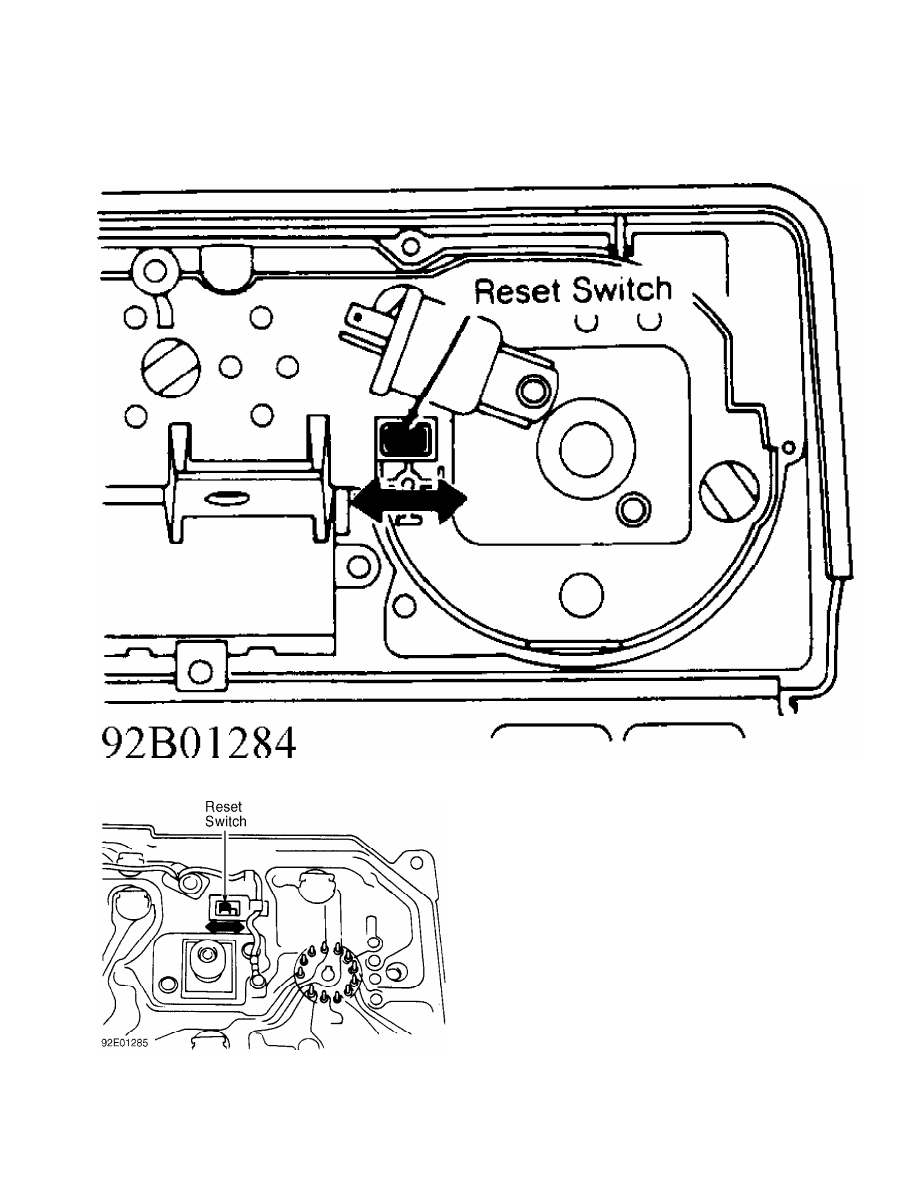

Fig. 3:  Locating Warning Light Reset Switch (1987-92 Pickup & Ram-50)

Courtesy of Chrysler Motors.

Fig. 4:  Locating Warning Light Reset Switch (Raider)

Courtesy of Chrysler Motors.

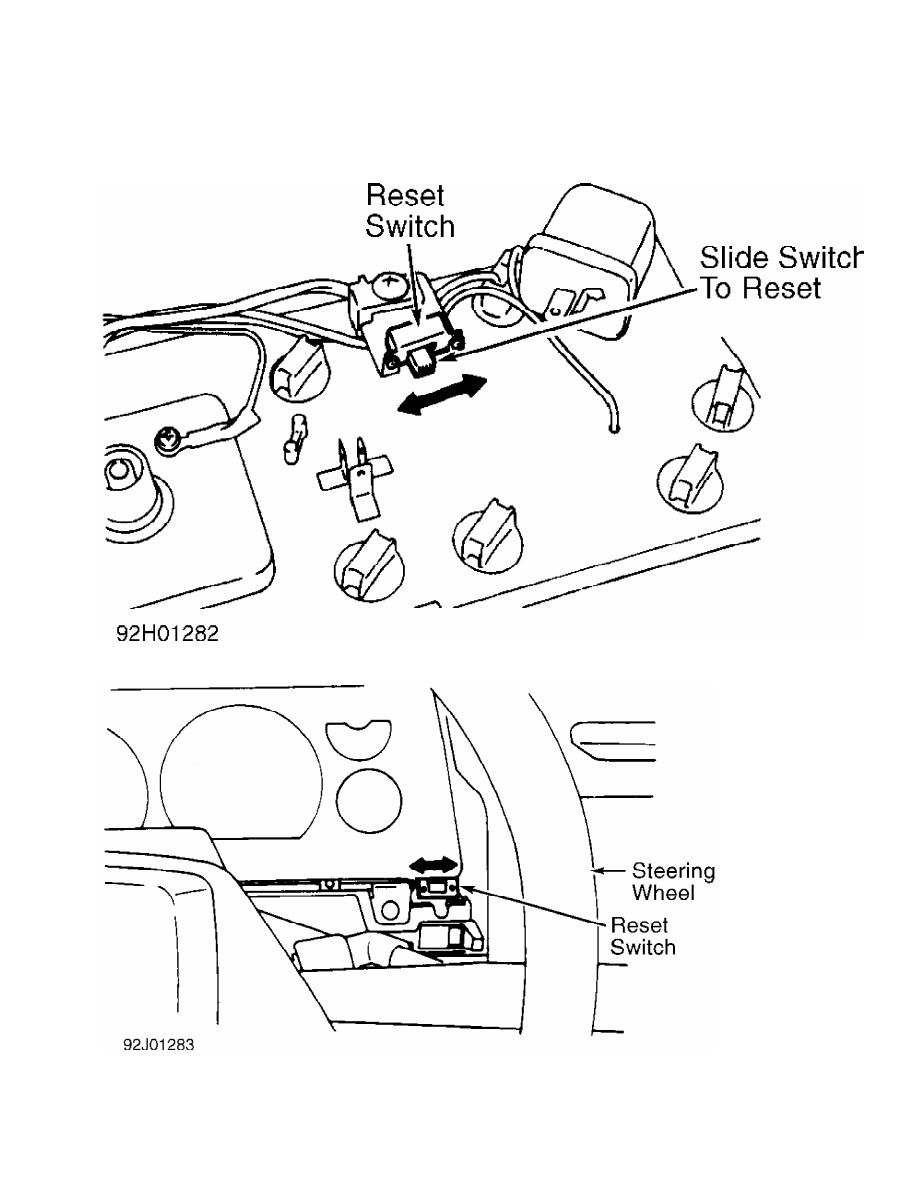

Fig. 5:  Locating Warning Light Reset Switch (Van & Wagon)

Courtesy of Chrysler Motors.

Fig. 6:  Locating Warning Light Reset Switch (1983-93 Montero)

Courtesy of Chrysler Motors.

Fig. 7:  Locating Warning Light Reset Switch (1994-96 Montero)

Courtesy of Chrysler Motors.

METRIC CONVERSIONS



1991 Mitsubishi Montero

         GENERAL INFORMATION

         METRIC CONVERSIONS

         METRIC CONVERSIONS

         Metric conversions are making life more difficult for the

mechanic. In addition to doubling the number of tools required,

metric-dimensioned nuts and bolts are used alongside English

components in many new vehicles. The mechanic has to decide which tool

to use, slowing down the job. The tool problem can be solved by trial

and error, but some metric conversions aren’t so simple. Converting

temperature, lengths or volumes requires a calculator and conversion

charts, or else a very nimble mind. Conversion charts are only part of

the answer though, because they don’t help you "think" metric, or

"visualize" what you are converting. The following examples are

intended to help you "see" metric sizes:

         LENGTH

         Meters are the standard unit of length in the metric system.

The smaller units are 10ths (decimeter), 100ths (centimeter), and

1000ths (millimeter) of a meter. These common examples might help you

to visualize the metric units:

     *   A meter is slightly longer than a yard (about 40 inches).

     *   An aspirin tablet is about one centimeter across (.4 inches).

     *   A millimeter is about the thickness of a dime.

         VOLUME

         Cubic meters and centimeters are used to measure volume, just

as we normally think of cubic feet and inches. Liquid volume

measurements include the liter and milliliter, like the English quarts

or ounces.

     *   One teaspoon is about 4 cubic centimeters.

     *   A liter is about one quart.

     *   A liter is about 61 cubic inches.

         WEIGHT

         The metric weight system is based on the gram, with the most

common unit being the kilogram (1000 grams). Our comparable units are

ounces and pounds:

     *   A kilogram is about 2.2 pounds.

     *   An ounce is about 28 grams.

         TORQUE

         Torque is somewhat complicated. The term describes the amount

of effort exerted to turn something. A chosen unit of weight or force

is applied to a lever of standard length. The resulting leverage is

called torque. In our standard system, we use the weight of one pound

applied to a lever a foot long, resulting in the unit called a foot-

pound. A smaller unit is the inch-pound (the lever is one inch long).

         Metric units include the meter kilogram (lever one meter long

with a kilogram of weight applied) and the Newton-meter (lever one
