federal law. Warranty period is 5 years or 50,000 miles, whichever

occurs first. Covers remedy of non-conformity if vehicle fails to pass

an EPA approved emissions test during the first 24 months or 24,000

miles of this warranty. During the remainder of the warranty period,

covers remedy of non-conformity resulting from failure of certain

emission-related components. See copy of warranty for specific

components covered.

         EMISSION SYSTEM WARRANTY (CALIFORNIA)

         Warrants that the vehicle was designed, built and equipped to

conform at the time of sale with all applicable U.S. and California

emission standards, and that the emission control system is free from

defects in materials or workmanship which would cause the vehicle not

to meet these standards for 5 years or 50,000 miles, whichever occurs

first. On 1990 and later models, warranty coverage is 3 years or 50,

000 miles, whichever occurs first, with certain emission-related

components covered for 7 years or 70,000 miles, whichever occurs

first. See copy of warranty for specific components covered.

         FUSES & CIRCUIT BREAKERS

         FUSE PANEL LOCATION

         The electrical system is protected against shorts by fuses

that are designed to fail, to prevent damage to the wire harness. The

fuse block is located under the instrument panel on the driver’s side.

If a fuse is blown, locate the cause before replacing the fuse. Spare

fuses are contained in the fuse block.

         FUSE PANEL IDENTIFICATION (1983-91)

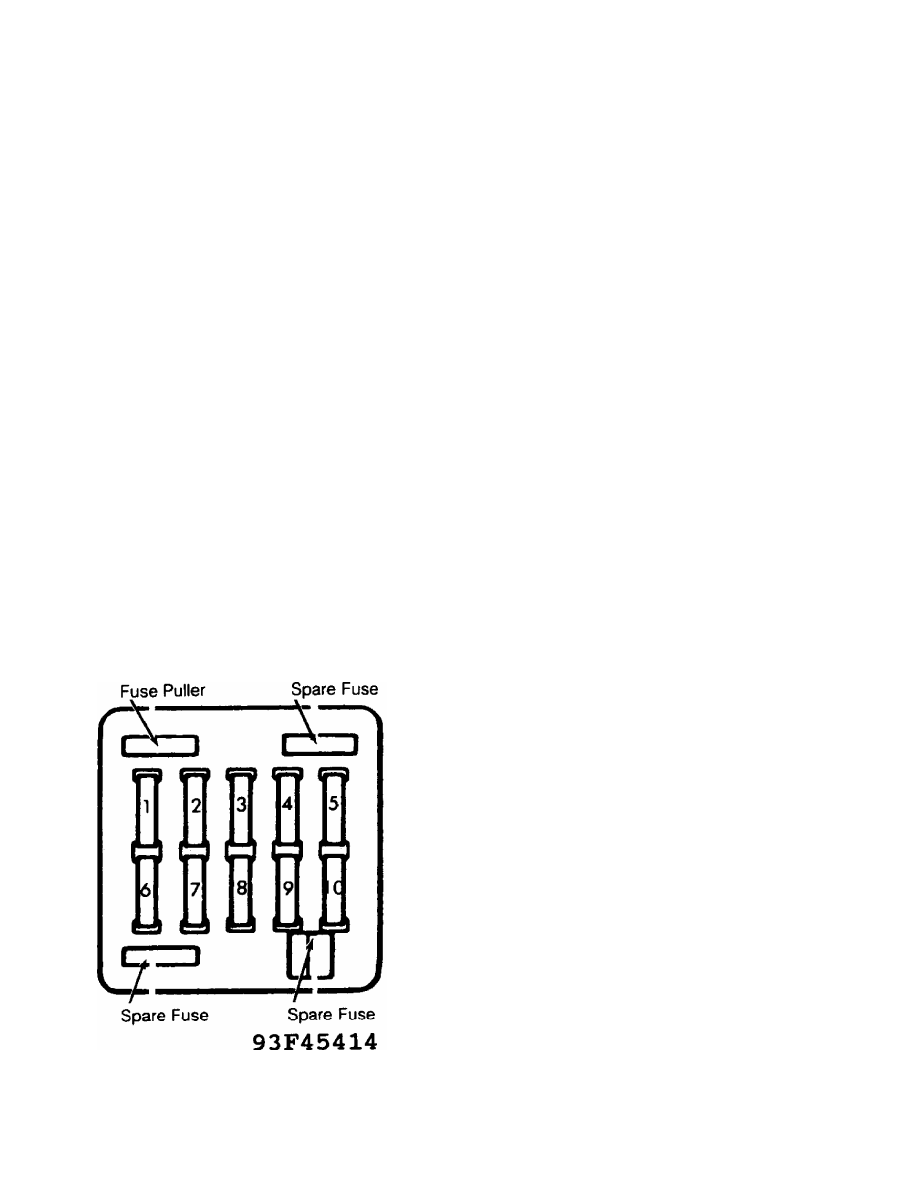

Fig. 8:  Fuse Panel Identification (1983-91)

Courtesy of Mitsubishi Motor Sales of America, Inc.

         Fuse & Circuit Breaker Identification

  1 - 20 Amp (Yellow)

         Hazard Light, Dome Light, Clock

  2 - 10 Amp (Red)

         Taillights

  3 - 10 Amp (Red)

         Turn Signal Lights

  4 - 10 Amp (Red)

         Back-Up Lights, Gauges

  5 - 15 Amp (Light Blue)

         Defogger

  6 - 20 Amp (Yellow)

         Heater

  7 - 15 Amp (Light Blue)

         Stoplights

  8 - 15 Amp (Light Blue)

         Horn, Wiper, Washer

  9 - 10 Amp (Red)

         Rear Wiper, Rear Washer

 10 - 15 Amp (Light Blue)

         Cigarette Lighter, Radio

         FUSE PANEL IDENTIFICATION (1992-96)

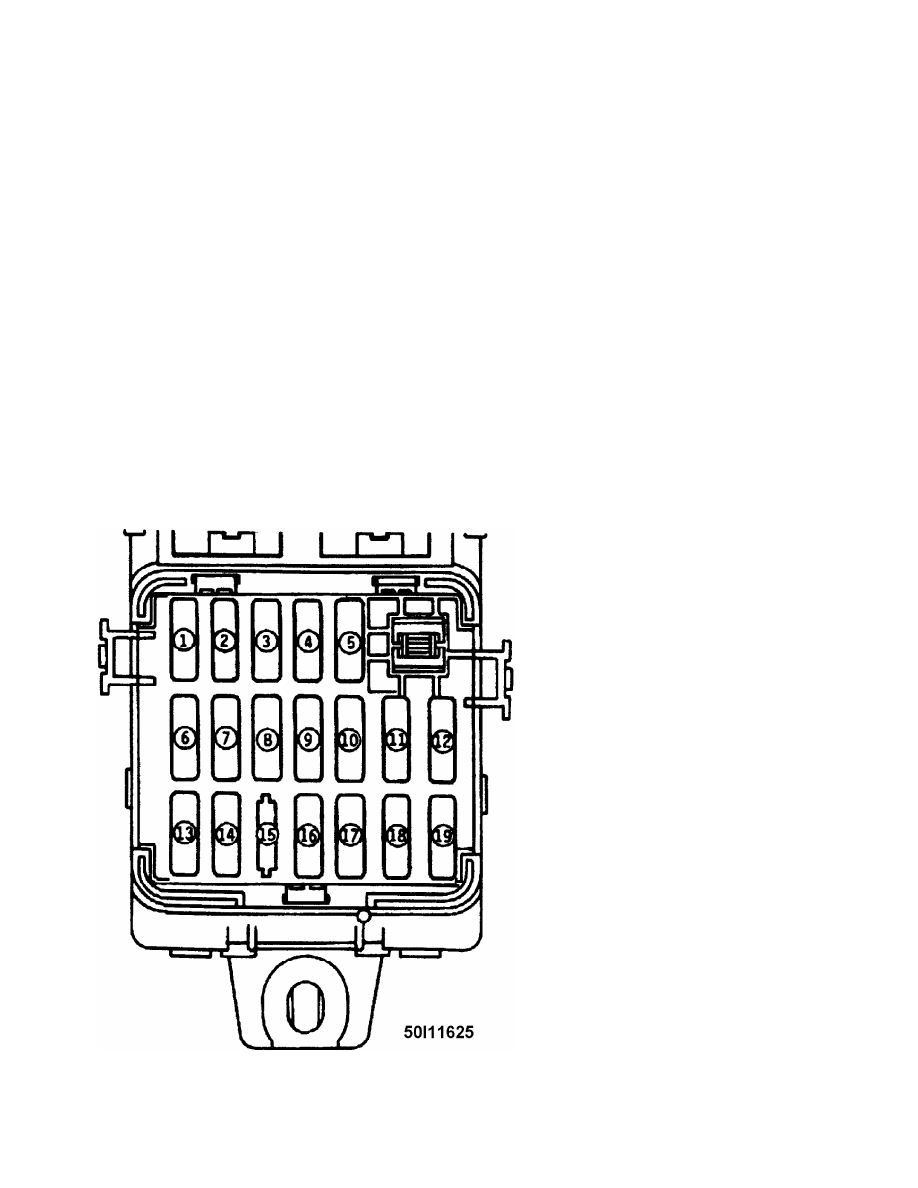

Fig. 9:  Fuse Panel Identification (1992-96)

Courtesy of Mitsubishi Motor Sales of America, Inc.

         Fuse & Circuit Breaker Identification

  1 - 20 Amp

         Not Used

  2 - Not Used

      10 Amp (1994-96)

         ELC-4 A/T Control Module, Cruise Control Unit

  3 - 10 Amp

         Blower Motor Relay, Headlight Washer Relay, Defogger Relay,

         Car Telephone (1992-93)

  4 - 10 Amp

         Radio Clock, Accessory Socket Relay,

         Cruise Control Unit (1994-96), Data Link Connector (1994-96)

  5 - 15 Amp

         Remote Controlled Mirror, Cigarette Lighter

         Accessory Socket Relay (1992-93)

  6 - 15 Amp

         Door Lock Relay, Door Lock Control Unit (1994-96)

  7 - 10 Amp

         Overdrive Relay, Variable Shock Absorber Control Unit,

         4WD Indicator Control Unit, ABS Power Relay (1992-93),

         ABS Control Unit (1994-96), Combination Meter (1994-96)

  8 - 10 Amp

         Power Window Relay

  9 - 15 Amp

         Wiper, Washer, Sunroof

 10 - 10 Amp

         Horn, Cruise Control Unit (1992-93)

 11 - 10 Amp

         Combination Meter, Multi-meter, Motor Antenna Control Unit,

         Buzzer Assembly

 12 - 15 Amp

         Turn Signal Light, Hazard Light, SRS Diagnosis Unit

 13 - 10 Amp

         Not Used

 14 - 15 Amp

         Accessory Socket

 15 - Not Used

 16 - 25 Amp

         Blower Motor

 17 - 15 Amp

         Stoplight

 18 - 10 Amp

         Back-up Light, Rear Differential Lock Control Unit

 19 - 10 Amp

         Engine Control Module, Dome Light, Reading Light,

         Cargo Light, Combination Meter, Clock, Door Lock Relay,

         Cruise Control Unit, Car Telephone (1992-93)

         ELC-4 A/T Control Module (1994-96), Ignition Key Illumination

         Light Timer (1994-96)

MAINTENANCE REMINDER LIGHT RESET PROCEDURES



1991 Mitsubishi Montero

         1983-96 MAINTENANCE

         Chrysler Motors/Mitsubishi Maintenance Reminder Lights

         Dodge;  Challenger, Colt, Colt Vista, Conquest, Raider,

           Ram-50

         Eagle;  Summit, Summit Wagon

         Plymouth;  Colt, Colt Vista, Sapporo

         Mitsubishi;  3000GT, Cordia, Diamante, Eclipse,

           Expo/Expo LRV, Galant, Mirage, Montero, Pickup, Precis,

           Sigma, Starion, Tredia, Van/Wagon

         EGR/MAINTENANCE REQUIRED WARNING LIGHT

         1) On some models, an EGR or MAINTENANCE REQUIRED warning

light in dash will come on as a reminder to have EGR system serviced

(each 50,000 miles), oxygen sensor replaced (each 80,000 miles) or

evaporative carbon canister replaced (100,000 miles).

         2) After servicing or replacing components, reset mileage

counter. On all models except 1987-95 Pickup and 1987-93 Ram-50, reset

switch is located on back of instrument cluster.

         3) On 1987-95 Pickup and 1987-93 Ram-50, reset switch is on

lower right corner of instrument cluster, behind instrument cluster

face trim. Slide switch to other side to reset indicator light.

         4) Remove warning light bulb after 150,000 mile servicing on

Colt Vista and Wagon. Remove bulb after 120,000 mile servicing on Ram-

50.

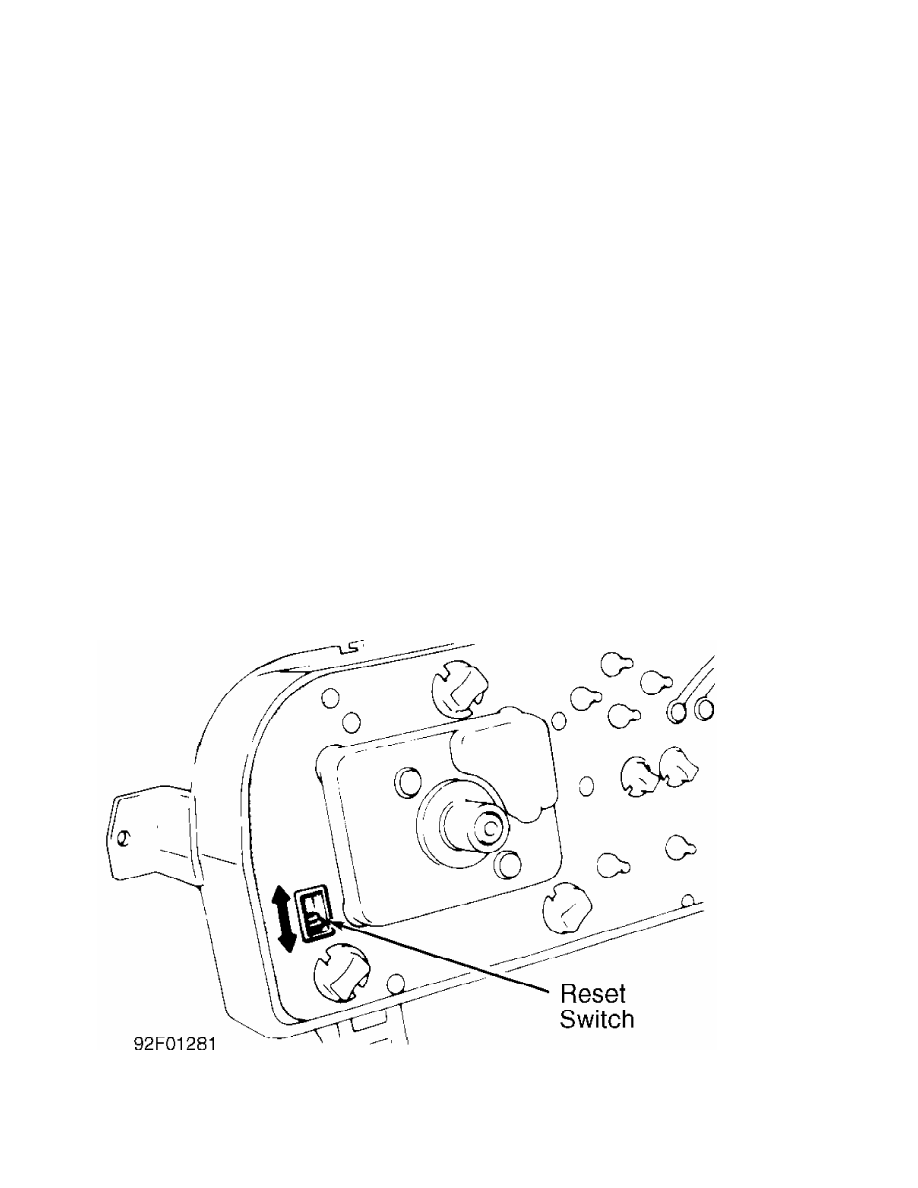

Fig. 1:  Locating Warning Light Reset Switch (Colt Vista; Colt

Wagon is Similar)

Courtesy of Chrysler Motors.
