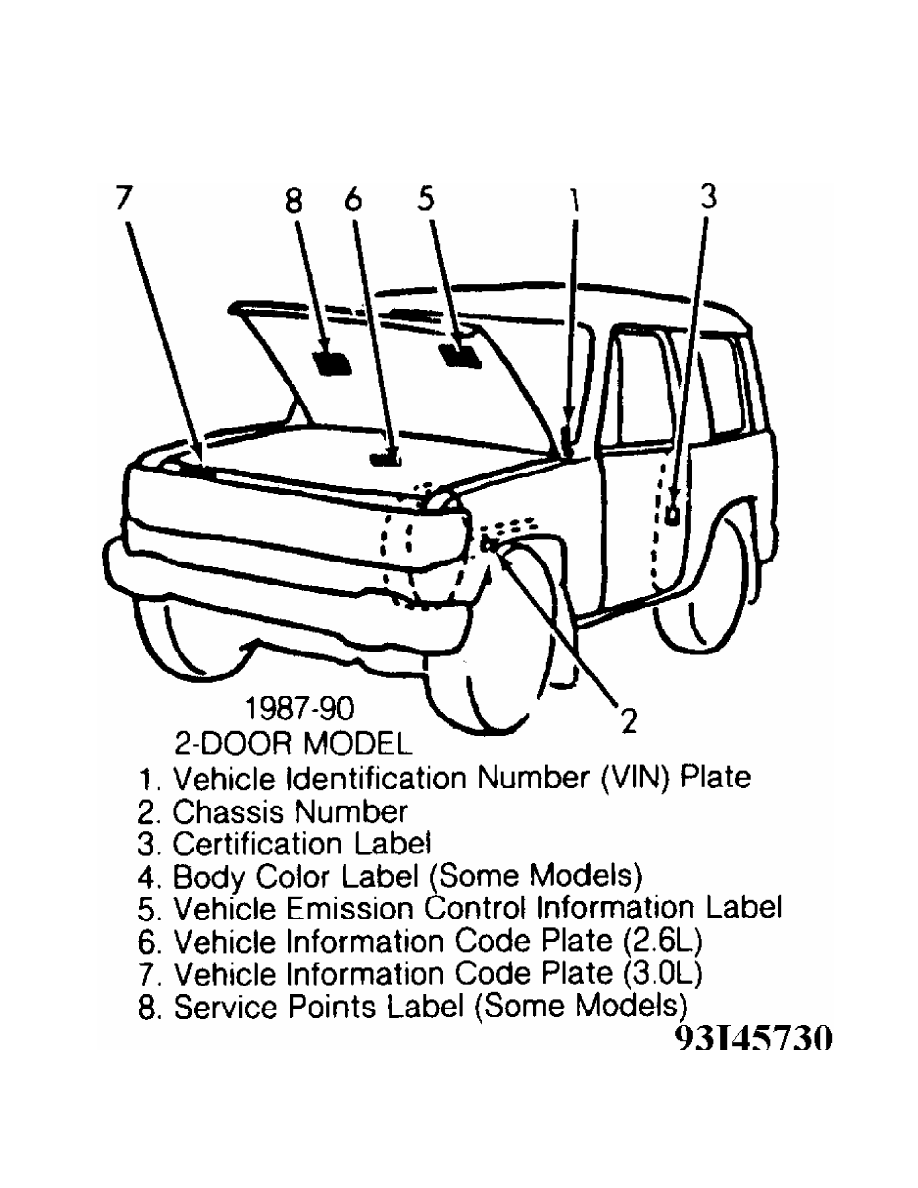

Fig. 6:  Information Label Locations (1987-90 2-Door Models)

Courtesy of Mitsubishi Motor Sales of America.

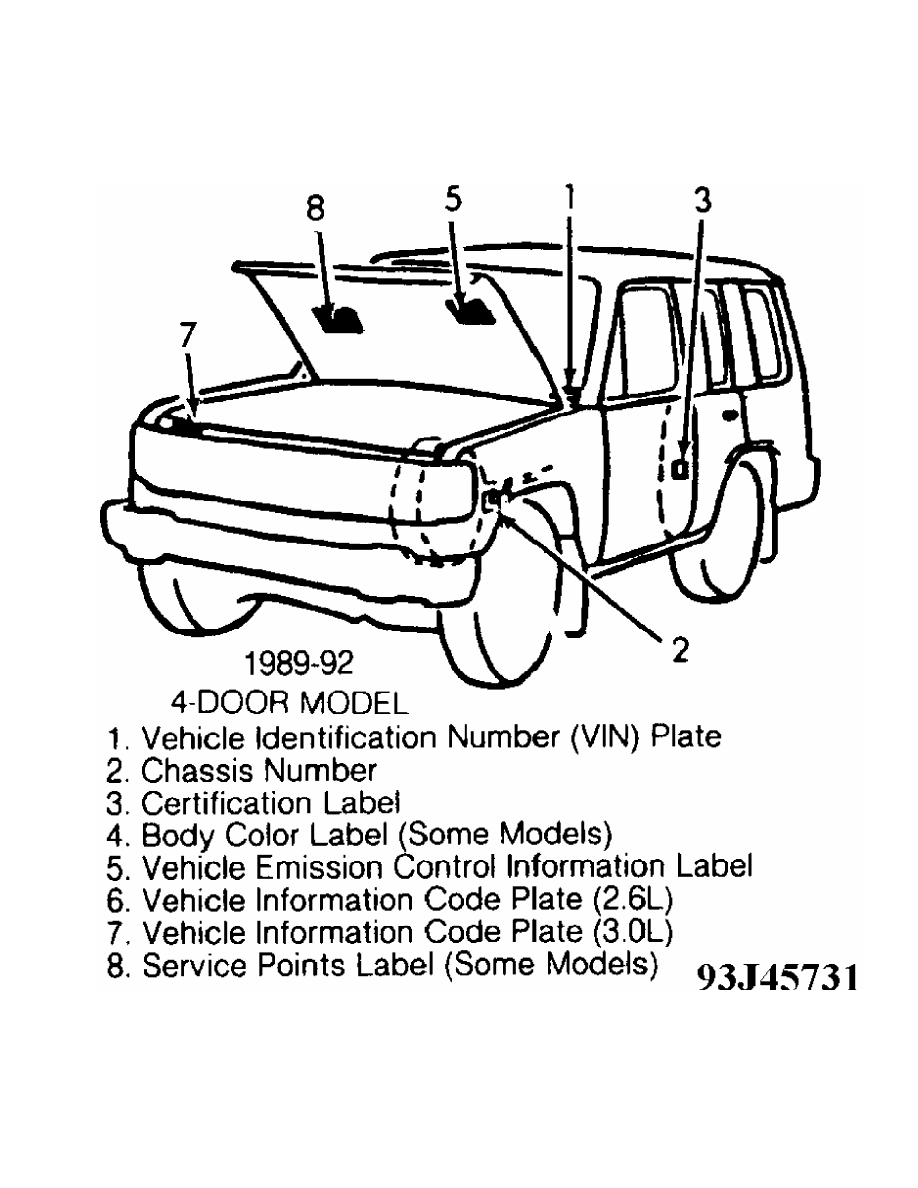

Fig. 7:  Information Label Locations (1989-92 4-Door Models)

Courtesy of Mitsubishi Motor Sales of America.

         SERVICE LABOR TIMES

SERVICE LABOR TIMES TABLE (HOURS)


































































                            30,000 (60,000)                50,000

Application                   Mile Service           Mile Service

1983-86 2.6L 4-Cylinder

  Automatic Transmission  ....  7.9 (8.2)  .................  5.2

  Manual Transmission  .......  6.9 (7.2)  .................  5.2

1987-90 2.6L 4-Cylinder

  Automatic Transmission  ....  7.9 (8.9)  .................  2.6

  Manual Transmission  .......  6.9 (7.9)  .................  2.6

1989-96 3.0L V6

  Automatic Transmission  ....  6.1 (10.6)  ................  2.6

  Manual Transmission  .......  5.1 (9.6)  .................  2.6


































































         LUBRICATION SPECIFICATIONS

LUBRICATION SPECIFICATIONS TABLE


































































Application                                  Fluid Specifications

Brake & Clutch Fluid  ...........................  DOT 3 Or DOT 4

Engine Coolant  .............  Ethylene-Glycol Antifreeze Coolant

Engine Oil (1)

  Minimum Temperature

   Greater Than 32



F (0



C)  .....  SAE 20W-40 Or 20W-50 API SG/CD

   Greater Than -10



F (-23



C)  ..  SAE 10W-30 Or 10W-40 API SG/CD

  Maximum Temperature

   Less Than 60



F (16



C)  .........  SAE 5W-30 Or 5W-40 API SG/CD

Front Axle & Conventional Rear Axle

  Minimum Temperature

   Greater Than -10



F (-23



C)  .....  SAE 85W-90, 80W-90 API GL-5

  Maximum Temperature

   Less Than -30



F (-34



C)  ...................  SAE 75W API GL-5

Power Steering Fluid  ...........................  Dexron-IIE ATF

Rear Axle (With Limited

  Slip Differential)  ...........  Hypoid Gear Oil (8149630EX) Or

                                                       Equivalent

Transmission

  Automatic  ....................................  Dexron-IIE ATF

  Manual Transaxle &

   Transfer Case (4WD)  ...........  SAE 75W-85W, 75W-90 API GL-5

(1) - Since temperature ranges for different oil grades overlap,

      brief fluctuations in outside temperatures are no cause for

      concern.


































































         FLUID CAPACITIES

FLUID CAPACITIES TABLE


































































Application                                              Quantity

A/C System R-12 Refrigerant

  1983-87  ..........................................  24-26 Ozs.

  1988-91  .............................................  32 Ozs.

  1992-93  .............................................  28 Ozs.

A/C System R-134a Refrigerant (1)

  1994-96  ..........................................  21-23 Ozs.

Automatic Transmission

  1984-86  .................................  ( 2) 7.2 Qts. (6.8L)

  1987-93  .....................................  7.6 Qts. (7.2L)

  1994-96 (3.0L SOHC)  .........................  7.6 Qts. (7.2L)

  1994-96 (3.0L DOHC & 3.5L)  ..................  9.0 Qts. (8.5L)

Cooling System

  1983-88  .....................................  8.5 Qts. (8.0L)

  1989-96

   2.6L  .......................................  9.7 Qts. (9.2L)

   3.0L  ......................................  10.0 Qts. (9.5L)

   3.5L  ......................................  10.0 Qts. (9.5L)

Differential

  1983-88  .....................................  1.9 Qts. (1.8L)

  1989-93

   2.6L  .......................................  1.9 Qts. (1.8L)

   3.0L  .......................................  2.7 Qts. (2.6L)

  1994-96

   3.0L & 3.5L  ................................  2.7 Qts. (2.6L)

Engine Oil

  1983-86  .....................................  6.0 Qts. (5.8L)

  1987  ........................................  5.2 Qts. (5.0L)

  1988  ........................................  5.0 Qts. (4.8L)

  1989-91  .....................................  5.5 Qts. (5.3L)

  1992-96  .....................................  5.2 Qts. (4.9L)

Power Steering  ................................  1.1 Qts. (1.0L)

Fuel Tank

  1983-88  ....................................  15.9 Gals. (60L)

  1989-90

   2.6L 2-Door  ...............................  15.9 Gals. (60L)

   3.0L 2-Door  ...............................  19.9 Gals. (75L)

   2.6L & 3.0L 4-Door  ..........................  24 Gals. (92L)

  1991-96  ......................................  24 Gals. (92L)

Manual Transmission

  1983-91  .....................................  2.3 Qts. (2.2L)

  1992  ........................................  2.4 Qts. (2.3L)

  1993-96  .....................................  2.6 Qts. (2.5L)

Transfer Case

  1983-91  .....................................  2.3 Qts. (2.2L)

  1992-96  .....................................  2.4 Qts. (2.3L)

(1) - Use of R12 in a R134a system will result in SEVERE DAMAGE.

(2) - 1983 model equipped with manual transmission only.


































































         WHEEL & TIRE SPECIFICATIONS

         Tire specifications are imprinted on the tire side wall. The

recommended cold tire inflation pressures are listed on a label

attached to the rear face of the driver’s door. These pressures

provide the best combination of ride comfort, tire wear and stability

under normal conditions.

CAUTION: DO NOT mix tires of different design such as radial ply

         with bias or bias-belted tires. Mixing tire types will

         adversely affect road handling and may lead to loss of

         vehicle control. When using snow tires, they must be used

         in set of four for maneuverability and safety. DO NOT use

         tire chains on front wheels.

TIRE & WHEEL SPECIFICATIONS TABLE





























































Wheel Size                                         Tire Size

1983-86

  15 x 6JJ (Steel)  ..............................  215 SR15

1987-88
