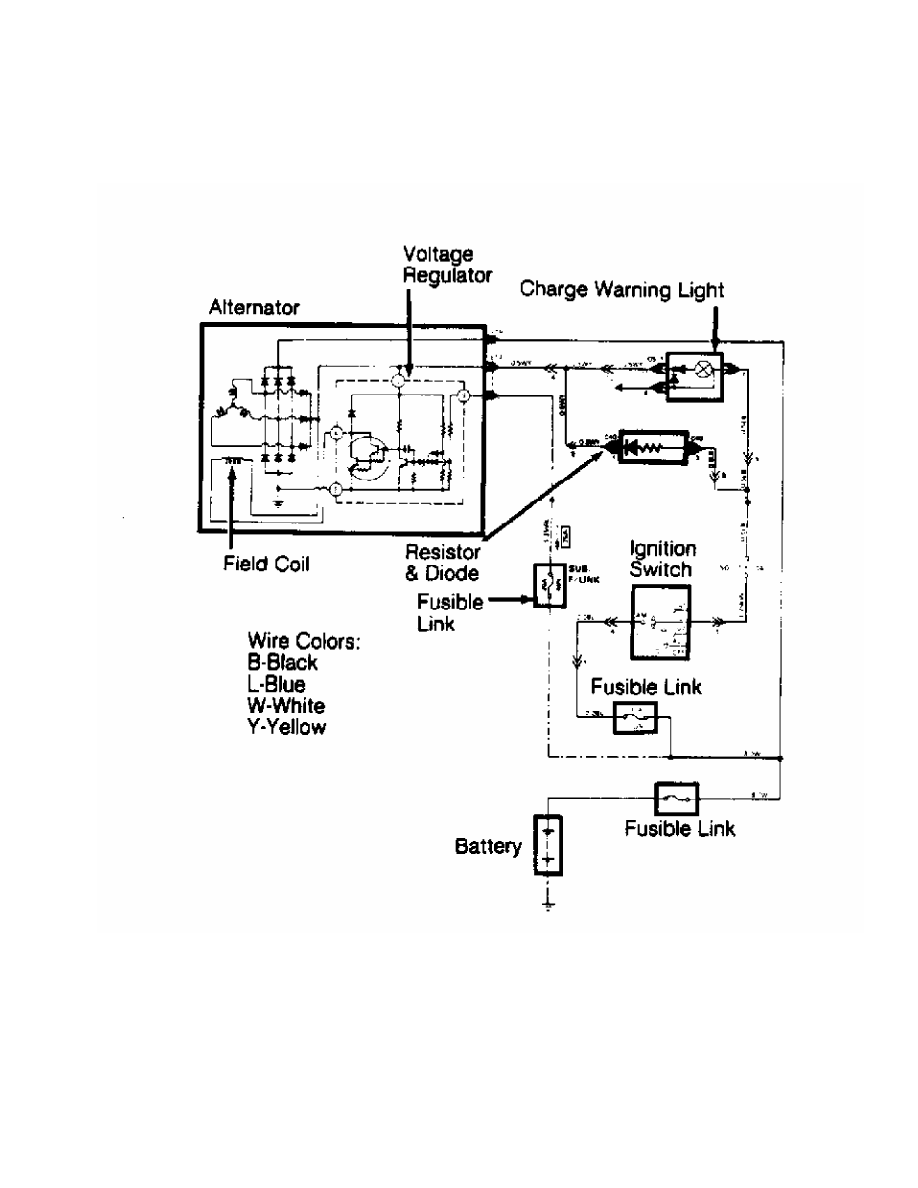

Fig. 7:  Charging System Wiring Schematic (Precis)

Courtesy of Mitsubishi Motor Sales of America.

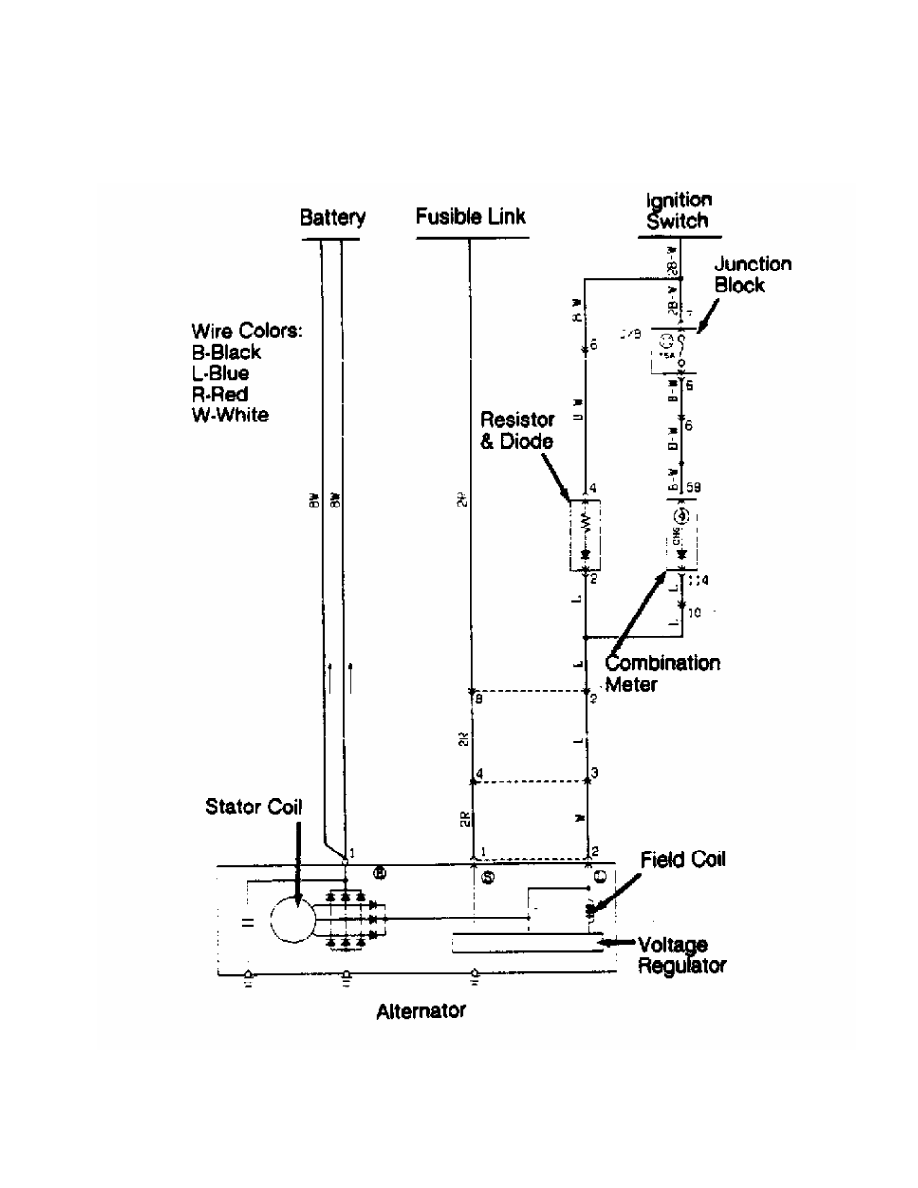

Fig. 8:  Charging System Wiring Schematic (Stealth DOHC & 3000GT)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 9:  Charging System Wiring Schematic (Stealth SOHC)

Courtesy of Chrysler Motors.

         ADJUSTMENTS

BELT ADJUSTMENT TABLE

Application                     (1) New Belt Deflection: In. (mm)

Colt, Colt 200 & Summit  .....................  .28-.35 (7.1-8.9)

Mirage

  1.5L  ......................................  .28-.35 (7.1-8.9)

  1.6L  .....................................  .35-.45 (8.9-11.4)

Colt Vista  ..................................  .28-.34 (7.1-8.6)

Eclipse & Galant

  1.8L  .....................................  .32-.43 (8.1-10.9)

  2.0L  .....................................  .35-.45 (8.9-11.4)

Montero  .....................................  .22-.32 (5.6-8.1)

Pickup & Ram-50

  2.4L  ......................................  .28-.39 (7.1-9.9)

  3.0L  ......................................  .32-.39 (8.1-9.9)

Precis  ......................................  .28-.32 (7.1-8.1)

Stealth & 3000GT

  DOHC  ......................................  .16-.22 (4.1-5.6)

  SOHC  ......................................  .24-.35 (6.1-8.9)

(1) - Deflection measured with 22 lbs. (10 kg) pressure applied midway

on belt run.

         TROUBLE SHOOTING

NOTE:    See TROUBLE SHOOTING - BASIC PROCEDURES article in the

         GENERAL INFORMATION section.

         TESTING (ON-VEHICLE)

         ALTERNATOR TO BATTERY CONTINUITY TEST

NOTE:    Check alternator wire harness connections and drive belt

         tension and ensure battery is fully charged before

         performing test.

         1) Turn ignition switch to OFF position. Disconnect negative

battery cable. Remove output lead from alternator terminal "B". See

Fig. 10. Install a 100-amp ammeter in series to terminal "B" and

disconnected output lead. Install positive lead of ammeter to terminal

"B" and negative lead to disconnected output wire.

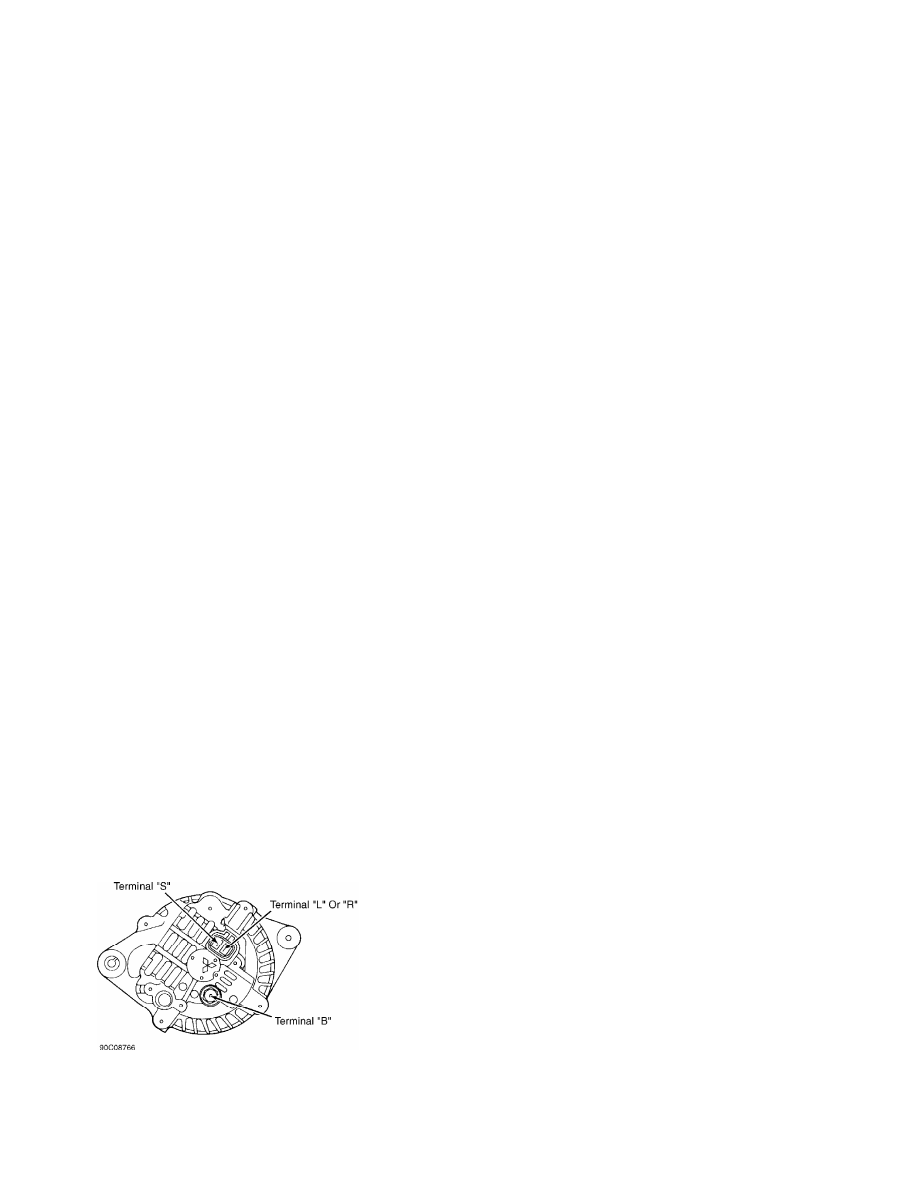

Fig. 10:  Identifying Alternator Terminals

Courtesy of Chrysler Motors.

         2) Install a digital voltmeter between alternator terminal

"B" and positive battery terminal. Install positive voltmeter lead to
