Mitsubishi Montero (1991+). Manual - part 38

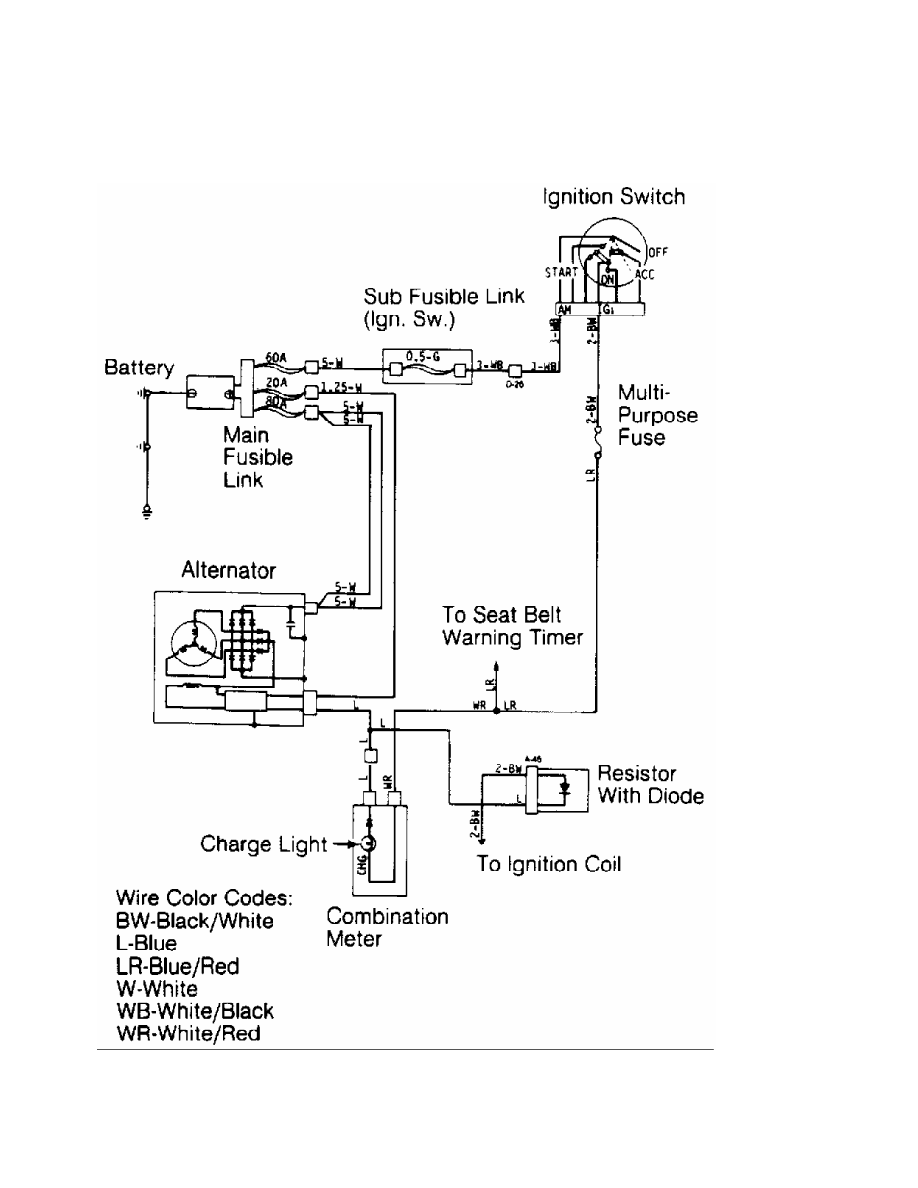

Fig. 3:  Charging System Wiring Schematic (Eclipse)

Courtesy of Mitsubishi Motor Sales of America.

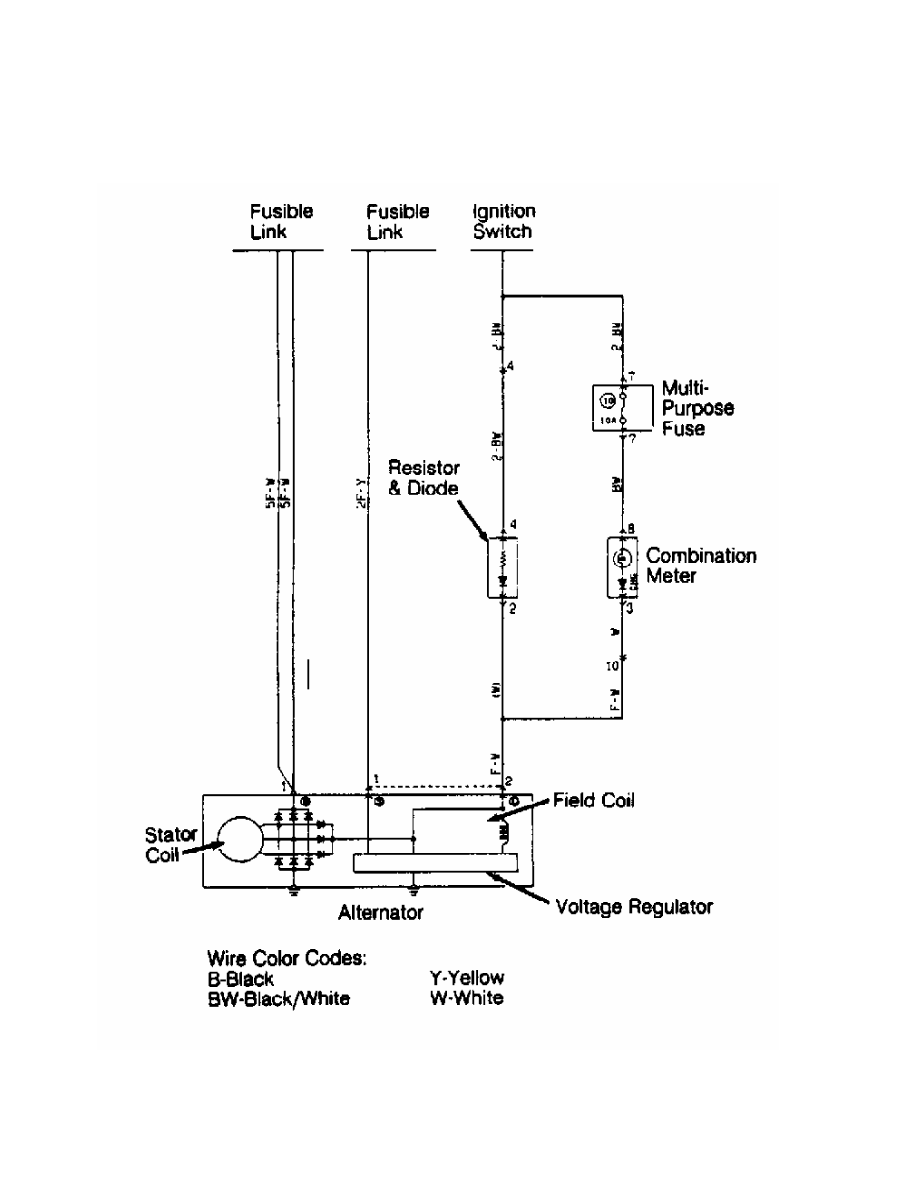

Fig. 4:  Charging System Wiring Schematic (Galant)

Courtesy of Mitsubishi Motor Sales of America.

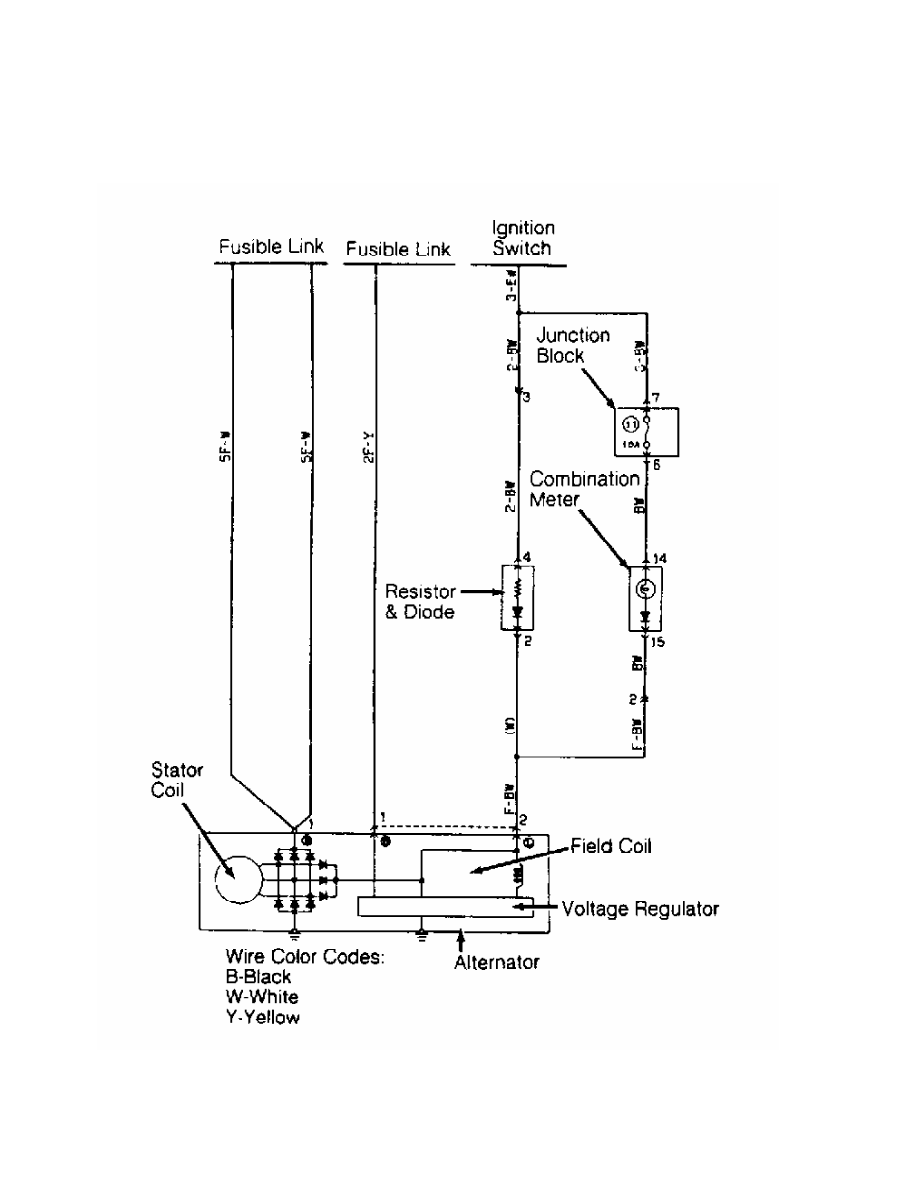

Fig. 5:  Charging System Wiring Schematic (Montero)

Courtesy of Mitsubishi Motor Sales of America.

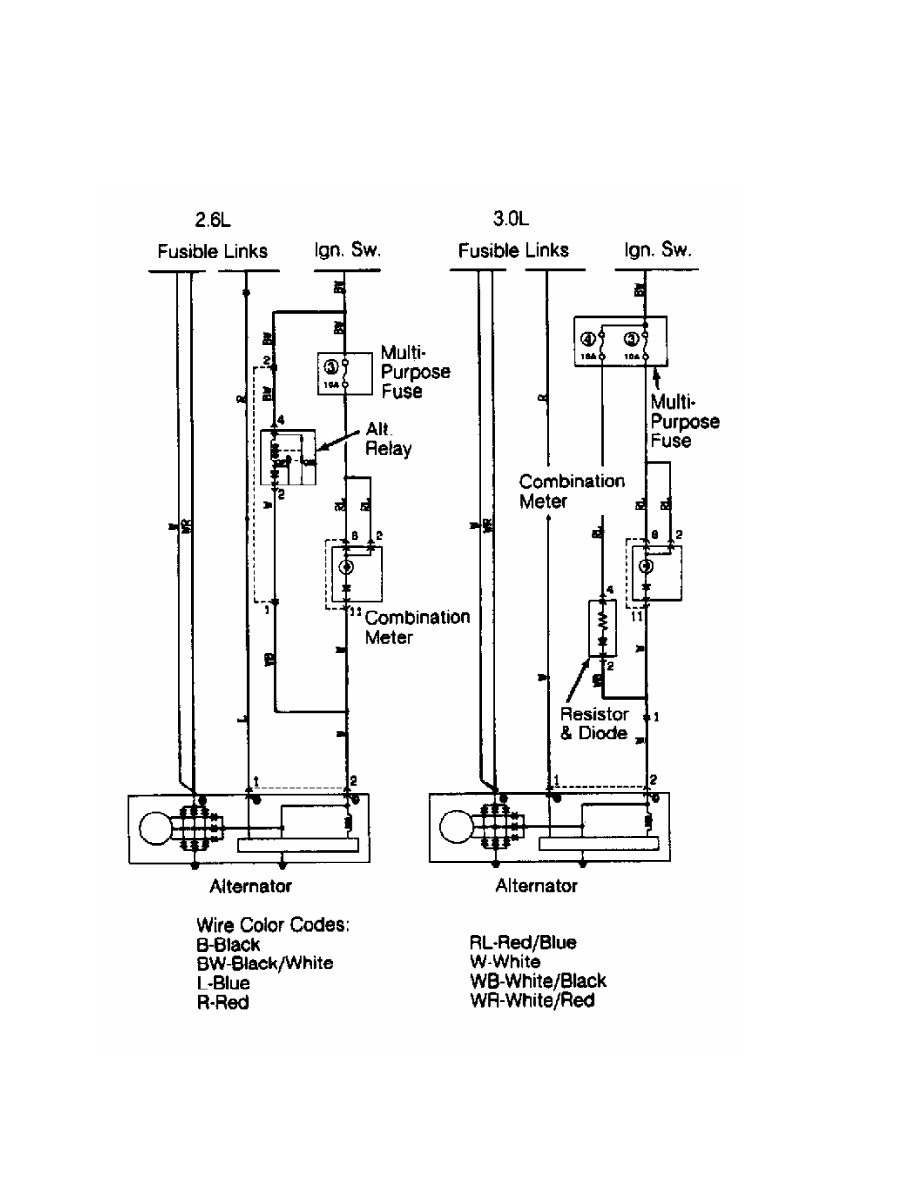

Fig. 6:  Charging System Wiring Schematic (Pickup & Ram-50)

Courtesy of Mitsubishi Motor Sales of America.
