Mitsubishi Galant (2004+). Manual - part 911





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-461

DTC P0201: Injector Circuit-Cylinder 1

CAUTION

If DTC P0201 has been set, TCL related DTC
U1120 is also set. After P0201 has been diag-
nosed, don't forget to erase DTC U1120.

2

1

1

2

3

4

AK303841

121 122 123 124 125 126 127

128 129 130 131 132 133

134 135 136 137 138 139 140

141 142 143 144 145 146

147 148 149 150 151 152 153

RED

YELLOW-BLUE

B-17X

MFI
RELAY

INJECTOR
NO. 1

B-01

4

1

2

3

POWERTRAIN CONTROL
MODULE (PCM)

153

B-23

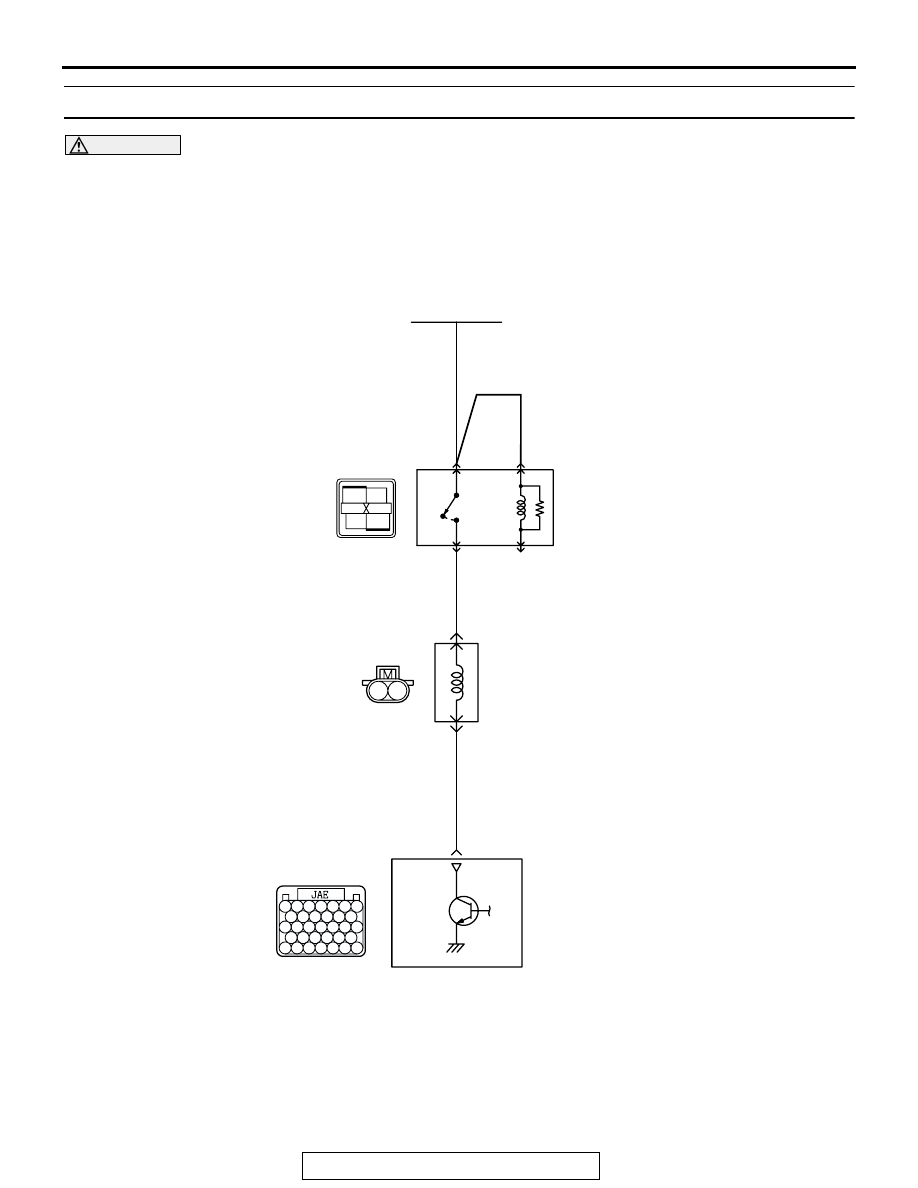

Injector Circuit-Cylinder 1

RED-

WHITE

RED-

WHITE

BATTERY

1

2

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-462

.

CIRCUIT OPERATION

• The injector power is supplied from the MFI relay

(terminal No. 4).

• The PCM controls the injector by turning the

power transistor in the PCM "ON" and "OFF".

.

TECHNICAL DESCRIPTION

• The amount of fuel injected by the injector is con-

trolled by the amount of continuity time the coil is
grounded by the PCM.

• A surge voltage is generated when the injectors

are driven and the current flowing to the injector
coil is shut off.

• The PCM checks this surge voltage.

.

DESCRIPTIONS OF MONITOR METHODS
Off-surge does not occur after injector is operated.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AK303842

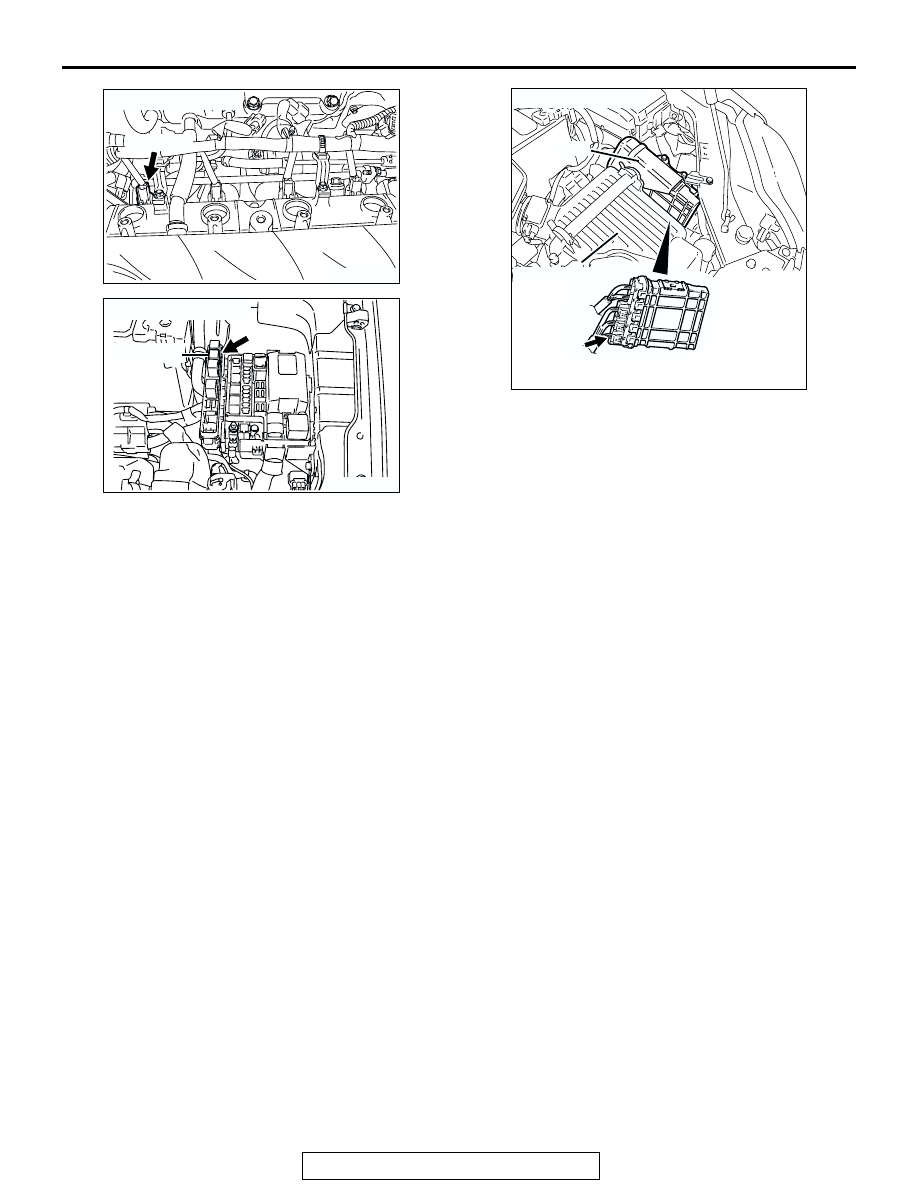

B-01 (GR)

AB

CONNECTOR: B-01

AK303803AB

CONNECTOR: B-17X

MFI RELAY

B-17X

AK303059

CONNECTOR: B-23

PCM

AB

AIR CLEANER

B-23

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-463

DTC SET CONDITIONS

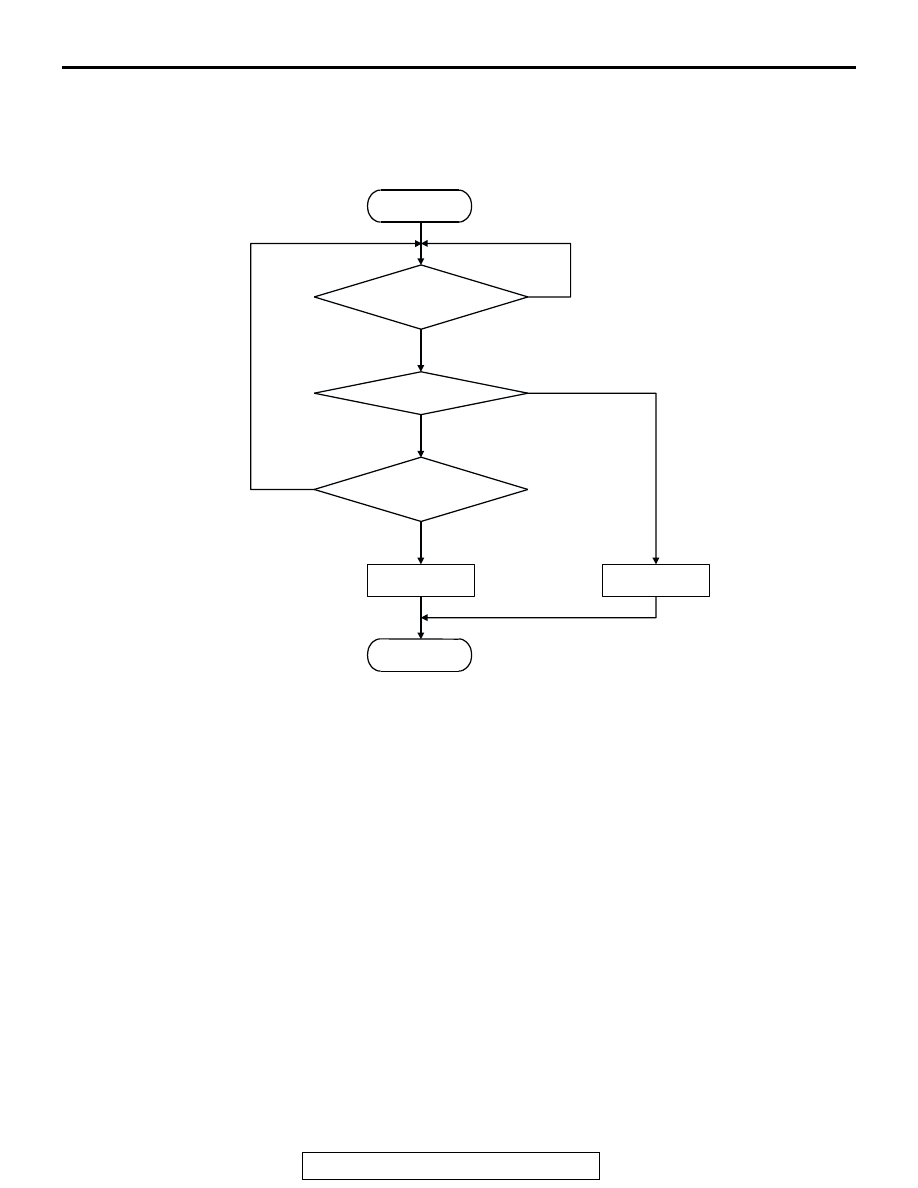

Logic Flow Chart

Check Conditions

• Engine is running.

Judgment Criteria

• Injector coil surge voltage (battery positive volt-

age + 2 volts) has not been detected for 2 sec-
onds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

 Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• No.1 cylinder injector failed.

• Open or shorted No.1 cylinder injector circuit,

harness damage or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991658: Test Harness

• MB991923: Power Plant ECU Check Harness

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

MONITORING

CONDITIONS

CONTINUOUS

FAILURE FOR 2secs

INJ. SURGE V

< V

B

 + 2.0 V

AK302031

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-464

STEP 1. Using scan tool MB991958, check actuator test
item 01: No. 1 Injector.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

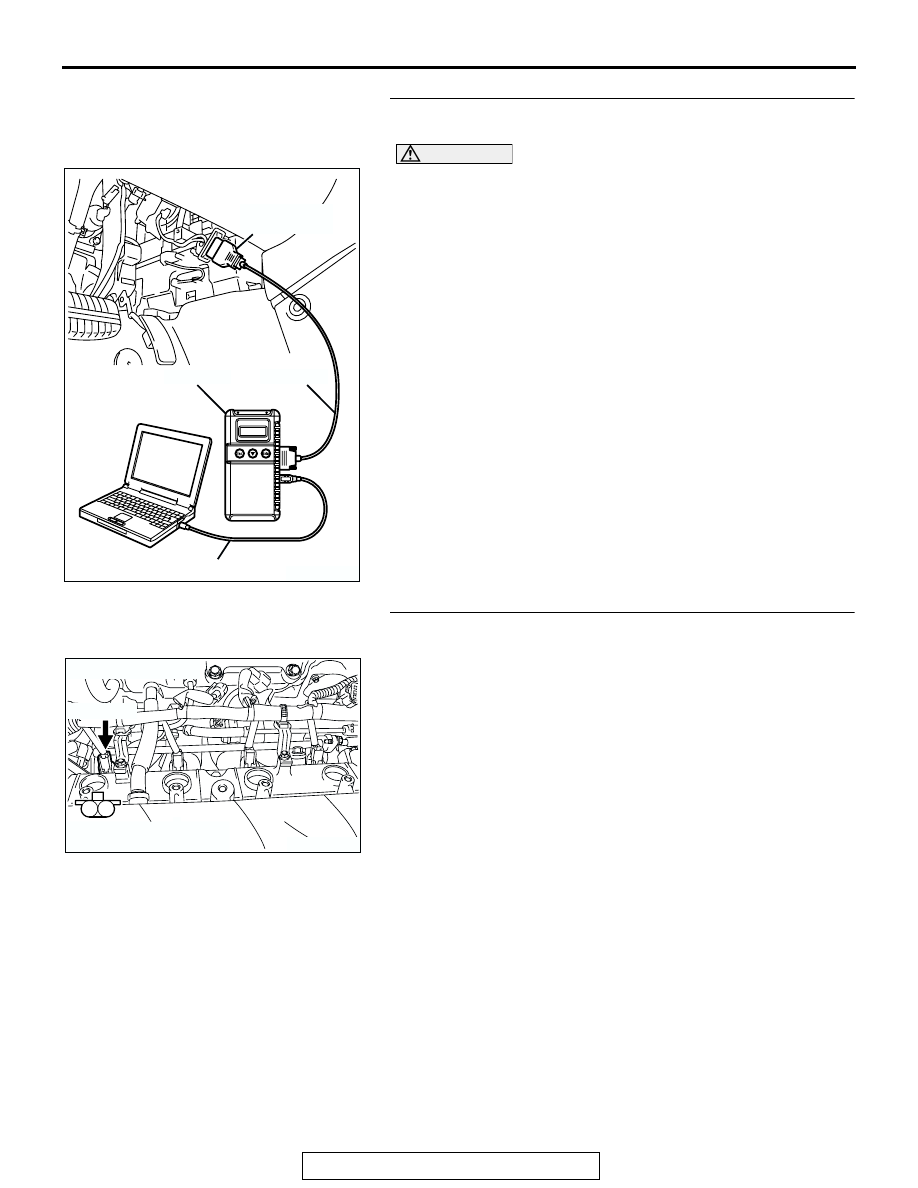

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.

(3) Set scan tool MB991958 to the actuator testing mode for

item 01 No. 1 injector.

(4) Warm up the engine to normal operating temperature: 80

°C

to 95

°C (176°F to 203°F).

• The idle should become slightly rougher.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check harness connector B-01 at No. 1 cylinder
injector for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

M

1

2

AK303843

B-01 (GR)

CONNECTOR: B-01

AB

HARNESS CONNECTOR:
COMPONENT SIDE
