Mitsubishi Galant (2004+). Manual - part 912





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-465

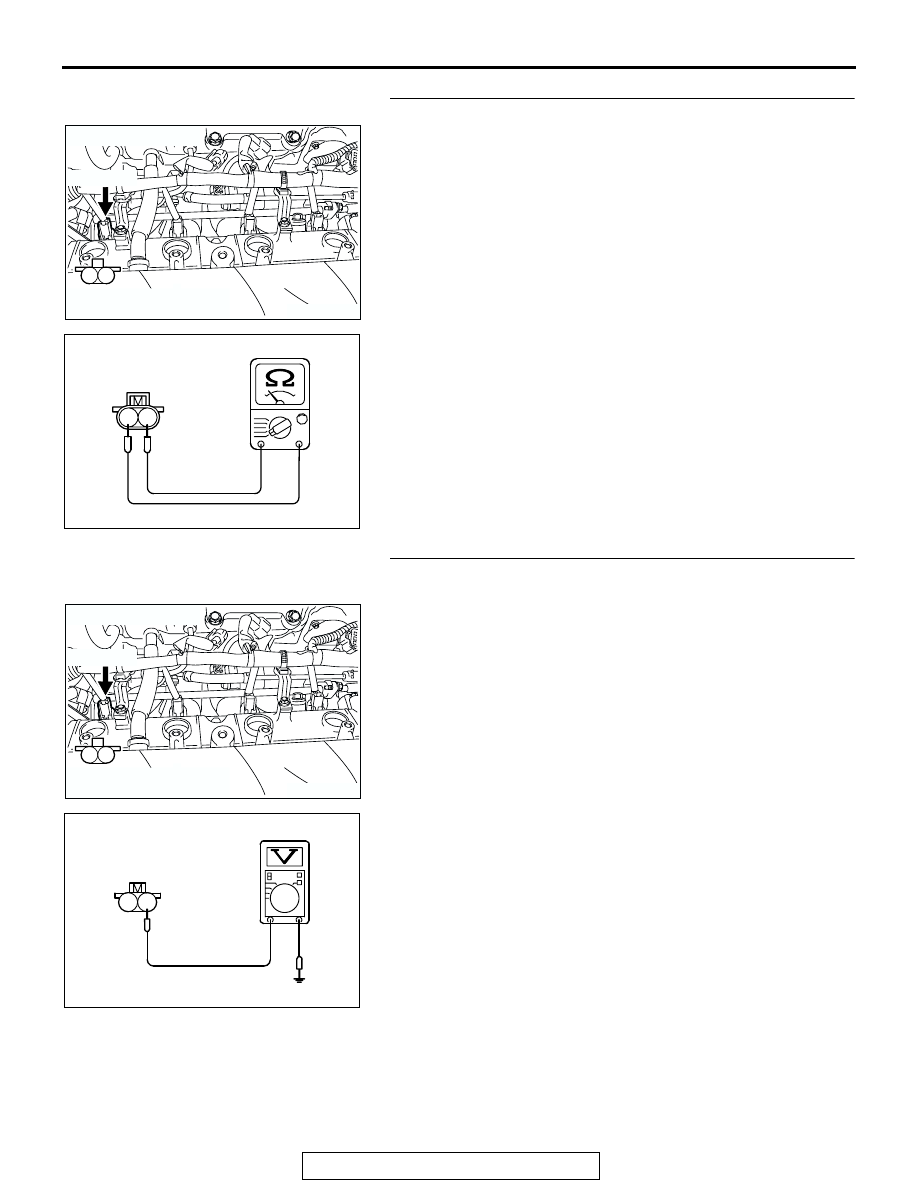

STEP 3. Check the No. 1 cylinder injector.

(1) Disconnect the No. 1 cylinder injector connector B-01.

(2) Measure the resistance between injector side connector

terminal No. 1 and No. 2.

Standard value: 10.5

 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 4.
NO :  Replace the No. 1 cylinder injector. Then go to Step

10.

STEP 4. Measure the power supply voltage at No. 1
cylinder injector connector.

(1) Disconnect connector B-01 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 6.
NO :  Go to Step 5.

M

1

2

AK303843

B-01 (GR)

CONNECTOR: B-01

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

M

1

2

AK303843

B-01 (GR)

CONNECTOR: B-01

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK000560

1

2

B-01 HARNESS
CONNECTOR:
COMPONENT SIDE

AN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-466

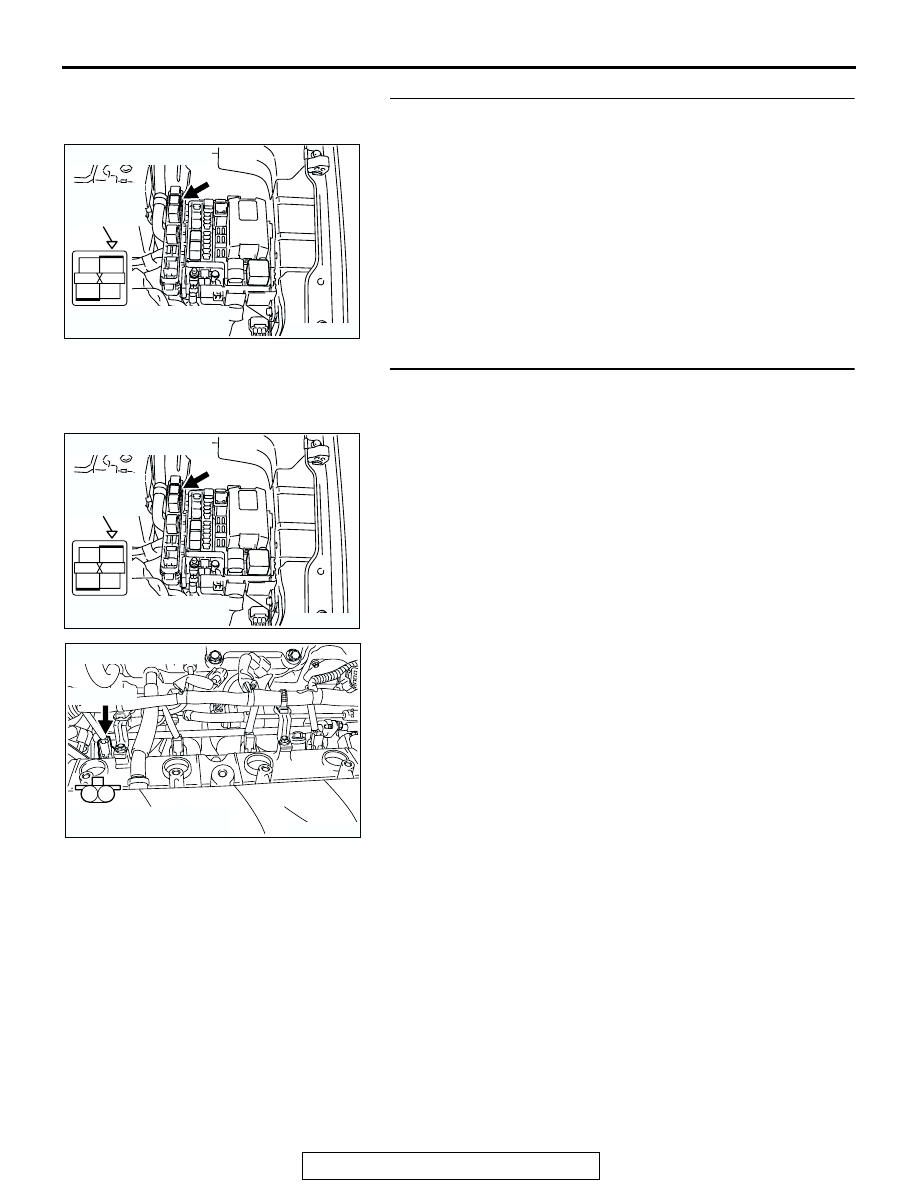

STEP 5. Check harness connector B-17X at MFI relay for
damage.

Q: Is the harness connector in good condition?

YES : Repair harness wire between MFI relay connector

B-17X (terminal No. 4) and No. 1 cylinder injector
connector B-01 (terminal No. 1). Then go to Step
10.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

STEP 6. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and No. 1 cylinder
injector connector B-01 (terminal No. 1).

Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair it. Then go to Step 10.

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

M

1

2

AK303843

B-01 (GR)

CONNECTOR: B-01

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-467

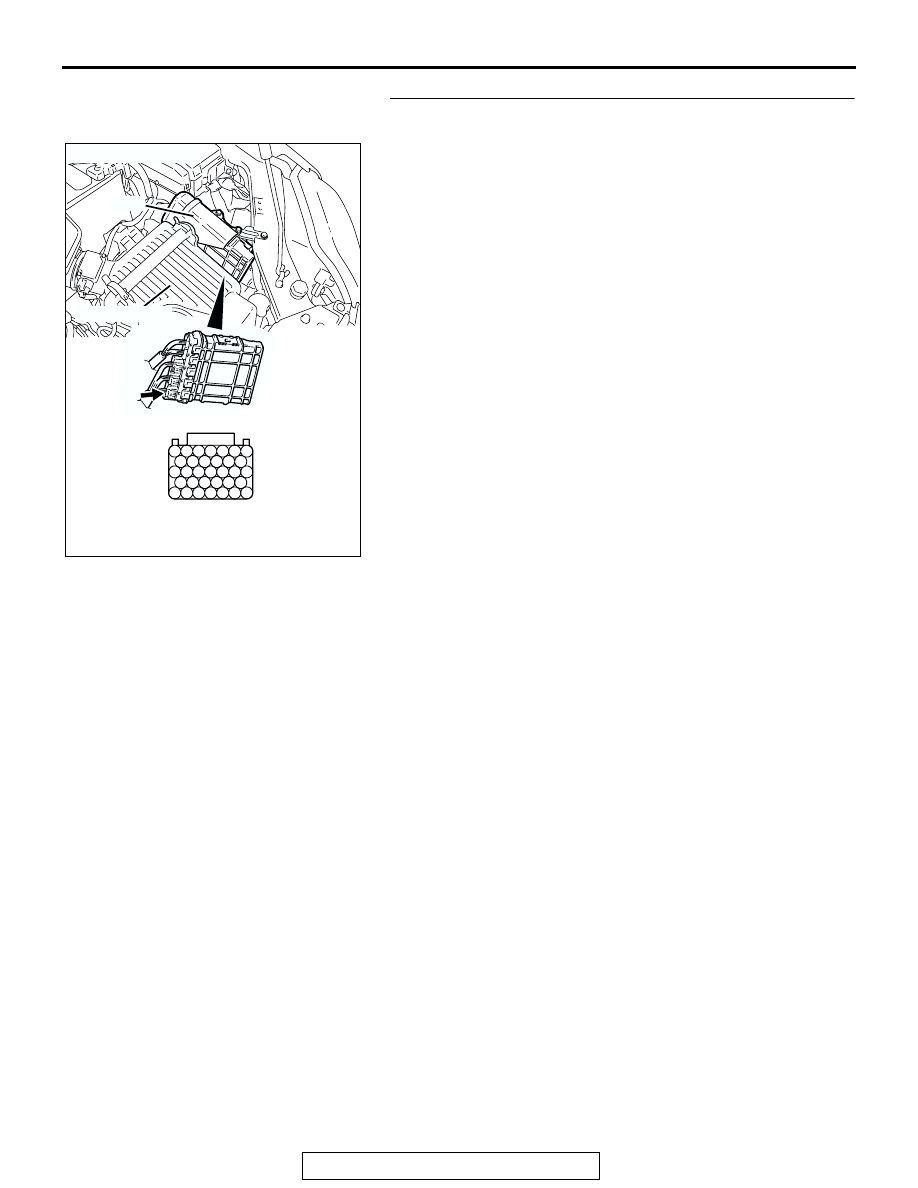

STEP 7. Check harness connector B-23 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-468

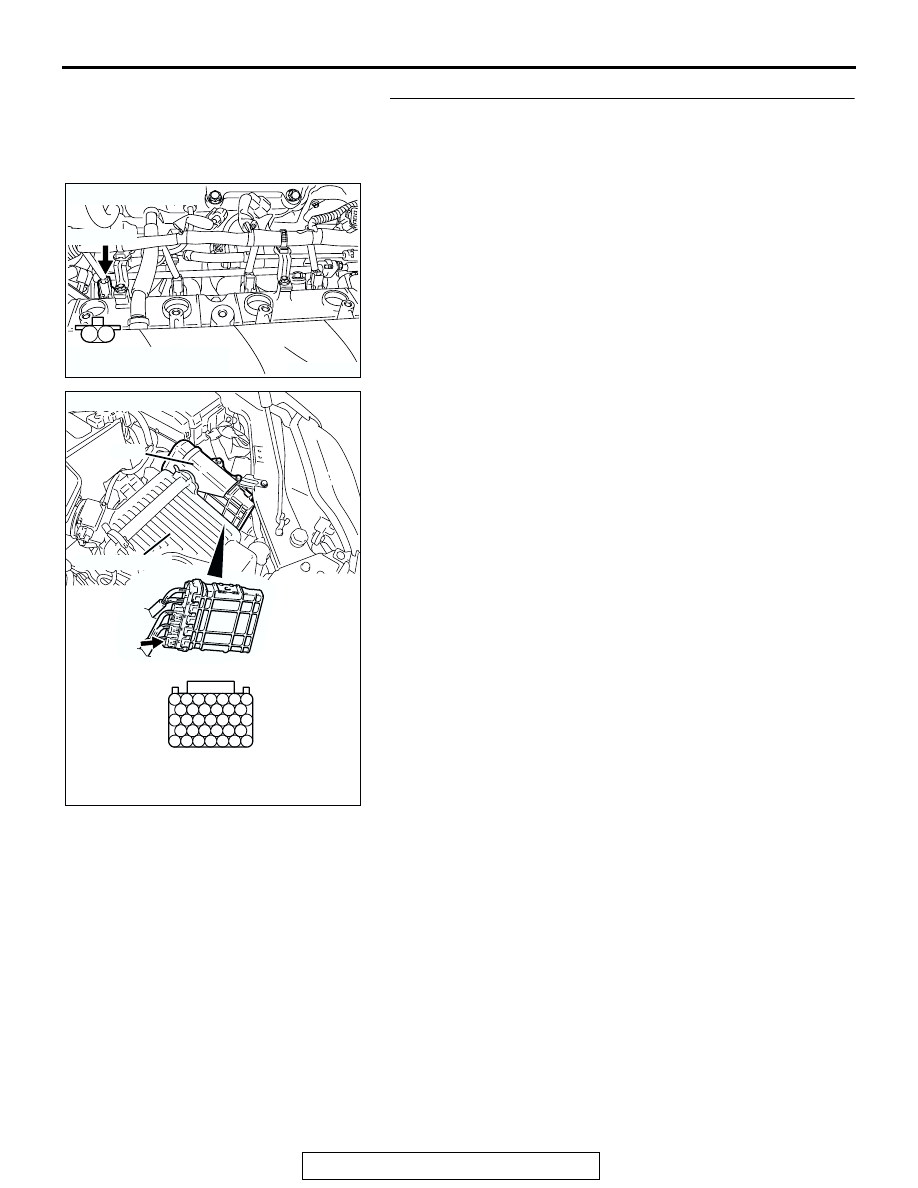

STEP 8. Check for open circuit and short circuit to ground
and harness damage between No. 1 cylinder injector
connector B-01 (terminal No. 2) and PCM connector B-23
(terminal No. 153).

Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 10.

M

1

2

AK303843

B-01 (GR)

CONNECTOR: B-01

AB

HARNESS CONNECTOR:
COMPONENT SIDE

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER
