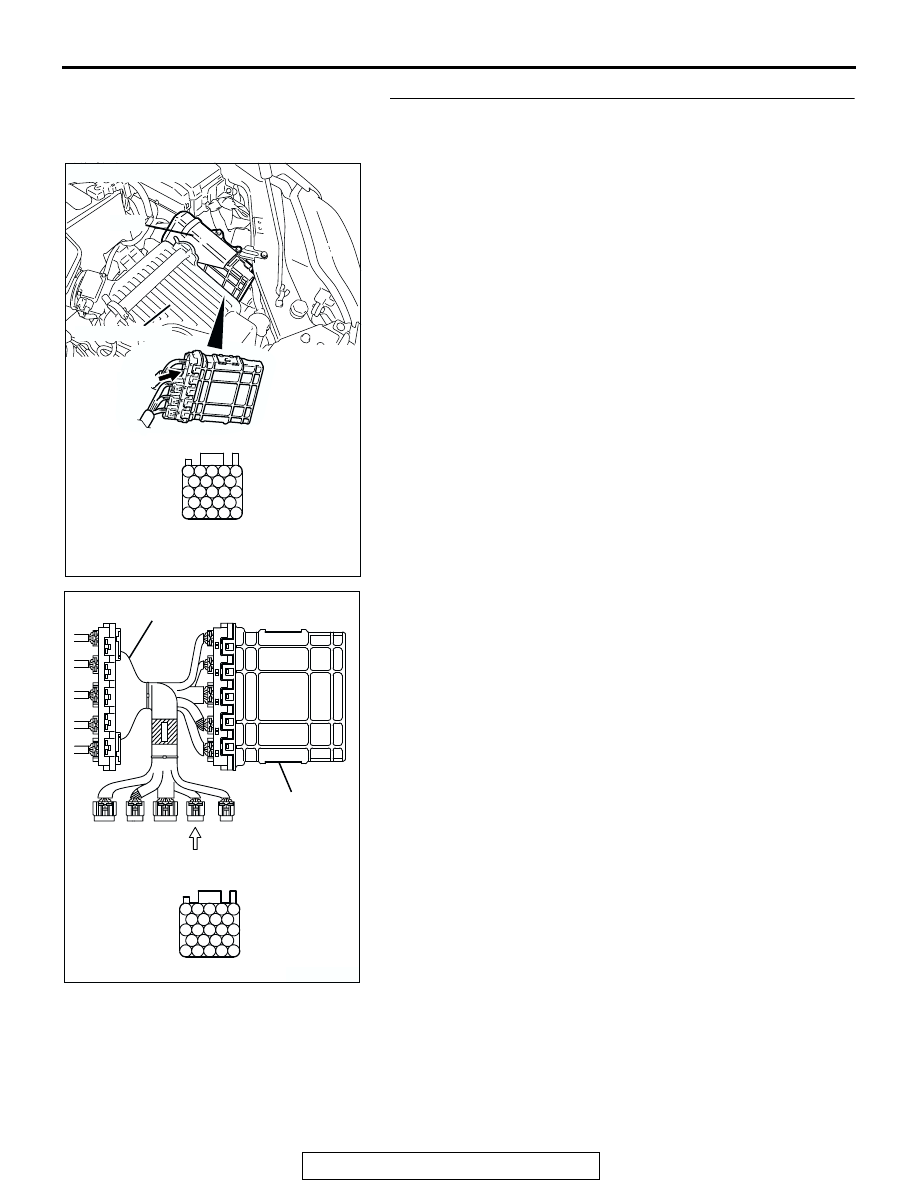

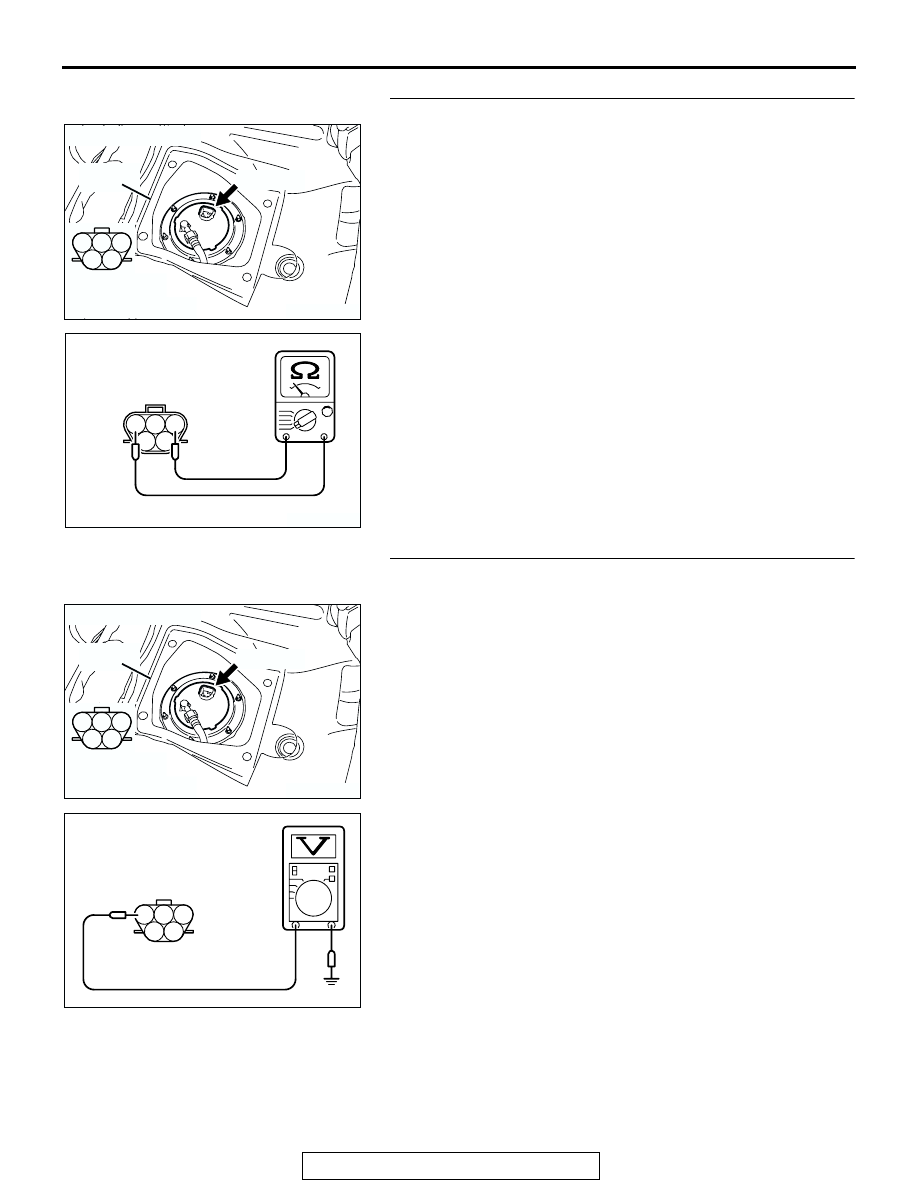

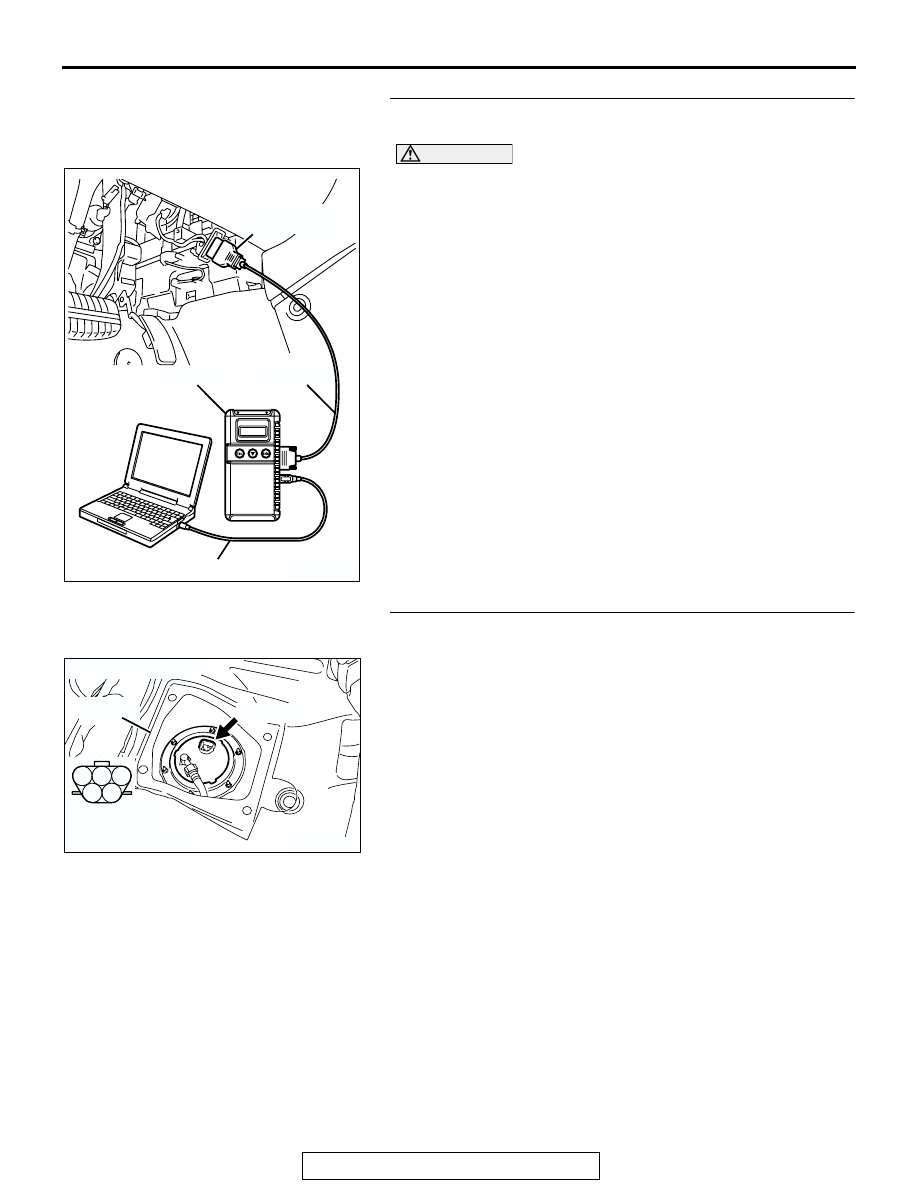

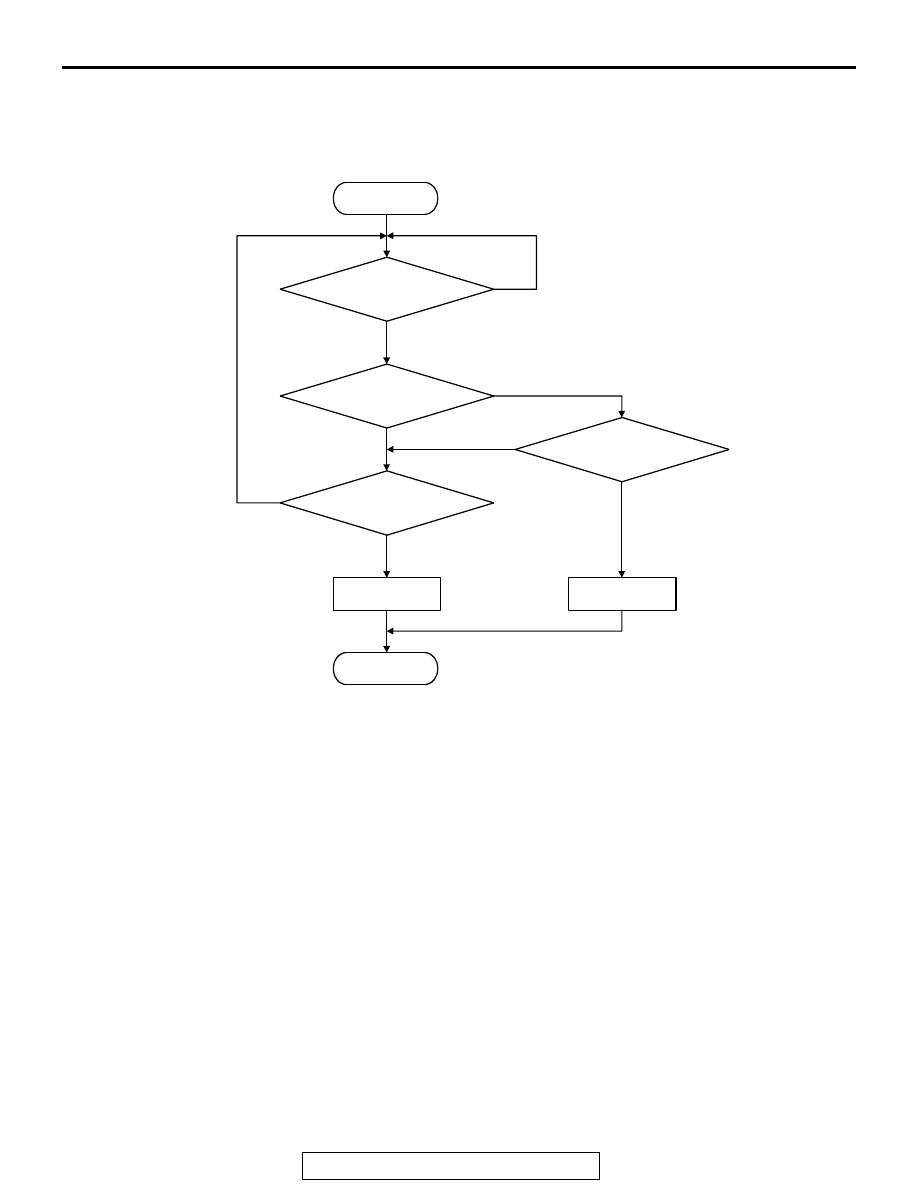

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-453 DTC SET CONDITIONS Logic Flow Chart . Check Conditions • 2 seconds or more have passed since the engine starting sequence was completed. Judgement Criteria • Sensor output voltage has continued to be 4.6 volts or higher for 2 seconds. . OBD-II DRIVE CYCLE PATTERN − OBD-II Drive Cycle − Procedure 6 . . TROUBLESHOOTING HINTS (The most likely • Fuel tank temperature sensor failed. • Open fuel tank temperature sensor circuit, har- ness damage, or connector damage. • PCM failed. DIAGNOSIS Required Special Tools: • MB991958: Scan Tool (MUT-III Sub Assembly) • MB991824: V.C.I. • MB991827: USB Cable • MB991910: Main Harness A • MB991923: Power Plant ECU Check Harness START MONITORING CONDITIONS END NO NO NO YES YES YES MALFUNCTION GOOD OUTPUT VOLTAGE < 0.1V CONTINUOUS FAILURE FOR 2secs OUTPUT VOLTAGE > 4.6V NO YES AK302030 |
