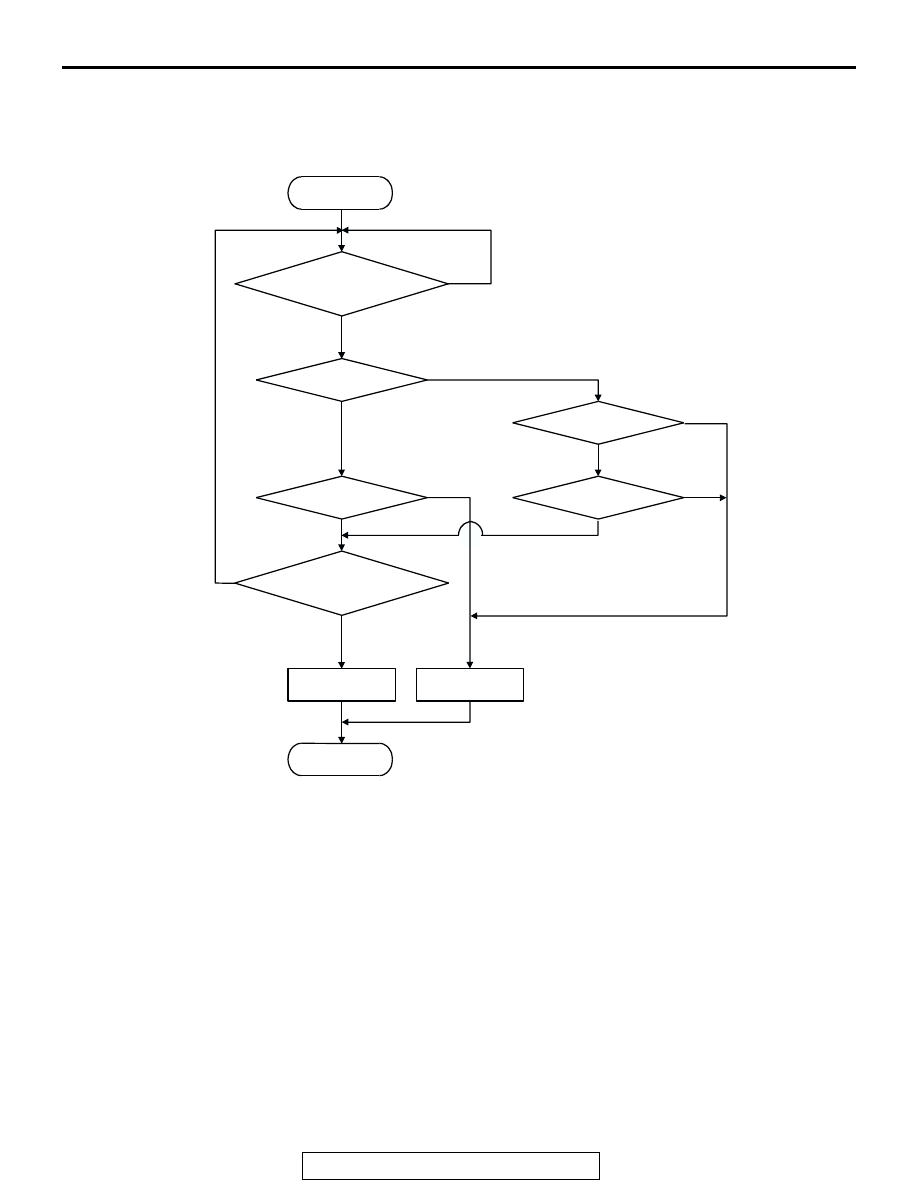

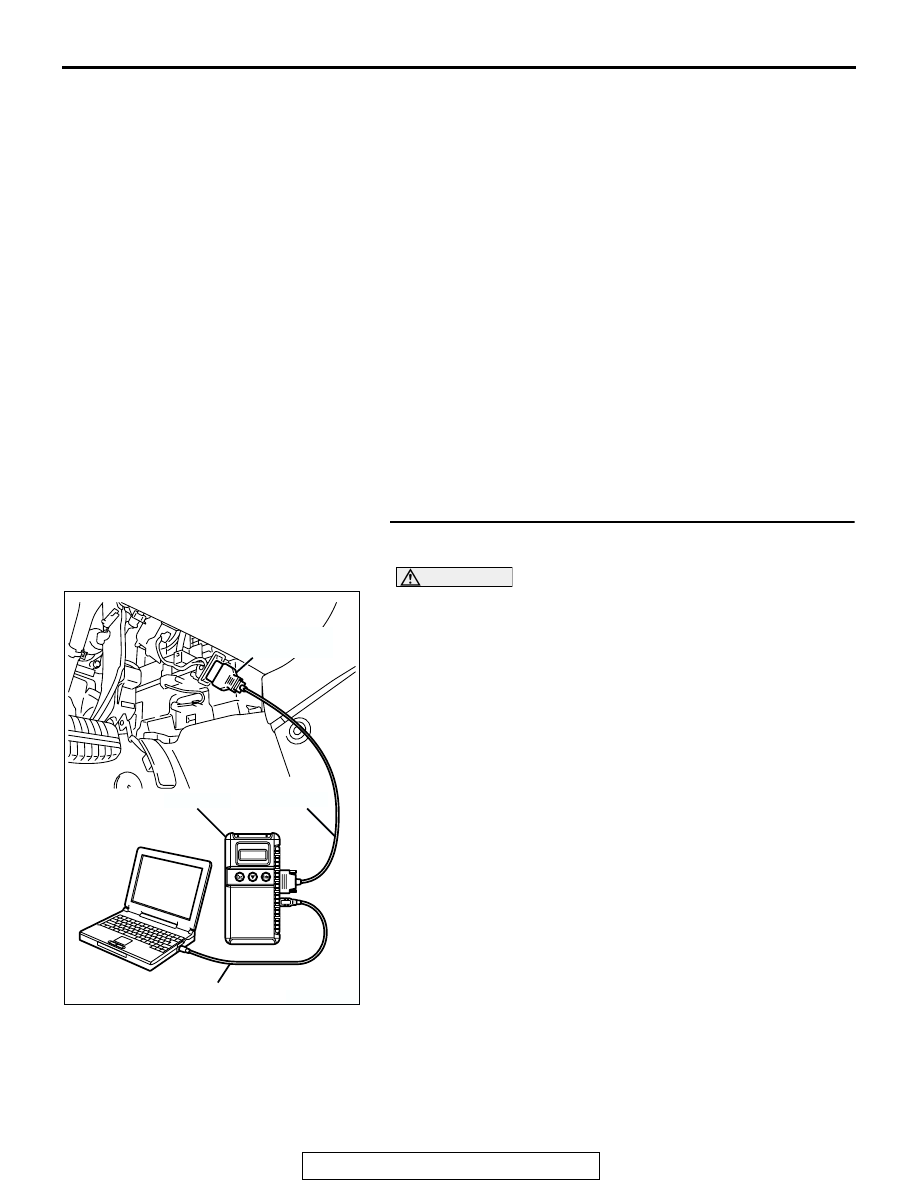

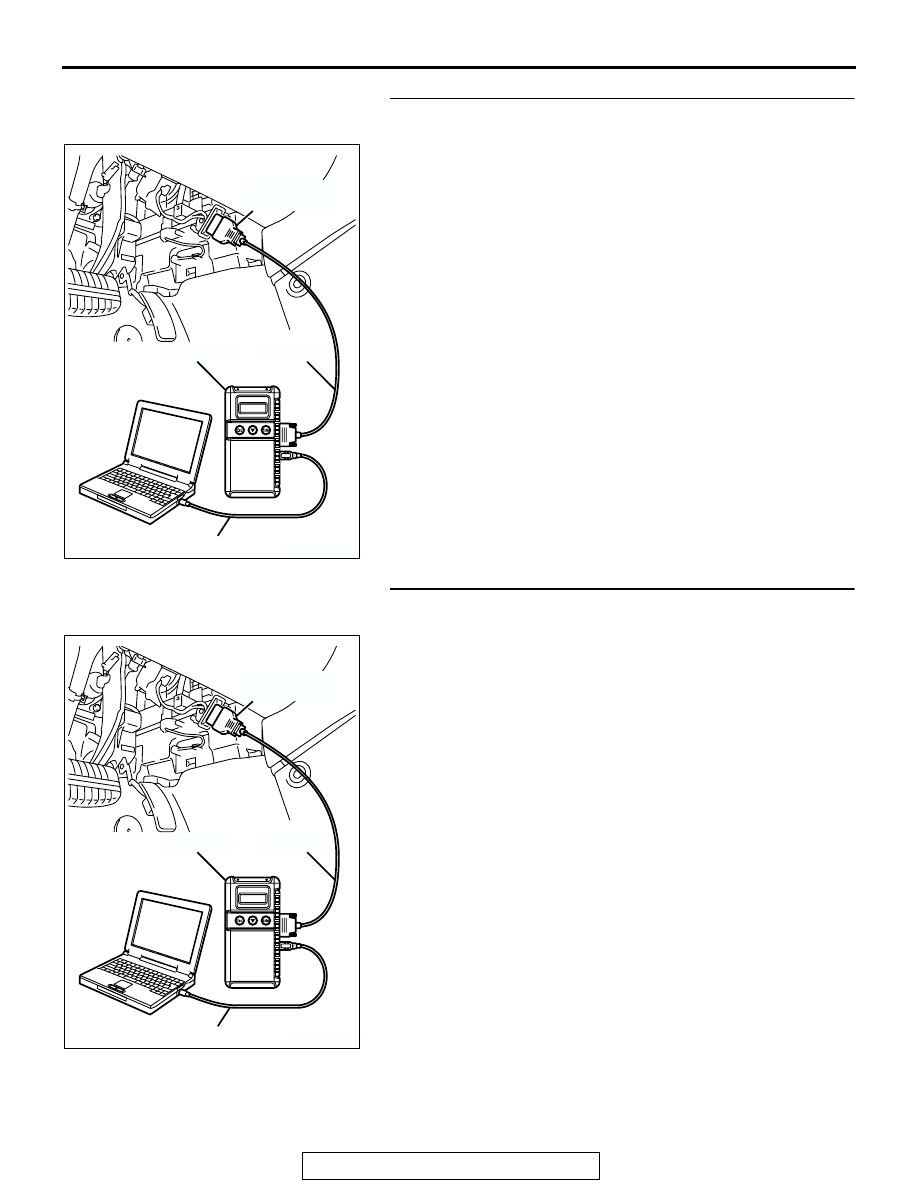

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-413 DTC SET CONDITIONS Logic Flow Chart . Check Conditions • Under the closed loop air/fuel ratio control. • Engine coolant temperature is higher than 77°C (171 °F). • Mass airflow sensor output is 6 g/sec or more. Judgment Criteria • Long-term fuel trim has continued to be lower than −12.5 percent for 5 seconds. or • Short-term fuel trim has continued to be lower than −10.0 percent for 5 seconds. Check Conditions • Under the closed loop air/fuel ratio control. • Engine coolant temperature is higher than 77°C (171 °F). • Mass airflow sensor output is 6 g/sec or less. Judgment Criteria • Long-term fuel trim has continued to be lower than −12.5 percent for 5 seconds. or • Short-term fuel trim has continued to be lower than −15.0 percent for 5 seconds. K LRN : LONG-TERM TRIM K I : SHORT-TERM TRIM K0 : MAXIMUM LIMIT OF LONG-TERM TRIM START MONITORING CONDITIONS END NO NO NO NO NO NO YES YES YES YES YES YES K LRN > K0 MALFUNCTION GOOD K LRN < K2 K I < K3 K I > K1 CONTINUOUS FAILURE FOR 5secs AK204050 |
