MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-305

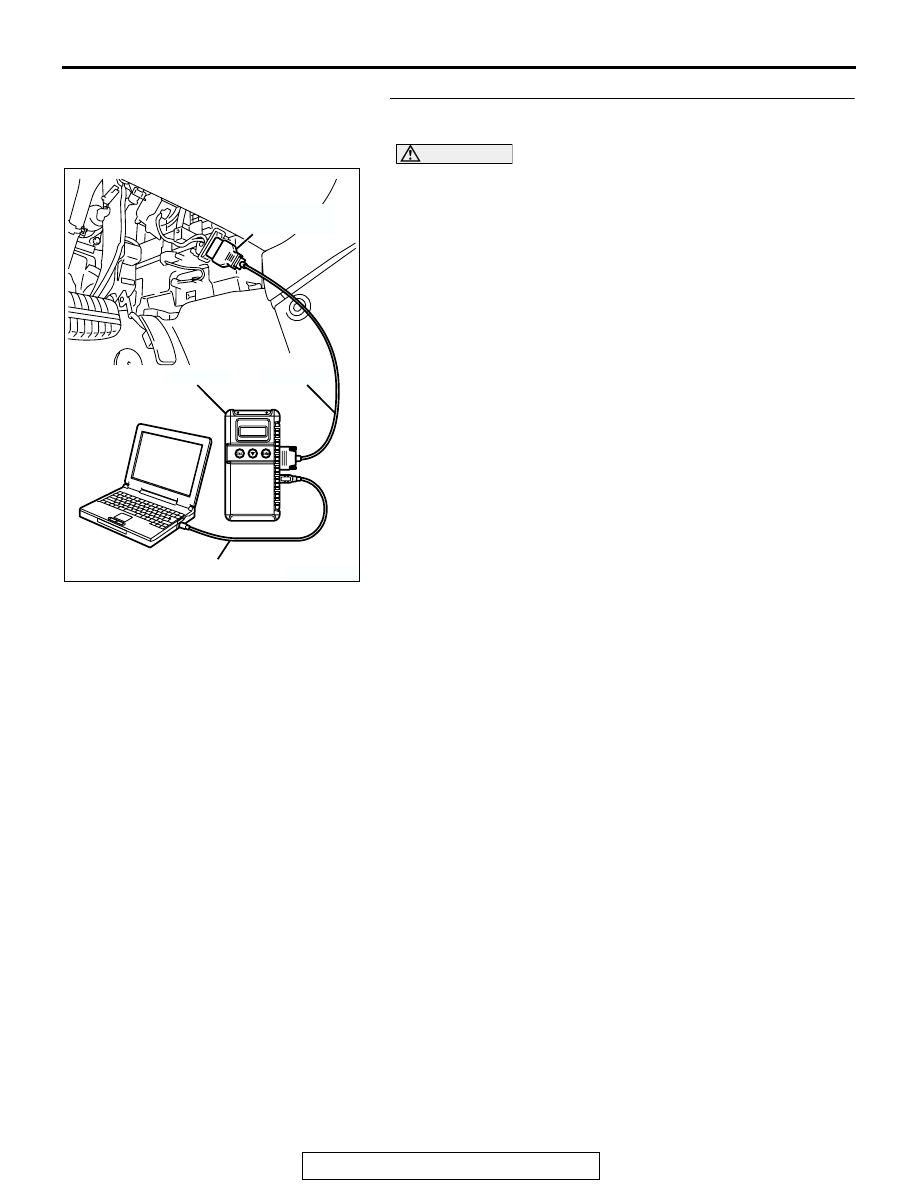

STEP 5. Using scan tool MB991958, check data list item 11:
Cylinder 2, 3 Heated Oxygen Sensor (front).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

11, Cylinder 2, 3 Heated Oxygen Sensor (front).

• Warming up the engine. When the engine is revved, the

output voltage should be 0.6 to 1.0 volt.

• Warming up the engine. When the engine is idling, the

output voltage should repeat 0.4 volt and 0.6 to 1.0 volt
alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the PCM. Then go to Step 15.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-306

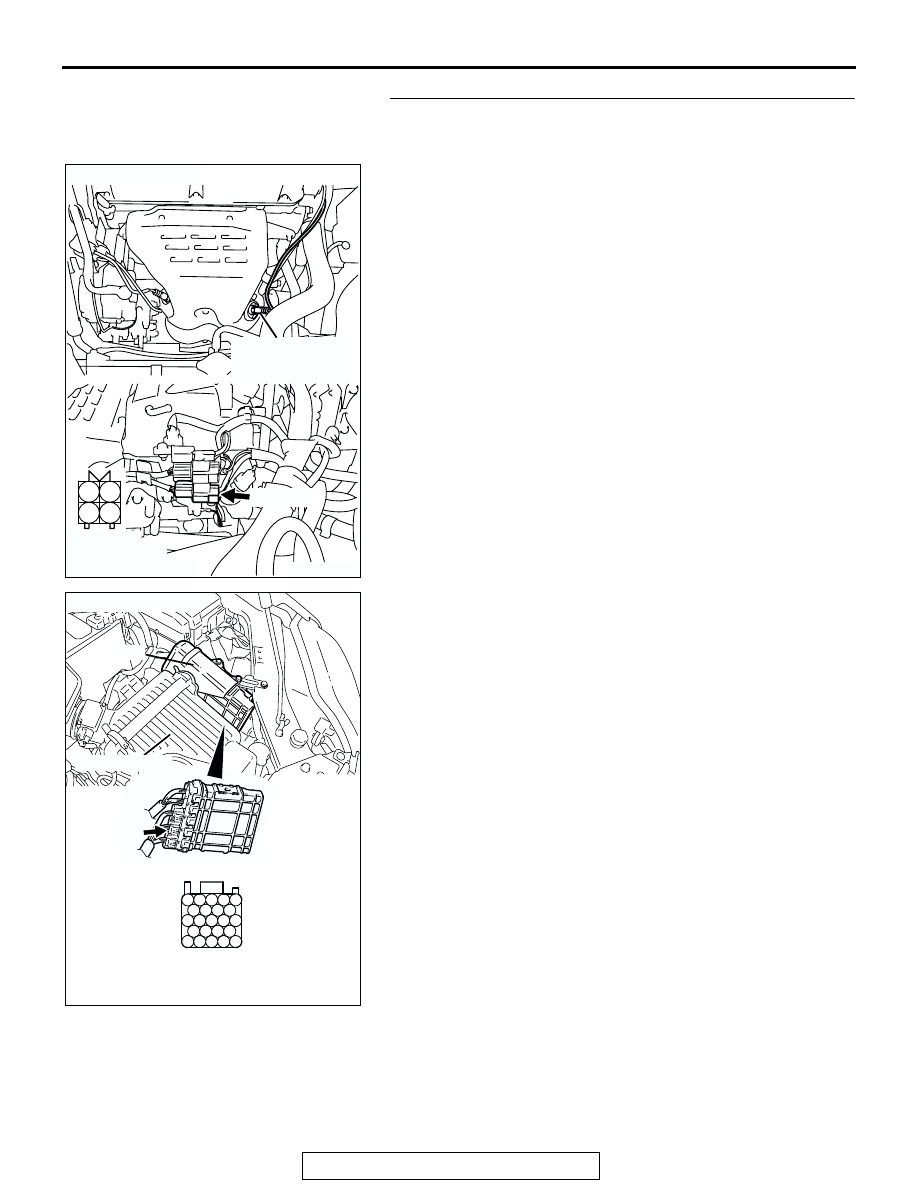

STEP 6. Check harness connector B-36 at cylinder 2, 3
heated oxygen sensor (front) and harness connector B-22
at PCM for damage.

Q: Is the harness connector in good condition?

YES : Repair harness wire between cylinder 2, 3 heated

oxygen sensor (front) connector B-36 (terminal No. 4)
and PCM connector B-22 (terminal No. 91) because
of open circuit or harness damage. Then go to Step
15.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK303830

1

2

3

4

AB

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-307

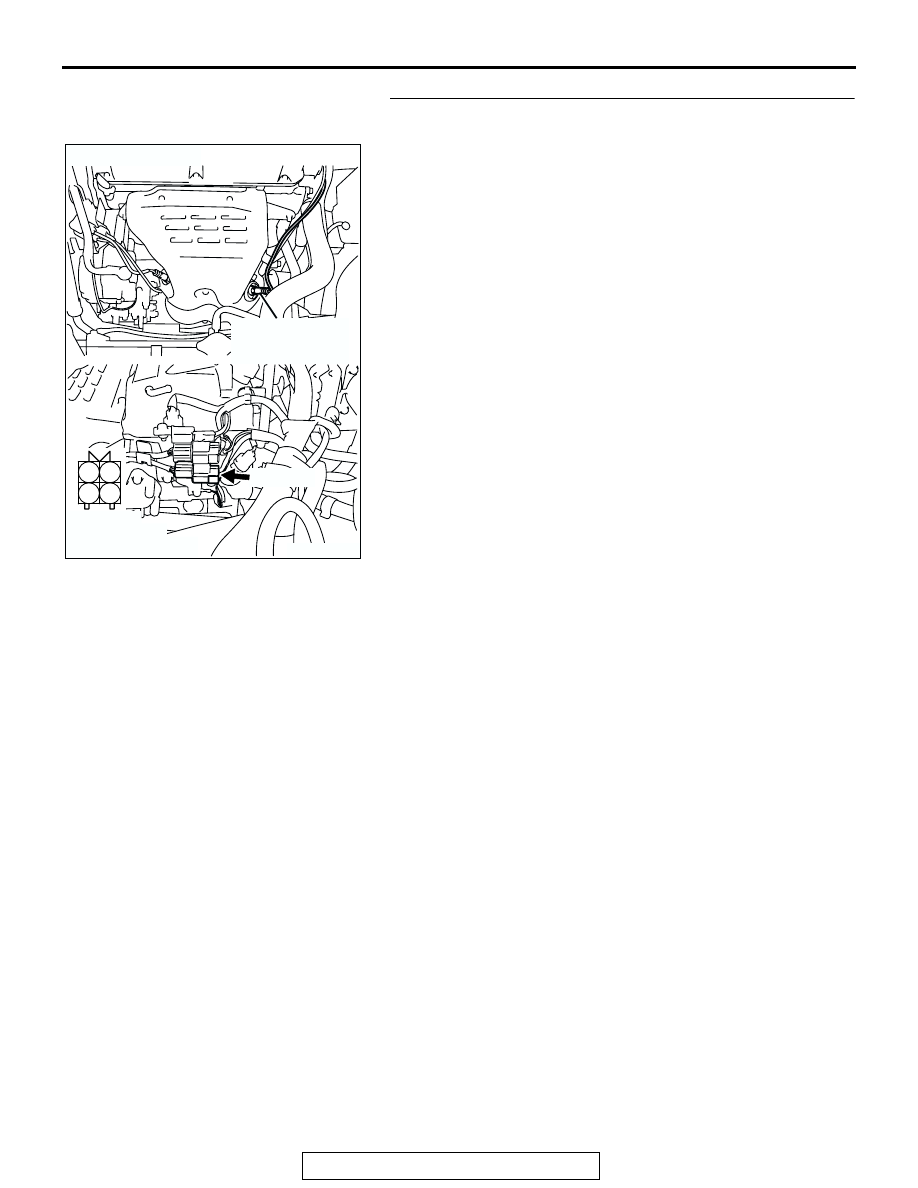

STEP 7. Check harness connector B-36 at cylinder 2, 3
heated oxygen sensor (front) for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK303830

1

2

3

4

AB

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-308

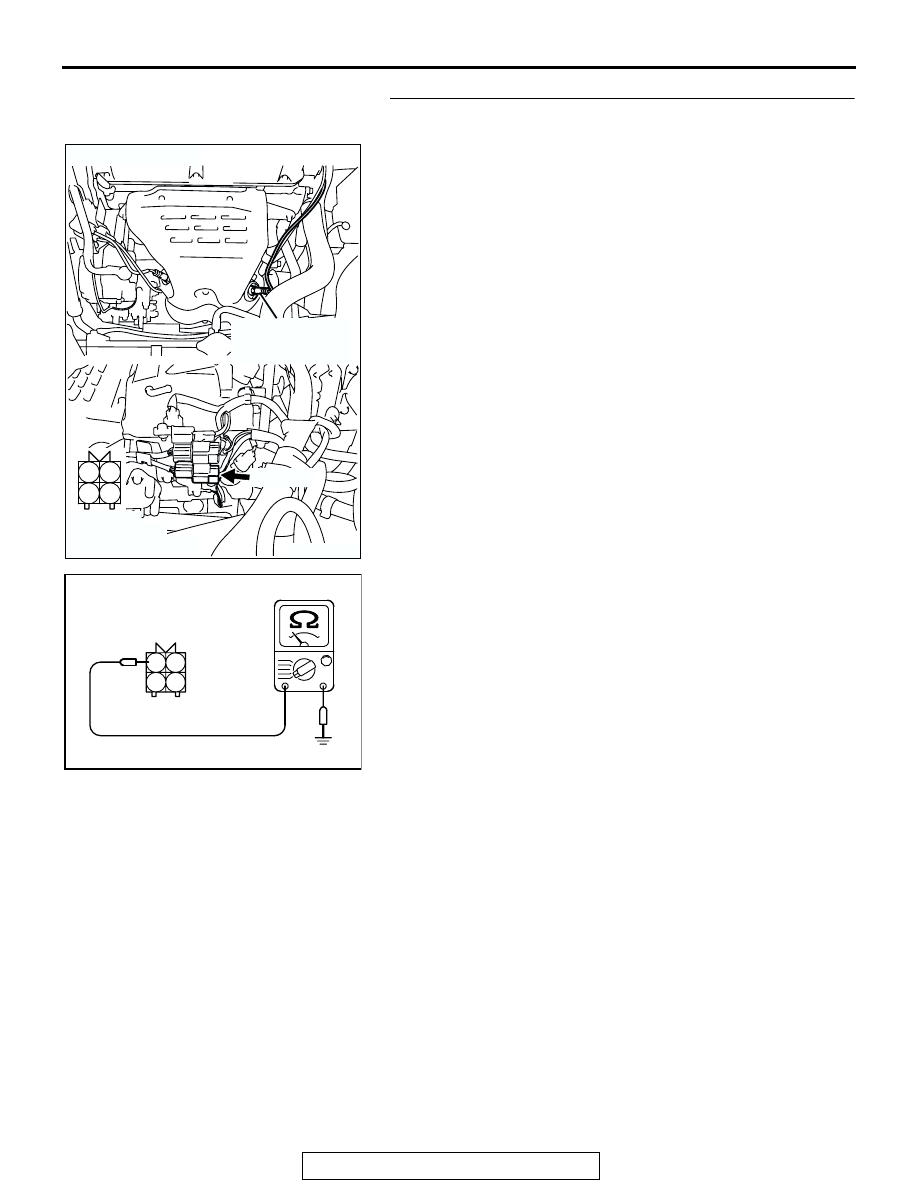

STEP 8. Check the continuity at cylinder 2, 3 heated
oxygen sensor (front) harness side connector B-36.

(1) Disconnect the connector B-36 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 11.
NO :  Go to Step 9.

AK303830

1

2

3

4

AB

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01497AP

B-36 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

4
