AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-17

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 12: When Sunlight Intensity Changes, Air Outlet Temperature Does Not
Change.

.

CIRCUIT OPERATION
When the blower air temperature cannot be changed
even if the preset temperature is changed, the sen-
sors may be defective.

.

TROUBLESHOOTING HINTS

• Improper amount of refrigerant

• Malfunction of the A/C pressure sensor

• Malfunction of the photo sensor

• Malfunction of the A/C-ECU

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

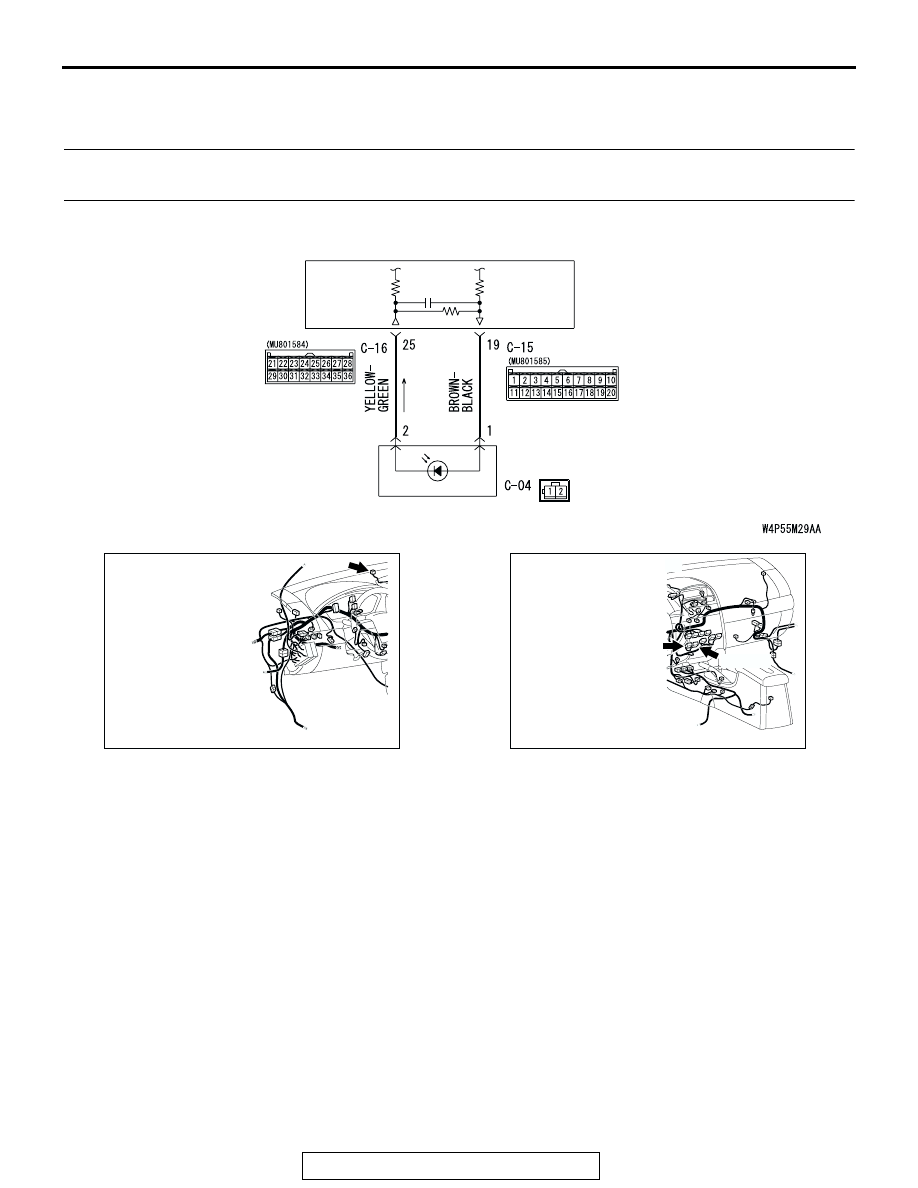

A/C-ECU

SENSOR

Photo Sensor Motor Circuit

AC305231

C-04

CP

CONNECTORS: C-04

AC305233

C-16 (B)

C-15 (B)

CONNECTORS: C-15, C-16

BE

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-18

STEP 1. Check the defogger and outside/inside air
selection damper control motor operation.
Q: Do the defogger and outside/inside air selection damper

control motor work normally?
YES : Go to Step 2.
NO :  Refer to GROUP 55A, Manual A/C Diagnosis,

P.55A-181

.

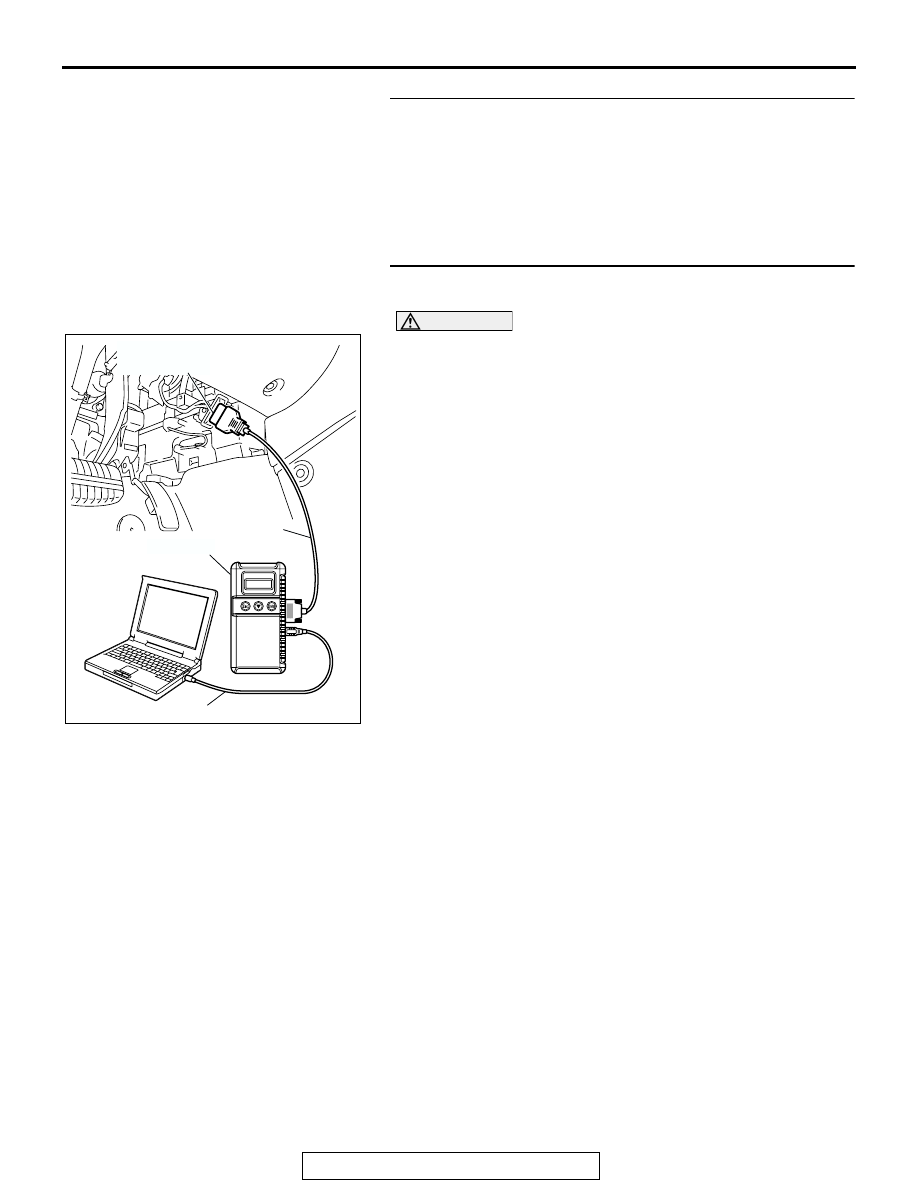

STEP 2. Using scan tool MB991958, read diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
Check if an A/C-ECU DTC is set.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to

P.55B-8

.

NO :  Go to Step 3.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-19

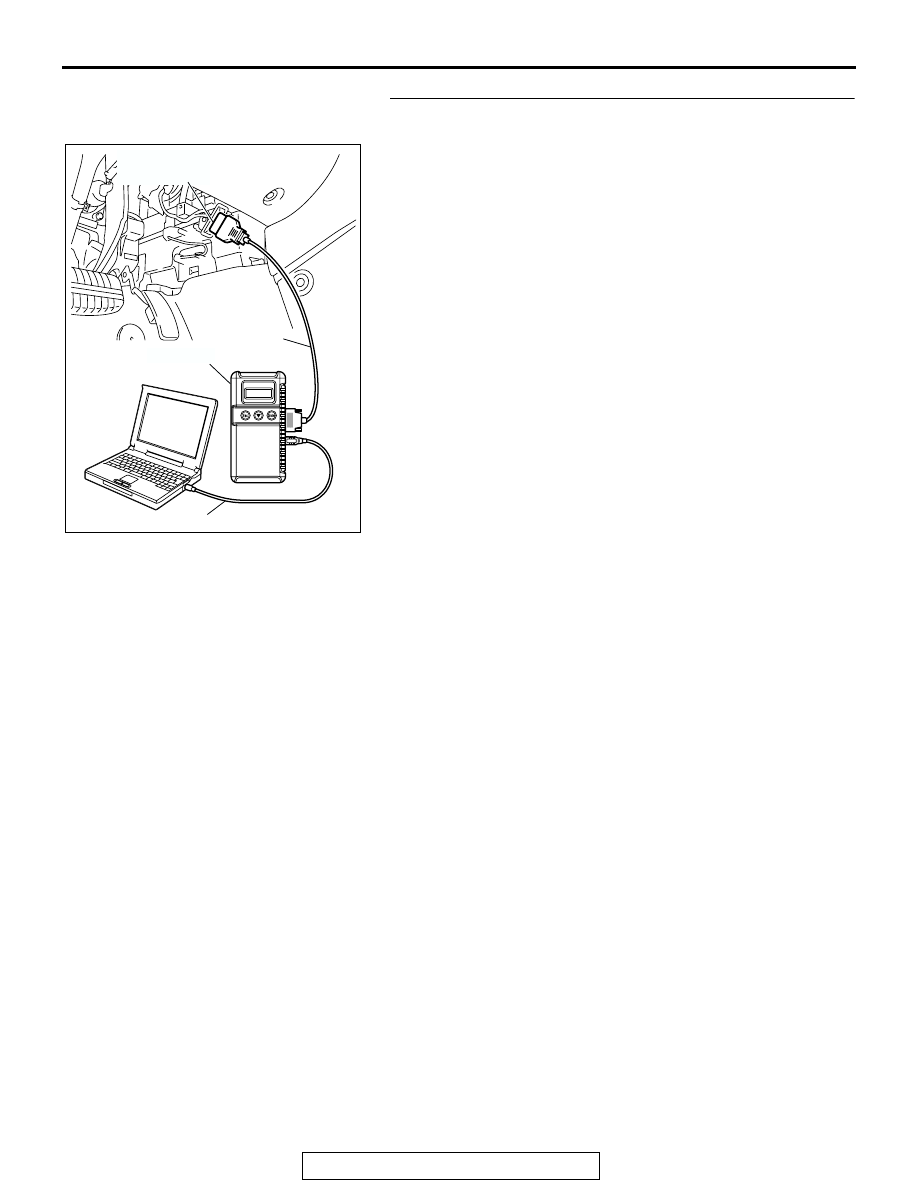

STEP 3. Using scan tool MB991958, check data list item 06:
Photo sensor.

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to the data reading mode for item

06: Photo sensor.

• Check that the display on the scan tool changes when

the photo sensor is covered with hands.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES : Go to Step 7.
NO :  Go to Step 4.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-20

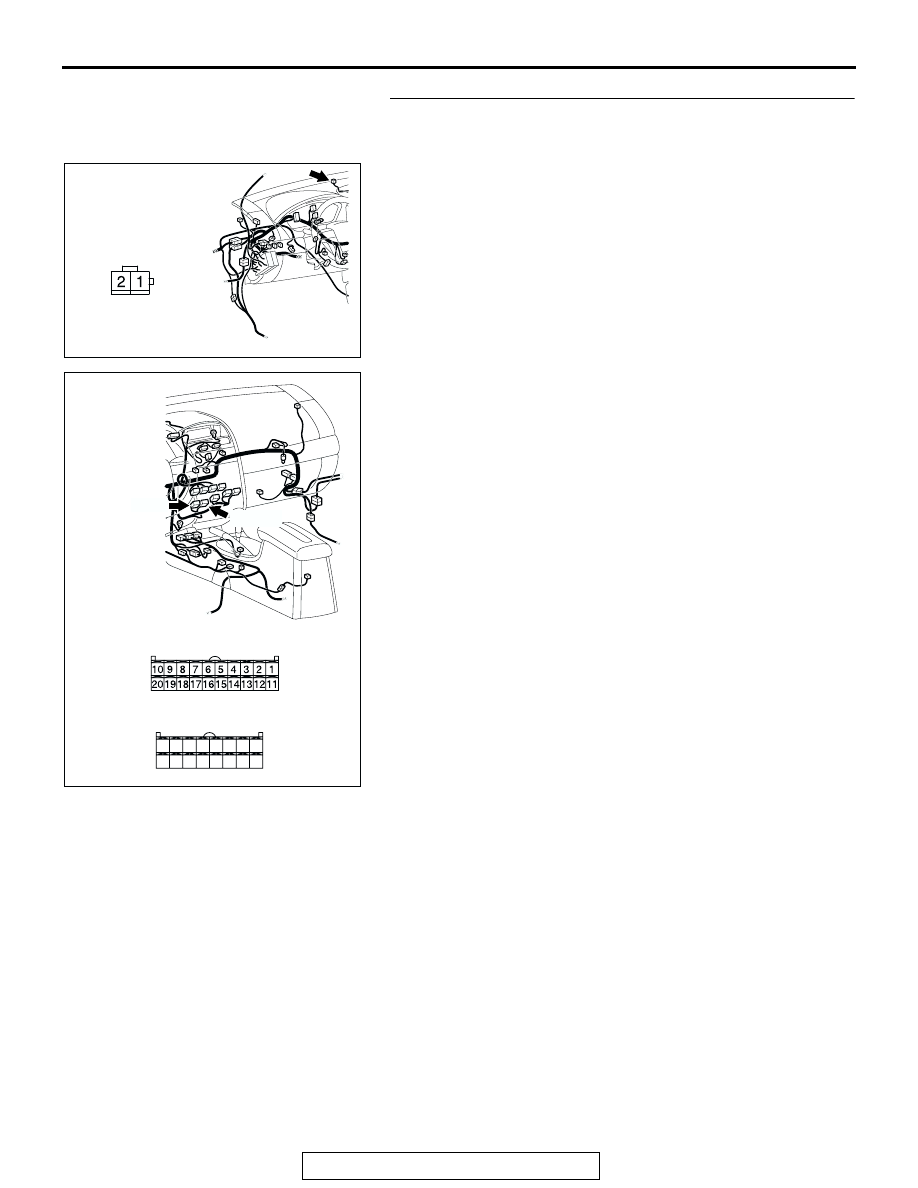

STEP 4. Check A/C-ECU connectors C-15, C-16 and photo
sensor connector C-04 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q:  Are A/C-ECU connectors C-15, C-16 and photo sensor

connector C-04 in good condition?
YES : Go to Step 5.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305231

CONNECTOR: C-04

CM

HARNESS SIDE

AC305234

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

AG
