AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-13

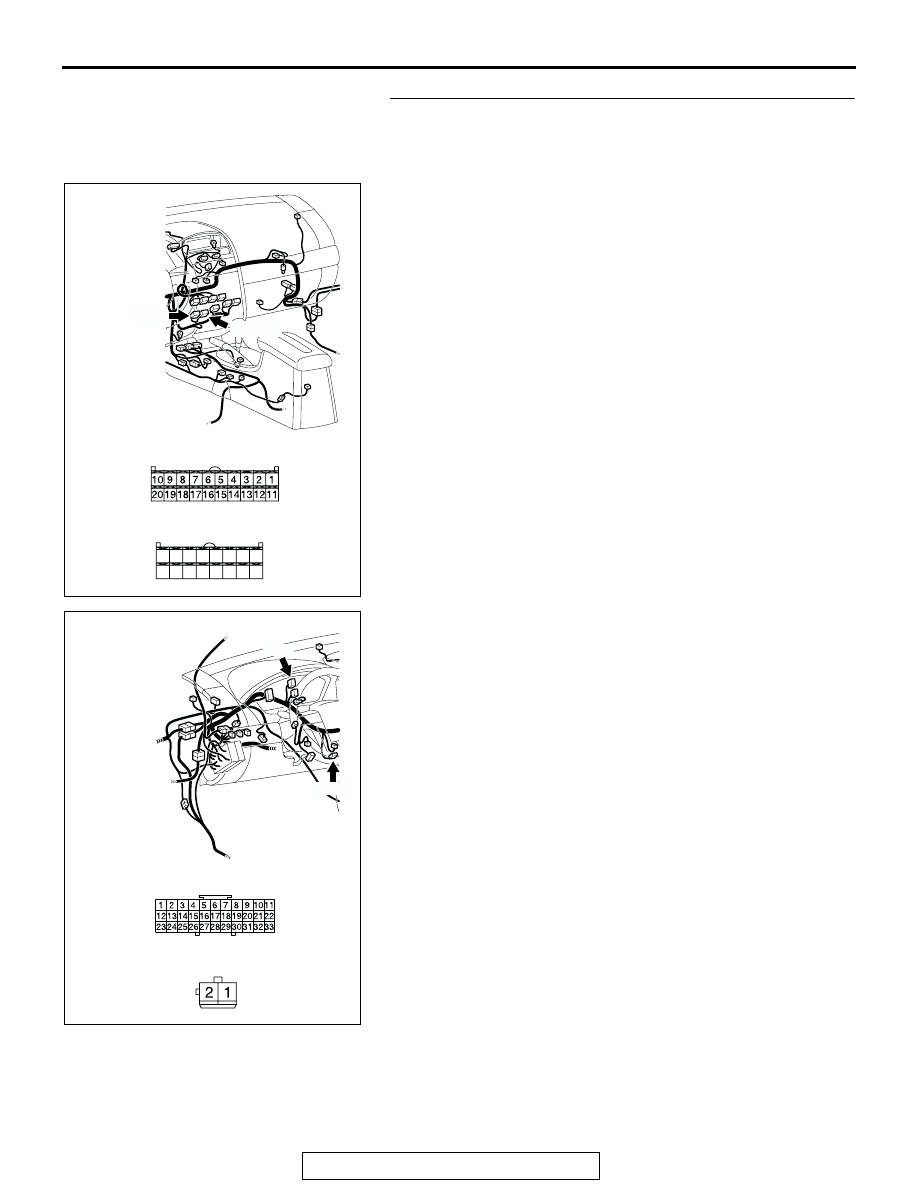

STEP 5. Check the wiring harness between A/C-ECU
connector C-15 (terminals 20), C-16 (terminals 22) and
interior temperature sensor connector C-123 (terminals 1
and 2).

AC305234

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

AG

AC305232

CONNECTORS: C-03, C-123

AQ

C-03

C-123

JUNCTION BLOCK SIDE

C-03

HARNESS SIDE

C-123

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-14

NOTE: Also check joint connector C-03 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If joint connector C-03 is damaged, repair or replace the con-
nector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Are the wiring harnesses between A/C-ECU connector

C-15 (terminals 20), C-16 (terminals 22) and interior
temperature sensor connector C-123 (terminals 1 and 2)
in good condition?
YES : Go to Step 6.
NO :  Repair the wiring harness. Then go to Step 7.

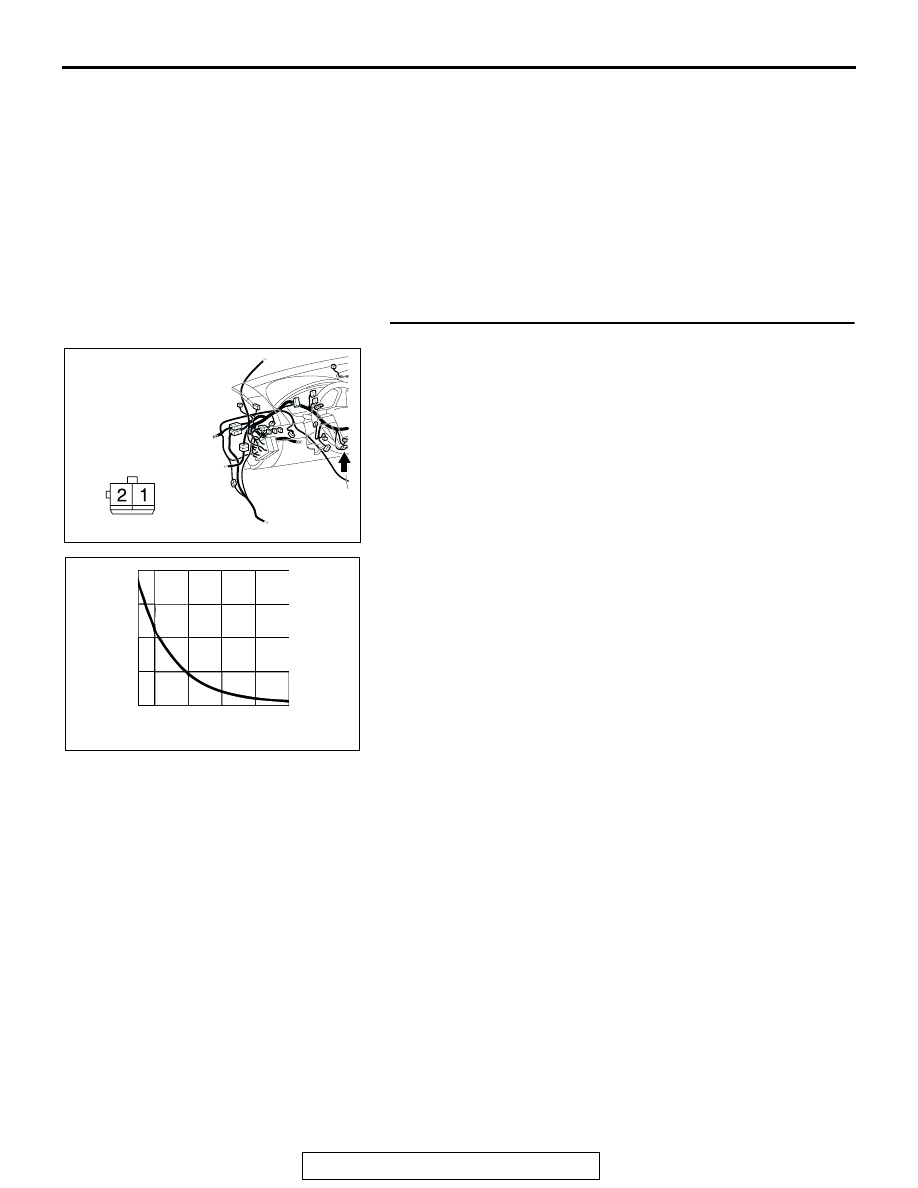

STEP 6. Check the interior temperature sensor.

(1) Disconnect interior temperature sensor connector C-123.

(2) When the resistance between the sensor terminals is

measured under two or more temperature conditions, the

resistance should approximately satisfy the illustrated
values.
NOTE: The temperature conditions when checking should
not exceed the range shown in the diagram.

Q: Is the interior temperature sensor in good condition?

YES : Replace the A/C-ECU. Then go to Step 7.
NO :  Replace the interior temperature sensor. Then go to

Step 7.

AC305231CK

CONNECTOR: C-123

HARNESS SIDE

AC103488 AC

RESISTANCE
   (k

Ω)

TEMPERATURE ˚C (˚F)

20

15

10

5

0

0

20

40

60

80

-10

(32) (68) (104) (140) (176)

(14)

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-15

STEP 7. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Connect scan tool MB991958 to the data link connector
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : The procedure is complete.
NO :  Return to Step 1.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-16

SYMPTOM CHART

M1554005000203

CAUTION

During diagnosis, a DTC code associated with
another system may be set when the ignition
switch is turned on with connector(s) discon-
nected. On completion, confirm all systems for
DTC code(s). If DTC code(s) are set, erase them
all.

SYMPTOM

INSPECTION
PROCEDURE NO.

REFERENCE
PAGE

When the ignition switch is "ON", the A/C does not operate.

1

REFER TO GROUP
55A

− SYMPTOM

CHART

P.55A-181

When the air outlet changeover control knob is moved to
DEFROSTER or DEFROSTER/FOOT position, the A/C or the
inside/outside air changeover damper motor does not operate.

2

Outside/Inside air changeover is not possible.

3

When the A/C is operating, temperature inside the passenger
compartment does not decrease (cool air is not emitted).

4

Front blower fan and motor do not turn.

5

Front blower air amount cannot be changed.

6

The A/C indicator flashes.

7

Defogger function does not operate.

8

Defogger timer function does not operate.

9

Malfunction of the A/C-ECU power supply system.

10

Condenser fan does not operate.

11

REFER TO GROUP
14

− SYMPTOM

CHART

P.14-3

When sunlight intensity changes, air outlet temperature does
not change.

12

P.55B-17
