Mitsubishi Galant (2004+). Manual - part 787





CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-287

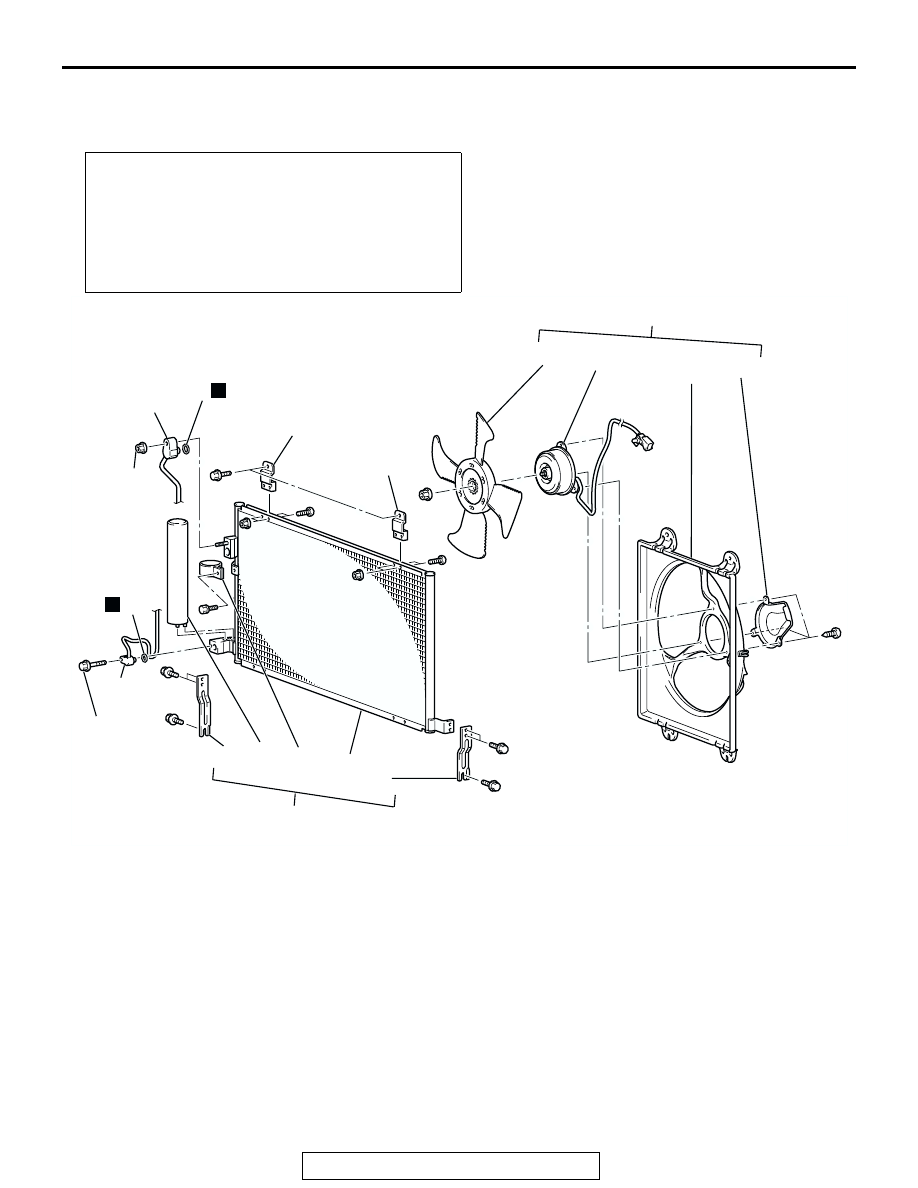

CONDENSER AND CONDENSER FAN MOTOR

REMOVAL AND INSTALLATION

M1552006700414

Pre-removal and Post-installation Operation
• Refrigerant Draining and Refilling (Refer to

P.55A-264

).

• Air Duct Removal and Installation (Refer to GROUP 15,

Air Cleaner

P.15-4

).

• Radiator Grilles Removal and Installation (Refer to

GROUP 51, Radiator Grilles

P.51-5

).

• Front End Structure Bar Removal and Installation (Refer

to GROUP 14, Radiator

P.14-11

).

AC306985

4.9 ± 0.9 N·m
44 ± 8 in-ft

12 ± 2 N·m
107 ± 17 in-ft

12 10

11

14

12

7

8

6

8

13

13

2

4

5

3

1

9

N

N

AB

<2.4 L engine>

CONDENSER FAN MOTOR
REMOVAL STEPS

1.

CONDENSER FAN ASSEMBLY

2.

FAN

3.

COVER

4.

MOTOR

5.

SHROUD

RADIATOR GRILLES

FRONT END STRUCTURE BAR

CONDENSER REMOVAL STEPS

<<A>>

6.

FLEXIBLE DISCHARGE HOSE
CONNECTION

<<A>>

7.

LIQUID PIPE A CONNECTION

8.

O-RING

FRONT UNDER COVER

9.

CONDENSER ASSEMBLY

10. RECEIVER

>>A<<

11. CONDENSER
12. UNDER BRACKET
13. UPPER BRACKET

CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-288

REMOVAL SERVICE POINTS

.

<<A>> FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DIS-
CONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To prevent the entry of dust or other foreign bodies, plug the
dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

.

>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount
of compressor oil and install it to the vehicle.

Compressor oil: SUN PAG 56
Quantity: 15 cm

3

 (0.5 fl.oz)

INSPECTION

M1552014301102

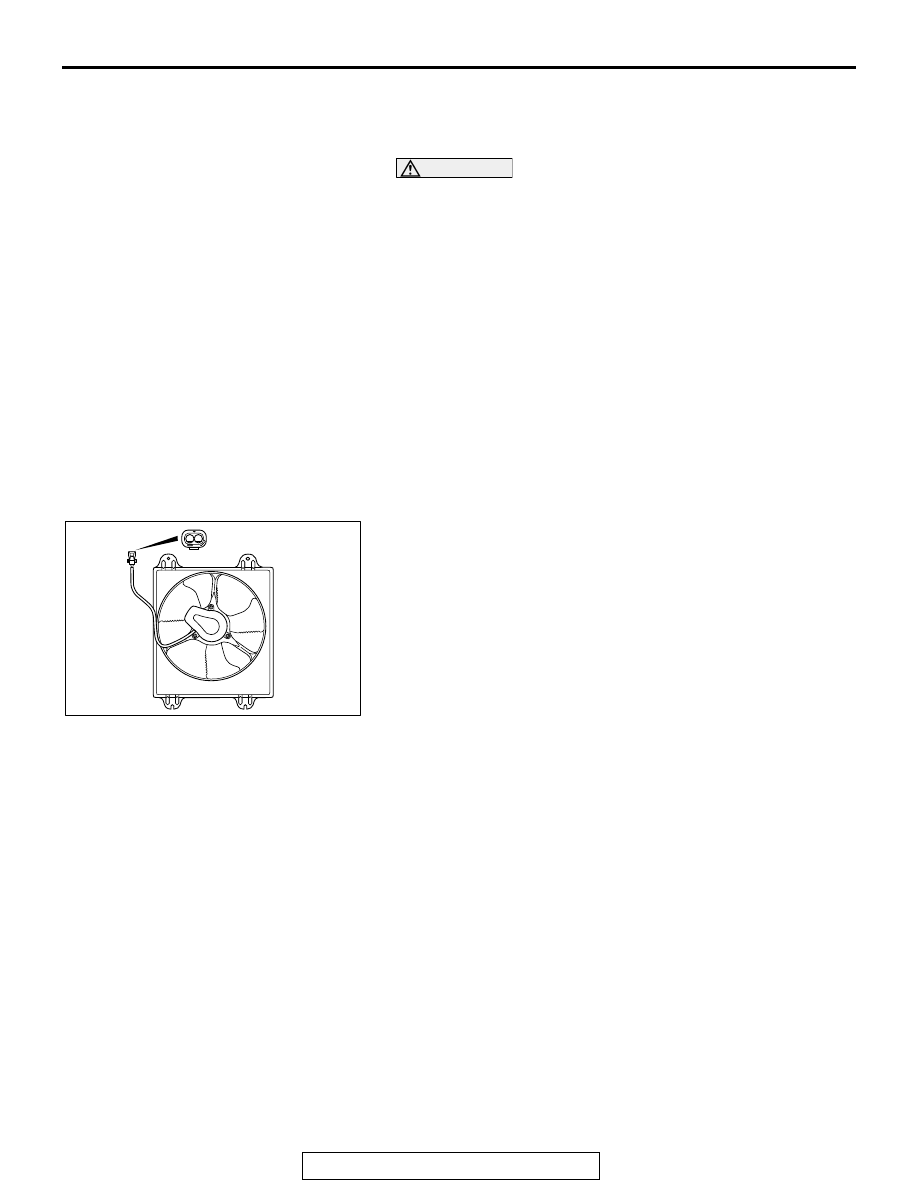

CONDENSER FAN MOTOR CHECK

Check to be sure that the condenser fan motor operates when
battery voltage is applied to terminal 2 and terminal 1
grounded.

1 2

AC307097

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-289

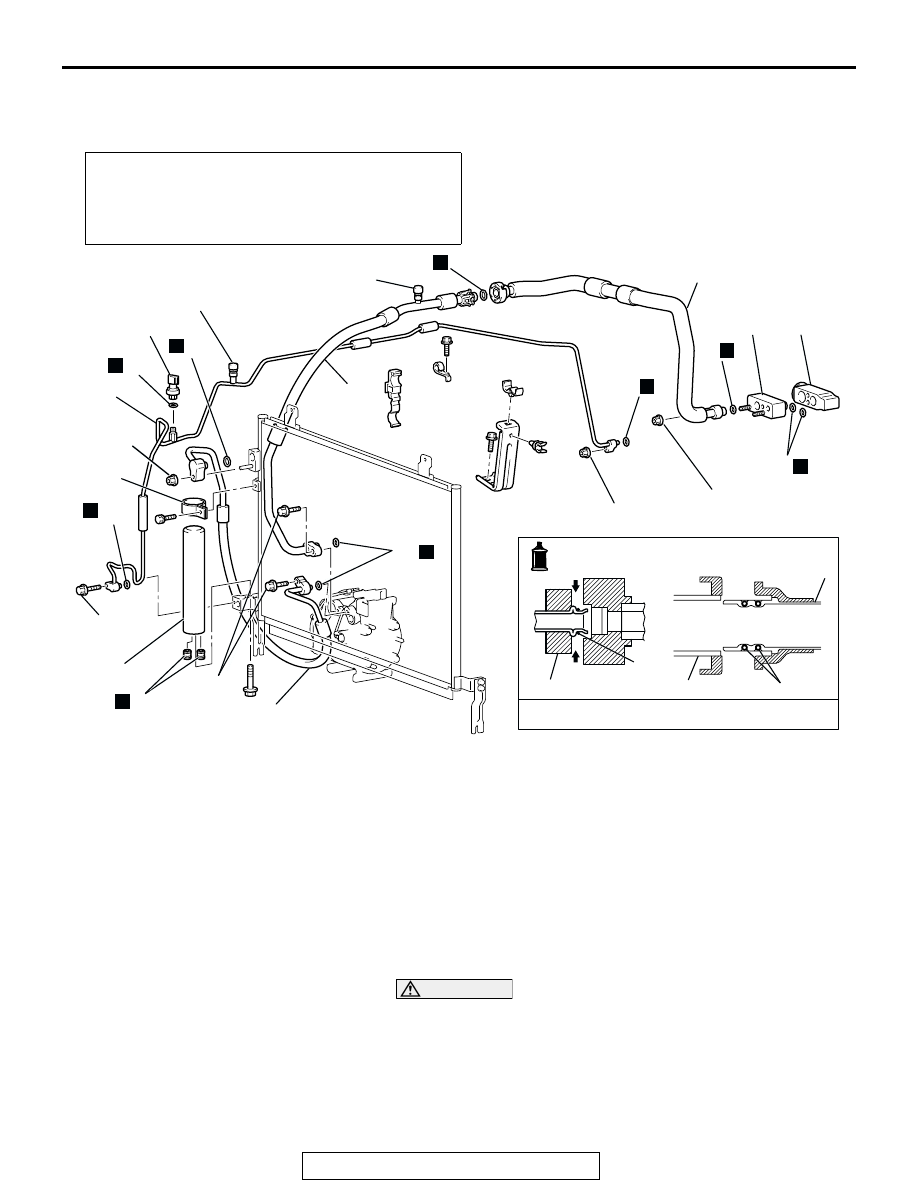

REFRIGERANT LINE

REMOVAL AND INSTALLATION

M1552006400446

REMOVAL SERVICE POINT

.

<<A>> HOSE/PIPE DISCONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To prevent the entry of other foreign bodies, plug the con-
denser, compressor, and expansion valve nipples.

.

Pre-removal and Post-installation Operation
• Refrigerant Draining and Refilling (Refer to Charging and

Discharging

P.55A-264

).

• Radiator Grille Removal and Installation (Refer to

GROUP 51, Radiator Grilles

P.51-5

).

AC306613

1

11

11

4

5

3

N

N

8

N

2

9

10

6

7

11

N

AD

High-Pressure
Side Service Valve

Low-pressure side
service valve

11

N

11

N

11

N

11

N

11

N

1, 2, 3, 4, 5, 8, 9

A/C compressor oil:  SUN PAG 56

-Pipe coupling

11

2

11

4.9 ± 0.9 N·m
43 ± 8 in-lb

4.9 ± 0.9 N·m
43 ± 8 in-lb

25 ± 4 N·m
18 ± 3 fi-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

3

REMOVAL STEPS

<<A>>

1.

FLEXIBLE DISCHARGE HOSE

<<A>>

>>A<<

2.

FLEXIBLE SUCTION HOSE

<<B>>

>>A<<

3.

SUCTION PIPE

<<A>>

4.

LIQUID PIPE

<<A>>

5.

A/C PRESSURE SENSOR

6.

CLAMP

<<A>>

7.

RECEIVER

8.

RECEIVER JOINT

9.

EXPANSION VALVE JOINT

<<A>>

10. EXPANSION VALVE
11. O-RING

REMOVAL STEPS (Continued)

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-290

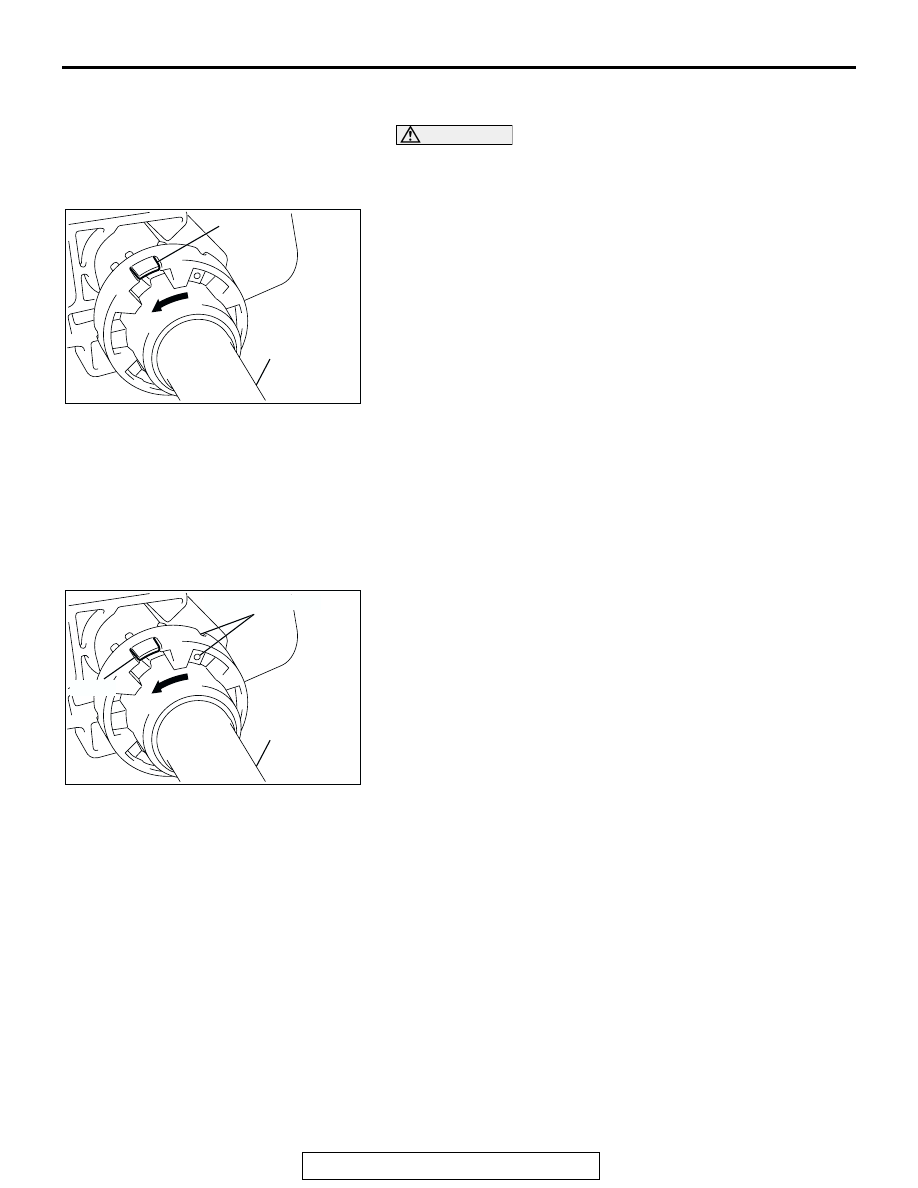

<<B>> SUCTION PIPE AND SUCTION FLEXIBLE HOSE
DISCONNECTION

CAUTION

As the compressor oil and receiver are highly moisture
absorbent, use a non-porous material to plug the hose and
nipples.
To disconnect the suction hose from the suction flexible hose,
lift the lug on the suction pipe and twist the suction flexible hose
union counterclockwise.
Plug the hose nipple to prevent entry of dust and dirt.

INSTALLATION SERVICE POINT

.

>>A<< SUCTION HOSE INSTALLATION
1. When replacing the suction hose, refill them with a specified

amount of compressor oil, and then install them.

Compressor oil: SUN PAG 56

Quantity: 10 cm

3

 (0.3 fl.oz)

2. Align the white painting marks when connecting the flexible

suction hose and the suction pipe.

AC209788AB

CLAW

SUCTION
FLEXIBLE HOSE

AC209788AB

SUCTION
FLEXIBLE HOSE

CLAW

WHITE PAINTING MARK
