Mitsubishi Galant (2004+). Manual - part 578





11B-1

GROUP 11B

ENGINE OVERHAUL

<2.4L ENGINE>

CONTENTS

SPECIAL TOOLS. . . . . . . . . . . . . . . .

11B-2

GENERATOR AND IGNITION
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

11B-6

REMOVAL AND INSTALLATION . . . . . . . .

11B-6

EXHAUST MANIFOLD. . . . . . . . . . . .

11B-9

REMOVAL AND INSTALLATION . . . . . . . .

11B-9

TIMING BELT. . . . . . . . . . . . . . . . . . .

11B-11

REMOVAL AND INSTALLATION . . . . . . . .

11B-11

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

11B-20

FUEL AND EMISSION PARTS . . . . .

11B-23

REMOVAL AND INSTALLATION . . . . . . . .

11B-23

INTAKE MANIFOLD AND WATER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . .

11B-25

REMOVAL AND INSTALLATION . . . . . . . .

11B-25

ROCKER ARMS AND CAMSHAFT. .

11B-29

REMOVAL AND INSTALLATION . . . . . . . .

11B-29

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

11B-32

CYLINDER HEAD AND VALVES. . . .

11B-33

REMOVAL AND INSTALLATION  . . . . . . . .

11B-33

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-36

OIL PAN AND OIL PUMP. . . . . . . . . .

11B-40

REMOVAL AND INSTALLATION  . . . . . . . .

11B-40

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-50

PISTON AND CONNECTING ROD  . .

11B-51

REMOVAL AND INSTALLATION  . . . . . . . .

11B-51

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-58

CRANKSHAFT AND  CYLINDER
BLOCK . . . . . . . . . . . . . . . . . . . . . . . .

11B-60

REMOVAL AND INSTALLATION  . . . . . . . .

11B-60

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-64

SPECIFICATIONS  . . . . . . . . . . . . . . .

11B-67

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

11B-67

GENERAL SPECIFICATIONS  . . . . . . . . . .

11B-69

SERVICE SPECIFICATIONS . . . . . . . . . . .

11B-70

SEALANTS . . . . . . . . . . . . . . . . . . . . . . . . .

11B-72

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-2

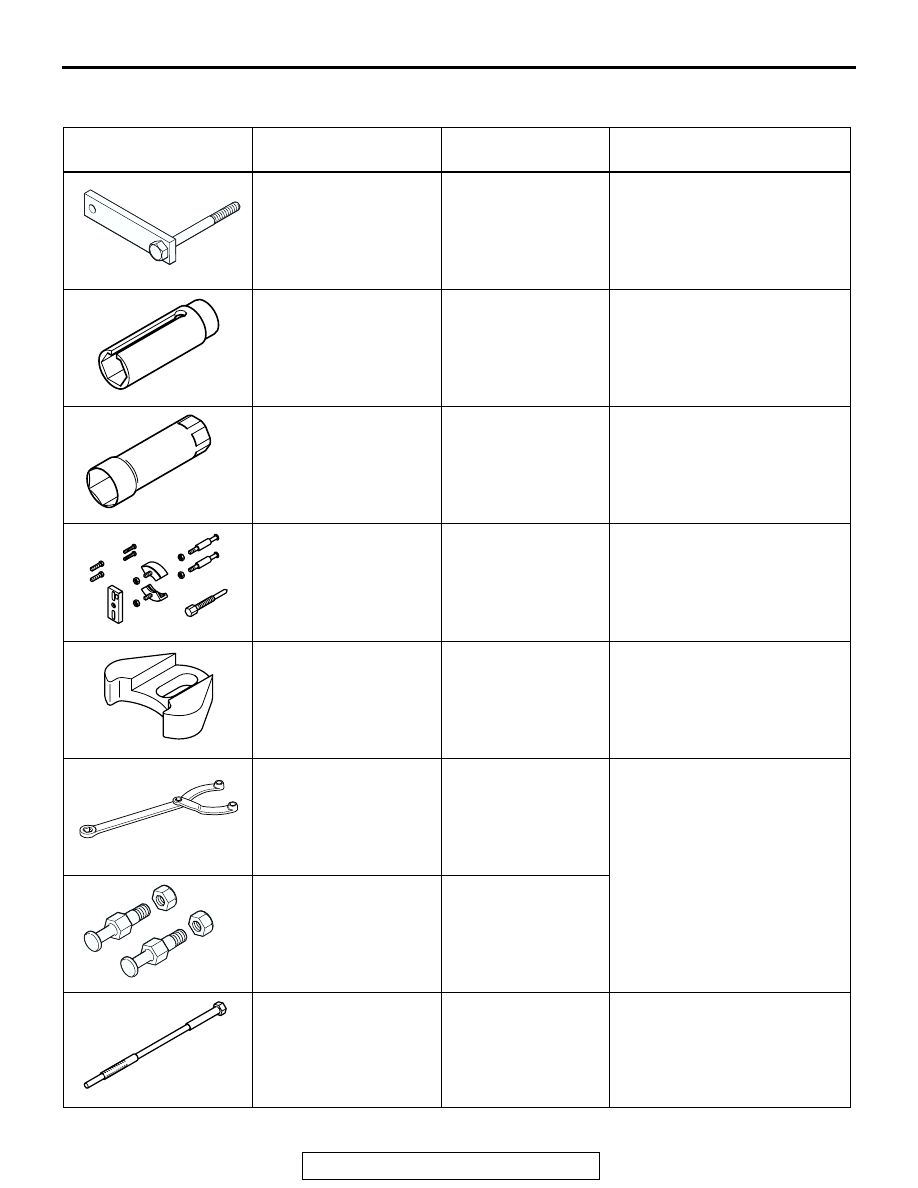

SPECIAL TOOLS

M1113000600573

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MD998781
Flywheel stopper

General service tool

Supporting drive plate

MD998770
Oxygen sensor wrench

MD998770-01 or
General service tool

Removal and installation of
oxygen sensor

MB991398
Spark plug wrench

Removal and installation of
spark plug

MD998778
Crankshaft sprocket
puller

General service tool

Removal of crankshaft sprocket

MD998785
Sprocket stopper

MD998785

Supporting counterbalance
shaft sprocket

MB990767
End yoke holder

MB990767-01

Holding camshaft sprocket
when loosening or torquing bolt

MD998719
Pins

MIT308239

MD998738
Adjusting screw

General service tool

• Holding the auto-tensioner

• Timing belt tension

adjustment

D998781

B990767

D998719

D998738

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-3

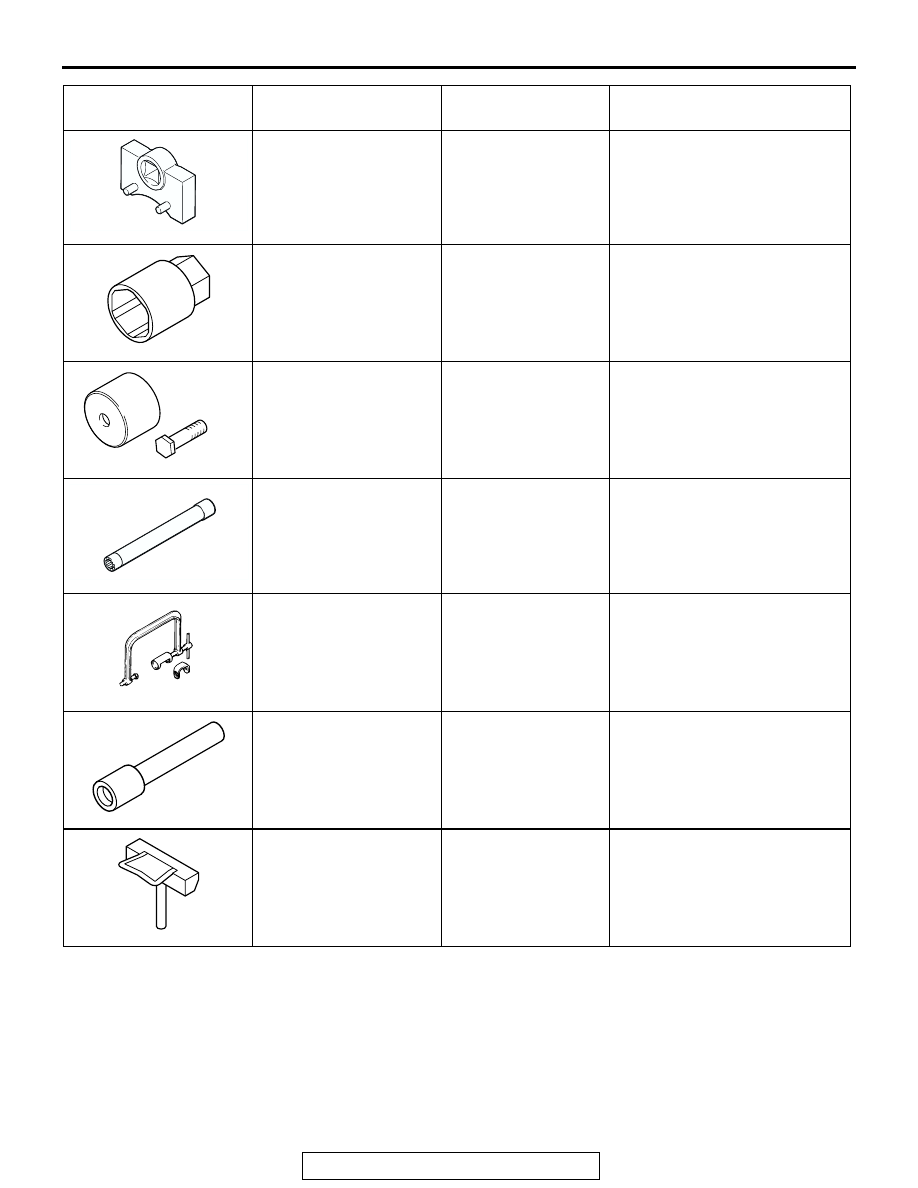

MD998767
Tension pulley wrench

MD998752-01

Adjustment of timing belt
tension

MD998054
Oil pressure switch
wrench

General service tool
or MD998054-01

Removal and installation of
engine oil pressure switch <to
cylinder block>

MD998713
Camshaft oil seal
installer

MD998713-01

Installation of camshaft oil seal

MB991654
Cylinder head bolt
wrench (12)

General service tool

Removal and installation of
cylinder head bolt

MD998735
Valve spring compressor

MD998735-01

Compression of valve spring

MD998774
Valve steam seal
installer

MD998774-01

Installation of valve steam seal

MD998727
Oil pan remover

MD998727-01

Removal of oil pan

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998767

D998713

B991654

D998727

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-4

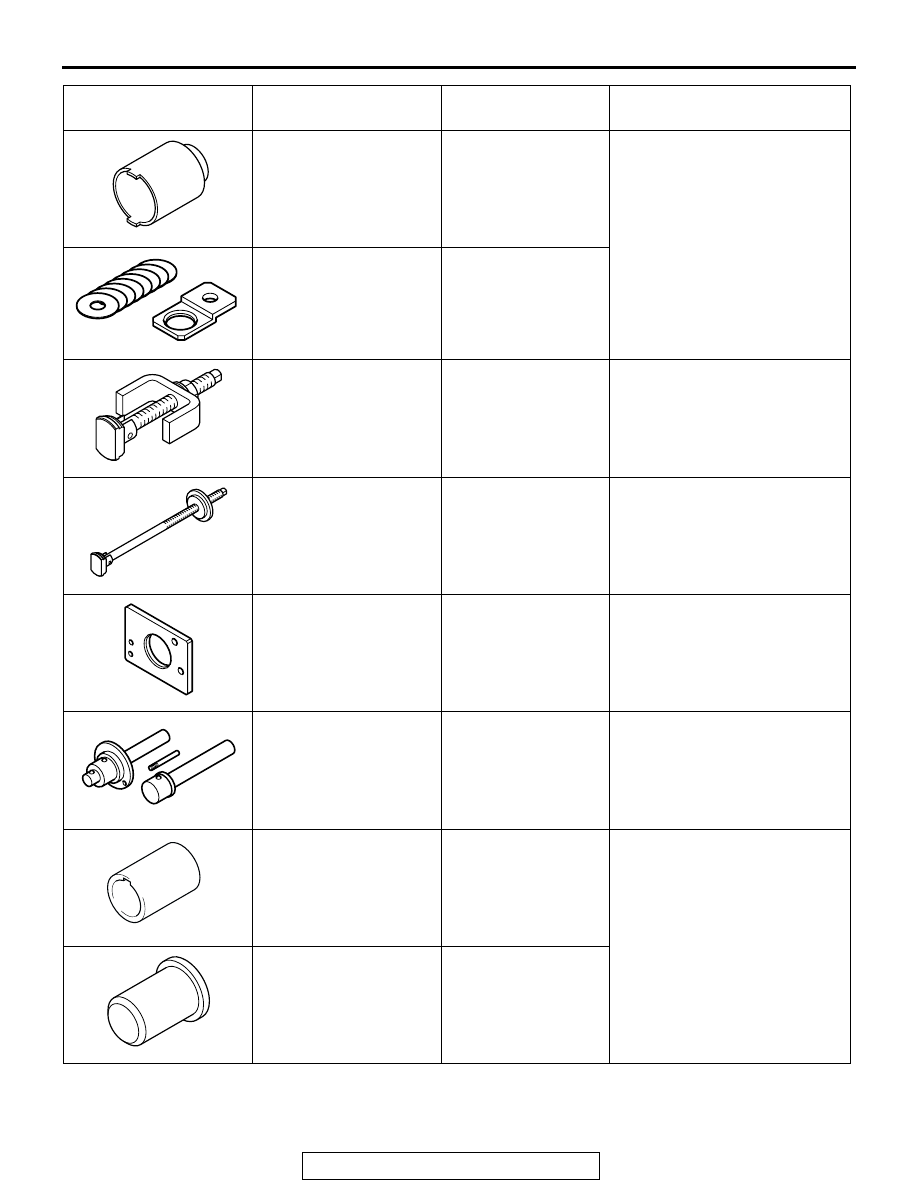

MD998162
Plug wrench

MD998162-01

Removal and installation of
front case cap plug

MD998783
Plug wrench retainer

General service tool

MD998371
Silent shaft bearing
puller

MD998371-01

Removal of counterbalance
shaft front bearing

MD998372
Silent shaft bearing
puller

MD998372-01

Removal of counterbalance
shaft rear bearing

MB991603
Bearing installer stopper

General service tool

Removal and installation of rear
bearing

MD998705
Silent shaft bearing
installer

MD998373-01 Use
with MB990938-01

Installation of counterbalance
shaft bearing

MD998285
Crankshaft front oil seal
guide

MD998285-01

Installation of crankshaft front
oil seal

MD998375
Crankshaft front oil seal
installer

MD998375-01

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998285
