SUNROOF ASSEMBLY

TSB Revision

BODY

42-83

Required Special Tool:

• MB991223: Harness set

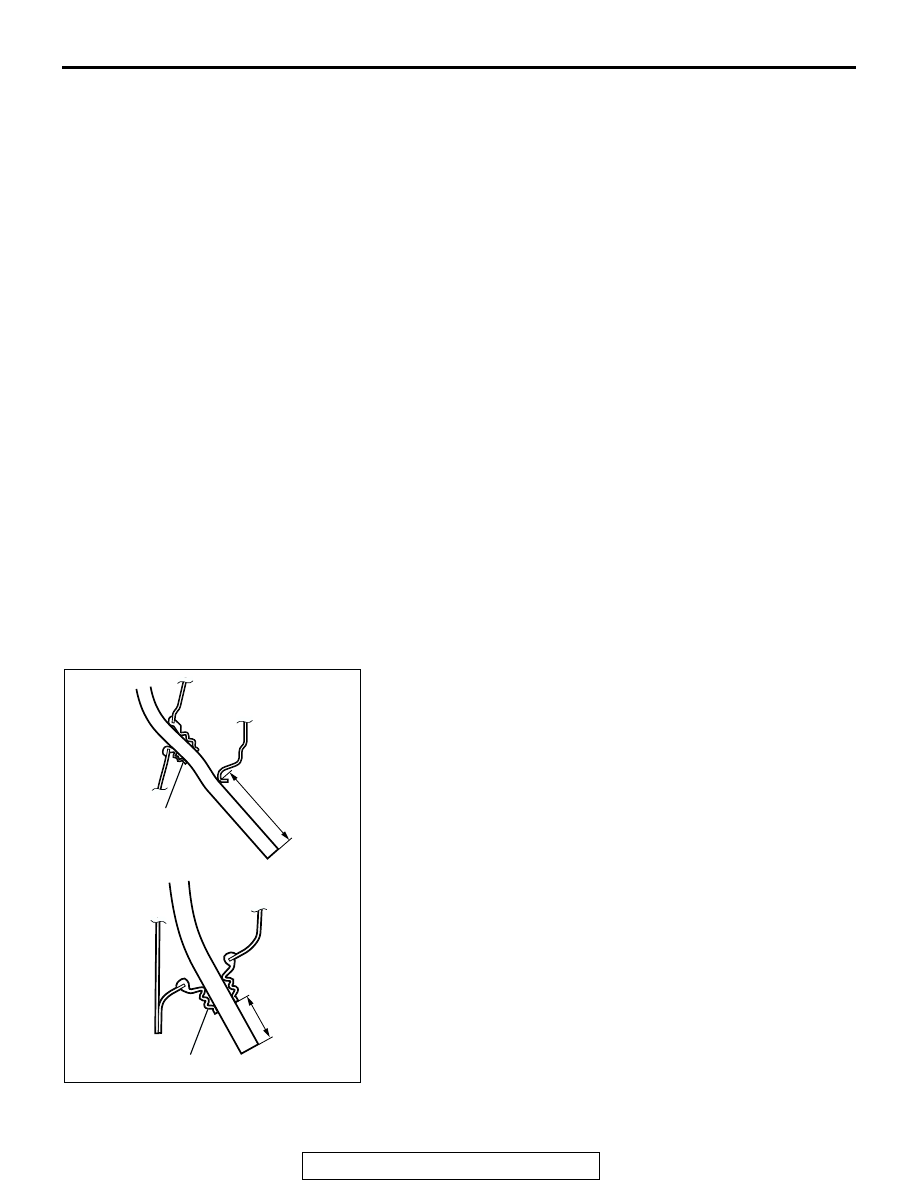

INSTALLATION SERVICE POINT

.

>>A<< REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLA-
TION
Install the grommet, and then position the drain pipe so that it
protrudes from the grommet as shown in the illustration.

DRAIN PIPE REMOVAL STEPS

•

FRONT HEADLINING PAD (REFER
TO GROUP 52A, HEADLINING

P.52A-19

).

•

FRONT SPLASH SHIELD (REFER
TO

P.42-10

).

•

UPPER FRAME TO FRONT PILLAR
BRACE (FRONT DRAIN PIPE <LH>)
(REFER TO

P.42-86

).

•

INSTRUMENT PANEL PARCEL BOX
(FRONT DRAIN PIPE <RH>)
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-3

).

>>A<<

3. FRONT DRAIN PIPE
•

REAR HEADLINING PAD (REFER
TO GROUP 52A, HEADLINING

P.52A-19

).

•

TRUNK TRIM ASSEMBLY (REFER
TO GROUP 52A, TRIMS

P.52A-10

).

•

REAR SPLASH SHIELD (REFER TO
GROUP 51, REAR BUMPER

P.51-4

).

>>A<<

4. REAR DRAIN PIPE

SUNROOF MOTOR ASSEMBLY
REMOVAL STEPS

•

HEADLINING (REFER TO GROUP
52A, HEADLINING

P.52A-19

).

5. SUNROOF MOTOR ASSEMBLY

SUNROOF ASSEMBLY REMOVAL
STEPS

1. ROOF LID GLASS ASSEMBLY
•

HEADLINING (REFER TO GROUP
52A, HEADLINING

P.52A-19

).

•

DRAIN PIPE CONNECTION

5. SUNROOF MOTOR ASSEMBLY
6. OVERHEAD CONSOLE BRACKET
7. SUNROOF ASSEMBLY

AC307033

AC307034

AC307305

UNITS: mm (in)

94 ± 14

(3.7 ± 0.6)

37 ± 17

(1.5 ± 0.7)

AB

<FRONT>

<REAR>

GROMMET

GROMMET

SUNROOF ASSEMBLY

TSB Revision

BODY

42-84

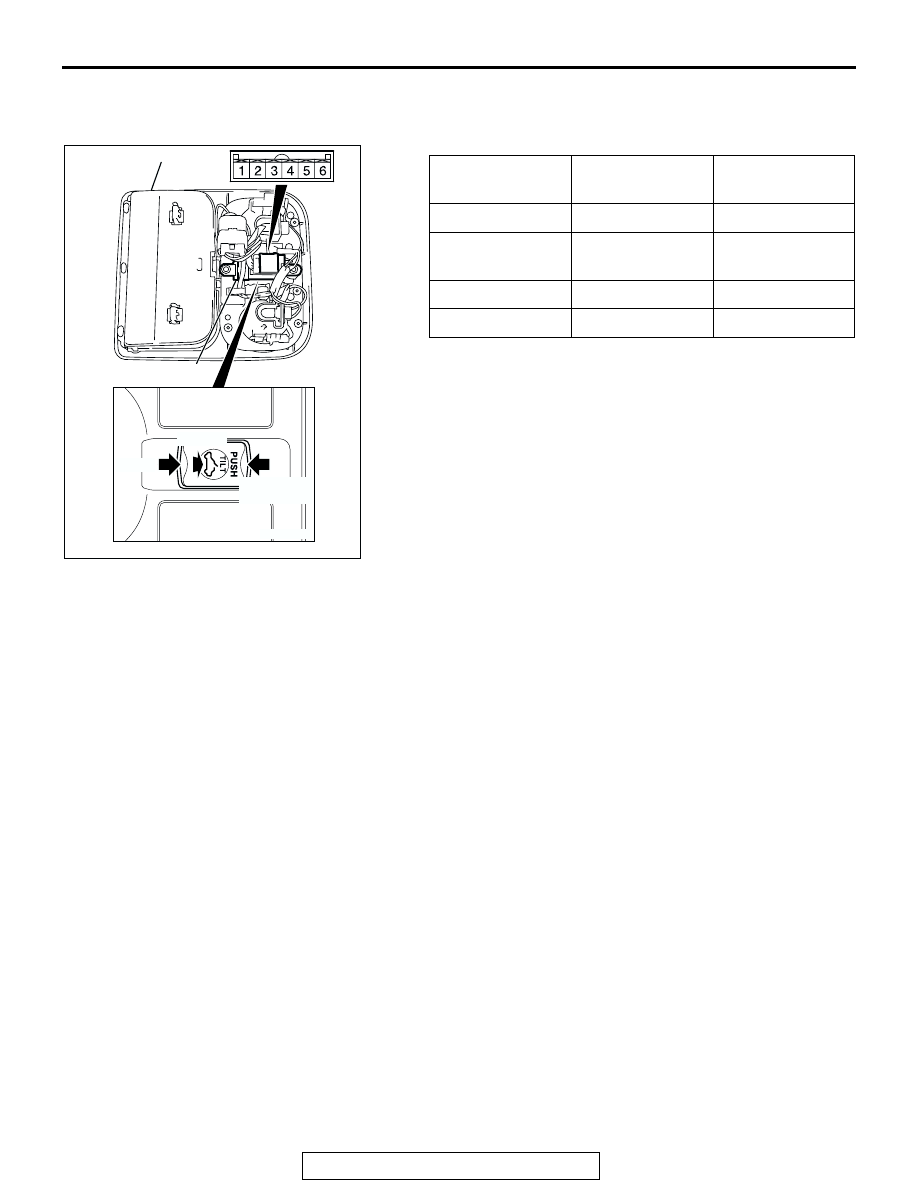

INSPECTION

M1421007600440

SUNROOF SWITCH CONTINUITY  CHECK

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Open

4

− 5

Less than 2 ohms

Off

3

− 4, 3 − 5, 3 − 6,

4

− 5, 4 − 6, 5 − 6

Open circuit

Tilt-up

3

− 4

Less than 2 ohms

Close/Tilt-down

4

− 6

Less than 2 ohms

AC306720

AC307038

AC209094

AB

OPEN

OVERHEAD CONSOLE

CLOSE/
TILT-DOWN

TILT-UP

SUNROOF SWITCH

SUNROOF ASSEMBLY

TSB Revision

BODY

42-85

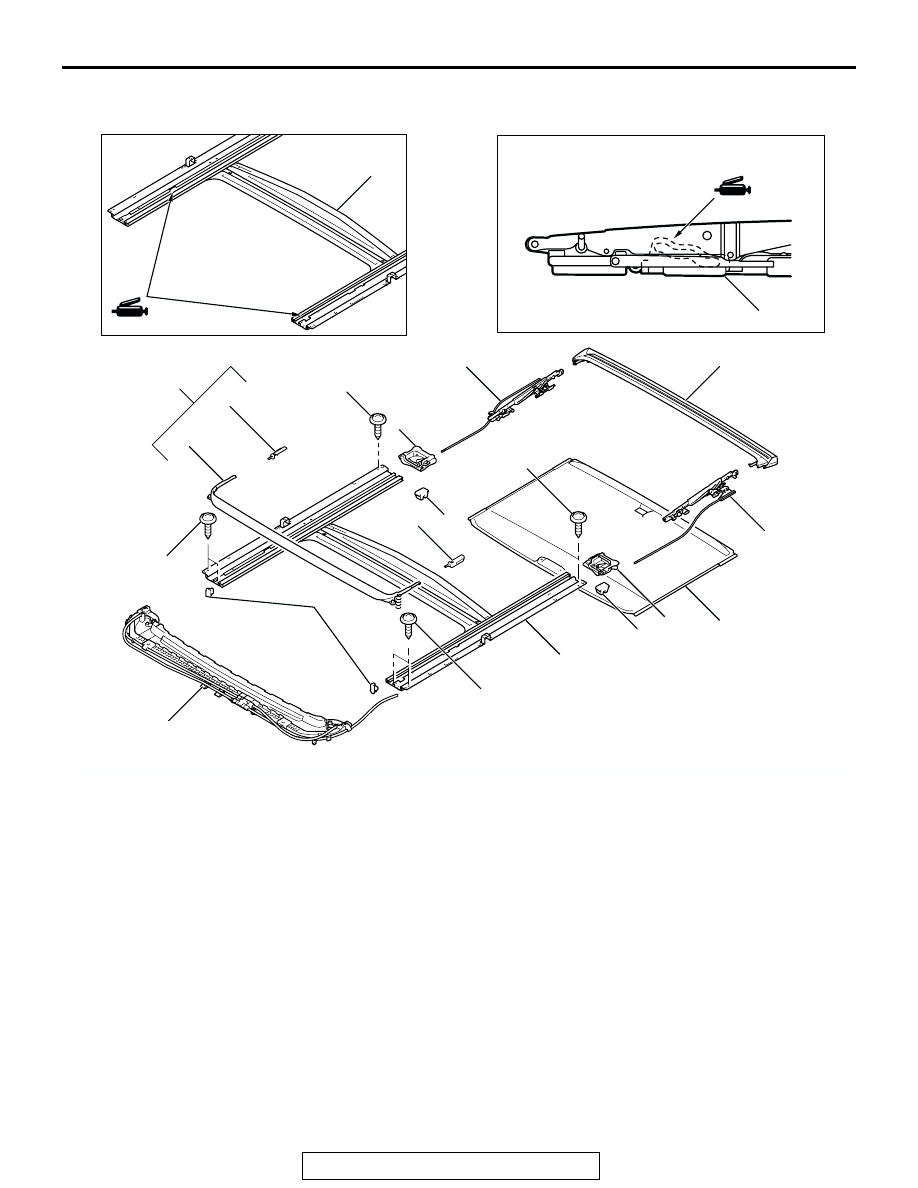

DISASSEMBLY AND ASSEMBLY

M1426001400294

AC308120

AC309052

1

2

1

2

3

4

5

6

6

7

8

8

8

9

10

11

11

AB

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

2.0 N·m
18 in-lb

DISASSEMBLY STEPS

1. SUNROOF DRIP PLATE
2. SUNROOF SUNSHADE STOPPER
3. SUNROOF SUNSHADE

<<A>>

4. SUNROOF DEFLECTOR

ASSEMBLY

5. SUNROOF DEFLECTOR

6. SUNROOF GUIDE RAIL ROD

HOLDER

7. SUNROOF DRIP RAIL
8. ROOF LID SLIDER
9. SLIDING ROOF OPERATING UNIT
10. ROOF BLIND STOPPER
11. SUNROOF HOUSING

DISASSEMBLY STEPS

LOOSE PANEL

TSB Revision

BODY

42-86

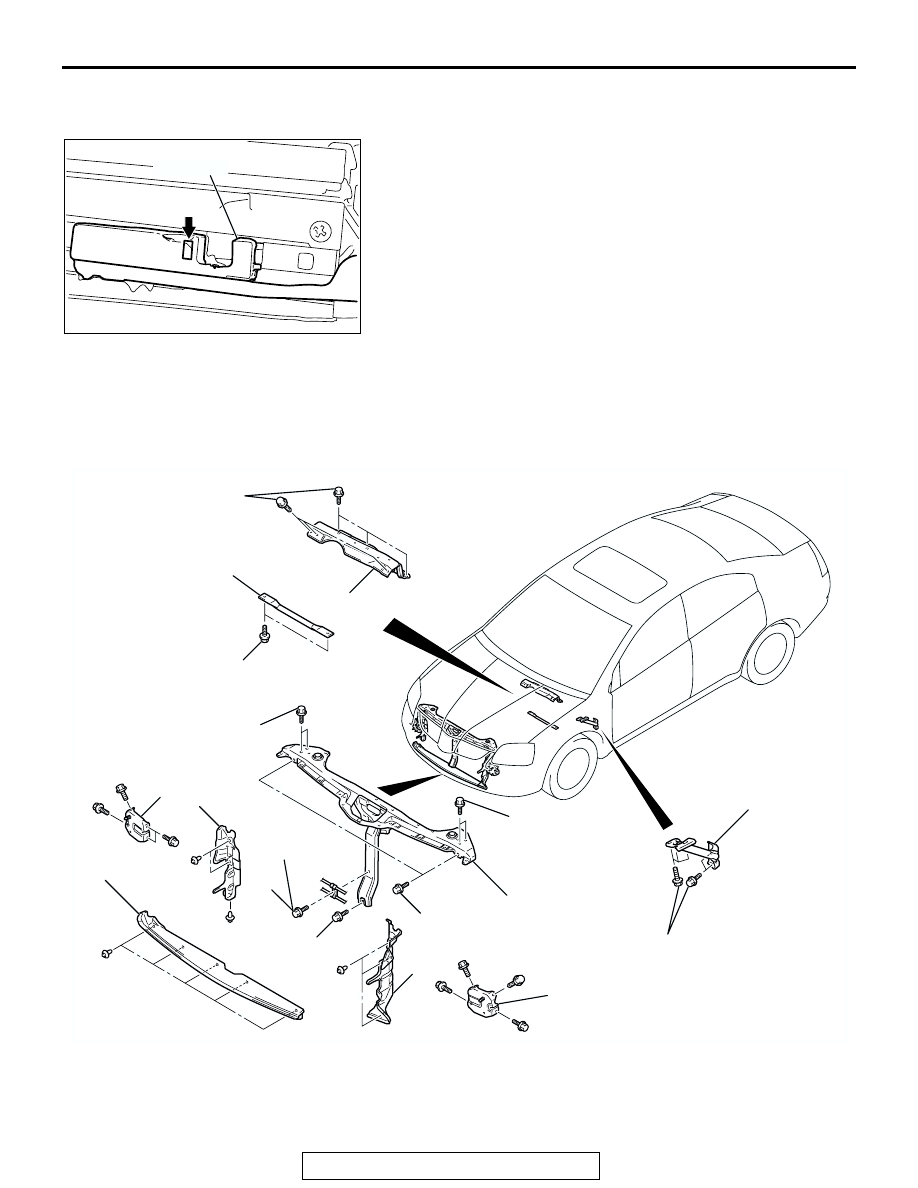

DISASSEMBLY SERVICE POINT

.

<<A>> SUNROOF DEFLECTOR ASSEMBLY REMOVAL
Slide the sunroof deflector assembly to the front of the vehicle
by holding the arrow area shown in the illustration with a
flat-tipped screwdriver, and remove it.

LOOSE PANEL

REMOVAL AND INSTALLATION

M1421003100056

AC307035

AB

SUNROOF DEFLECTOR
ASSEMBLY

AC305695 AB

1

2

3

6

6

4

5

5

7

8

22 ± 4 N·m
16 ± 2 ft-lb

22 ± 4 N·m
16 ± 2 ft-lb

22 ± 4 N·m
16 ± 2 ft-lb

22 ± 4 N·m
16 ± 2 ft-lb

22 ± 4 N·m
16 ± 2 ft-lb

11 ± 2 N·m
98 ± 17 in-lb

12 ± 2 N·m
102 ± 22 in-lb

11 ± 2 N·m
98 ± 17 in-lb

REMOVAL

1. FRONT FLOOR BACKBONE BRACE
