DOOR

TSB Revision

BODY

42-59

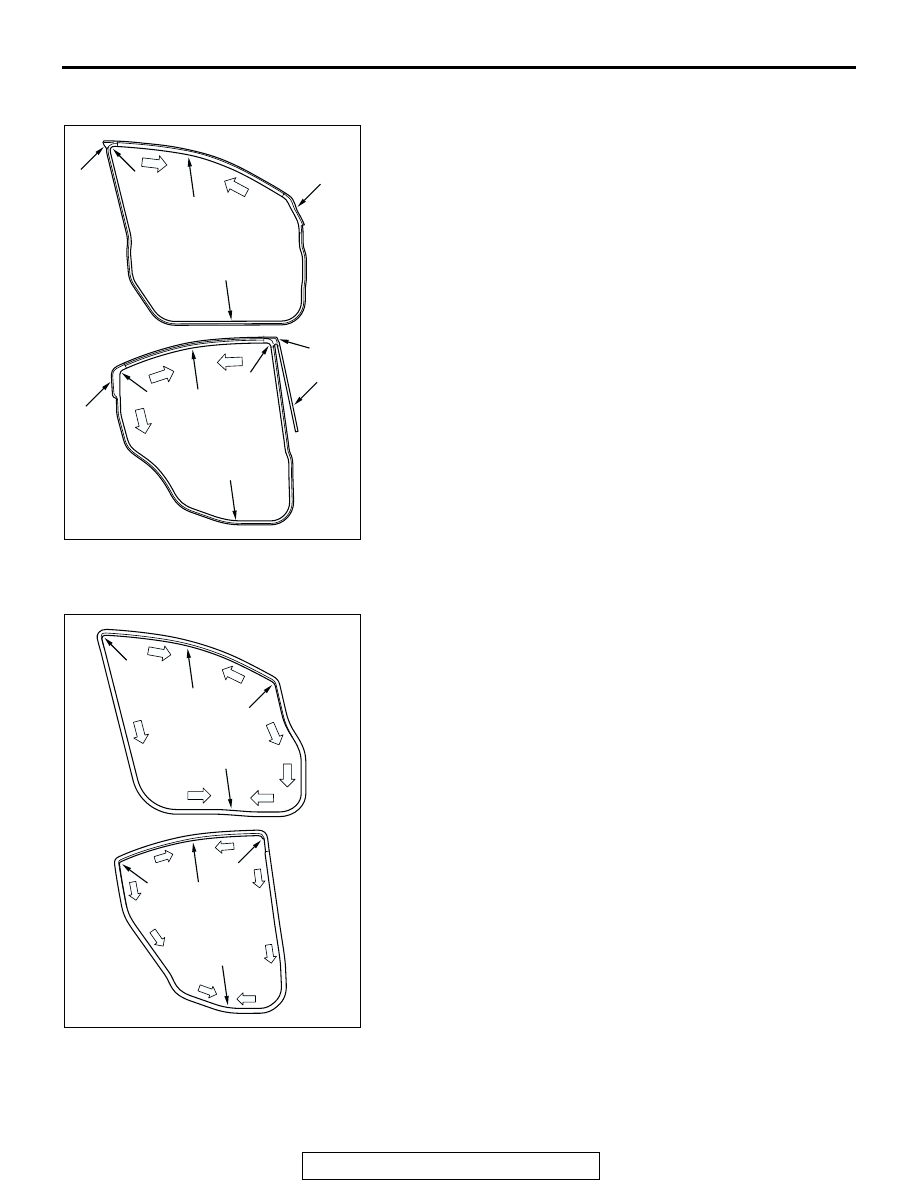

>>B<< DOOR OPENING OUTER WEATHERSTRIP
INSTALLATION
Install the door opening outer weatherstrip in the sequence
shown.

.

>>C<< DOOR OPENING INNER WEATHERSTRIP
INSTALLATION
Install the door opening inner weatherstrip in the sequence
shown.

.

AC306359

AC306360

AC306736

<FRONT DOOR>

<REAR DOOR>

AB

2

3

5

1

6

7

4

4

5

2

1

3

AC306361

AC306362

AC306735

<FRONT DOOR>

<REAR DOOR>

AB

1

2

4

4

1

2

3

3

DOOR

TSB Revision

BODY

42-60

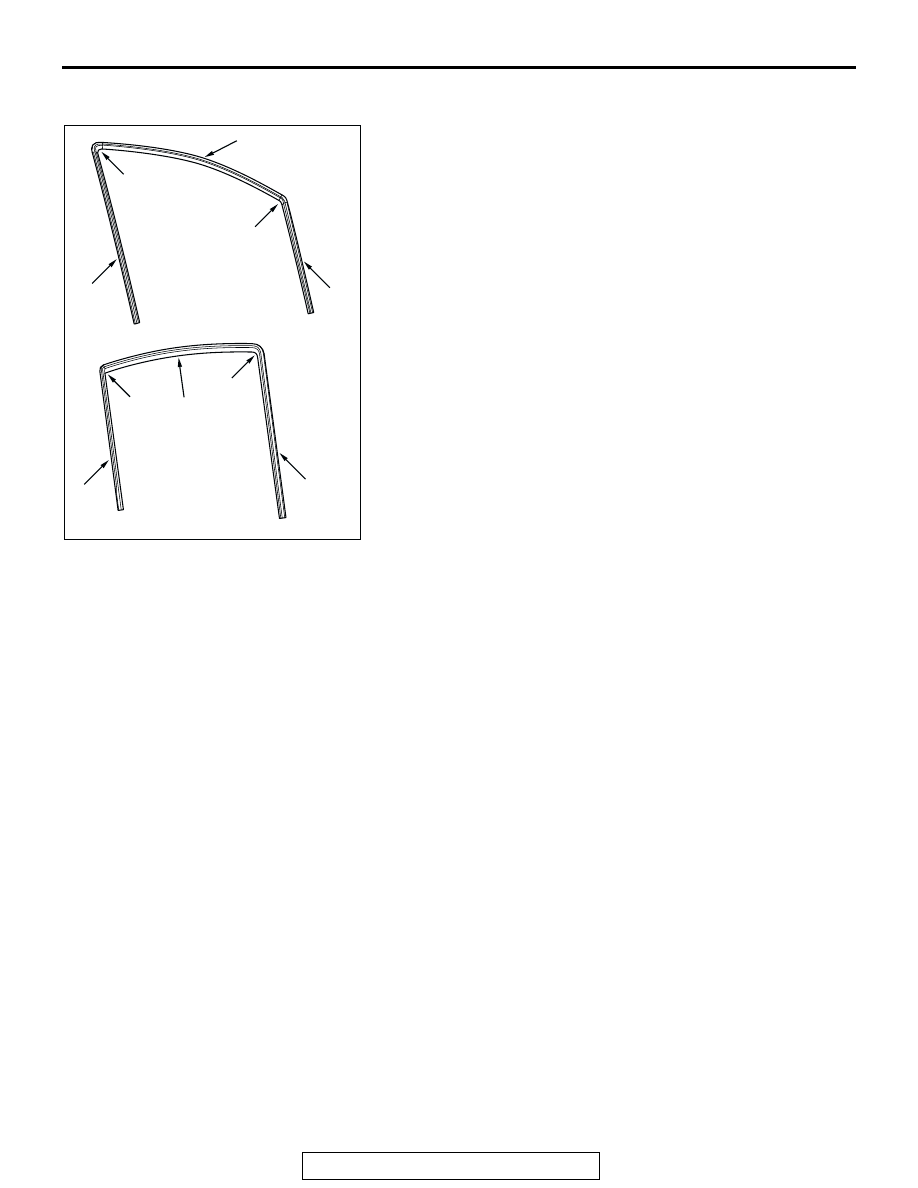

>>D<< DOOR WINDOW GLASS RUNCHANNEL
INSTALLATION
Install the door window glass runchannel in the sequence
shown.

AC306363

AC306364

AC306734

<FRONT DOOR>

<REAR DOOR>

AB

1

2

3

4

5

1

2

3

4

5

TRUNK LID

TSB Revision

BODY

42-61

TRUNK LID

TRUNK LID DIAGNOSIS

INTRODUCTION TO TRUNK LID DIAGNOSIS

M1421005800374

Difficult locking and unlocking, uneven clearance and
height, and wind noise from the trunk lid may be
caused by improper adjustment of the trunk lid.

TRUNK LID DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1421005900348

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
trunk lid fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1421006000382

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the release cable routing
condition.

Q: Is the release cable routing condition good?

YES :

Go to Step 3.

NO :

Repair the release cable routing, then go to
Step 2.

STEP 2. Check the engagement of the trunk lid
latch and trunk lid striker.

Q: Are the trunk lid latch and trunk lid striker engaged

correctly?

YES :

 Then go to Step 3.

NO :

Adjust the trunk lid latch. Refer to

P.42-63

.

STEP 3. Retest the system.

Q: Does the trunk lid lock operate easily?

YES :

The procedure is complete.

NO :

Return to Step 1.

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Difficult locking and unlocking

1

P.42-61

Uneven body clearance

2

P.42-62

Uneven height

3

P.42-62

TRUNK LID

TSB Revision

BODY

42-62

INSPECTION PROCEDURE 2: Uneven Body Clearance

DIAGNOSIS

STEP 1. Check the clearance around the trunk
lid..

Q: Are the apertures between the trunk lid and the

adjacent body panels aligned correctly?

YES :

Then go to Step 2.

NO :

Adjust the trunk lid panel assembly. Refer to

P.42-62

.

STEP 2. Retest the system.

Q: Are the clearances between the body panels even?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

DIAGNOSIS

STEP 1. Check the trunk lid bumper height.

Q: Is the trunk lid bumper height proper?

YES :

Then go to Step 2.

NO :

Adjust the trunk lid bumper.   Refer to

P.42-63

.

STEP 2. Retest the system.

Q: Are the trunk lid and body height even?

YES :

The procedure is complete.

NO :

Return to Step 1.

ON-VEHICLE SERVICE

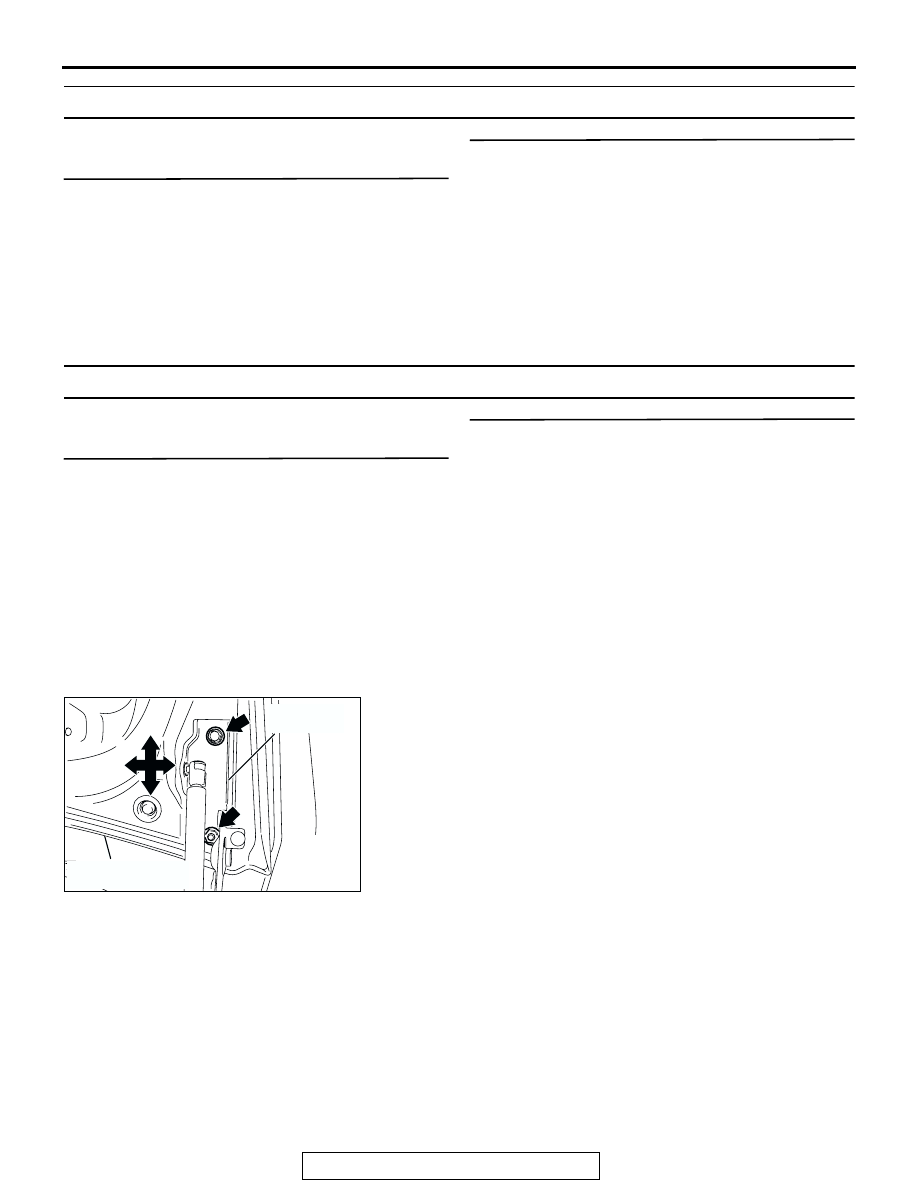

ADJUSTMENT OF CLEARANCE AROUND TRUNK
LID

M1421008100040

Loosen the trunk lid panel assembly mounting bolt and nut, and
move the trunk lid panel assembly to make the clearance
around the trunk lid even.

AC305824AB

TRUNK LID
HINGE

TRUNK LID PANEL
ASSEMBLY
