DOOR

TSB Revision

BODY

42-55

AC306733

AC306176

AC306366

AC206032

SEALANT: 3M™ AAD PART NO. 8633
OR EQUIVALENT

AB

NOTE
        : THE CONVEX POSITION OF THE DOOR

SECTION A – A

REAR
DOOR

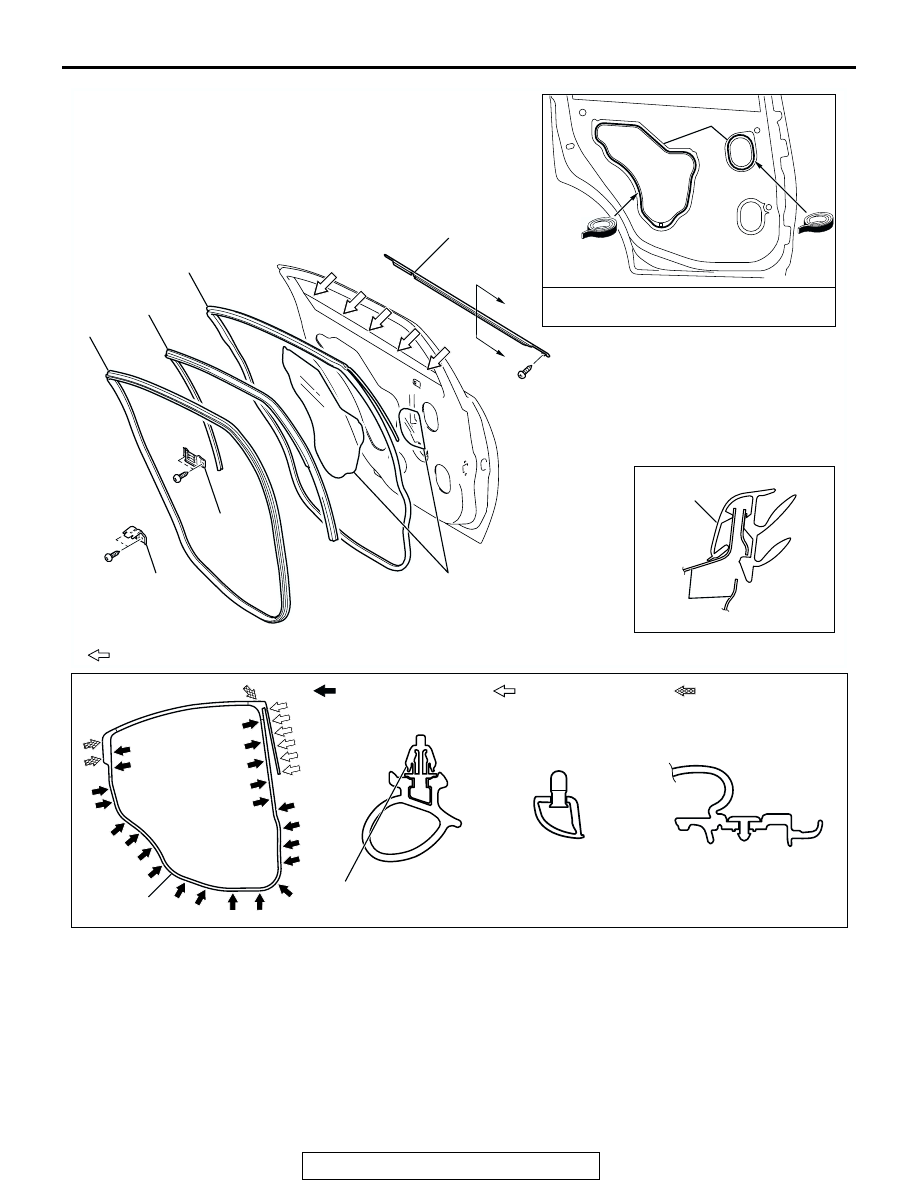

<REAR  DOOR>

1

2

4

3

3

5

6

7

7

A

A

AC306378

AC306379

AC306730

AC306380

AC306373

:SECTIONAL VIEW OF
 CLIP POSITION

:SECTIONAL VIEW OF
 CLIP POSITION

AC

:SECTIONAL VIEW OF
 CLIP POSITION

CLIP POSITION

LH DOOR CLIPS (YELLOW),
RH DOOR CLIPS (BLUE)

6

REMOVAL

>>D<<

1. DOOR WINDOW GLASS

RUNCHANNEL
DOOR PANEL BRACKET
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-13

).

2. DOOR PANEL BRACKET

DOOR ARMREST BRACKET
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-13

).

3. DOOR ARMREST BRACKET

DOOR

TSB Revision

BODY

42-56

WATERPROOF FILM REMOVAL
STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-13

).

•

DOOR INSIDE HANDLE (REFER TO

P.42-46

).

>>A<<

4. WATERPROOF FILM

DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS

•

REAR SCUFF PLATE (REFER TO
GROUP 52A, TRIMS

P.52A-10

).

>>C<<

5. DOOR OPENING INNER

WEATHERSTRIP (BODY SIDE)
DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS

•

DOOR CHECK MOUNTING BOLT
(BODY SIDE) (REFER TO

P.42-37

).

>>B<<

6. DOOR OPENING OUTER

WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-13

).

7. DOOR BELTLINE MOLDING

DOOR

TSB Revision

BODY

42-57

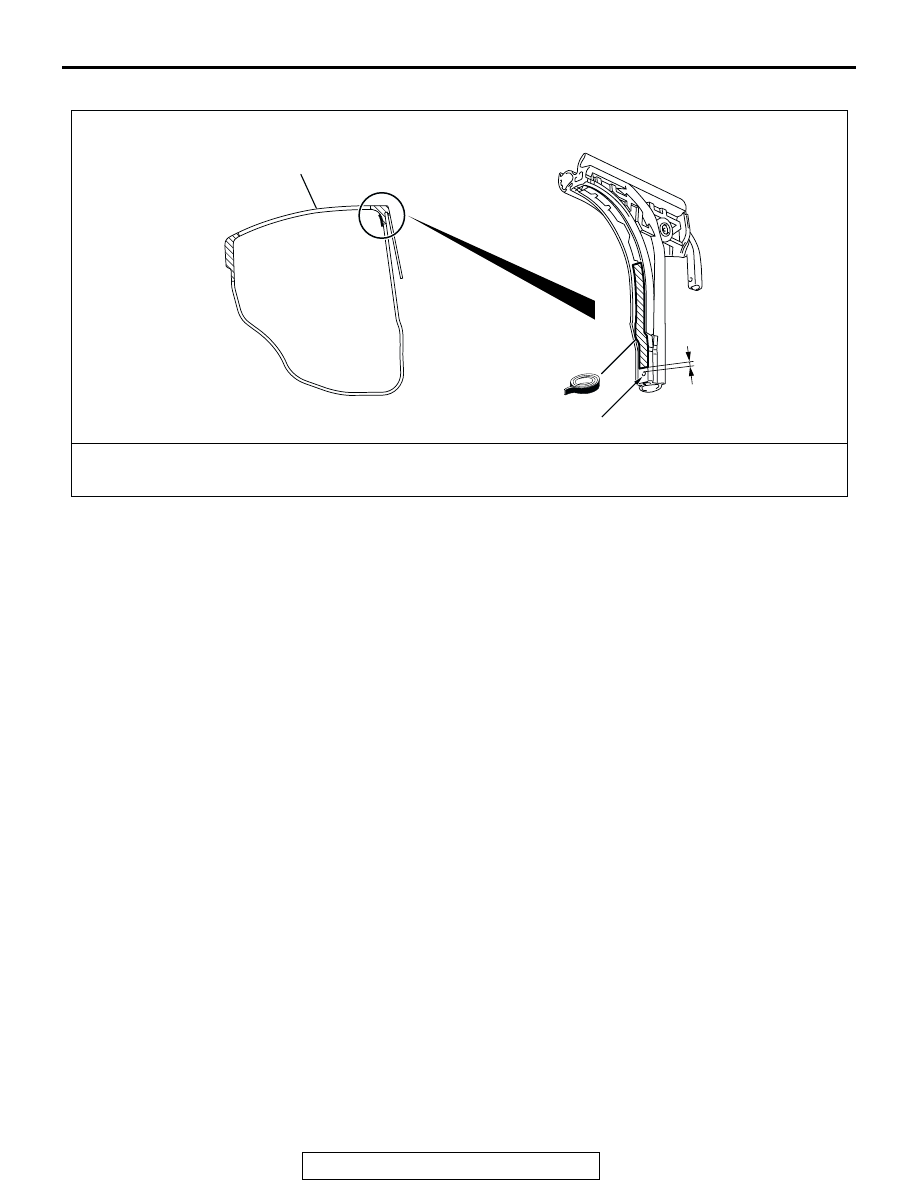

DOUBLE-SIDED TAPE POSITION

AC306731

AC306381

AC306382

AB

3 (0.12)

UNITS: mm (in)

CLIP HOLE

<REAR DOOR>

ADHESIVE TAPE: DOUBLE-SIDED TAPE [ 7 mm (0.28 in) WIDTH, 50 mm (1.97 in) LENGTH AND 0.8 mm (0.031 in)
THICKNESS ]

DOOR OPENING OUTER
WEATHERSTRIP

DOOR

TSB Revision

BODY

42-58

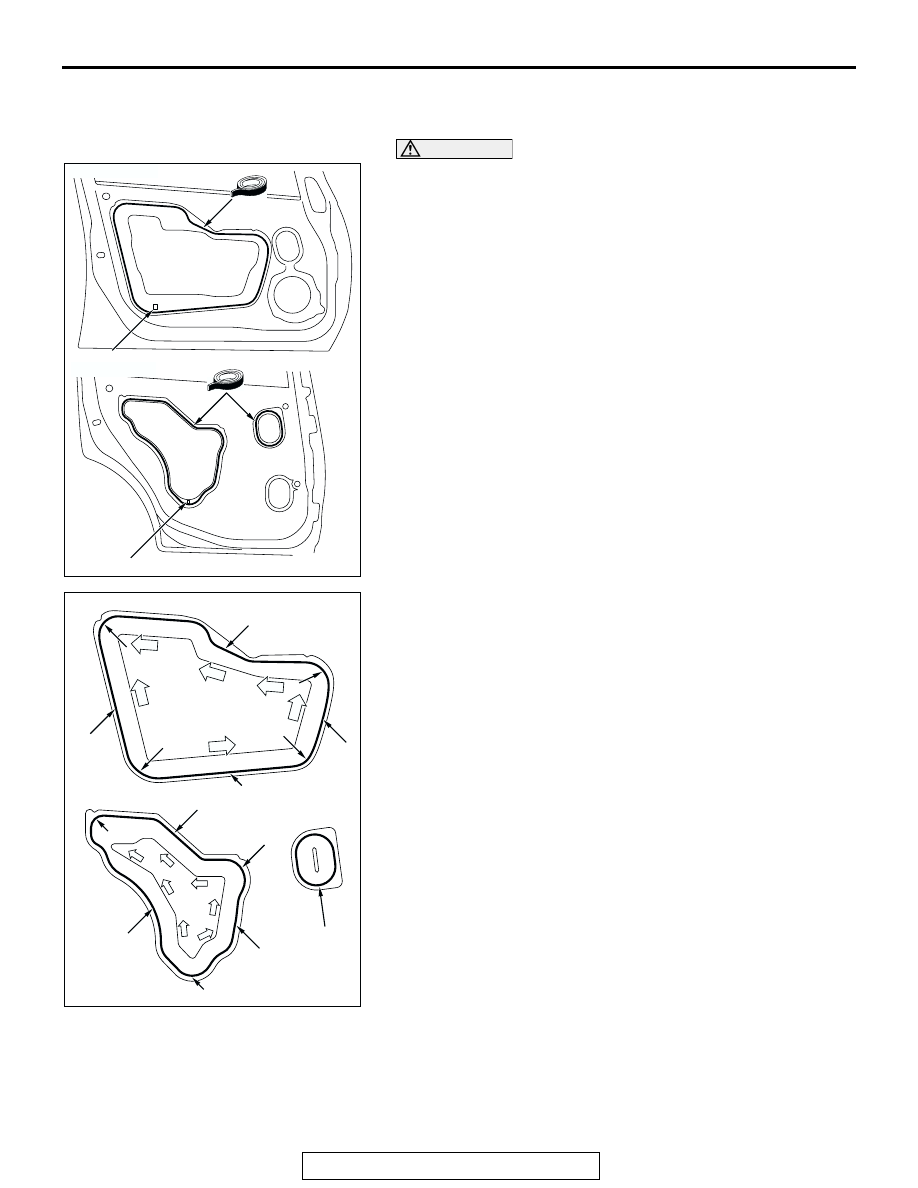

INSTALLATION SERVICE POINTS

.

>>A<< WATERPROOF FILM INSTALLATION

CAUTION

When the waterproof film is adhered, be careful that
3M

AAD Part number 8633 or equivalent can pass under

the inner panel water drain hole.

1. Stick the waterproof film to the door in sequence as shown.
2. Press the waterproof film toward the arrow in the illustration.

.

AC306365

AC306366

AC306738

<FRONT DOOR>

<REAR DOOR>

AB

INNER PANEL WATER DRAIN HOLE

INNER PANEL WATER DRAIN HOLE

AC306357

AC306358

AC306737

<FRONT DOOR>

<REAR DOOR>

AB

7

6

8

2

3

3

1

6

7

4

4

5

5

2

1
