Mitsubishi Galant (2004+). Manual - part 566





DOOR

TSB Revision

BODY

42-43

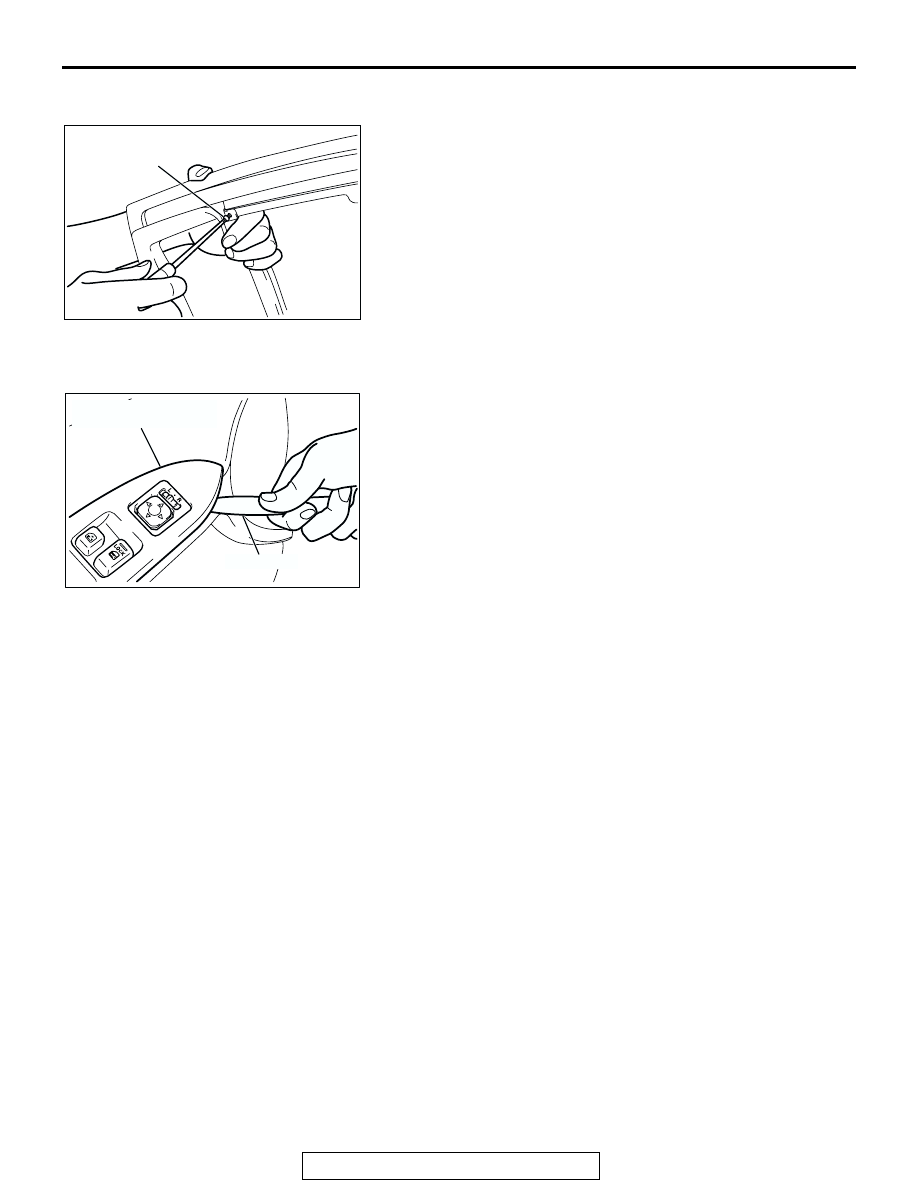

<<B>> REAR DOOR STATIONARY WINDOW GLASS
ASSEMBLY REMOVAL
Remove the mounting screw of the top of the rear door station-
ary window glass assembly (the screw is hidden by the mold-
ing).

.

<<C>> POWER WINDOW SWITCH PANEL ASSEMBLY
REMOVAL
Insert special tool MB990784 as shown to remove the power
window switch panel assembly.

AC306498 AB

SCREW

AC306721

MB990784

POWER WINDOW SWITCH
PANEL ASSEMBLY

AB

DOOR

TSB Revision

BODY

42-44

INSPECTION

M1429001400293

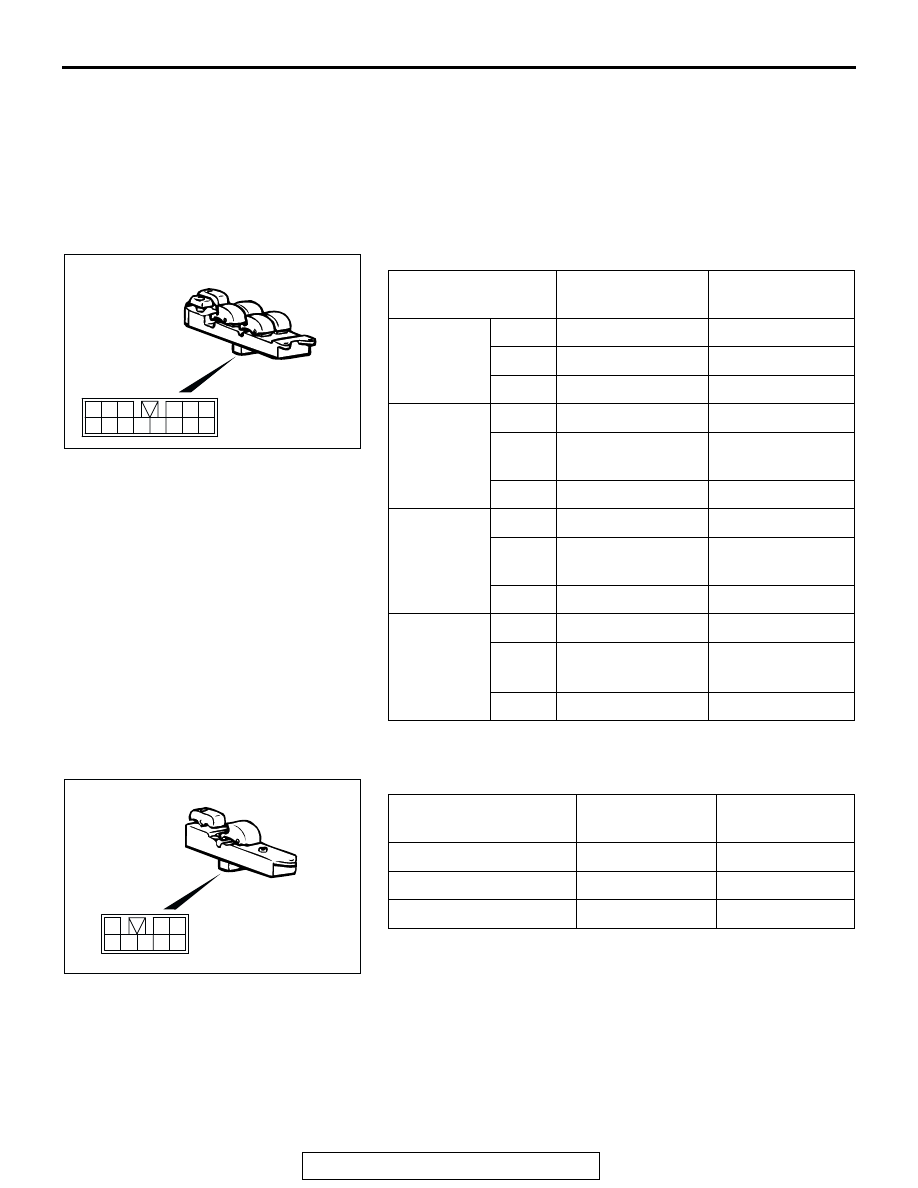

POWER WINDOW SWITCH CONTINUITY CHECK

Remove the power window switch. (Refer to

P.42-39

.)

.

Power window main switch's front <LH> switch check
Connect terminal number 13 to the battery positive (+) post,
and connect terminal number 12 to the battery negative (

−)

post.
Main switch

NOTE: *: Set the window lock switch to UNLOCK position.

.

Sub switch <Front>

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

FRONT
(LH)

UP

− 13, 9 − 12,

Less than 2 ohms

OFF

− 12, 9 − 12

Less than 2 ohms

DOWN 9

− 13, 8 − 12

Less than 2 ohms

FRONT
(RH)

UP

− 13, 11 − 12*

Less than 2 ohms

OFF

− 11, 3 − 12*, 11 −

12*

Less than 2 ohms

DOWN 11

− 13, 3 − 12*

Less than 2 ohms

REAR (LH)

UP

− 13, 2 − 12*

Less than 2 ohms

OFF

− 2, 1 − 12*, 2 −

12*

Less than 2 ohms

DOWN 2

− 13, 1 − 12*

Less than 2 ohms

REAR (RH) UP

13

− 14, 6 − 12*

Less than 2 ohms

OFF

− 14, 6 − 12*, 12*

− 14

Less than 2 ohms

DOWN 6

− 13, 12* − 14

Less than 2 ohms

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

− 5, 6 − 7

Less than 2 ohms

OFF

− 5, 6 − 8

Less than 2 ohms

DOWN

− 7, 6 − 8

Less than 2 ohms

AC210745

12

7

1

8

2

10

9

3

11

13

5

4

14

6

AC210746

8

3

4 5

1

2

6 7

AD

<FRONT>

DOOR

TSB Revision

BODY

42-45

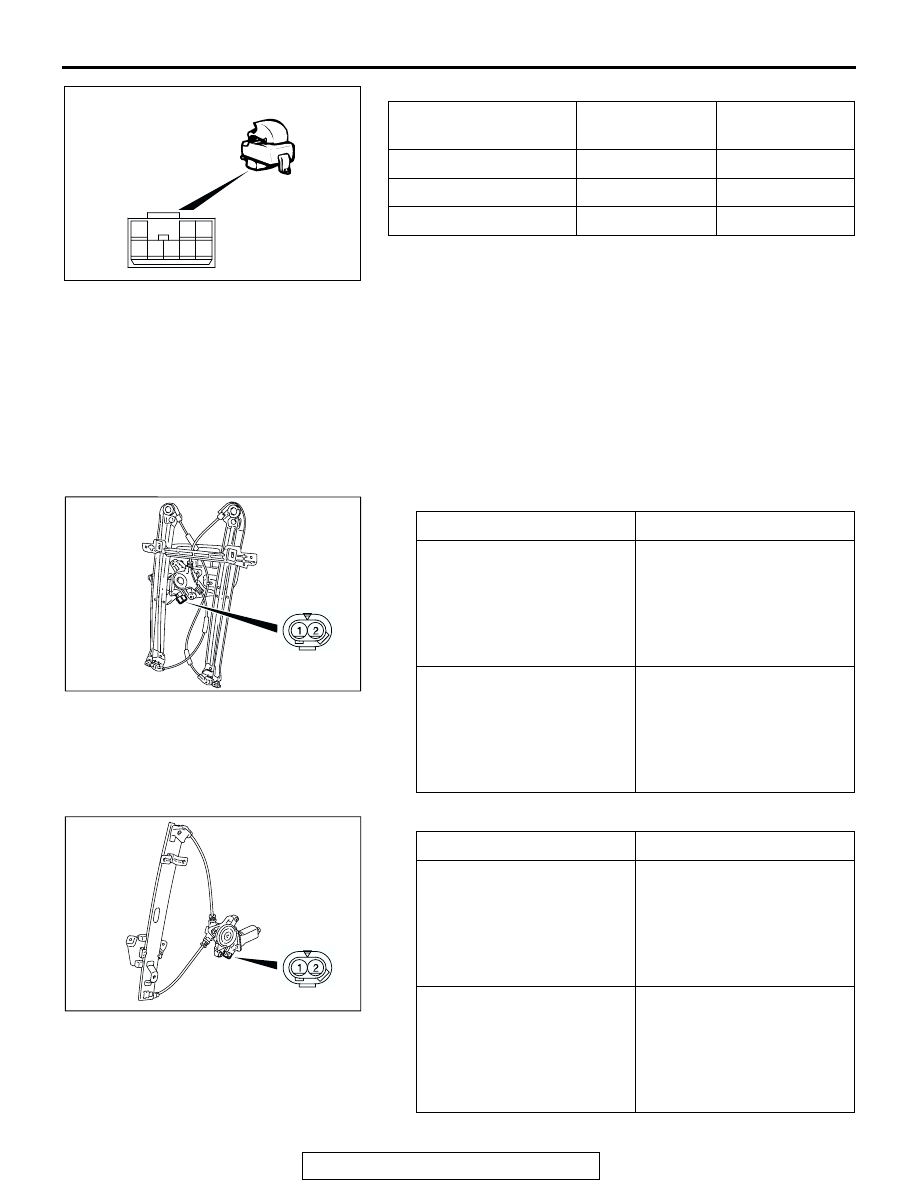

Sub switch <Rear>

DOOR WINDOW REGULATOR CHECK

.

1. Connect a battery directly to the motor terminals and check

that the motor runs smoothly.

2. Check that the motor runs in the opposite direction when the

battery is connected with the polarity reversed.

3. If a defect is found, replace the window regulator as an

assembly.

.

<Front door>

.

<Rear door>

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

− 5, 6 − 7

Less than 2 ohms

OFF

− 5, 7 − 8

Less than 2 ohms

DOWN

− 6, 7 − 8

Less than 2 ohms

AC210747

8

3

1

4 5 6

2

7

AB

<REAR>

BATTERY CONNECTION

SLIDER POSITION

• Connect terminal No. 1

and the negative battery
terminal.

• Connect terminal No. 2

and the positive battery
terminal.

UP

• Connect terminal No. 2

and the negative battery
terminal.

• Connect terminal No. 1

and the positive battery
terminal.

DOWN

BATTERY CONNECTION

SLIDER POSITION

• Connect terminal No. 1

and the negative battery
terminal.

• Connect terminal No. 2

and the positive battery
terminal.

UP

• Connect terminal No. 2

and the negative battery
terminal.

• Connect terminal No. 1

and the positive battery
terminal.

DOWN

1 2

AC204901AB

1 2

AC206013AB

DOOR

TSB Revision

BODY

42-46

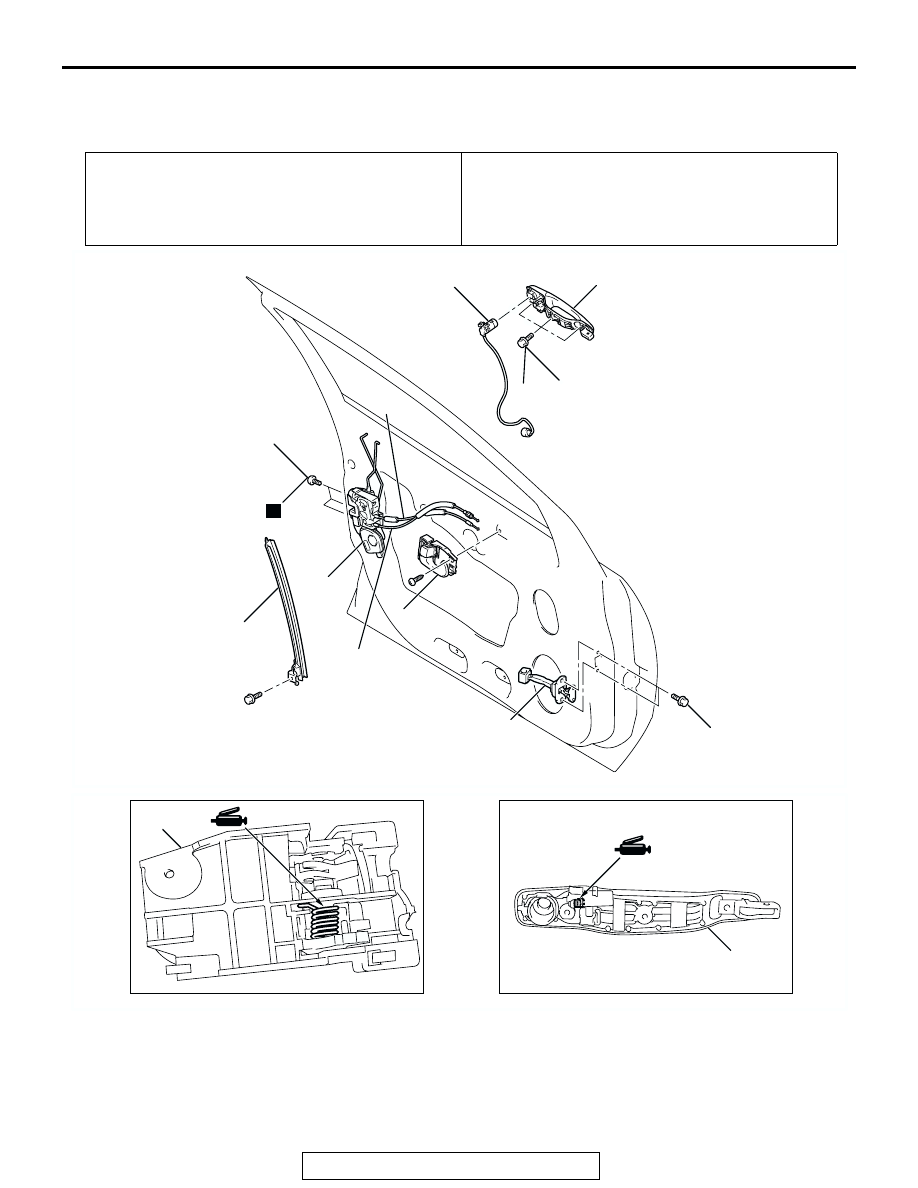

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004600340

Pre-removal Operation
• Door Trim Assembly Removal (Refer to GROUP 52A

Door Trim

P.52A-13

).

Post-installation Operation
• Door Inside Handle Play Check (Refer to

P.42-35

).

• Door Outside Handle Play Check (Refer to

P.42-34

).

• Door Trim Assembly Installation (Refer to GROUP 52A,

Door Trim

P.52A-13

).

AC306165

1

2

3

4

5

8

6

7

9

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.9 ± 1.0 N·m
52 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

AB

<FRONT DOOR>

N

AC306499

AC306729

AC209702

AB

1

7

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS

1. DOOR INSIDE HANDLE

WATERPROOF FILM (REFER TO

P.42-52

).

>>B<<

2. LOWER SASH
3. DOOR LATCH ASSEMBLY

4. INSIDE LOCK CABLE
5. INSIDE HANDLE CABLE
6. DOOR OUTSIDE HANDLE

MOUNTING BOLT

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS
