DOOR

TSB Revision

BODY

42-39

INSPECTION

M1423006000333

DOOR SWITCH CHECK

Check continuity between the switch terminals and body
ground.

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

M1429001300326

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− body ground

Less than 2 ohms

Depressed (OFF)

1

− body ground

Open circuit

1 2 3

ACX01865AB

ON

OFF

Pre-removal Operation
• Door Trim Assembly Removal (Refer to GROUP 52A

Door Trim

P.52A-13

).

• Waterproof Film Removal (Refer to

P.42-52

).

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-31

).

• Waterproof Film Installation (Refer to

P.42-52

).

• Door Trim Assembly Installation (Refer to GROUP 52A,

Door Trim

P.52A-13

).

AC306511

AC306163

AC210316

AB

2

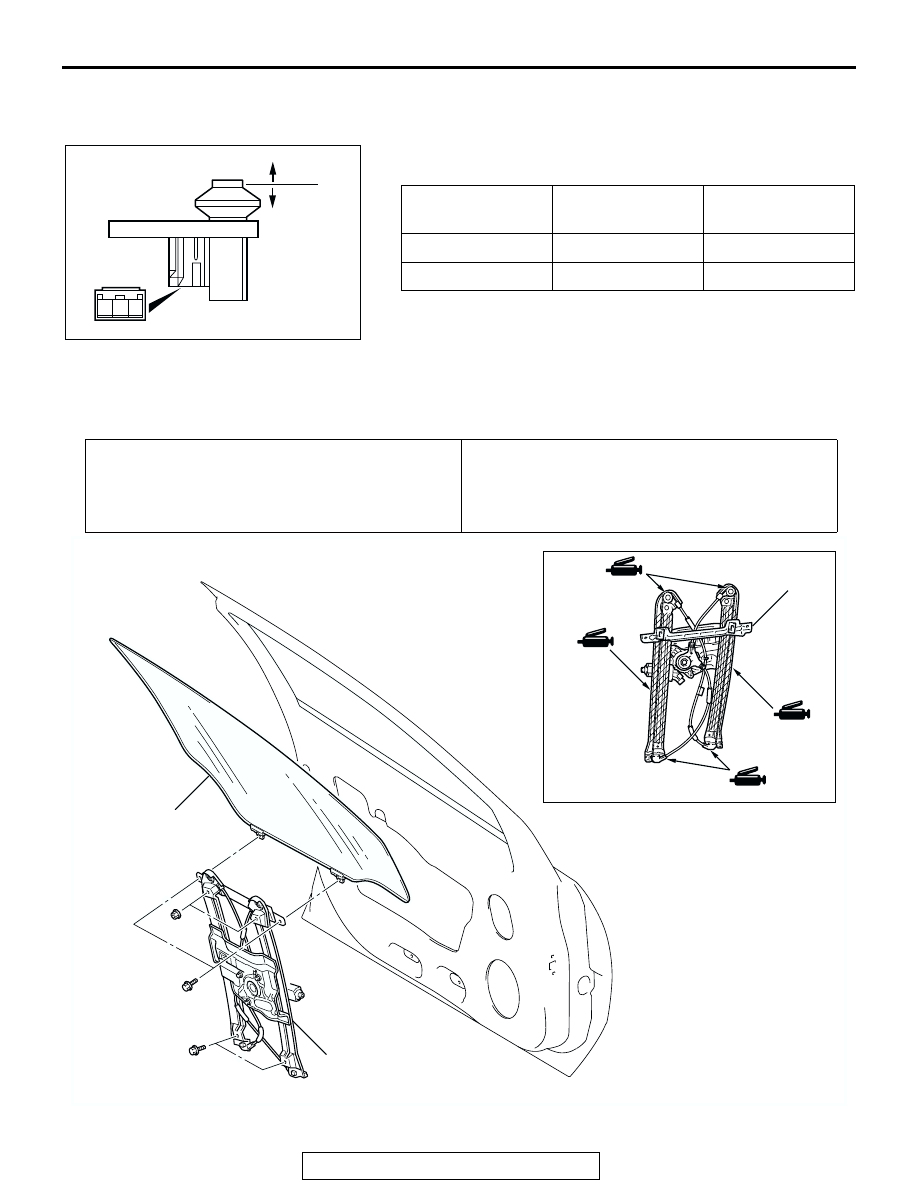

<FRONT DOOR WINDOW REGULATOR ASSEMBLY>

2

1

DOOR

TSB Revision

BODY

42-40

Required Special Tool:

• MB990784: Ornament Remover

DOOR WINDOW REGULATOR
ASSEMBLY REMOVAL STEPS

•

DOOR BELTLINE MOLDING
(REFER TO

P.42-52

).

1. DOOR WINDOW GLASS
2. WINDOW REGULATOR ASSEMBLY

DOOR WINDOW REGULATOR
ASSEMBLY REMOVAL STEPS

AC306515

AC307259

AC306722

AC306724

AC206827

AB

NOTE
         : CLAW POSITIONS

A

3

VIEW A

4

5

SECTION B – B

SECTION C – C

B

B

C

C

C

C

C

C

C

C

C

CLAW

CLAW

TRIM

TRIM

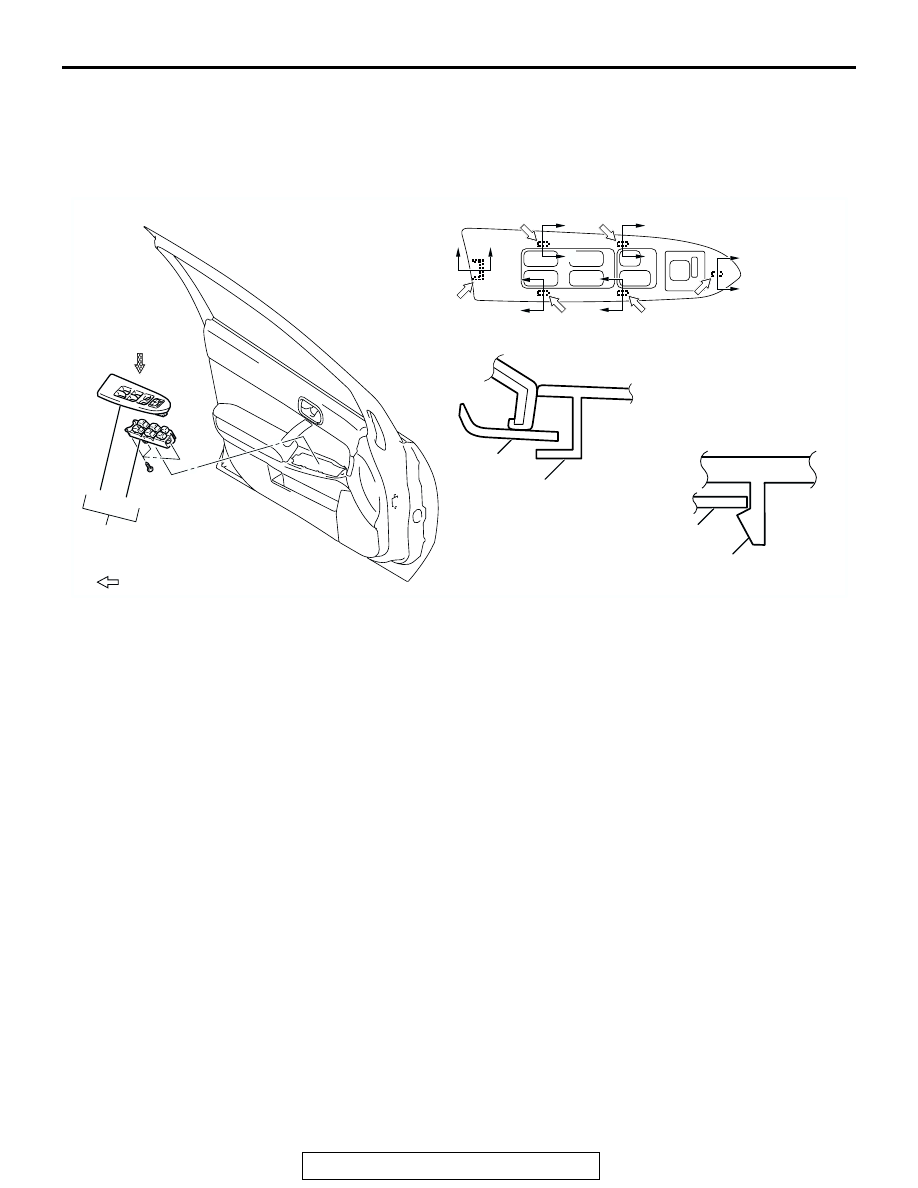

<FRONT DOOR POWER WINDOW SWITCH>

C

POWER WINDOW SWITCH
REMOVAL STEPS

<<C>>

3. POWER WINDOW SWITCH PANEL

ASSEMBLY

4. POWER WINDOW SWITCH PANEL
5. POWER WINDOW MAIN SWITCH

(LH), POWER WINDOW SUB
SWITCH (RH)

DOOR

TSB Revision

BODY

42-41

Required Special Tool:

• MB990480: Window Glass Holder

AC306512

AC306164

AC210317

AB

1

1

3

2

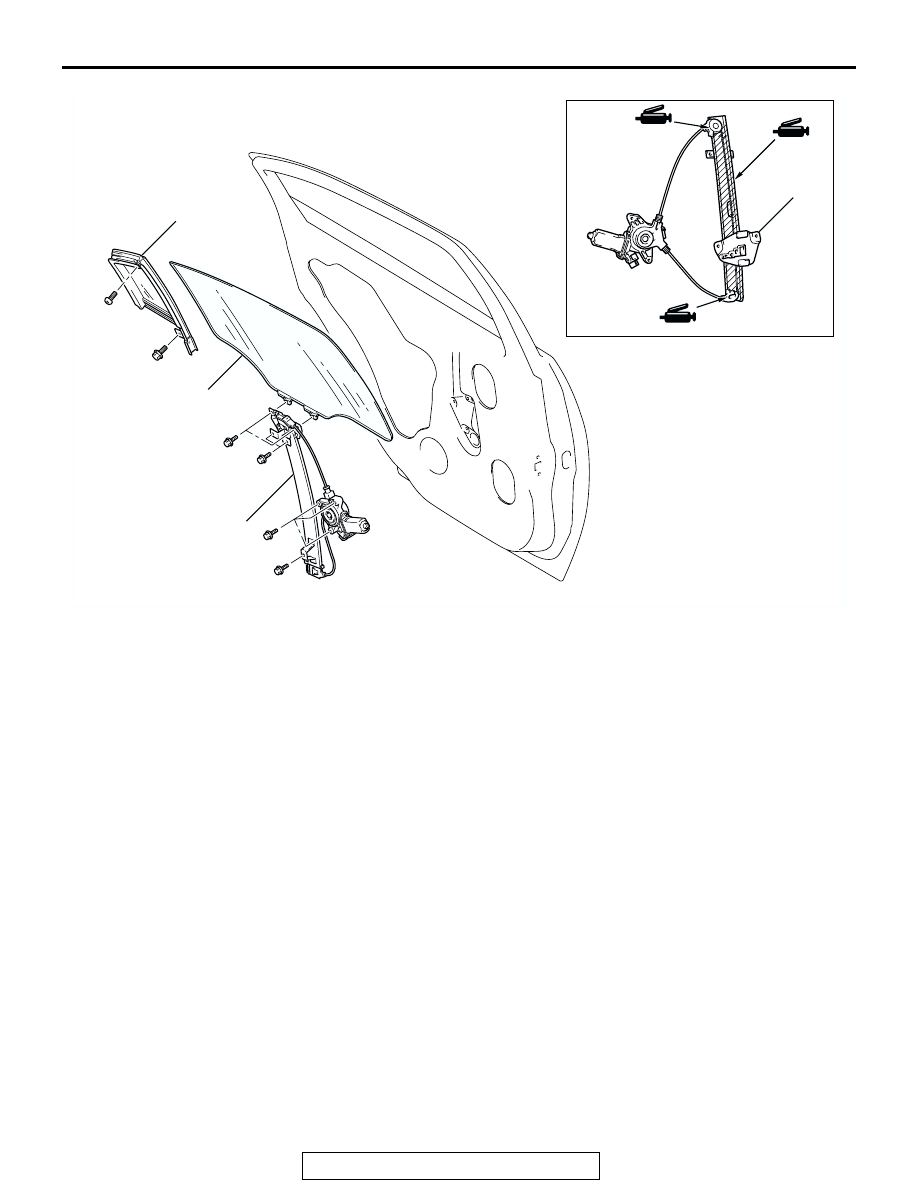

<REAR DOOR WINDOW REGULATOR ASSEMBLY>

DOOR WINDOW REGULATOR
ASSEMBLY REMOVAL

<<A>>

1. WINDOW REGULATOR ASSEMBLY

DOOR WINDOW GLASS REMOVAL
STEPS

•

DOOR WINDOW GLASS
RUNCHANNEL (REFER TO

P.42-52

).

•

DOOR BELTLINE MOLDING
(REFER TO

P.42-52

).

•

LOWER SASH (REFER TO

P.42-46

).

<<B>>

2. REAR DOOR STATIONARY

WINDOW GLASS ASSEMBLY

3. DOOR WINDOW GLASS

DOOR WINDOW GLASS REMOVAL
STEPS (Continued)

DOOR

TSB Revision

BODY

42-42

Required Special Tool:

• MB990784: Ornament Remover

REMOVAL SERVICE POINTS

.

<<A>> WINDOW REGULATOR ASSEMBLY REMOVAL
1. Remove the door window glass installation bolts.

CAUTION

If tinting film is adhered to the door window glass, attach
special tool MB990480 to the outside of the glass to pre-
vent the film from peeling off.
2. Lift the door window glass, and attach special tool

MB990480 to the glass as shown to prevent the glass from
falling.

3. Remove the window regulator assembly and power window

motor assembly.

.

AC307260

AC306516

AC306723

AC306724

AC206827

AB

NOTE
         : CLAW POSITIONS

A

3

VIEW A

4

5

SECTION B – B

SECTION C – C

B

B

C

C

C

C

C

C

C

C

C

CLAW

CLAW

TRIM

TRIM

C

C

C

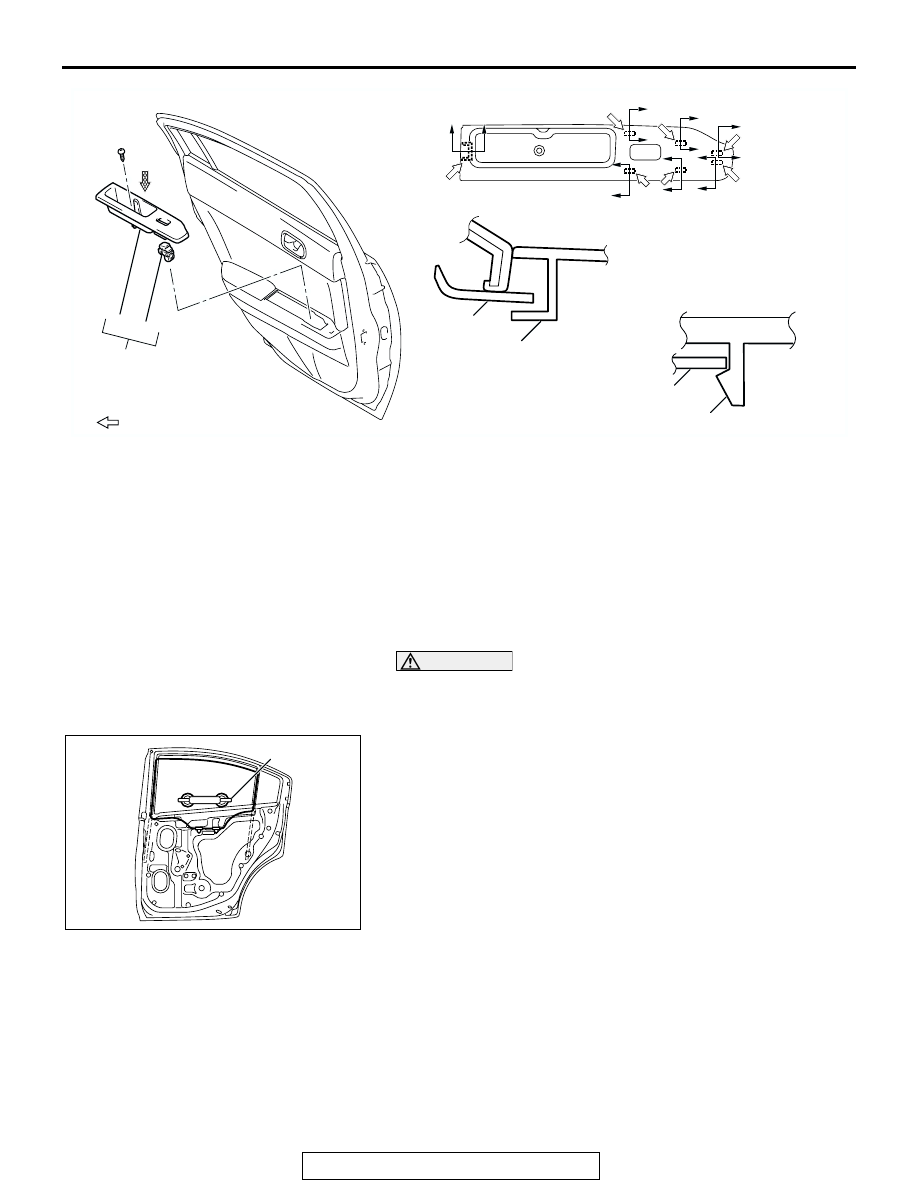

<REAR DOOR POWER WINDOW SWITCH>

POWER WINDOW SWITCH
REMOVAL STEPS

<<C>>

4. POWER WINDOW SWITCH PANEL

ASSEMBLY

5. POWER WINDOW SWITCH PANEL
6. POWER WINDOW SUB SWITCH

AC308968

AB

MB990480
