BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-7

STEP 5. Check for insufficient clearance between the push
rod and primary piston.

Refer to

P.35A-26

.

Q: Is there a fault?

YES : Adjust the clearance. Then go to Step 9.
NO :  Go to Step 6.

STEP 6. Check the master cylinder piston return spring for
damage and return port for clogging.

Refer to

P.35A-29

.

Q: Is there damage?

YES : Replace the part. Then go to Step 9.
NO :  Go to Step 7.

STEP 7. Check port for clogging.
Q: Is the port clogged?

YES : Repair it. Then go to Step 9.
NO :  Go to Step 8.

STEP 8. Check disc brake pistons for sticking.

Depress the brake pedal, then release. Confirm each wheel
spins freely.
Q: Does any wheel stick?

YES : Inspect that brake assembly. Then go to Step 9.
NO :  Go to Step 9.

STEP 9. Recheck symptom.
Q: Is the symptom eliminated?

YES : The procedure is complete.
NO :  Start over at step 1. If a new symptom surfaces, refer

to the symptom chart.

INSPECTION PROCEDURE 5: Scraping or Grinding Noise when Brakes are Applied

.

DIAGNOSIS

STEP 1. Check the front brakes, then rear brakes, for
metal-to-metal condition.
Q: Is any metal-to-metal contact evident?

YES : Repair or replace the components. Then go to Step 6.
NO :  Go to Step 2.

STEP 2. Check for interference between the caliper and
wheel.
Q: Is there any interference?

YES : Repair or replace the part. Then go to Step 6.
NO :  Go to Step 3.

BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-8

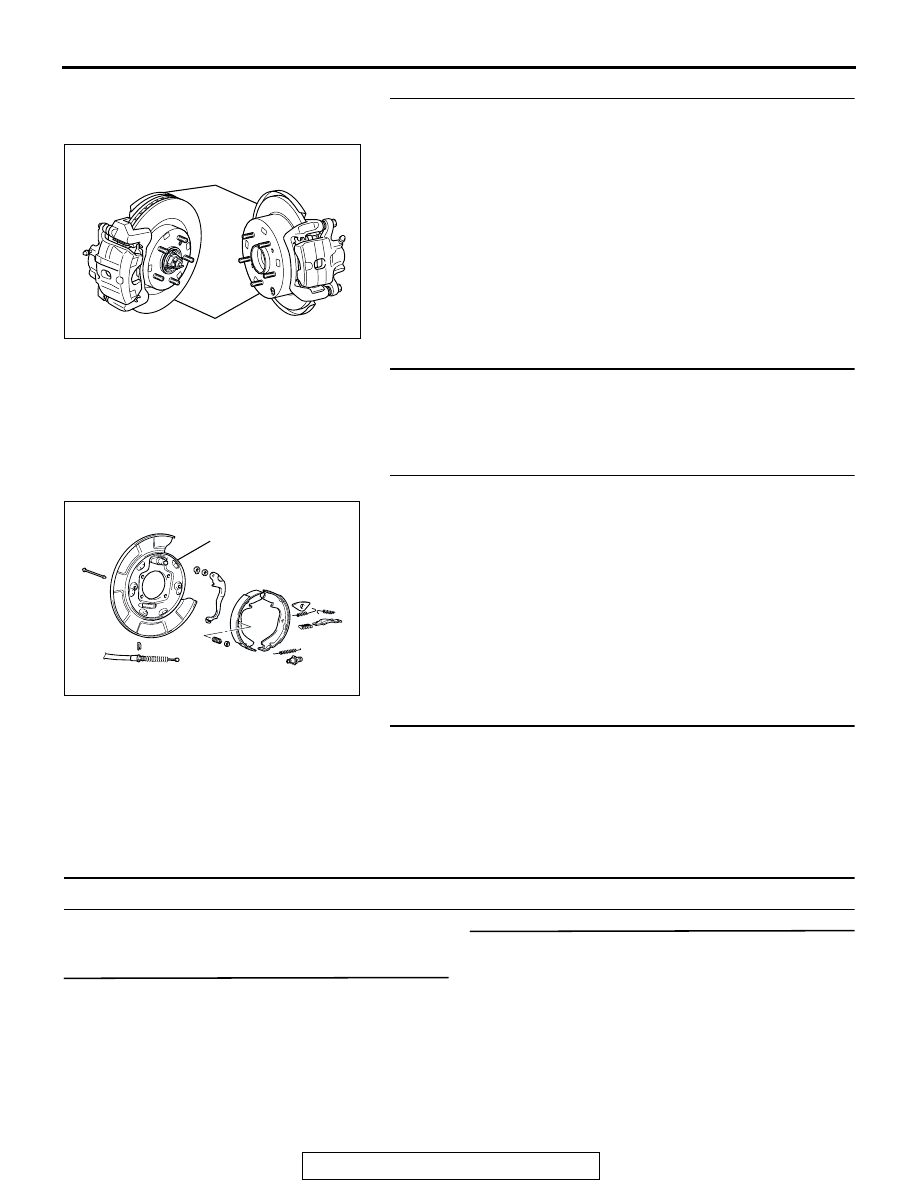

STEP 3. Check for interference between the dust cover and
brake disc.

Q: Is there any interference?

YES : Repair or replace the part. Then go to Step 6.
NO :  Go to Step 4.

STEP 4. Check the brake drums or discs for cracks.
Q: Are there cracks?

YES : Repair or replace the part. Then go to Step 6.
NO :  Go to Step 5.

STEP 5. Check for bent backing plate(s).

Q: Is (Are) the backing plate(s) bent?

YES : Repair or replace the part. Then go to Step 6.
NO :  Go to Step 6.

STEP 6. Recheck symptom.
Q: Is the symptom eliminated?

YES : The procedure is complete.
NO :  Start over at step 1. If a new symptom surfaces, refer

to the symptom chart.

INSPECTION PROCEDURE6: Squealing, Groaning or Chattering Noise when Brakes are Applied

.

DIAGNOSIS

STEP 1. Check the brake disc and pads for wear
or cutting.

Q: Is there wear or cutting?

YES :

Repair or replace the part. Then go to Step

4.

NO :

Go to Step 2.

STEP 2. Check the calipers for rust.

Q: Is there any rust?

YES :

Remove the rust. Then go to Step 4.

NO :

Go to Step 3.

AC306518

DUST COVER

BRAKE DISC

AB

<FRONT>                     <REAR>

AC210519 AD

BACKING PLATE

<REAR>

BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-9

STEP 3. Adjust the brake pedal or brake booster
pushrod.

Refer to

P.35A-13

 or

P.35A-26

.

Q: Are the brake pedal and the brake booster pushrod

adjusted correctly?

YES :

Go to Step 4.

NO :

Adjust the brake pedal or the brake booster
pushrod. Then go to Step 4.

STEP 4. Recheck symptom.

Q: Is the symptom eliminated?

YES :

The procedure is complete.

NO :

Start over at step 1. If a new symptom
surfaces, refer to the symptom chart.

INSPECTION PROCEDURE 7: Squealing Noise when Brakes are not Applied

DIAGNOSIS

.

STEP 1. Check whether the backing plate is bent or loose
and interfering with the drum.
Q: Is there a fault?

YES : Replace the part. Then go to Step 10.
NO :  Go to Step 2.

STEP 2. Check whether the drum is damaged due to
interference with the backing plate or shoe.
Q: Is there any damage?

YES : Replace the part. Then go to Step 10.
NO :  Go to Step 3.

STEP 3. Check the brake drum for wear and the shoe
spring for damage.
Q: Is there any wear or damage?

YES : Replace the part. Then go to Step 10.
NO :  Go to Step 4.

STEP 4. Check the brake discs for rust.
Q: Are the brake discs rusted?

YES : Remove the rust by using sand paper. If still rusted,

turn the rotors with an on-the-car brake lathe. Then go
to Step 10.

NO :  Go to Step 5.

STEP 5. Check the brake pads for correct installation.
Q: Are the pads installed incorrectly?

YES : Repair the pads. Then go to Step 10.
NO :  Go to Step 6.

STEP 6. Check the calipers for correct installation.
Q: Are the calipers installed incorrectly?

YES : Repair the calipers. Then go to Step 10.
NO :  Go to Step 7.

BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE SYSTEM

35A-10

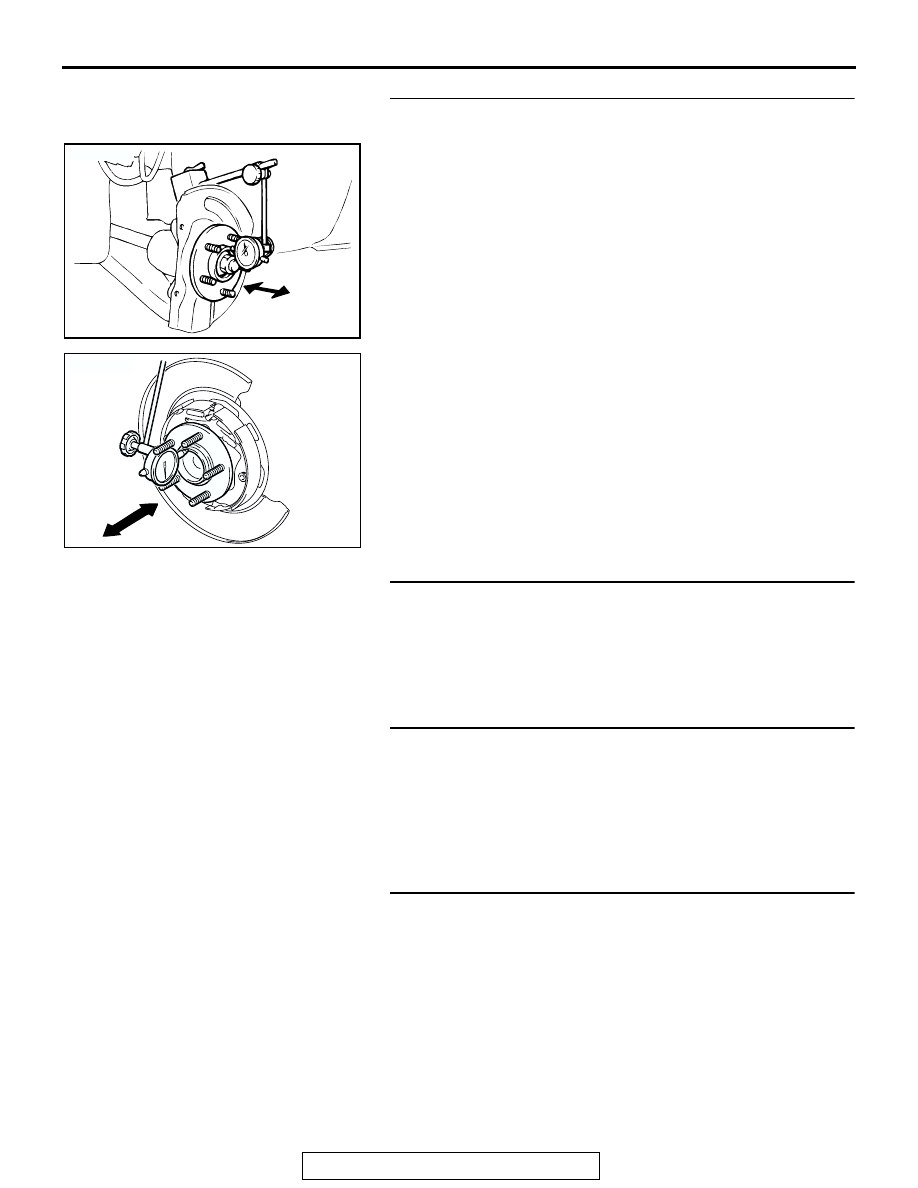

STEP 7. Check the wheel bearings for end play.

(1) Remove the brake discs.
(2) Place a dial gauge as shown, and measure the end play

while moving the hub in the axial direction.

Limit: 0.05 mm (0.002 inch)

Q: Does the measured end play exceed the limit?

YES : Replace the faulty hub assembly. Then go to Step 10.
NO :  Go to Step 8.

STEP 8. Check whether the brake booster or master
cylinder return is insufficient.
Q: Is the brake booster or master cylinder return

insufficient?
YES : Replace the part. Then go to Step 10.
NO :  Go to Step 9.

STEP 9. Adjust the brake pedal or brake booster pushrod.

Refer to

P.35A-13

 or

P.35A-26

.

Q: Are the brake pedal and the brake booster pushrod

adjusted correctly?
YES : Go to Step 10.
NO :  Adjust the brake pedal or the brake booster pushrod.

Then go to Step 10.

STEP 10. Recheck symptom.
Q: Is the symptom eliminated?

YES : The procedure is complete.
NO :  Start over at step 1. If a new symptom surfaces, refer

to the symptom chart.

AC102438 AC

<FRONT>

AC205869AC

<REAR>
