CONTROLLER AREA NETWORK (CAN)

54C-595

(4) Measure the resistance between joint connector (3)

terminal 5 and ETACS-ECU connector terminal 72.

OK: 2 ohms or less

(5) Measure the resistance between joint connector (3)

terminal 16 and ETACS-ECU connector terminal 73.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, power

supply to the ETACS-ECU may be suspected.
Diagnose the SWS. Refer to GROUP 54B, Symptom
procedures

P.54B-79

.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between joint
connector (3) and the ETACS-ECU connector.

AC204582

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

51

53

54

52

55

56

595857

60

69

62

71 70

61

64

65

67

7372

66

63

74

68

TEST
HARNESS

CN

TEST
HARNESS

HARNESS SIDE: C-02

HARNESS SIDE: C-218

AC204582

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

51

53

54

52

55

56

595857

60

69

62

71 70

61

64

65

67

7372

66

63

74

68

TEST
HARNESS

CL

HARNESS SIDE: C-02

HARNESS SIDE: C-218

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-596

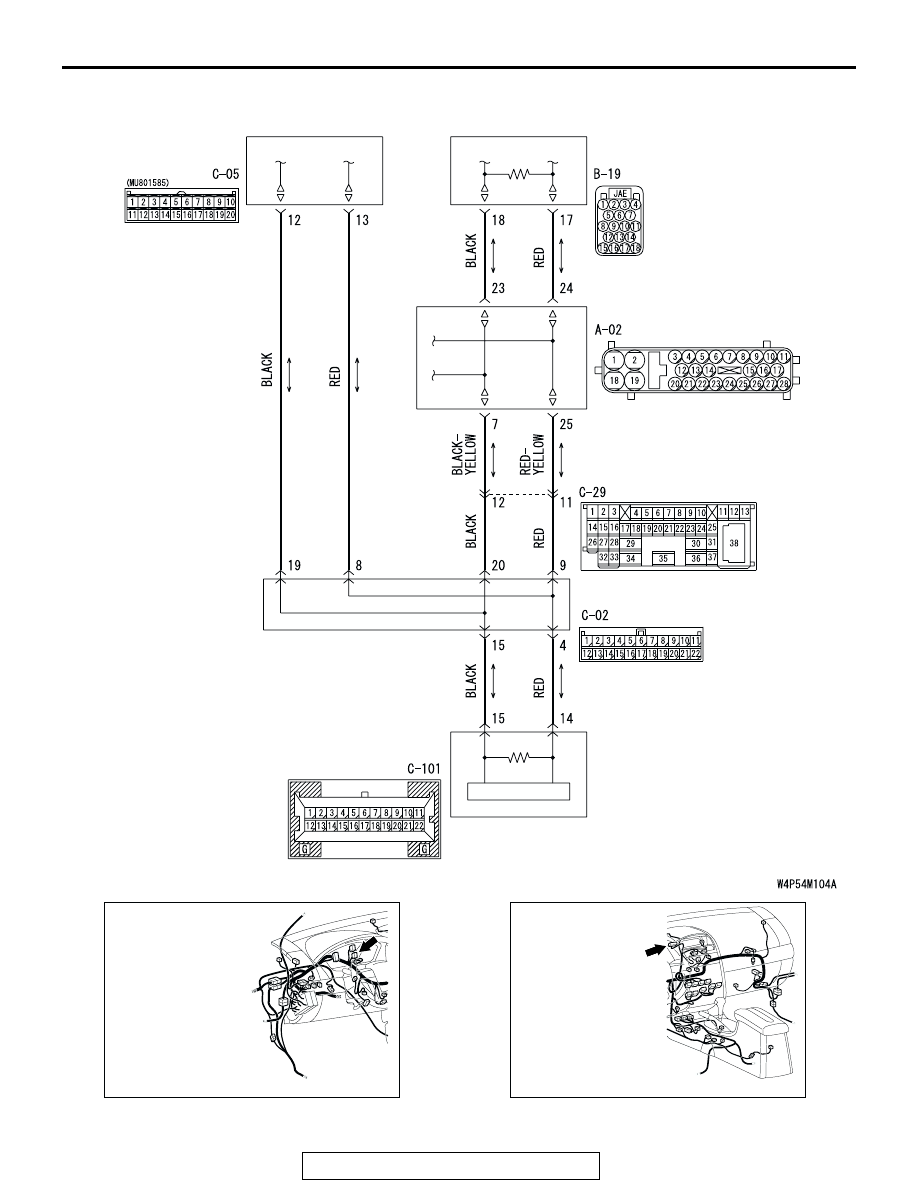

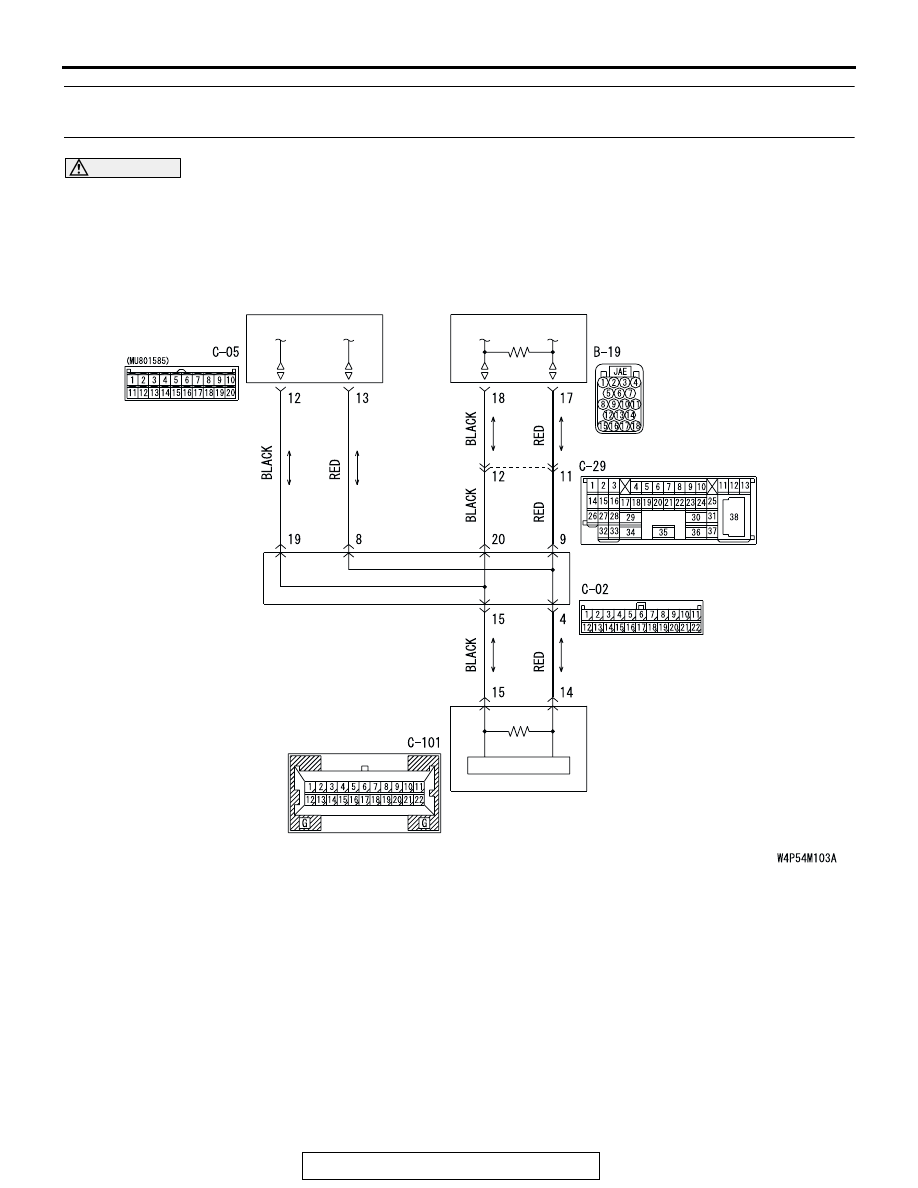

DIAGNOSTIC ITEM 21: Diagnose the lines between CAN main bus line and the multi-center display
(middle-grade type)

CAUTION

When servicing a CAN bus line, ground yourself
by touching a metal object such as an unpainted
water pipe. If you fail to do so, a component con-
nected to the CAN bus line may be damaged.

JOINT
CONNECTOR (3)

COMBINATION
METER

POWERTRAIN
CONTROL MODULE

<WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
 AND ANTI-LOCK BRAKING SYSTEM (ABS)>

MULTI CENTER
DISPLAY UNIT

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-597

.

JOINT
CONNECTOR (3)

COMBINATION
METER

POWERTRAIN
CONTROL MODULE

<WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
 AND ANTI-LOCK BRAKING SYSTEM (ABS)>

MULTI CENTER
DISPLAY UNIT

ABS-ECU

AC305231BD

CONNECTOR: C-02

AC305233 AL

CONNECTOR: C-05

C-05 (B)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-598

TROUBLE JUDGMENT
If the MUT-III cannot received signals from the
multi-center display unit (middle-grade type), CAN
bus line connector(s) are broken or an open circuit
has occurred.

.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or multi-center display
unit (middle-grade type) may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damage terminals, or termi-
nals pushed back in the connector

• The multi-center display unit (middle-grade type)

may be defective

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check joint connector (3) C-02 and multi-center
display unit (middle-grade type) connector C-05 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Are joint connector (3) C-02 and multi-center display

unit (middle-grade type) connector C-05 in good
condition?
YES : Go to Step 2.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC305231AP

CONNECTOR: C-02

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN
