CONTROLLER AREA NETWORK (CAN)

54C-587

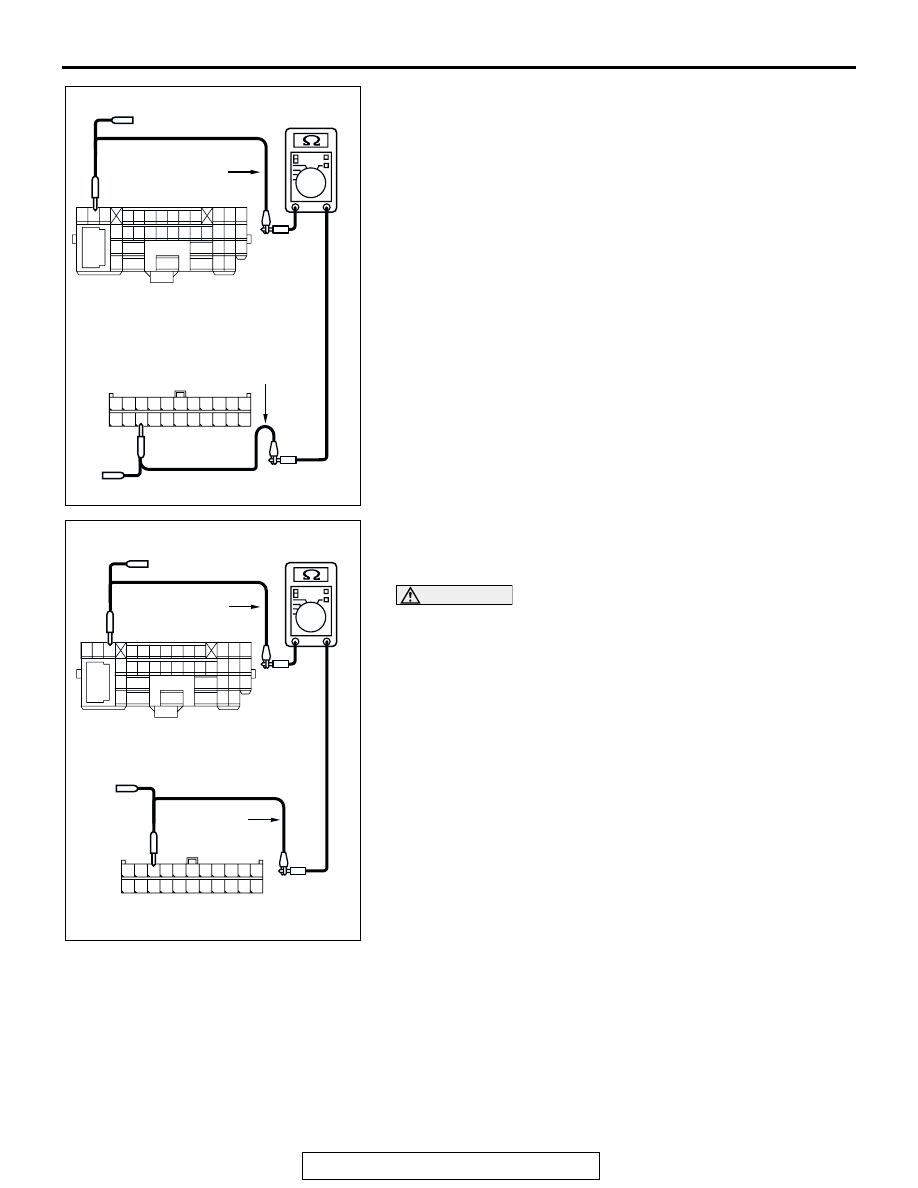

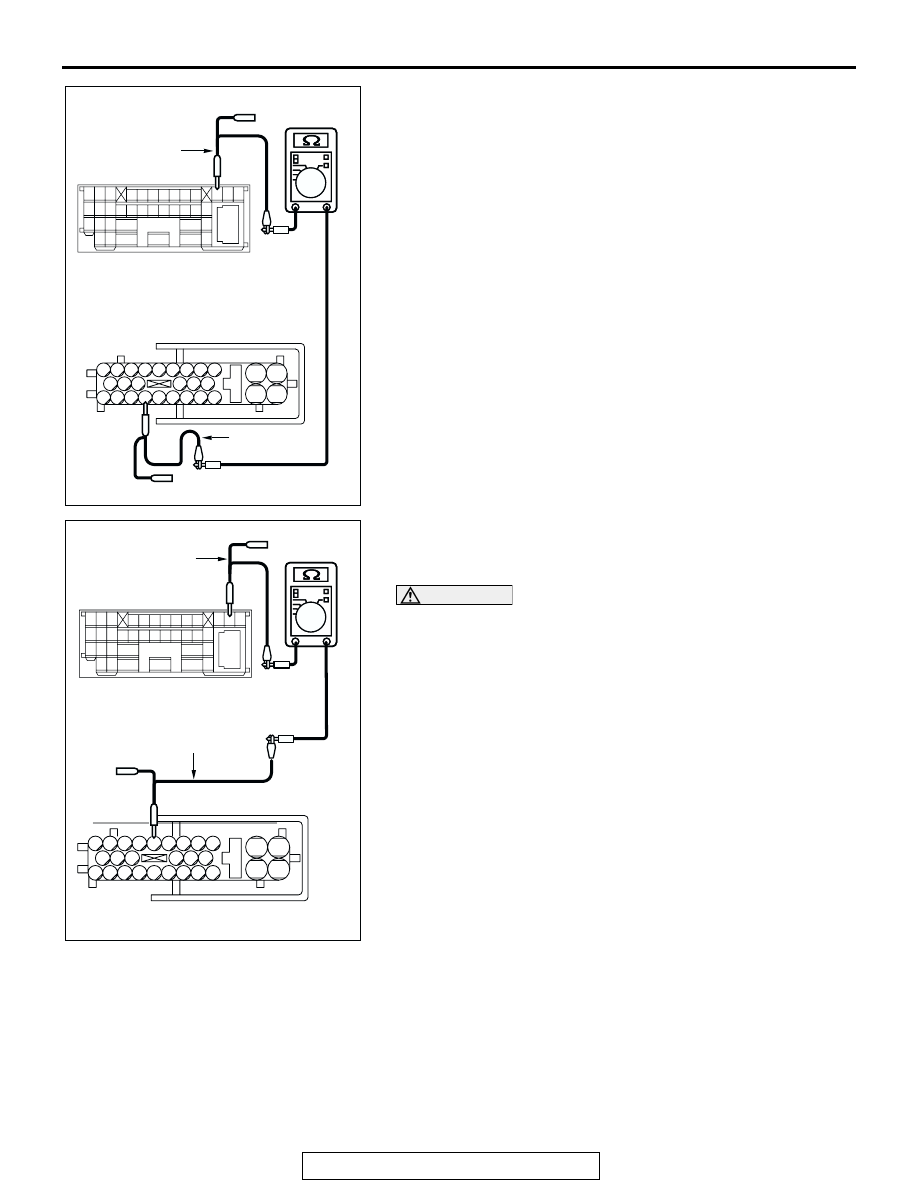

(4) Measure the resistance between intermediate connector

terminal 11 and ABS-ECU connector terminal 25.

OK: 2 ohms or less

(5) Measure the resistance between intermediate connector

terminal 12 and ABS-ECU connector terminal 7.

OK: 2 ohms or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Do all the resistances measure 2 ohms or less?

YES : If all the resistances measure 2 ohms or less, go to

Step 3.

NO :  If either of the resistances measures more than 2

ohms or all the resistances measure more than 2
ohms, repair the wiring harness between intermediate
connector C-29 and the ABS-ECU connector.

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204582

TEST
HARNESS

19

18

2

1

25

8

15

16

17

27

28

26

11

9

10

12

13

14

23

24

22 21

7

6

5

4

20

3

TEST
HARNESS

HARNESS SIDE: A-02

CP

MALE SIDE: C-29

AC204582

AC204582

19

18

2

1

25

8

15

16

17

27

28

26

11

9

10

12

13

14

23

24

22 21

7

6

5

4

20

3

TEST HARNESS

TEST
HARNESS

CO

HARNESS SIDE: A-02

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

MALE SIDE: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-588

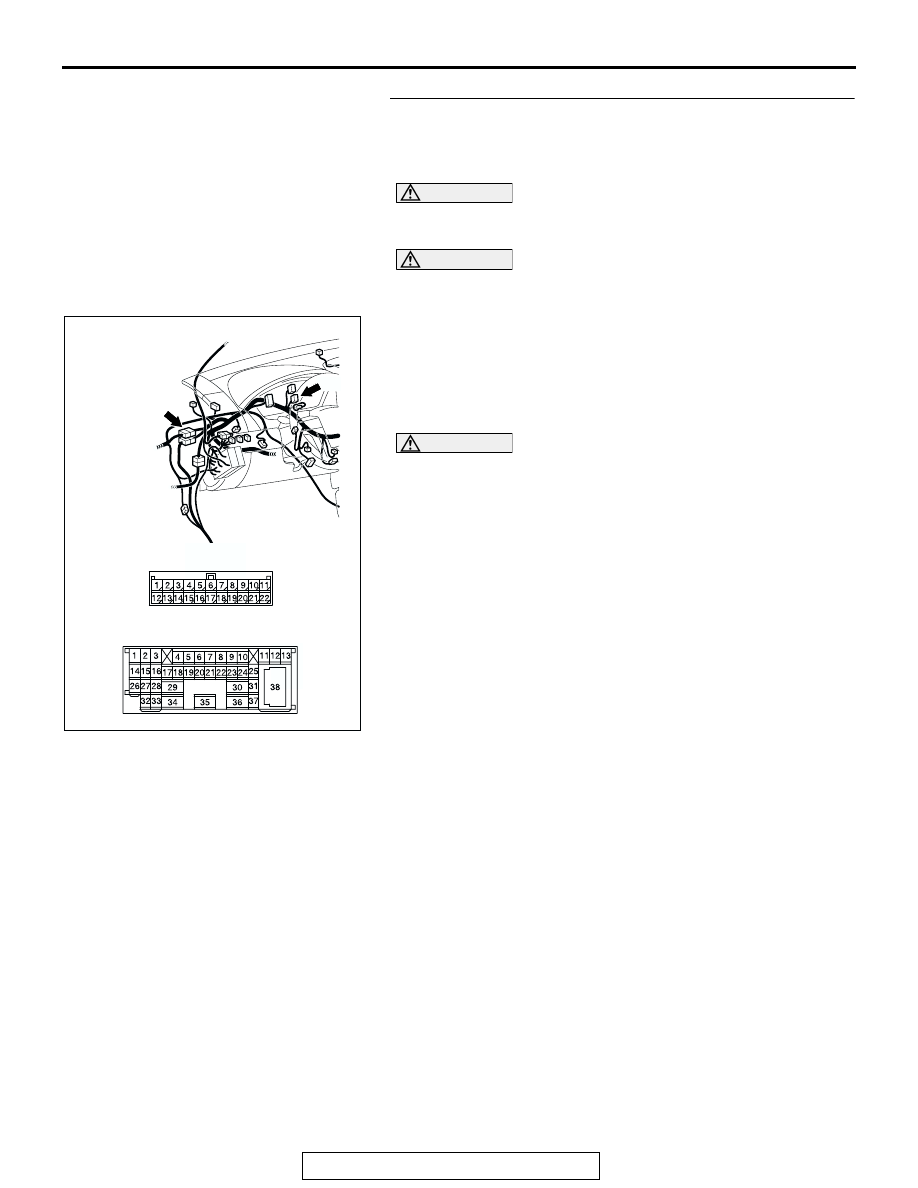

STEP 3. Check joint connector (3) C-02 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Is joint connector (3) C-02 in good condition?

YES : Go to Step 4.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC305231AP

CONNECTOR: C-02

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-589

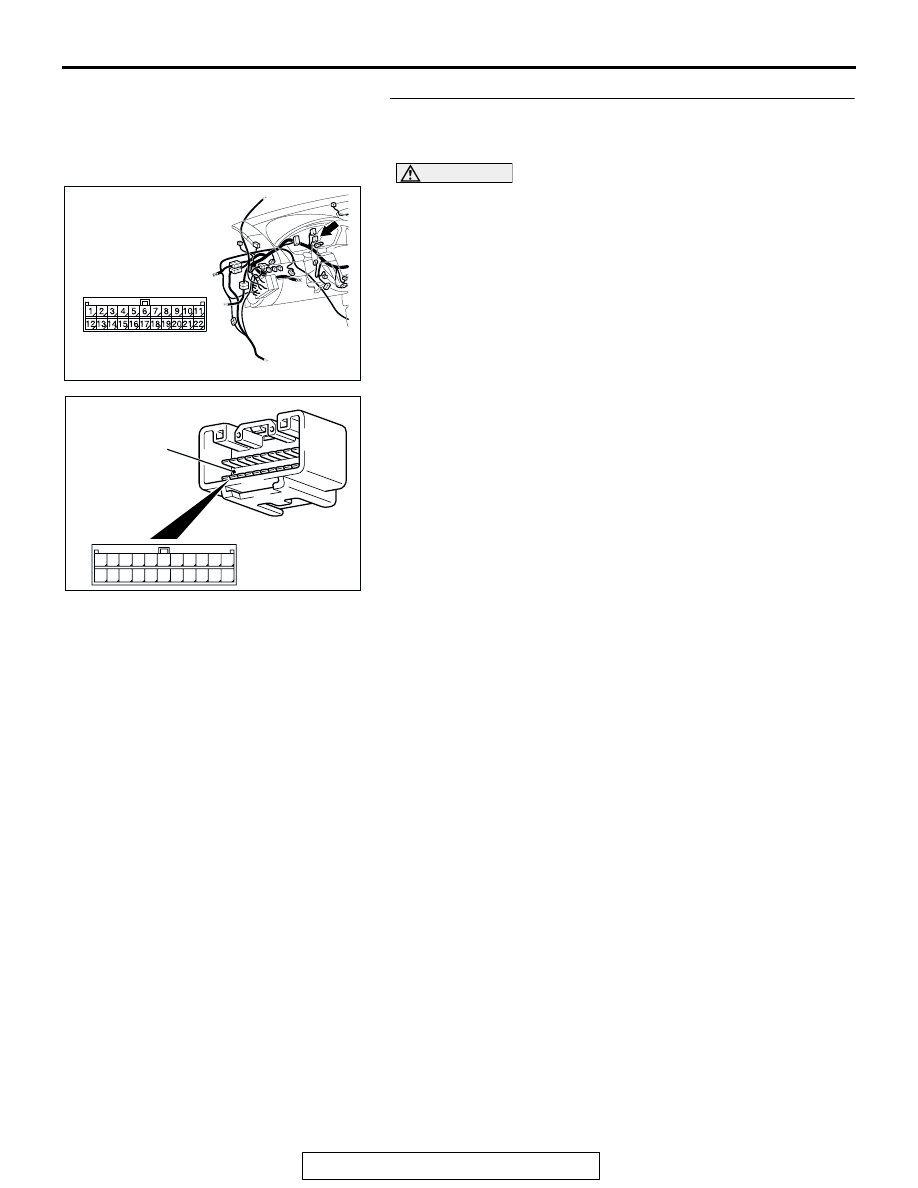

STEP 4. Check the CAN bus lines between intermediate
connector C-29 and the joint connector (3). Measure the
resistance between intermediate connector C-29 and joint

connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and intermediate

connector C-29, and measure the resistance between the
wiring harness side connector of joint connector (3) C-02
and the female side connector of intermediate connector
C-29 (instrument panel wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305232

CONNECTORS: C-02, C-29

AG

C-02

C-02

C-29

C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-590

(4) Measure the resistance between intermediate connector
