Mitsubishi Galant (2004+). Manual - part 452





DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-419

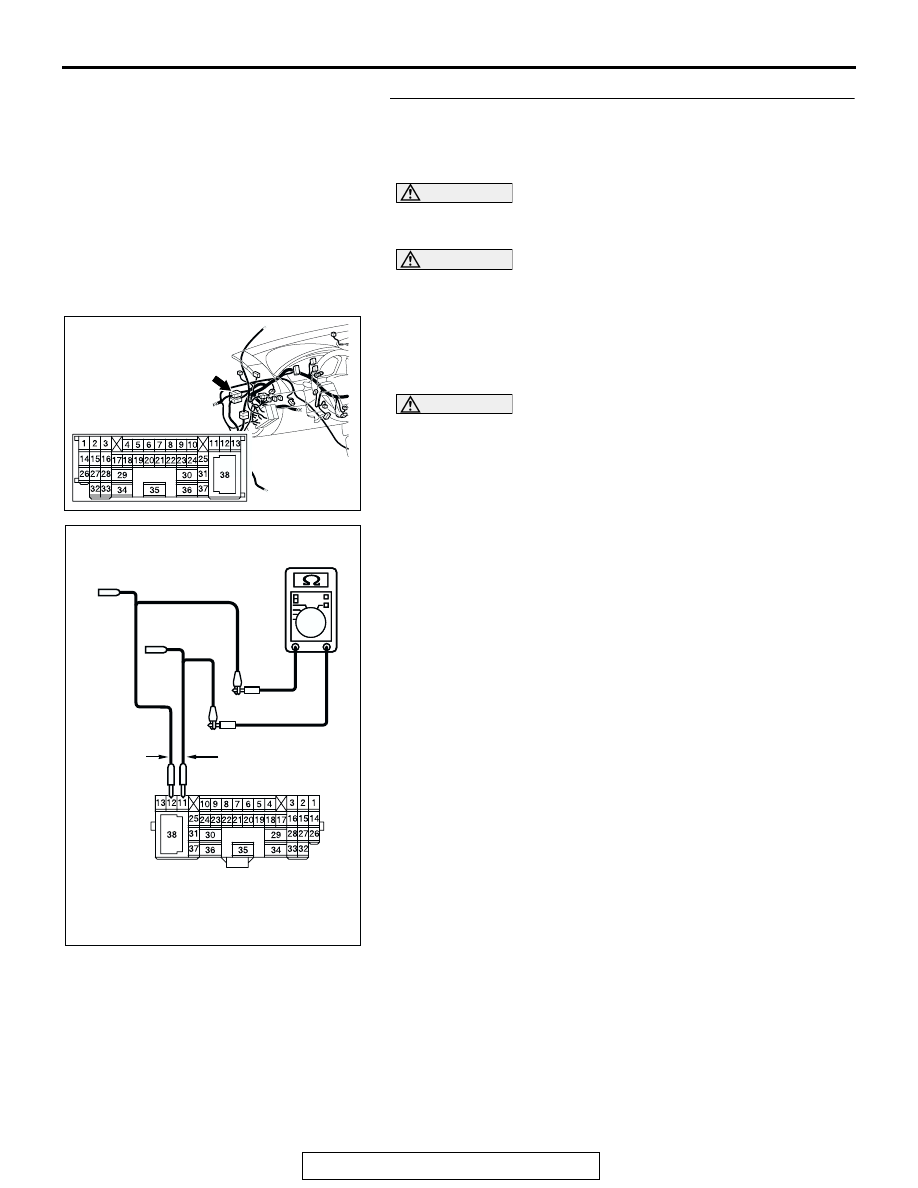

STEP 2. Check the instrument panel wiring harness side
CAN bus lines (communication line including the
combination meter). Measure the resistance at

intermediate connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at its female side connector (instrument panel
wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminals 11 and 12.

OK: 120

± 20

Q: Does the resistance measure 120

± 20 ?

YES : If the resistance measures 120

± 20 Ω, go to Step 8.

NO :  If the resistance does not measure 120

± 20 Ω, go to

Step 3.

AC305231AI

CONNECTOR: C-29

AC204582

AC204582CZ

TEST
HARNESS

TEST
HARNESS

FEMALE SIDE: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-420

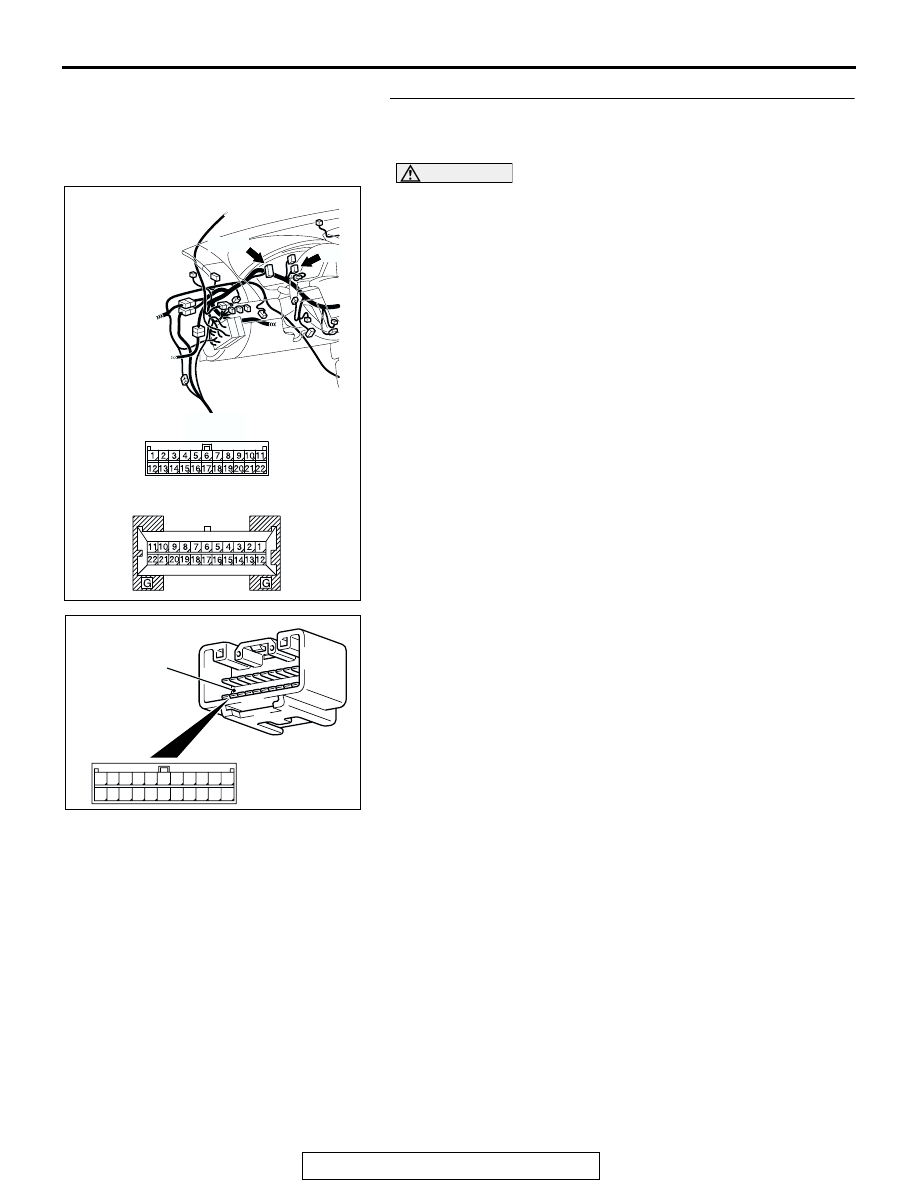

STEP 3. Check joint connector (3) C-02 and combination
meter connector C-101 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Are joint connector (3) C-02 and combination meter

connector C-101 in good condition?
YES :
Go to Step 4.
NO :  Repair the damaged parts. Replace the joint

connector as necessary. Then go to Step 2.

AC305232

HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

AE

C-02

C-02

C-101

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-421

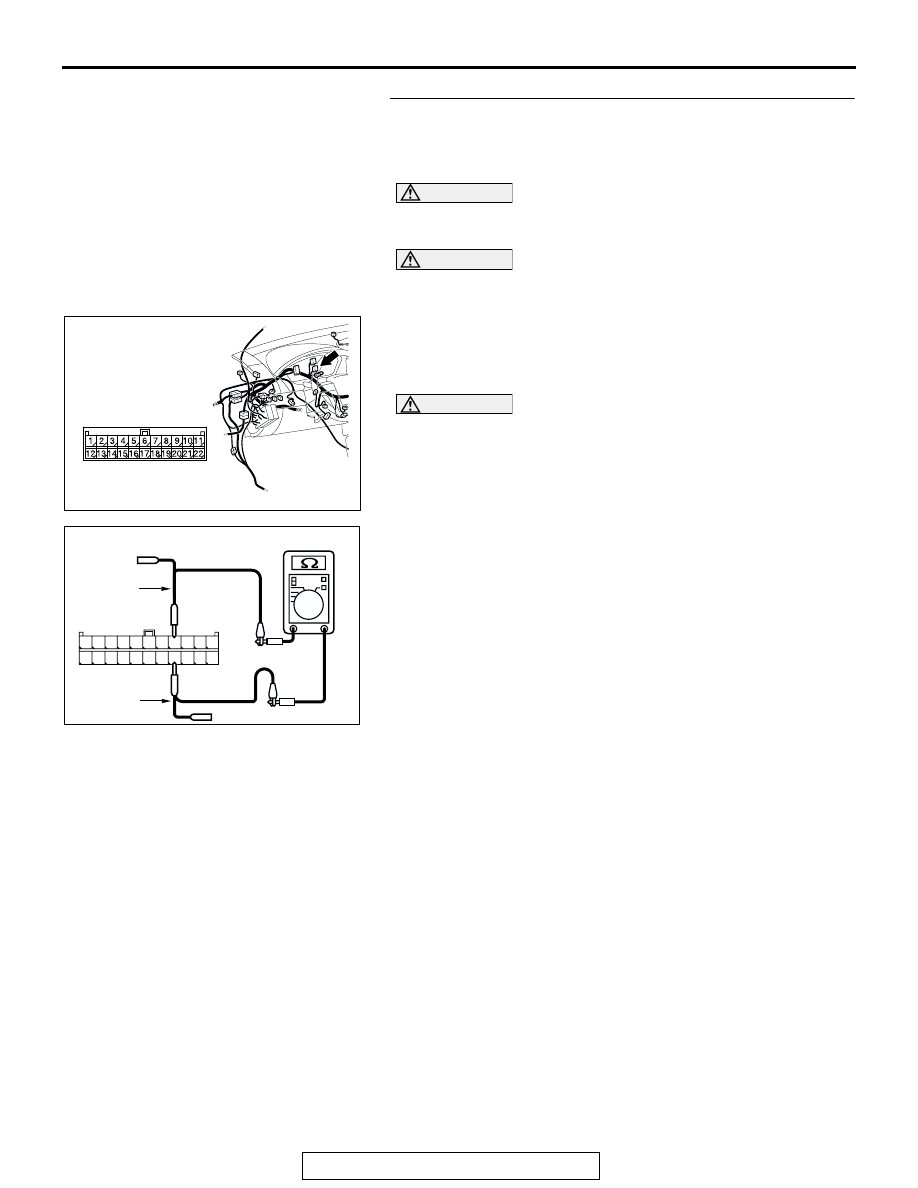

STEP 4. Check the CAN bus lines (communication line
including the combination meter) between joint connector
(3) and the combination meter. Measure the resistance at

joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminals 4 and 15.

OK: 120

± 20

Q: Does the resistance measure 120

± 20 ?

YES : If the resistance measures 120

± 20 Ω, go to Step 7.

NO :  If the resistance does not measure 120

± 20 Ω, go to

Step 5.

AC305231AP

CONNECTOR: C-02

AC209438

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

AX

TEST
HARNESS

HARNESS SIDE: C-02

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-422

STEP 5. Check the CAN bus lines (communication line
only) between joint connector (3) and the combination
meter. Measure the resistance at joint connector (3) C-02

and combination meter connector C-101.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and combination meter

connector C-101, and measure the resistance between
each wiring harness side connector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305232

HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

AE

C-02

C-02

C-101
