DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-243

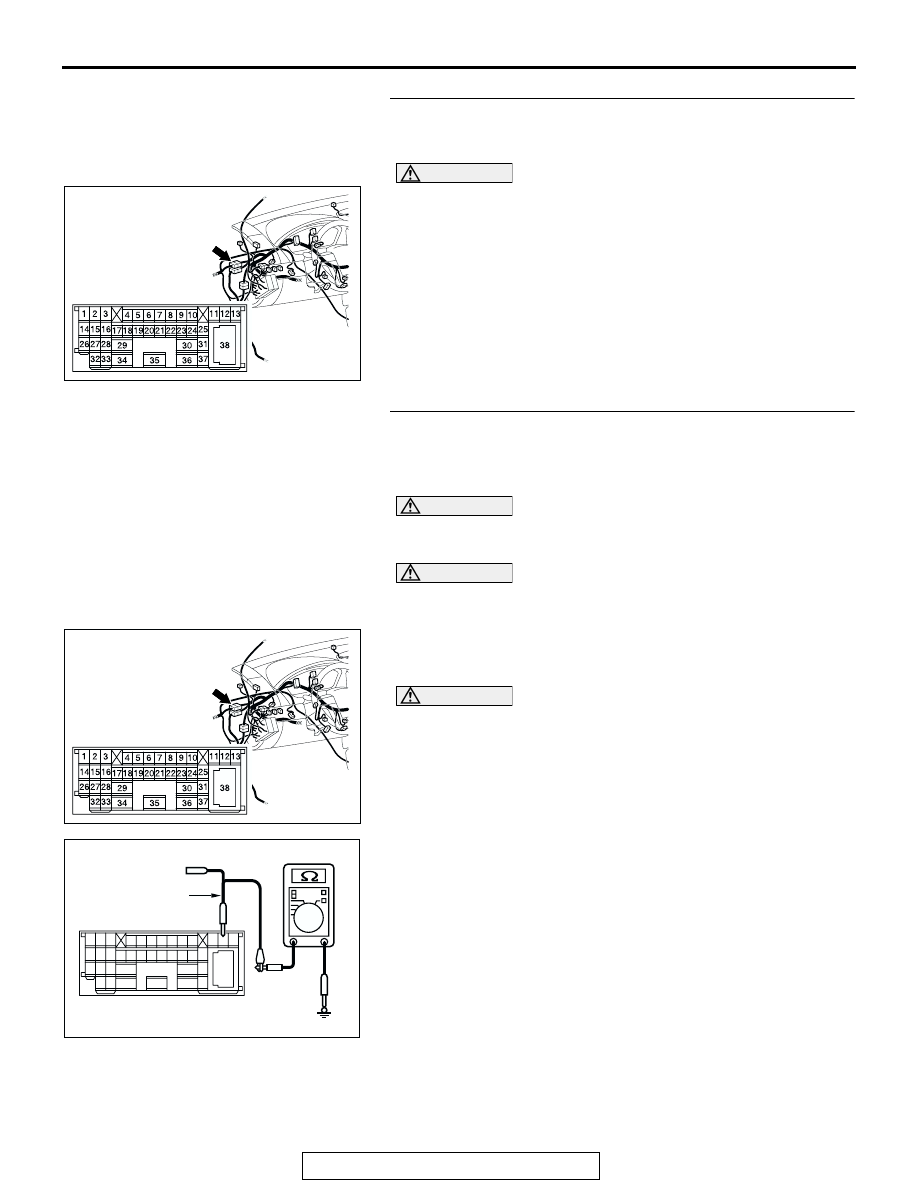

STEP 27. Check intermediate connector C-29 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is intermediate connector C-29 in good condition?

YES : Go to Step 28.
NO :  Repair the damaged parts.

STEP 28. Check the CAN_L-side bus line (communication
line including ECUs) of the front wiring harness for short
to ground. Measure the resistance at intermediate

connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at the male side (at front wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminal 12 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

29   .

NO :  If the resistance measures less than 1 k

Ω, go to Step

46.

AC305231AI

CONNECTOR: C-29

AC305231AI

CONNECTOR: C-29

AC209364

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

MALE SIDE: C-29

TEST HARNESS

GA

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-244

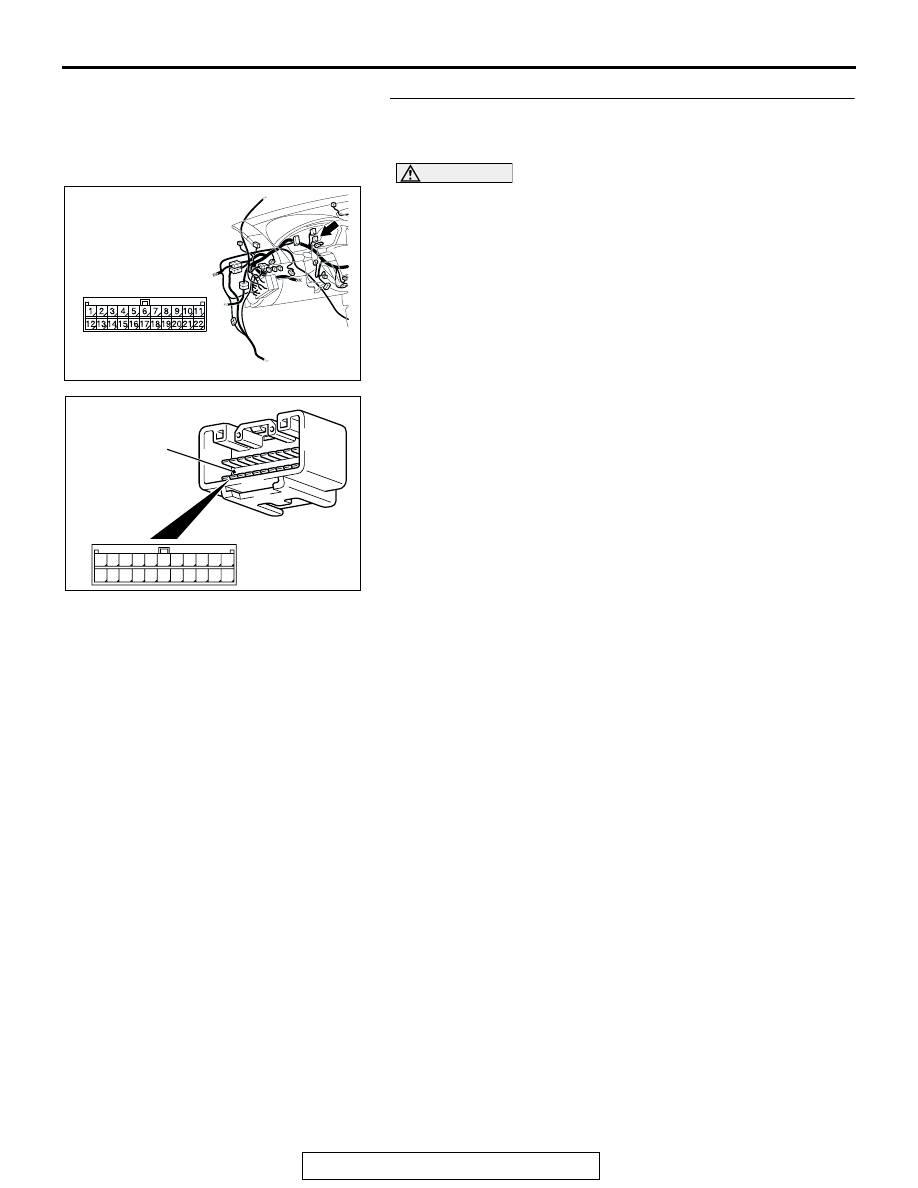

STEP 29. Check joint connector (3) C-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Is joint connector (3) C-02 in good condition?

YES : Go to Step 30.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC305231AP

CONNECTOR: C-02

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-245

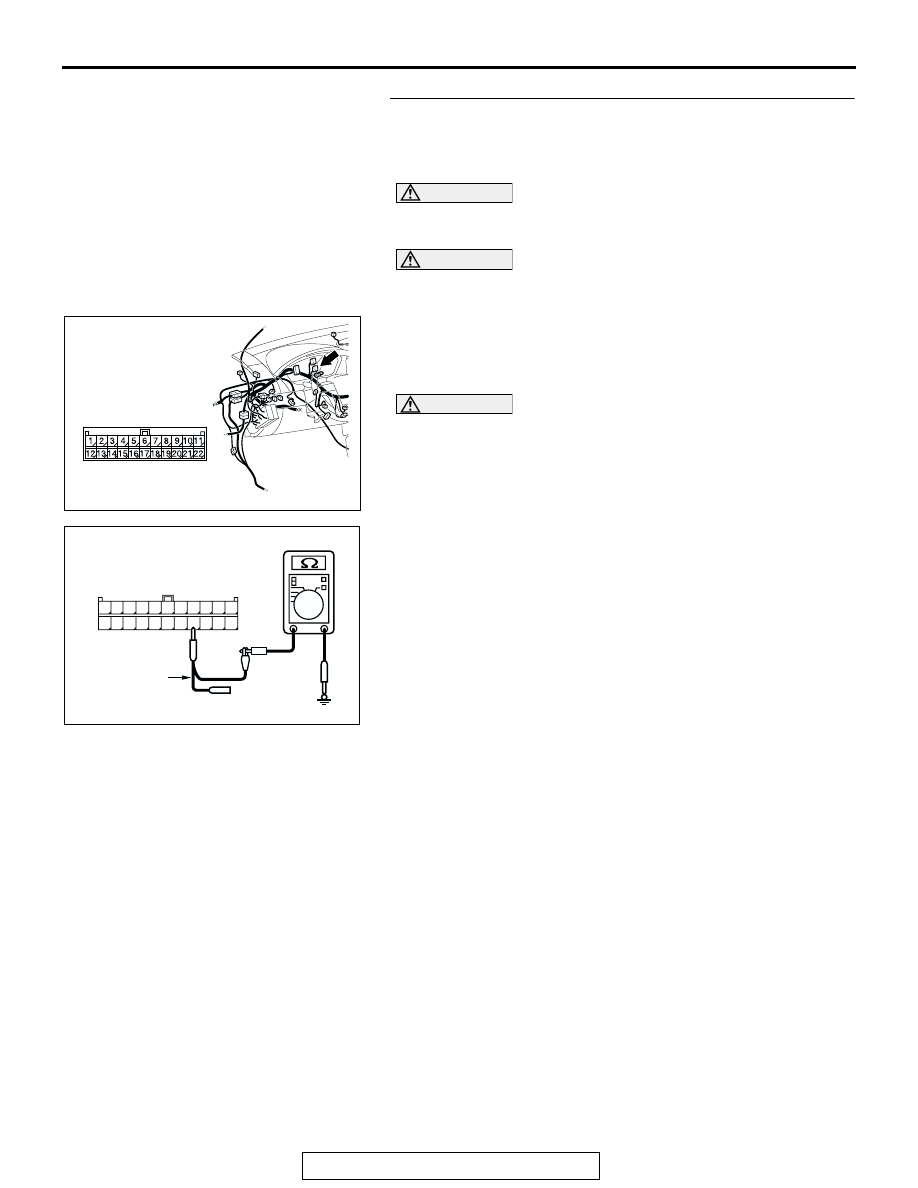

STEP 30. Check the CAN_L line (communication line
including the combination meter) between joint connector
(3) and the combination meter connector for short to

ground. Measure the resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 15 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

32   .

NO :  If the resistance measures less than 1 k

Ω, go to Step

31.

AC305231AP

CONNECTOR: C-02

AC209364IG

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

HARNESS SIDE: C-02

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-246

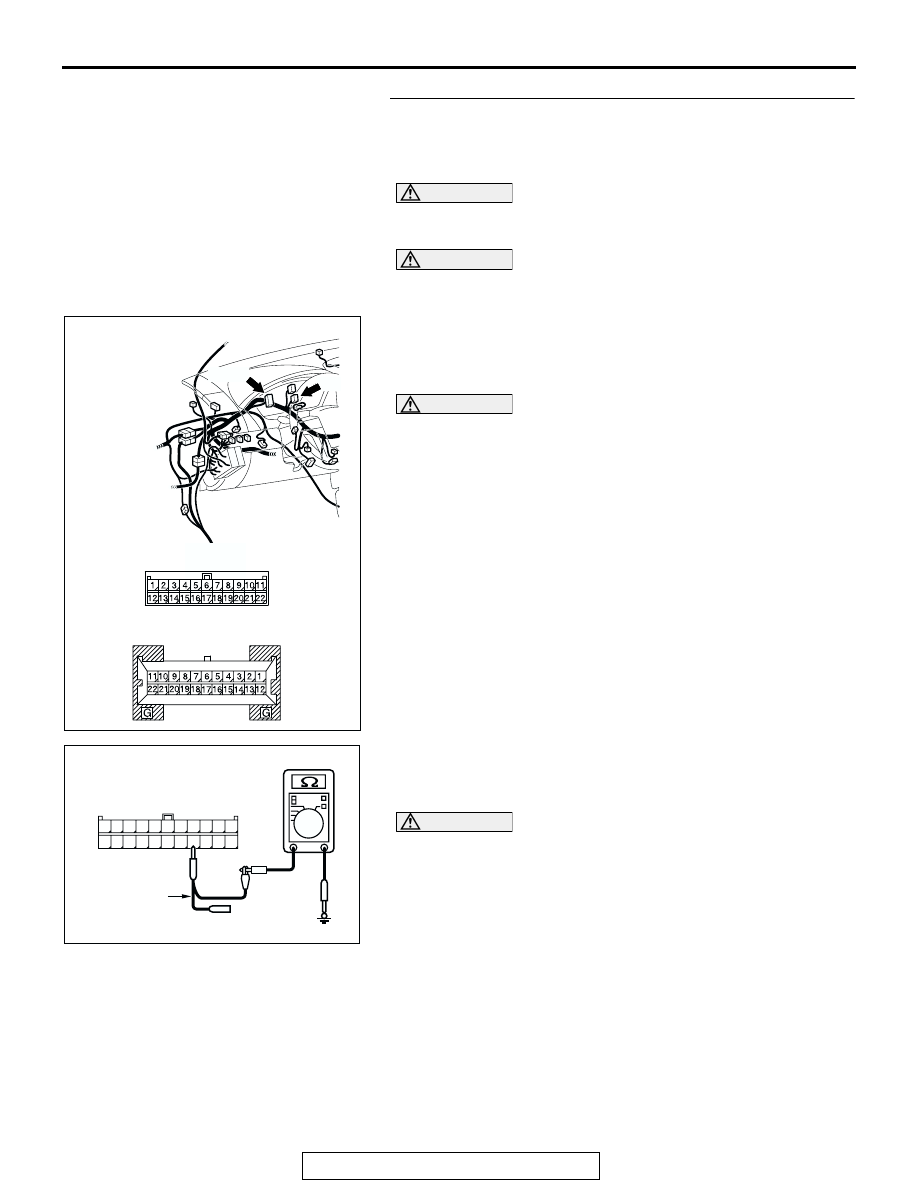

STEP 31. Check the CAN_L line (communication line only)
between joint connector (3) and the combination meter
connector for short to ground. Measure the resistance at

joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and combination meter

connector C-101, and measure the resistance at the wiring
harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 15 and body ground.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-498

.

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between joint connector (3) and the
combination meter connector.

AC305232

HARNESS SIDE

C-101

CONNECTORS: C-02, C-101

AE

C-02

C-02

C-101

AC209364IG

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

HARNESS SIDE: C-02

TEST
HARNESS
